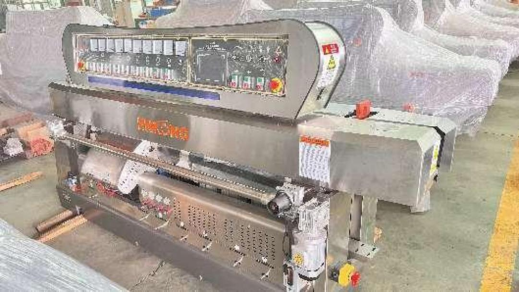

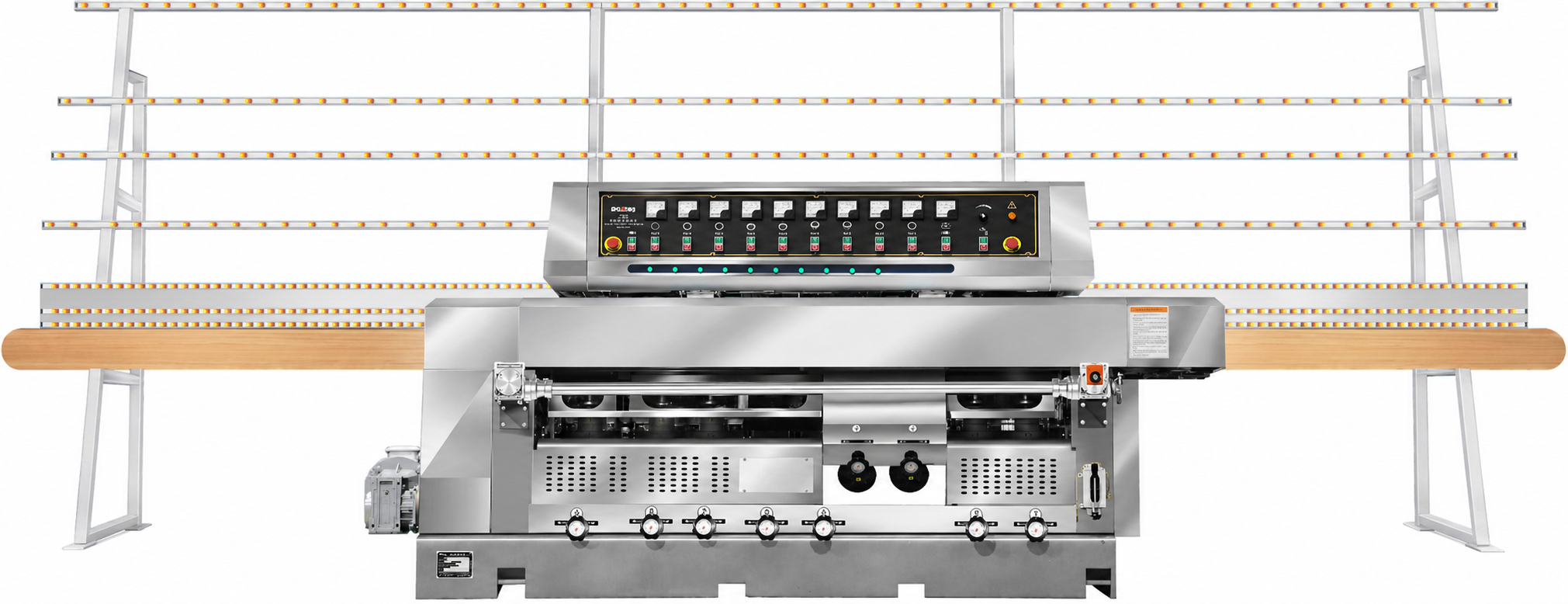

The ZM9 glass straight-line edging machine is designed for grinding straight edges and 45° arrises on flat glass of various sizes and thicknesses, with rough grinding, fine grinding and angle forming completed in one pass. It features a specially designed in-feed section for easy glass removal control, independent wool felt wheels with cerium oxide for bright finishes, and timing belt conveyors for high transmission precision. With synchronous front arris head movement, reliable ABB/Schneider electrical components and a full lubrication system, it supports continuous processing of same-thickness glass and can form a complete production line for glass shower doors. It offers three operation modes: manual, digital display, and PLC control with touch screen and pneumatic polishing.
1. Itis used to grindingstraight edgesonaflatglass&45arrisesofdifferentsizesandthicknesses.Therough grinding, precise grinding, and angel making can befinished atonetime.
2. Aspecial design ofthe in-feed section for controlling the desiredamountof glass removal without adjusting each spindle individually.
3. (Independent wool felt wheel + the cerium oxide ) make theflatedge moreshining.
4. Input and output conveyor adopt timing belt which canimprove thetransmission precision.
5. Whenadjustingdifferent processing thicknesses,theformerarrisgrindingheadcanmovesimultaneouslyalong with the front beam.
6. The electrical elements with famous ABB/Schneider brand.
7. All mechanical feeding parts with lubricating system.

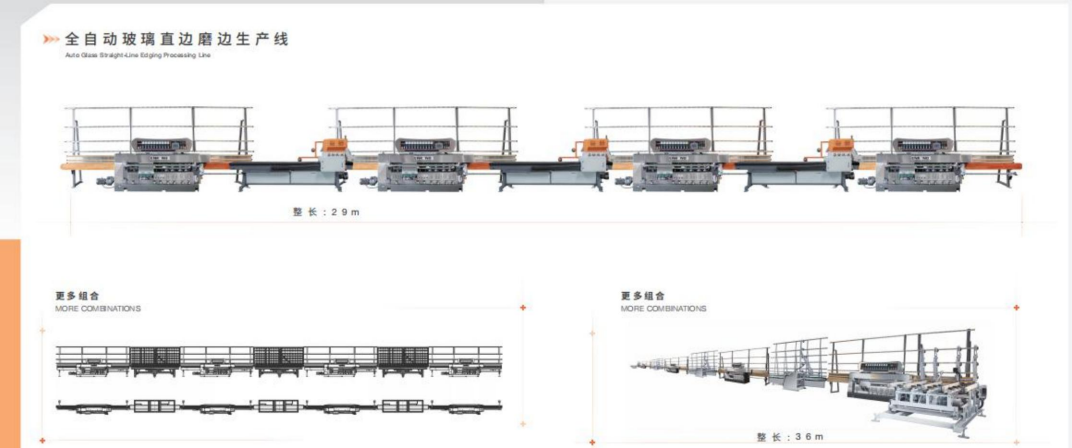

8. It can continuously process for the samethicknesswithdifferentsizes.Itcan becombineasverticaledging productionline.itmadeupby4setsofedgers+3setsofturningtable+1setofverticalwashingmachine. This production line is special for processing glassshowerdoors.
9. ZM9 Edger with three operation mode: Manual. DigitaldisplayandPLCControl+touchscreen+pneumaticpolishing(NO.4,6,8,9).
2.Parameter
Type
ZM9
ZM11
Spindles QTY
9PCS
11PCS
Min. Glass size
80*80mm
80*80mm
Processing glass thickness
3-25mm
3-25mm
processing speed
1.26-6.0m/min
1.26-6.0m/min
Weight
2800 KGS
3800KGS
Installationpower（kw）
19.08kw
22kw
Occupied size（mm）
6500*1400*2500mm
7920*1400*2500mm
Arris
45°
45°
3. Wheels arrangement

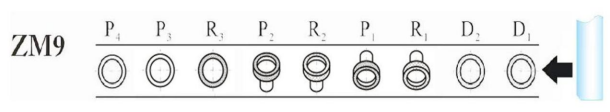

ZM9 Wheel arrangement
NO.
Wheels
Specification
Function
NO.1
Diamondwheel
Φ150×Φ121，00mesh
Rough grinding
NO.2
Diamondwheel
Φ150×Φ121，80mesh
NO.3
Resin wheel
Φ150×Φ122，40mesh
NO.4
l0S40wheel
Φ150×Φ70×30
Bottom grinding
NO.5
Resin wheel
Φ130×Φ12×10×10，240mesh
Arris grinding
NO.6
10S40wheel
Φ130×Φ60×35
NO.7
Resin wheel
Φ130×Φ12×10×10，240mesh
NO.8
10S40wheel
Φ130xΦ12x10x10，240mesh
Flat edge polishing
NO.9
CE3/Wool felt wheel
Φ150×Φ70×30
Bottom grinding

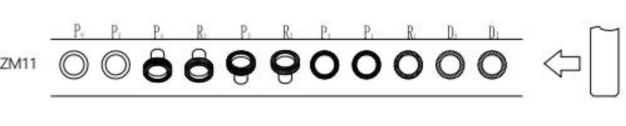

ZM11 Wheel arrangement
NO.
Wheels
Specification
Function
NO.1
Diamondwheel
Φ150×Φ121，00mesh
Rough grinding
NO.2
Diamondwheel
Φ150×Φ121，80mesh
NO.3
Resin wheel
Φ150×Φ122，40mesh
NO.4
10S40wheel
Φ150×Φ70×30
NO.5
10S60wheel
Φ150×Φ70×30
NO.6
Resin wheel
Φ130×Φ12×10×10，240mesh
Arris grinding
NO.7
10S40wheel
Φ130×Φ60×35
NO.8
Resin wheel
Φ130×Φ12×10×10，240mesh
NO.9
10S40wheel
Φ130xΦ12x10x10，240mesh
NO.10
CE3/Wool felt wheel
Φ150
Flat edge polishing
NO.11
CE3/Wool felt wheel
Φ150

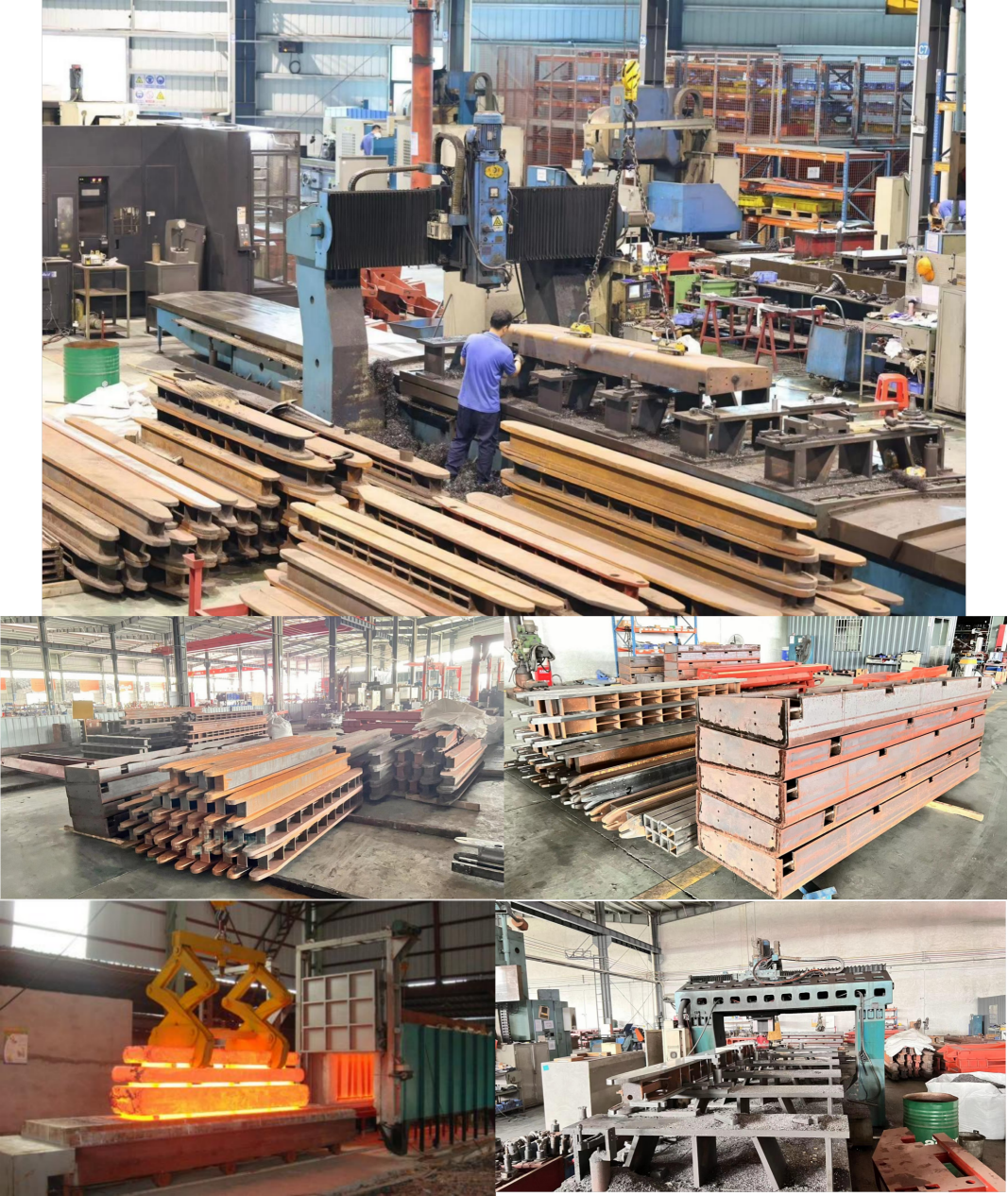

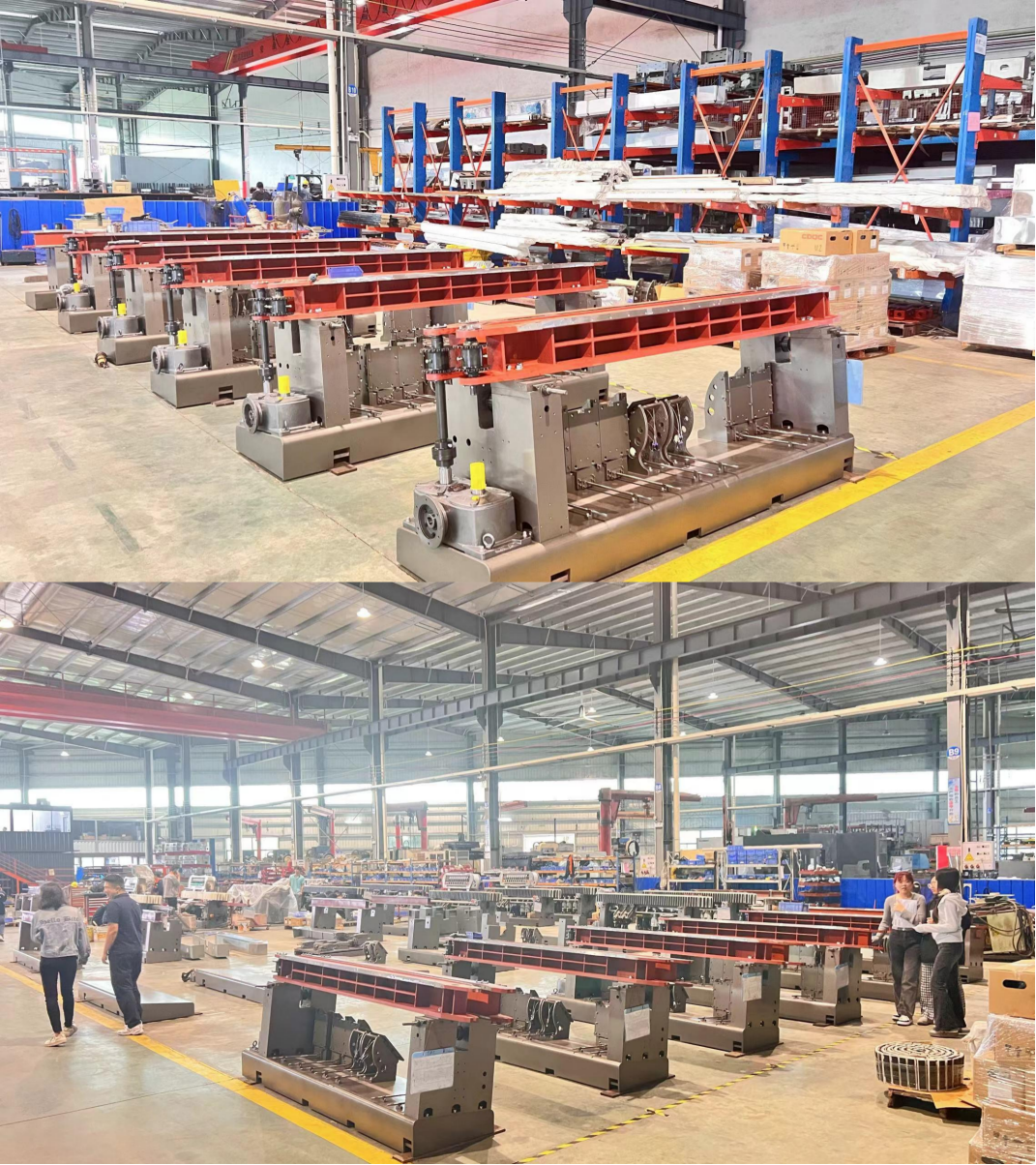

5.The processing center for processing mechanical parts
The front and rear reinforced casting girders,columns and basesare subjected to secondary heat treatment ，so that the welding parts have a qualitative change, which can strengthen the hardness and make the machine more durable. Spare parts are processed by CNC gantry machining center,which reduce the cumulative tolerance of the whole assembly and improve the precision of edge grinding.

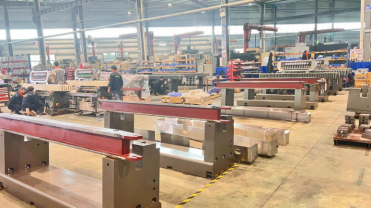

6.The edging assemble workshop

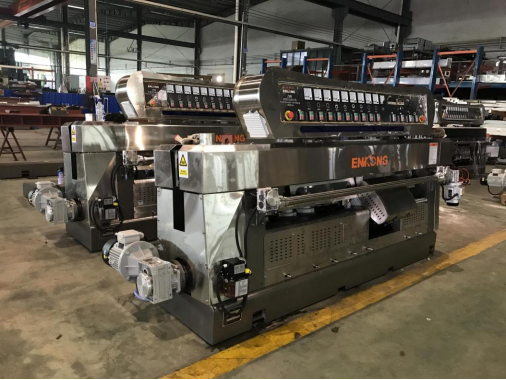

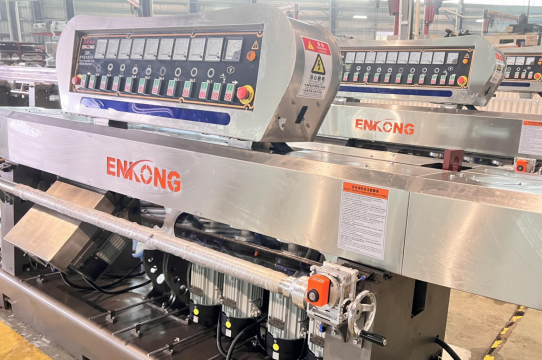

7 The close-up photos and description of edger
The lathe of edger, after grinding, milling ,drilling ,painting . the beams of edgers

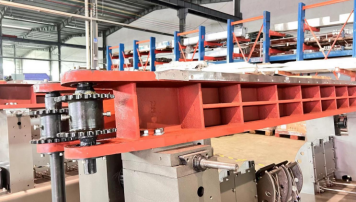

Adopt reinforcement design to prevent beam deformation.the beams with anti-rust painting.

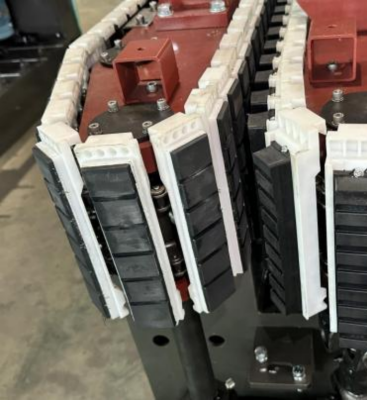

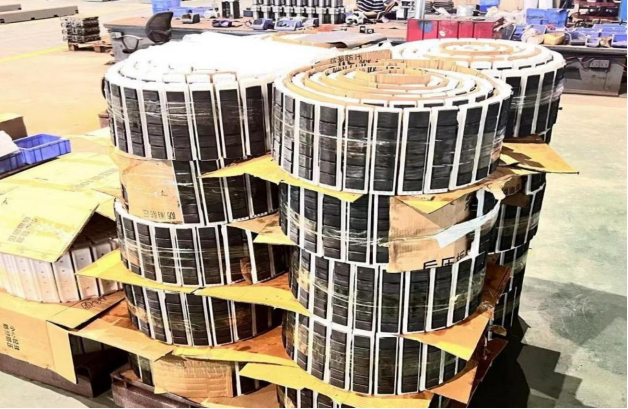

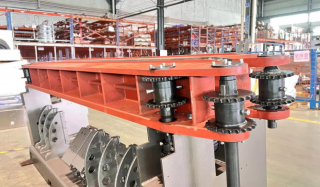

The front and rear chain plates adopt double chains plus suspension structure, the clamping force is constant,easy to load and unload.

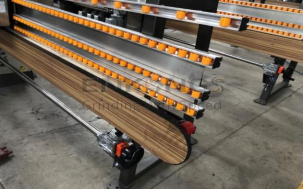

Lifting structure for adjust the grinding amount of glass .easy to operate. With timing belt for loading glasses;
The processing speed controlled by Step-less motor, But it can be upgrade as Frequency conversion by option.

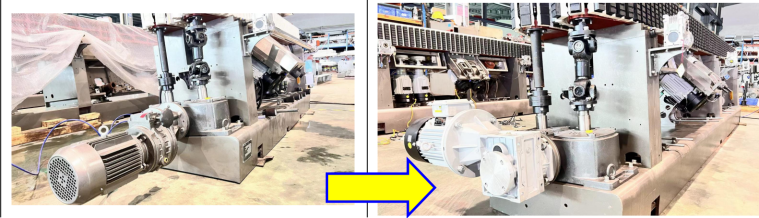

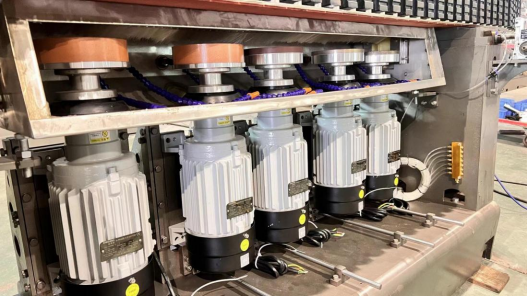

Using the CDQC grinding motors.

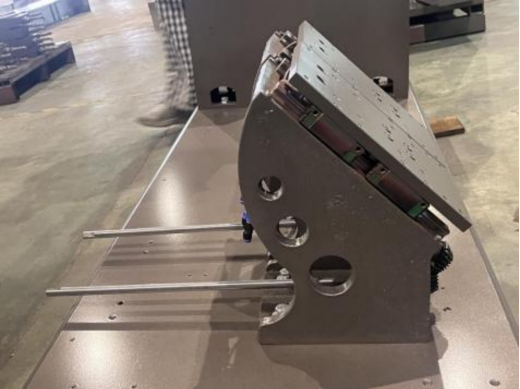

The front and rear corner dubbing motor dragging plate adopts linear sliding friction guide rail with adjust movement smoothly;
Lubrication system on every movements connections.

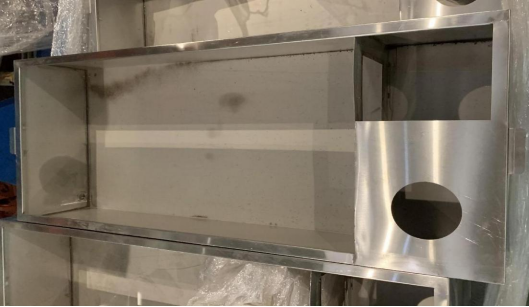

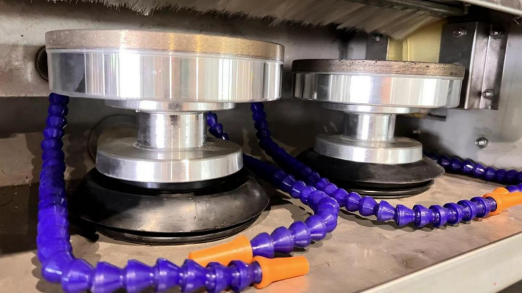

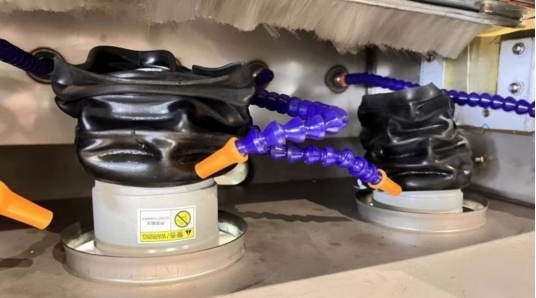

The water tank for wheels are uses stainless steel ，stamped and formed, without welding,without cracks, more waterproof and the surface is smooth; each wheel is equipment two pcs of water pipes for cooling;
The watering with two pcs of stainless steel water tanks. One is for clear water (No.1-8 wheels). and the other one is for NO.9 (working with cerium)

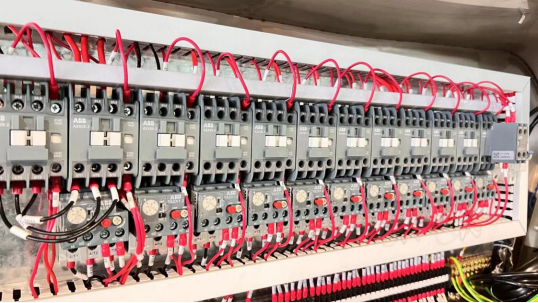

The electrical elements using ABB /Schneider. The quality is reliable.

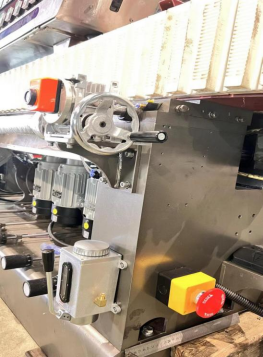

It adopts a hand wheel to adjust the glass thickness,which is suitable for the straight-line edging machine only.

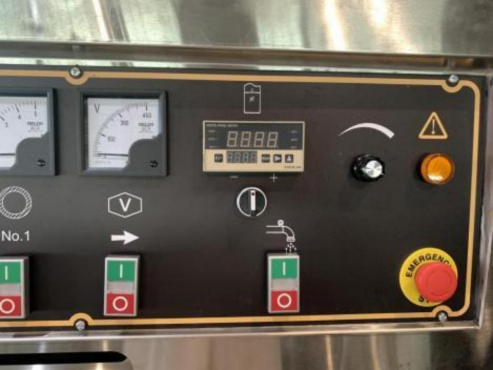

There has digital meter on machine panel to adjust the glass thickness. You just need to increase or decrease the parameter you need by the relative switch, then machine can be adjust automatically.

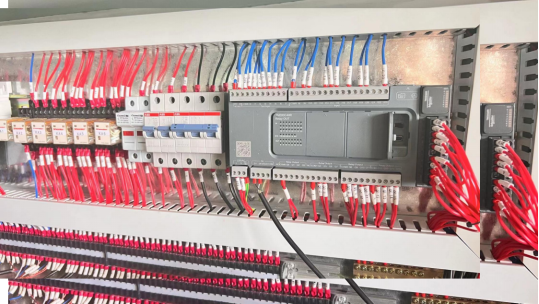

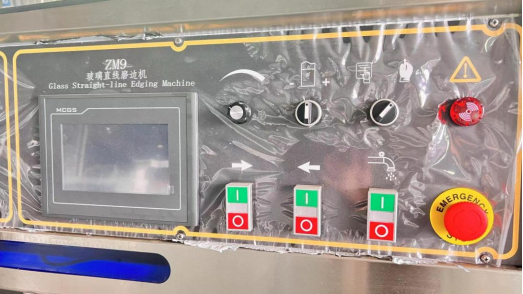

Adopt Schneider Electric PLC and touch screen you can input the parameter you need and machine will adjust automatically.

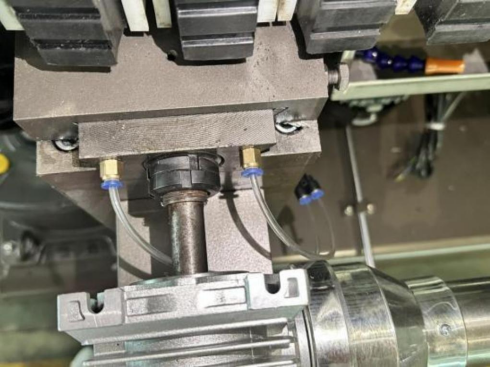

NO.4,6,8,9 will adopt the pneumatic polishing. The machine will showing the location of glasses during processing.

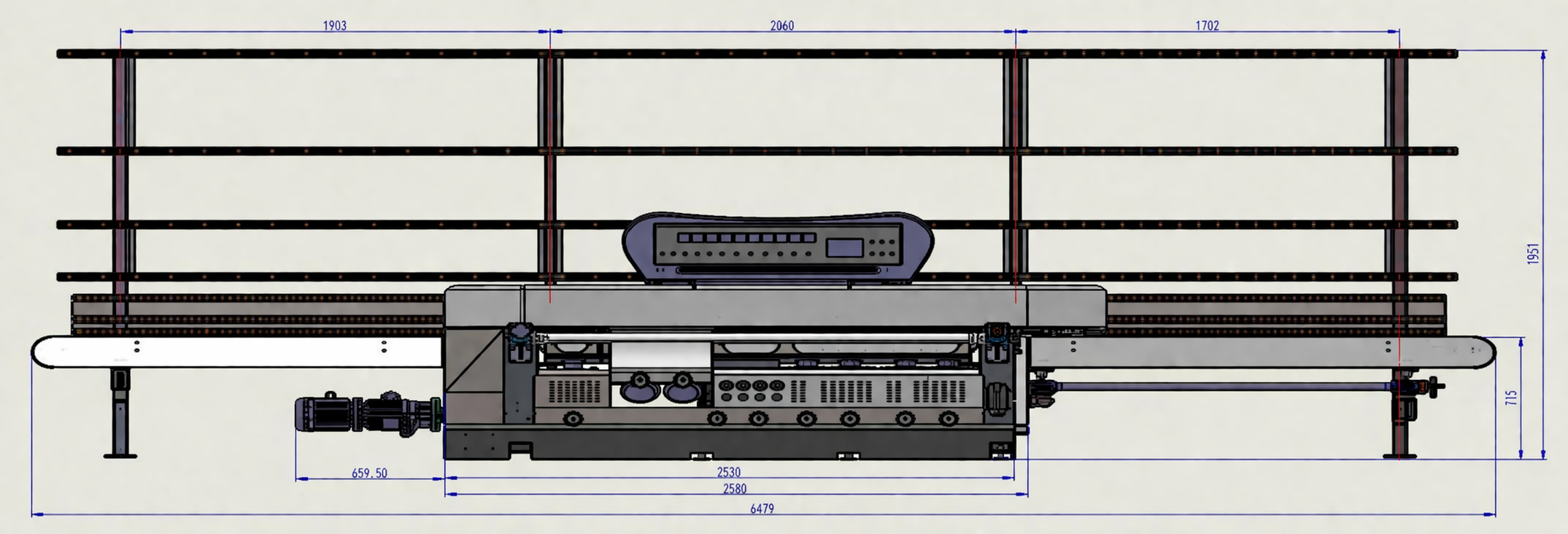

Lay-out of ZM9 Edger

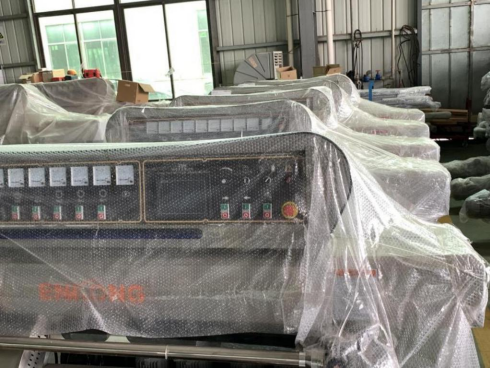

The machines are packed with film.

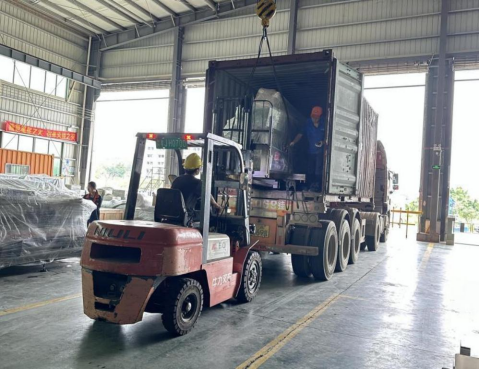

20GP Container can load 2sets ;40GP Container can load 6sets
The line can processing 3pcs/min.
The glass can be rotated by 90degree, no need operator rotate the glass side by hand.
It can be continue processing different sizes and same thickness glasses sheets
It also can processing the shaped glasses.
The glass vertical edging production line can be custom-made according to factory’needs.
