This glass edging machine is equipped with a PLC control system, featuring pre-stored parameters, laser positioning, automatic monitoring, automatic process adjustment, and one-button start/stop functions. It is fully intelligent and operates automatically.
Equipped with dual protection devices for overload protection and emergency stop, ensuring a high safety factor of the glass edge polishing machine.

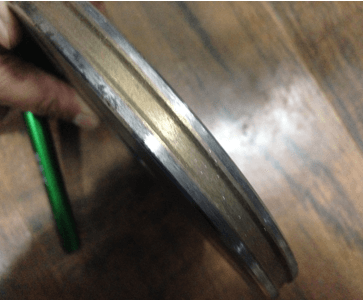

It is equipped with three types of grinding wheels: diamond grinding wheel, resin grinding wheel, and polishing grinding wheel, integrating coarse grinding, fine grinding, and polishing functions.
The servo motor and precision guide rails ensure that the glass edges ground by the glass edge polishing machine are smooth, with an error of less than 0.1 millimeters.
It is equipped with an internal water circulation system, which is highly efficient and energy-saving.
The body is made of fire-resistant cast iron, with strong resistance to deformation.
The 45° glass beveling polishing machine is a professional glass processing equipment, specifically designed for grinding, polishing and 45-degree chamfering of glass edges. It is widely used in the production processes of architectural glass, furniture glass, automotive glass, mirrors or windows.
2.Structure
Items
Description
Adopt Siemens PLC that makes the machines stable.
Adopts the quality front & rear pads to ensure the glass transmission more stable.
All the main electric parts adopt the famous Schneider brand to drive the machine more stable and durable.
The front beam is hanging with 7 motors. A strong pillar in middle to make sure front beam indeformable even with heavy bearing.
Gears adopts the famous brand ensure the transmission more stable.
Adopts the famous encoder to ensure the glass thickness display more precision.
Adopt the frequency inverter for adjusting speed to ensure the machine working more stable while processing.
We adopt Aluminium fluency strips instead of iron frame that brings the glass transmission more stable, durable for use and looks more beautiful.
Adopt the high quality timing belt to convey the glass,
Lifting device of the input guide rail, easy to adjust the grinding amount.
Lubricating system with oil pump to keep spindles are always in lubrication state, better for maintenance.
The water system adopts the big and long quality stainless tube to ensure the good water circulation and with a nice looking.
Water sink is made of stainless panel with 1.8mm thickness.
Adopt the full enclosed safety cover to protect the workers during the machine running.
Independent wool felt wheel with cerium oxide for polishing
Place emergency stop device on the bottom of the machine. totally 3 emergency stop devices on our machine.
Adopt 2 pcs of quality stainless steel waters. One for water circulation size in 1400 * 500mm. The other one for cerium polishing water thank with mixer function diameter in 600 * 600mm.
Grinding Head Group: Includes coarse grinding head, fine grinding head and polishing head, enabling the glass to complete the processes of coarse grinding, fine grinding and polishing in one go.
Transport System: Uses conveyor belts to transport the glass smoothly on the glass beveling polishing machine.
PLC Digital Display Screen: Support the import of drawings, parameter settings and pre-stored parameters into the glass edging machine.
Cooling System: Comes with a water circulation cooling system, which can prevent the glass from cracking due to high temperature and absorbing dust, and is clean and environmentally friendly.
3.Specfiction
45°Glass Mitering Glass Edging Machine
Max.Glass size
2500×2500mm
Min.Glass size
80×80mm
Glass thickness
3-25mm
Transmissinon speed
0.5-5m/min
Max.hemline grinding
3mm
Max. arris grinding
2.5mm
Working height
750mm
Power
21KW
Weight
3500kg
Land occupation
7800×1000×2500mm
glass diagonal error
≤0.5mm/m
glass parallelism error
≤0.3mm/m
Power
380V/50HZ or Customized
4.Picture

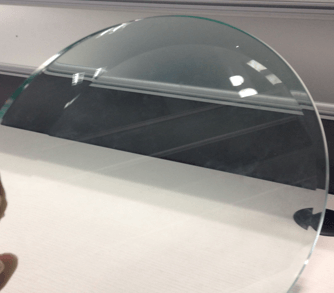

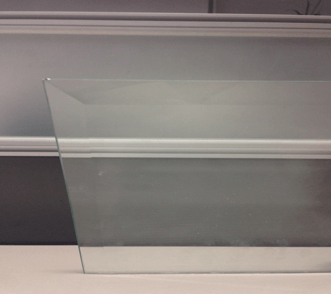

5.FAQ
1. Is this glass bevel machine easy to operate?
This glass edge grinding machine is equipped with a PLC touch screen interface. After importing the drawing or parameters, just press the button to start, and the machine can automatically position, adjust the speed and pressure to operate until the operation is completed.
2. What kinds of glass edge grinder can be produced?
It can grind smooth polished beveled edges and inclined edges.
