This glass straight line edging machine supports various irregular edge treatments, such as straight edges, rounded edges, wavy edges and triangular edges.
The position of the grinding disc, the grinding angle and the speed can all be adjusted, suitable for various edge grinding processes.
The dual grinding head linkage system ensures that the glass straight line edging machine can complete both rough grinding and fine grinding in one go. Compact structure, small floor area
It can be connected to the cleaning machine, achieving energy conservation and environmental protection.
The precise temperature control system can prevent the glass from cracking due to high temperature during the operation of the glass straight line edging machine.

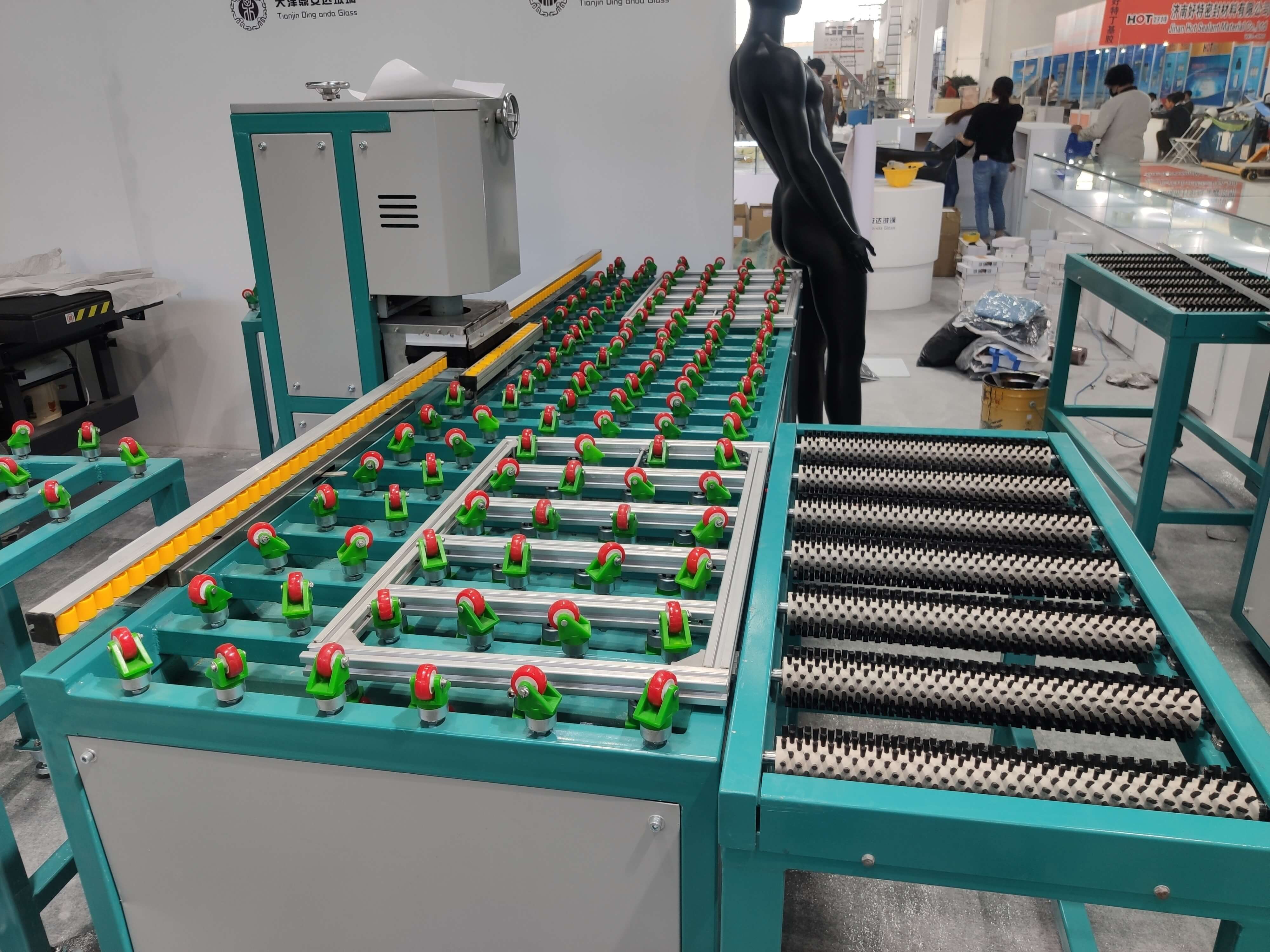

By using the expandable platform, it is suitable for different sizes of glass.

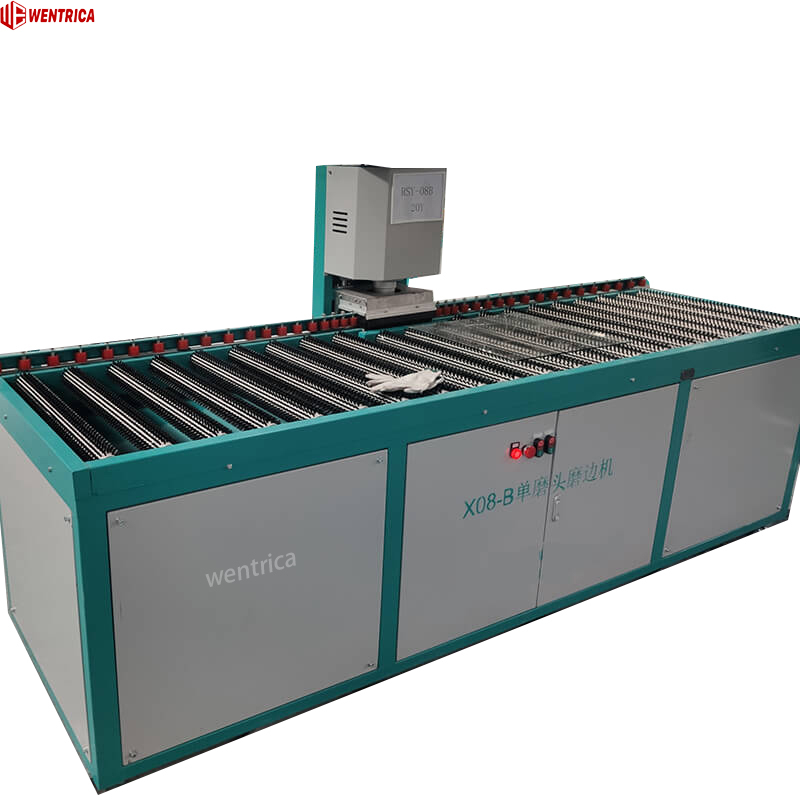

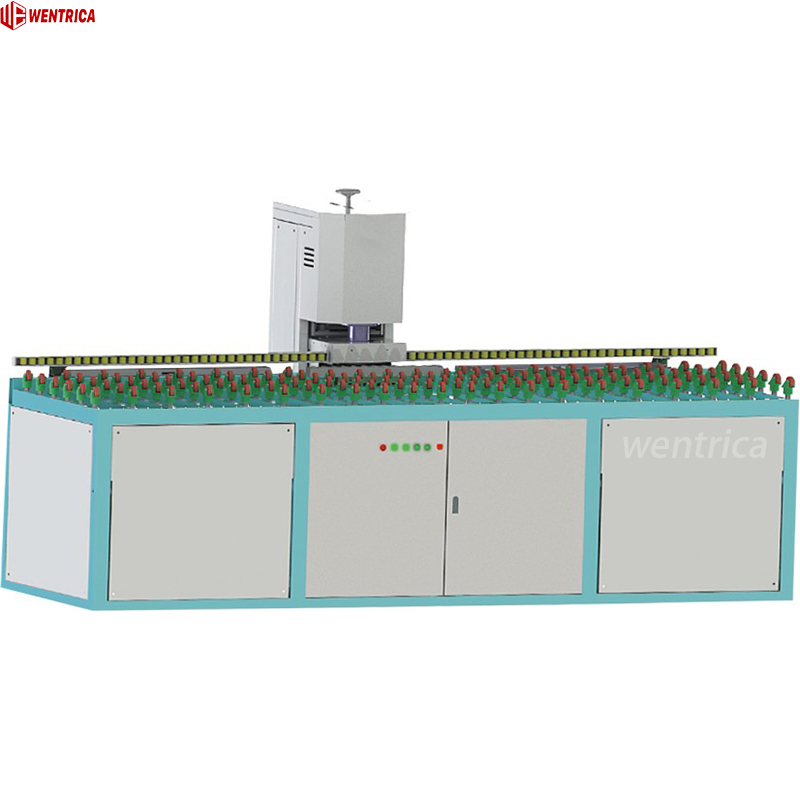

The TYRSY-08A/08B double-head glass straight line edging machine is an efficient and versatile glass edge polishing equipment.

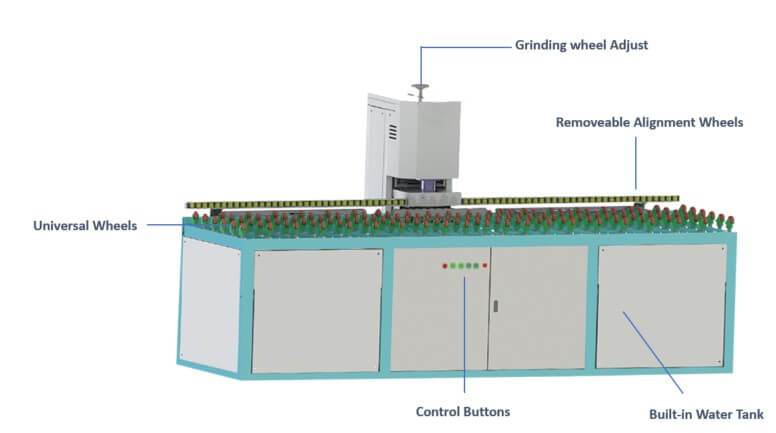

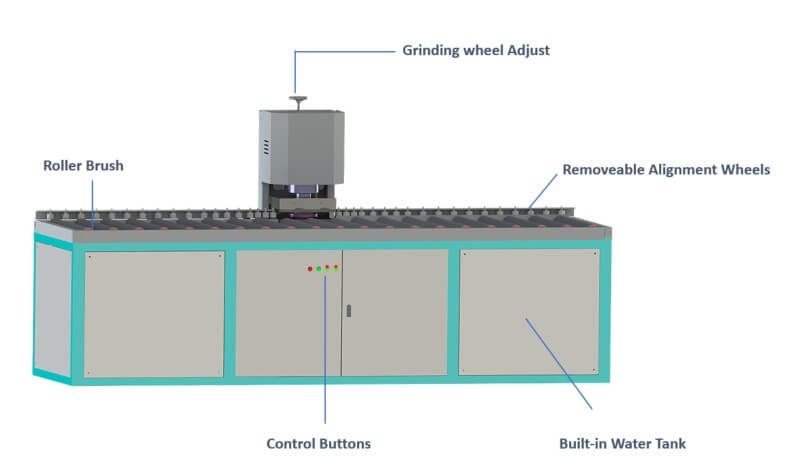

This device consists of a grinding wheel adjustment device, detachable alignment wheels, an internal liquid storage tank, control buttons, and universal wheels or brushes. It comes in two styles, namely 08A and 08B. The 08A model glass edging machine is suitable for general straight and round edge polishing processing, while the 08B model glass edging machine can handle irregularly shaped glass, such as triangles, arcs, waves, and various special curves. Moreover, the glass straight line edging machine can be seamlessly integrated with a glass cleaning machine and is an ideal solution for glass production lines.
2.Structure
Adjustable device
The grinding speed, angle, pressure, etc. of this glass straight line edging machine can be quickly adjusted. The grinding wheel replacement is fast, and it adopts an expandable universal wheel disc platform, which can be used for edge grinding of various sizes and thicknesses of glass.
Double grinding wheels
This glass straight line edging machine adopts a double grinding wheel structure (made of resin or diamond), which can complete the rough grinding and fine grinding processes at one time, with extremely high grinding accuracy, small errors, and high success rate of glass edge polishing.
3.Parameters
Model
RSY-08A
RSY-08B
Power
2.3KW
2.3KW
Overall size
2840*1250*850mm
2800*1250*850mm
Adaptive glass thickness
3mm-12mm
3mm-12mm
Minimum processing size
280*280mm
300*300mm
Maximum processing size
2000*2000mm
2000*2000mm
4.Application
5.FAQ
1. What are the main functions of this glass straight line edging machine?
Edge Grinding: Creates smooth, straight edges on glass sheets.
Polishing: Provides a clear, high-quality finish.
2. What is the maximum glass size and thickness supported?
The glass edging machine support various thicknesses (3–25mm) and large sheet sizes for industrial production needs.
