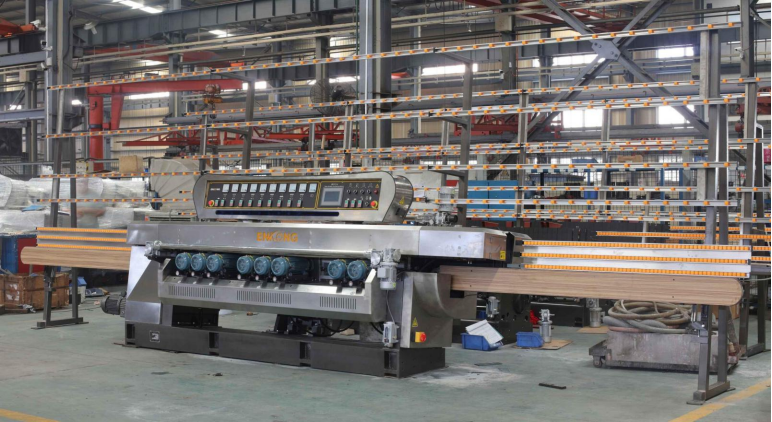

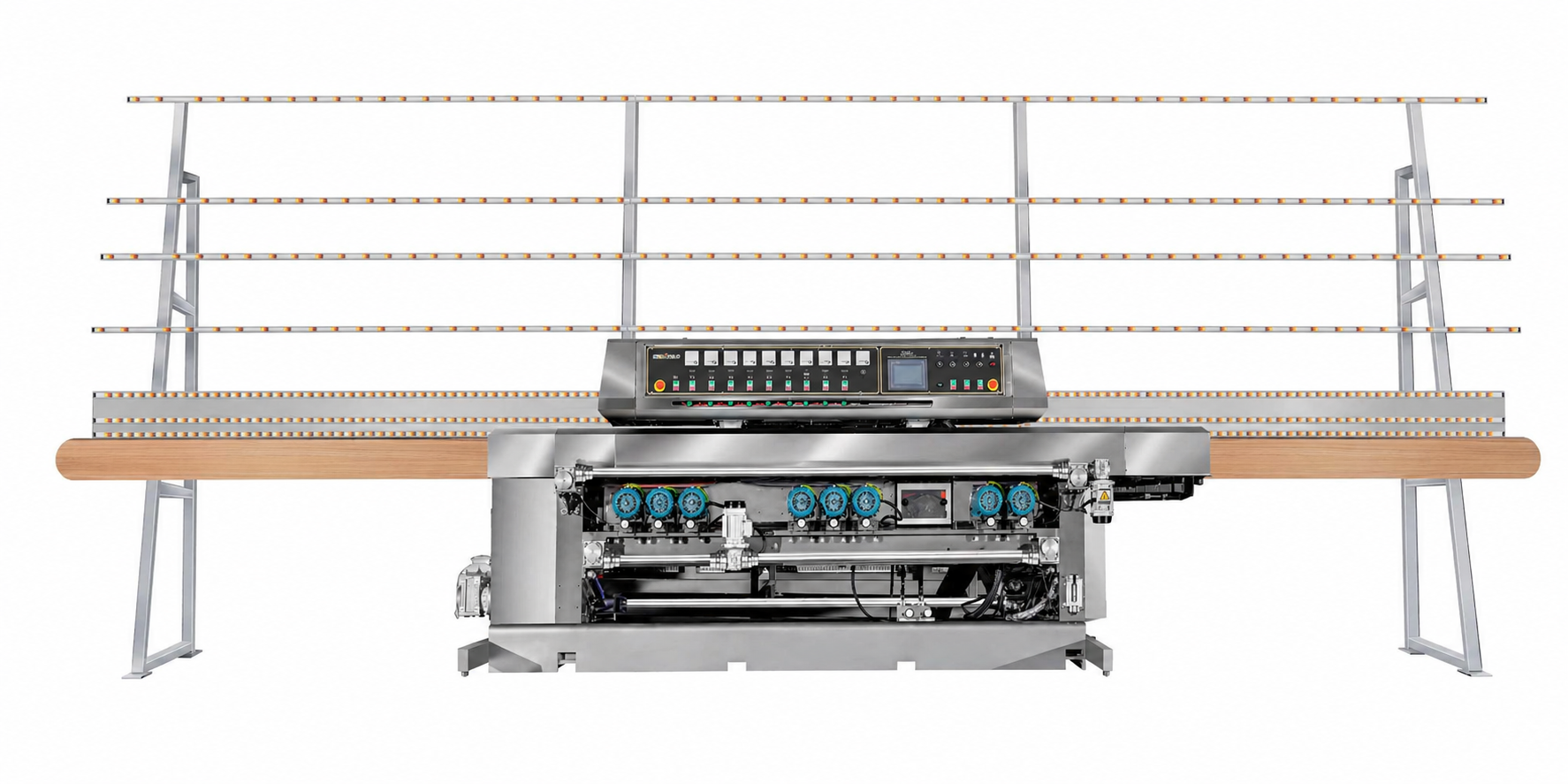

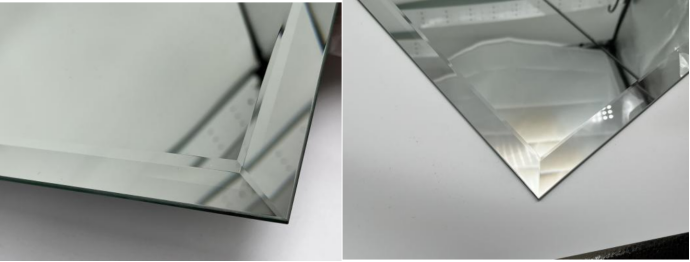

The XM351/XM351A/XM371 Glass Straight-line Beveling Machines are specifically designed for completing rough grinding, fine grinding, polishing of the bevel, and grinding of the bottom edge in a single operation on glasses with varying sizes and thicknesses. With their versatile processing capabilities, these machines can accommodate a wide range of glass specifications, making them an excellent choice for glass processing workshops and factories.
1.Versatile Processing: Suitable for grinding and polishing the bevel and bottom edge ofglasses of different sizes and thicknesses. Continuous processing ofglasses ofthe same thickness is also possible.
2.Adjustable Motor Feeding and Beveling Angle: The machines have easily adjustable motor feeding andbeveling angle settings, allowing seamless adaptation to changes in glass thickness. Finishedsurfaces havea
4.High Transmission Precision: Input and output conveyors utilize timing belts to improve transmissionprecision.
5.Adjustable Rear Beam (XM351A): The rear beam can be adjusted up and down, making the XM351Asuitable for processing small pieces ofglass. The XM351A can also be raised and adjusted for convenient
maintenance, with a minimum processing size of 30*30mm.
6.Premium Electrical Components: Electrical elements sourced from renowned brands such as ABB orSchneider ensure reliability and performance.
7.Lubrication System: All mechanical feeding parts are equipped with a lubrication systemforsmoothoperation and reduced wear.
The XM351 can grind bevel angles ranging from 3-30°
The XM351A/XM371 can grind bevel angles ranging from 3-45°
10.Adjustable Processing Speed: The processing speed is adjustable using a frequency conversion motor, allowing you to tailor the machine's performance to your specific requirements.
Improvestheprecisionofedgegrinding, ensuringthatthemachineachieveshigher processing quality during operation.

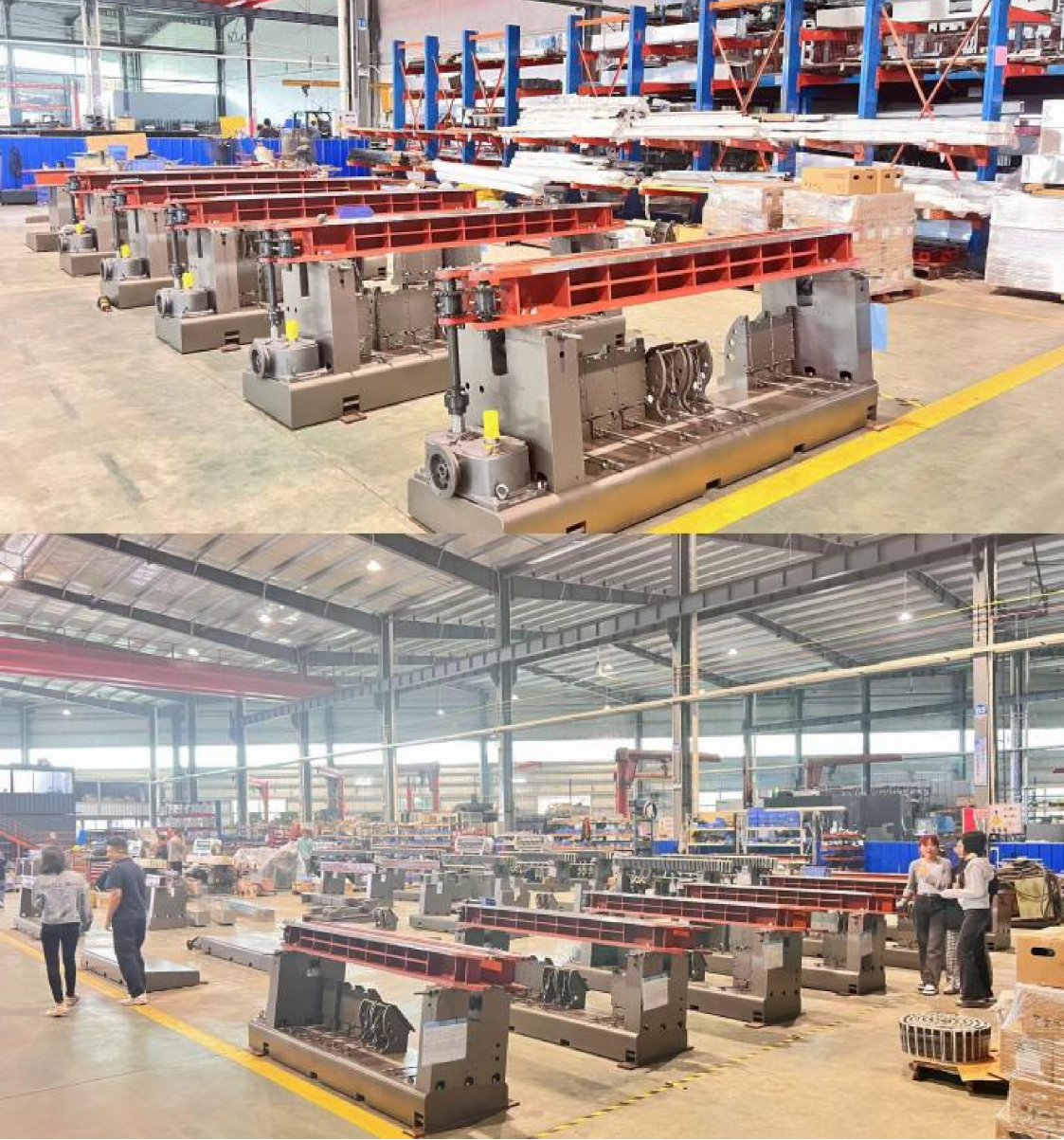

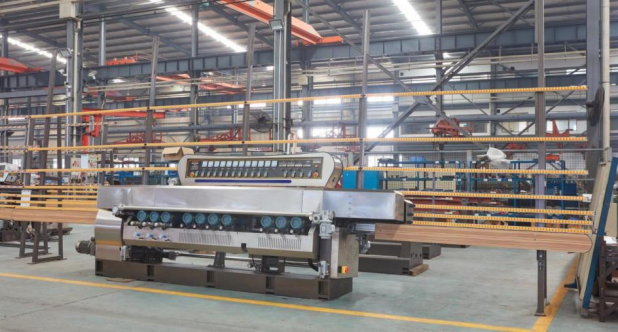

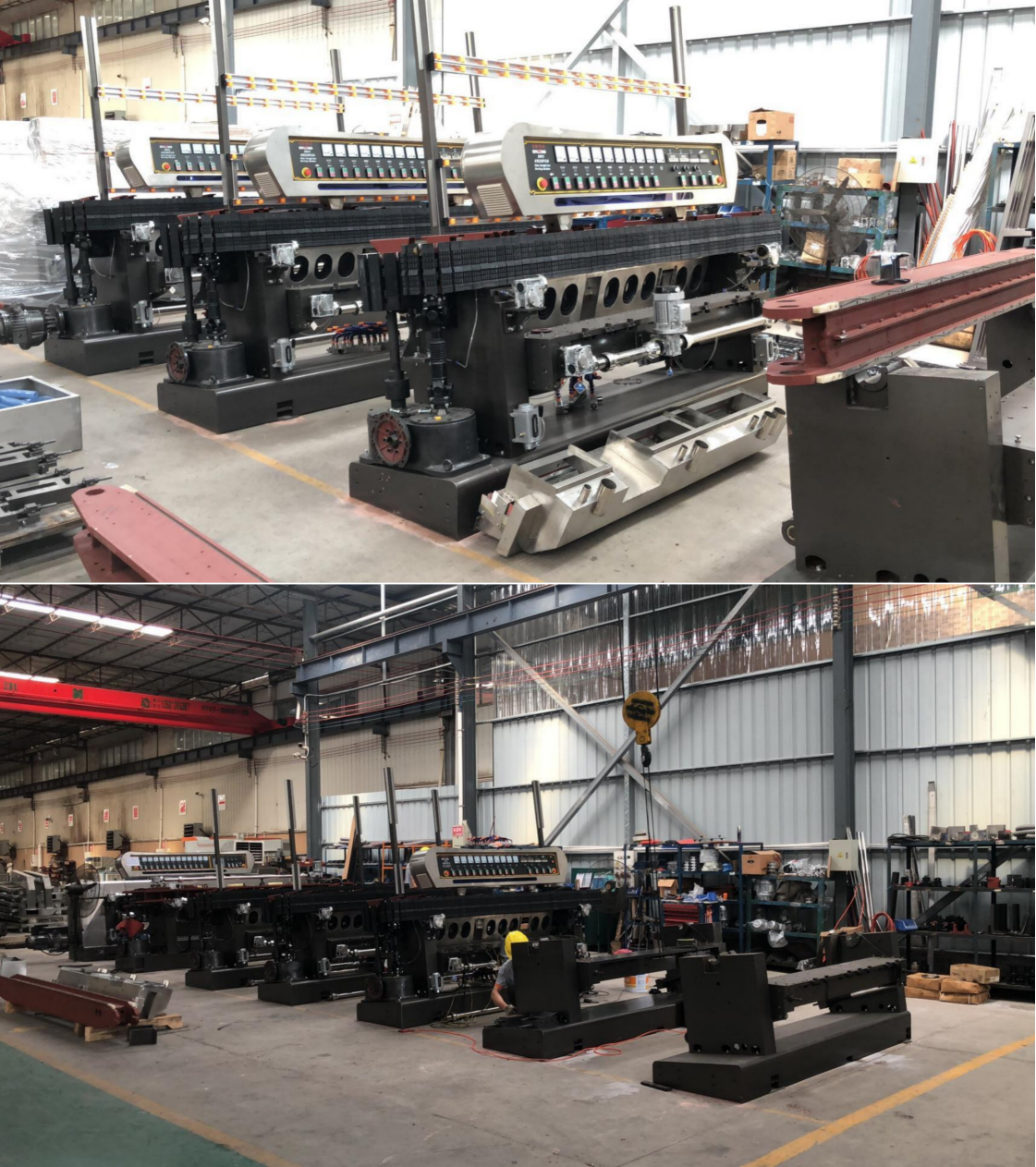

6.The edging&beveling assemble workshop

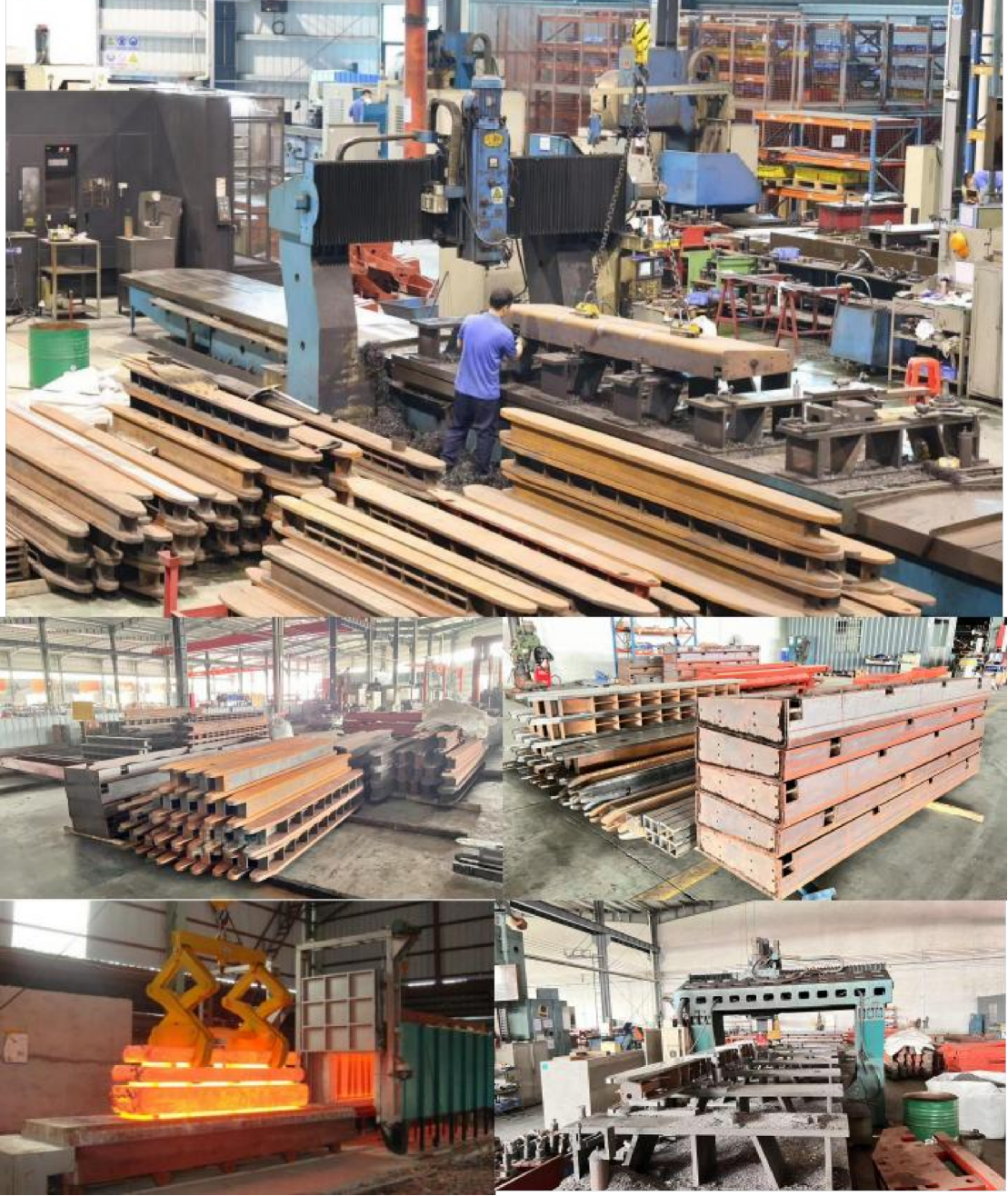

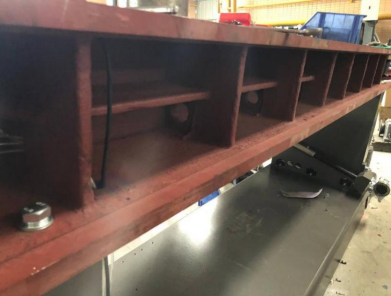

Thelatheofedger, Aftergoingthroughgrinding, milling, drilling, andpainting, thebeamsofour edgers undergo a reinforcement design to prevent deformation. This ensures that the beams remain stable and precise throughout the entire edging process.
Furthermore, the beams are coated with anti-rust painting to protect them from corrosion andextend their lifespan. The beams are also equipped with triple metal strips, which reinforce theclamp for beams and provide additional stability anddurability.

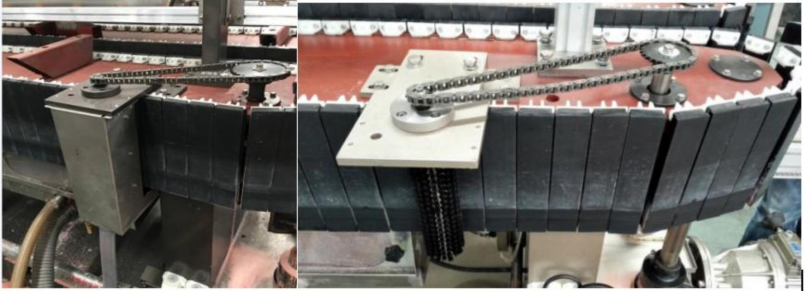

The rear pads with a brush device on the XM351/XM351A/XM371 Glass Straight-line Beveling Machines serve an important function in ensuring theclearanceofthe rear pads. This brush device helps to keep the rear pads clean and free ofdebris, which can improve the machine'sperformanceandextenditslifespan. Additionally, maintainingproperclearanceof the rear pads is crucial for achieving accurate and consistent grindingand polishing results.

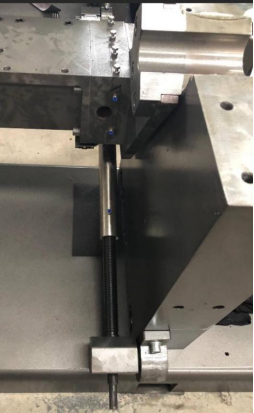

the XM351/XM351A/XM371 Glass Straight-line Beveling Machines, use double screws (or dual screw mechanisms) to adjust and sway the bevel angle. This design allows for precise and smooth adjustments to the bevel angle, ensuring that the finished edges of the glass are accurate and consistent.,it will be effectively reduce the vibration of the frame and improve the stability of the glass processing.
The double screws work in conjunction with other components of the machine to create a stable and reliable beveling process. By manipulating the screws, operators can adjust the angle of the bevel to meet specific requirements, whether they are working with different types of glass or need to create custom edge profiles.

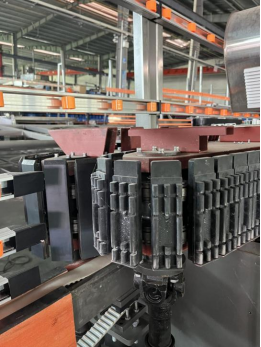

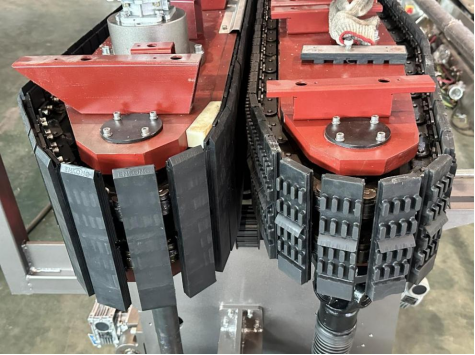

The front and rear chain pads for bevel machines arecrucialcomponents that ensure the smooth and accurate operation ofthe machine.These pads playa vitalrole in the conveying and positioning ofthe workpiece during the beveling process.

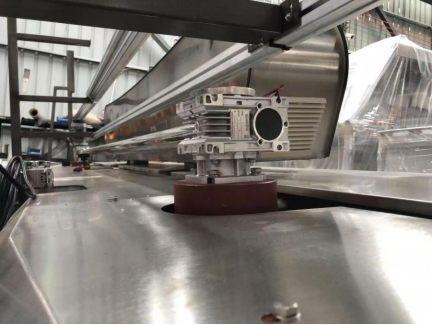

Our machine is equipped with a timing belt for loading glasses, which facilitates smooth and consistent feeding of the material into the machine. This ensures that the edges are cut evenly and accurately.

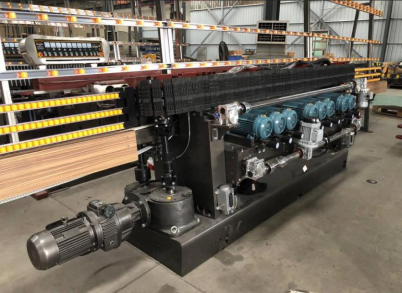

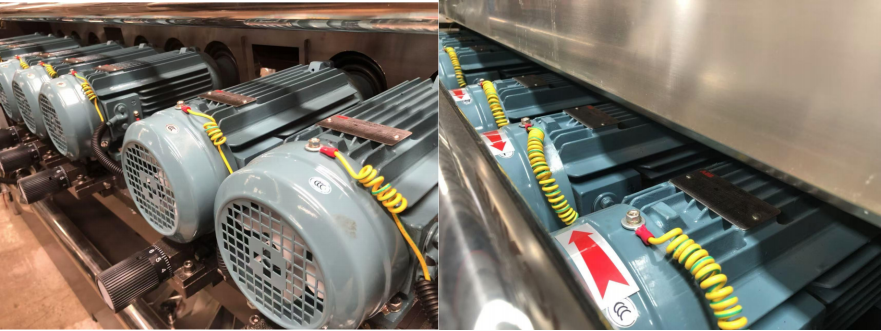

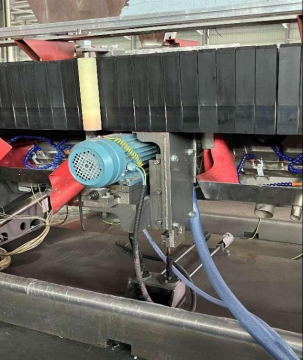

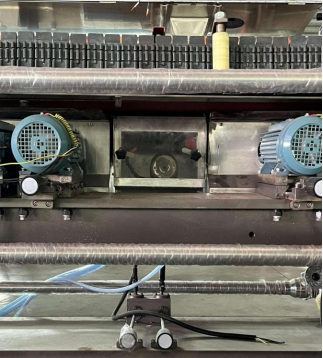

ABB is a global leader in the production of electric motors, drives, and automation solutions. In this context, it means that the grinding motors are equipped with ABB- manufactured motors.

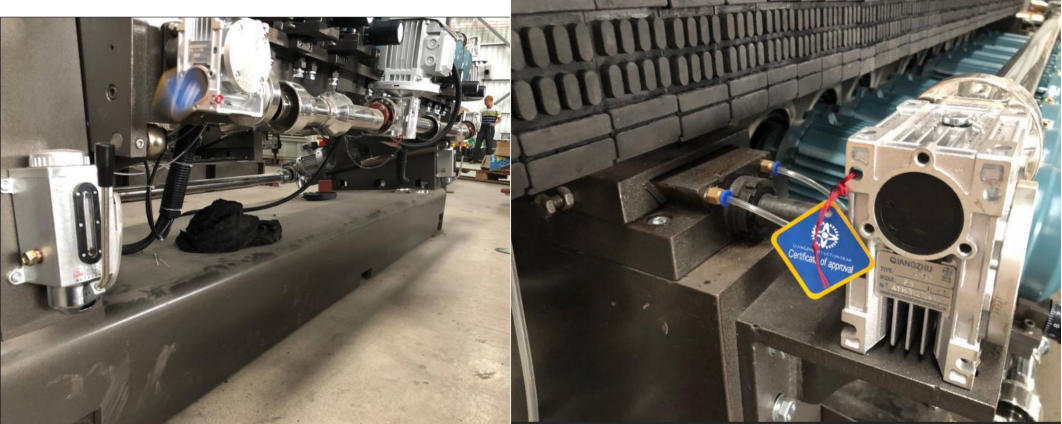

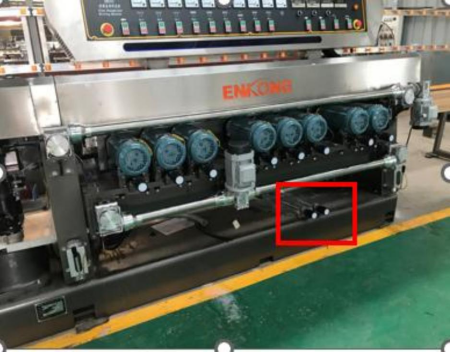

The mechanical parts with lubricating system,It can be manual pumping by period.

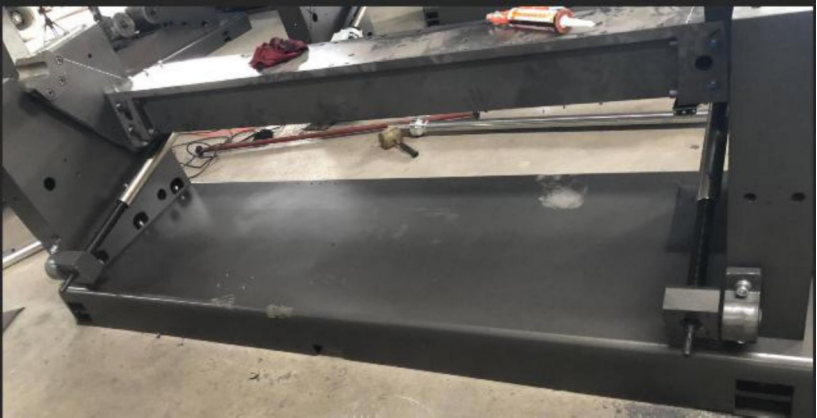

The bottom wheel of a machine, especially in grinding or beveling applications, can significantly impact the quality and efficiency of the process. By adopting a rail structure of suspension for the bottom wheel, several advantages can be achieved, particularly in eliminating tension and vibration of the bottom grinding wheel base.

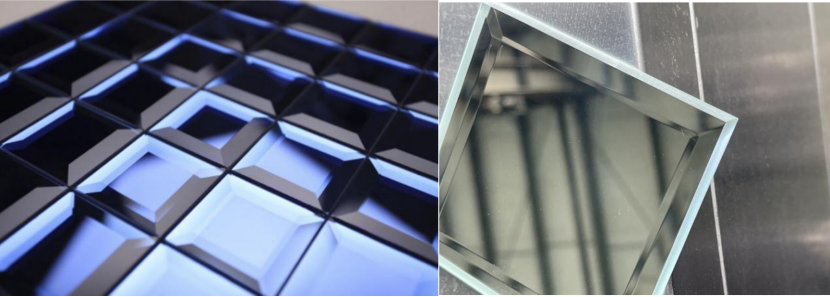

The rear beam forXM351A canbelifting.It designed for processing mosaic glasses.

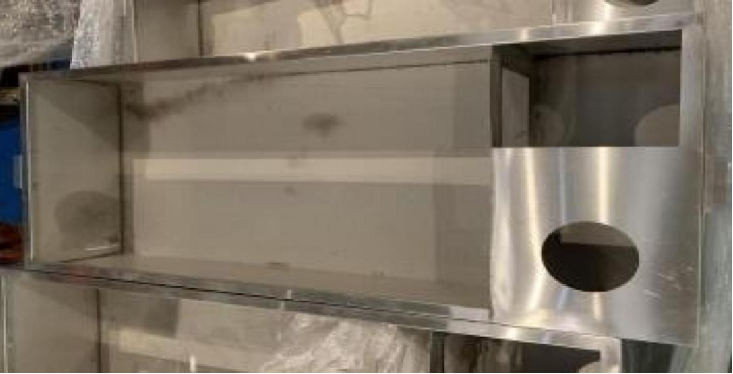

The watering system utilizes two stainless steel water tanks. One tank is dedicated to providing clear water for wheels numbered 1 to 8. The other tank is intended for use with a wool felt wheel coated with oxide cerium.

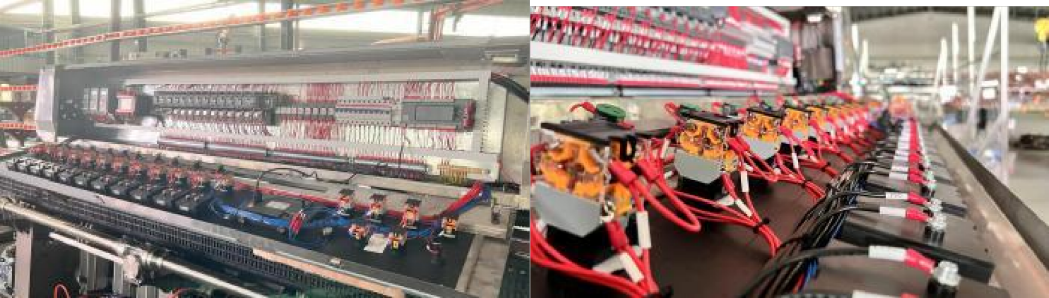

It is an electrical cabinet, in which the electrical components are sourced from ABB or Schneider. The quality of these components is highly reliable.
XM351&XM371 can be with digital display.

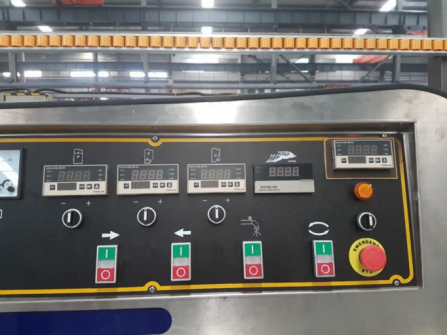

There are four meters; they will display processing speed, glass thickness, glass bevel angle, surplus thickness

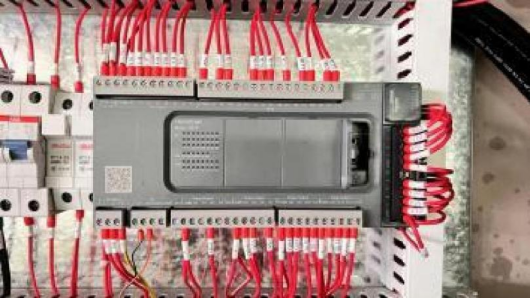

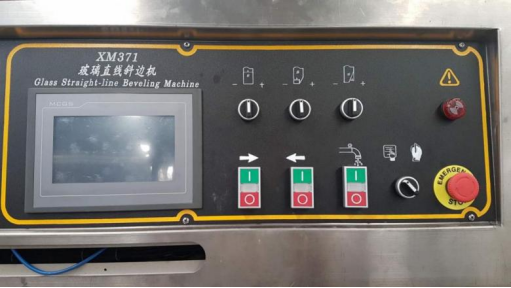

adopting a Schneider Electric PLC and touch screen, you can input the required parameters, and the machine will automatically adjust accordingly.
