Insulating Glass (IG) Equipment

automatically take side acrylic tape.
The machine head is equipped with V-blade and cutting blade.
Built-in waste materials recycling function.
 The spacer channel is treated with an anti-sticking coating, which can adapt to ordinary standard spacer or T spacer with butyl rubber.
 It can produce shaped glass.

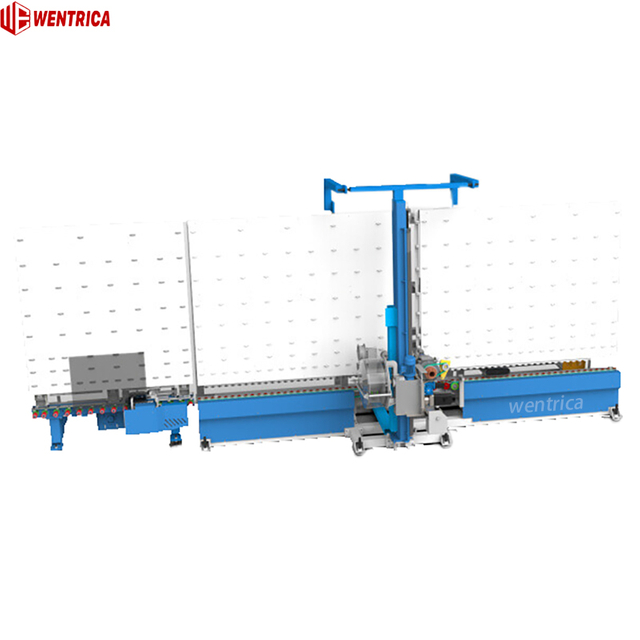

This head of foam spacer applicator is equipped with two servo motors to achieve the automatic feeding operation of the gaskets.
Polyester film tape automatically seals the corners.
smart touch screen control.
Energy-efficient & Low-maintenance Design.
Seamless Integration with IGU Production Lines.

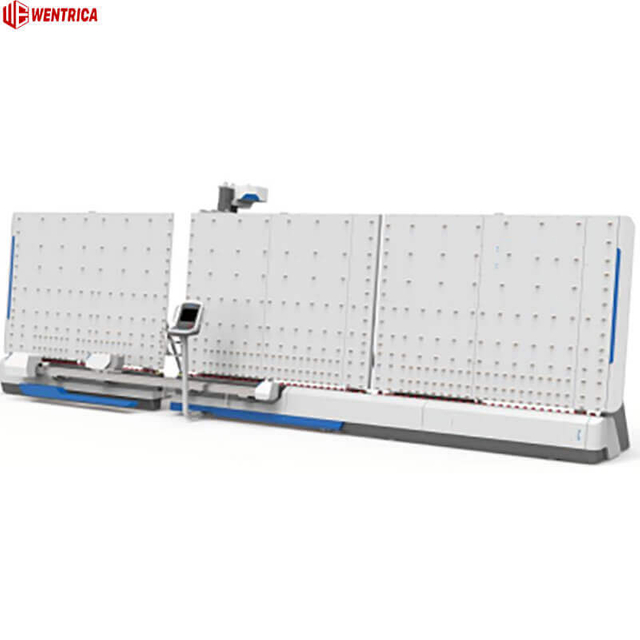

The hot melt sealing robot applies single component hot melt sealant.
High quality materials used throughout to extend the longevity of the equipment
Belt conveyor smoothly transfers and positions the glass by servo motor
Unique V belt delivery system reduces sealant to belt contact which results in cleaner glass, also has replaceable inserts for easy
maintenance and cleanup
Integrated heating system and thermal sensors controlled by an electronic controller monitor to make sure the required processing
temperature for the hot melt materials.
HMI is user friendly and designed for convenient fabrication
Finished sealed IG units can be stored on the third conveyor to increase efficiency
All edges and corners are fully sealed with no voids, leaving a smooth surface without manual corner treatment
Servo control system using world renown brands (YASKAWA)

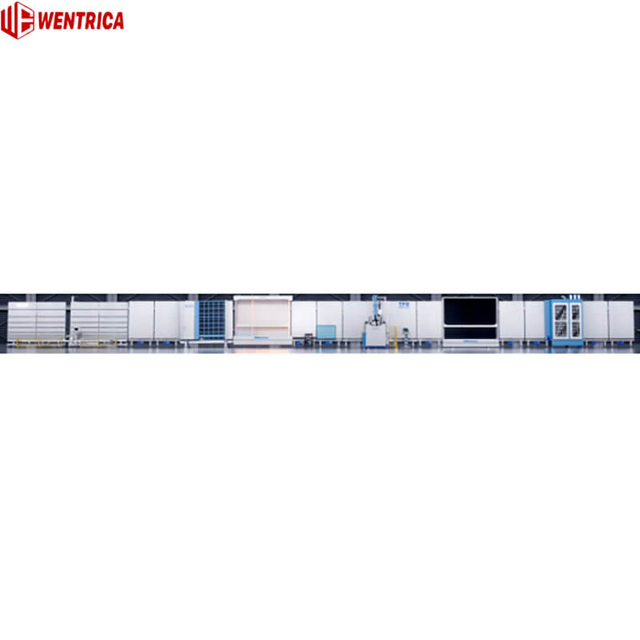

This Insulating glass production line consists of Loading conveyor,Automatic vertical washing and drying machine,Transmission conveyor,Inspection & assembly conveyor ,Transmission conveyor,Flat Press with Automatic Gas Filling,Unloading conveyor
The conveyor uses two belts for transportation, featuring automatic positioning, variable frequency speed control and telescopic function.
The cleaning machine is equipped with 3 sets of custom-made brushes, ensuring thorough cleaning without causing any damage to the glass.
The washing machine is equipped with its own water treatment system and water heating system.
The blower is equipped with variable frequency speed control, allowing the air volume to be adjusted.
The full line can process double glass, triple glass, quadruple glass, 3 side step units
The core components are all sourced from well-known brands both domestically and internationally.
The glass press machine can automatically monitor the size of the glass, independently control the area of the suction cup, and does not waste gas.
The glass press machine employs a unique technology and an upward inflation method to ensure that no dust or air enters the interior of the glass, and no bubbles are formed inside the glass.

PLC+ frequency conversion control system, with a high degree of automation
The coating monitoring device in the feeding section and the soft brush system in the cleaning section ensure zero damage processing throughout the process
The high-power high-pressure fan in the drying section and the dual-motor dual-station design in the aluminum frame assembly section achieve high efficient hollow processing
The outer plate section is hydraulically driven to smoothly move the worktable, and the motor + variable frequency speed regulation drives the lifting. When applying adhesive, the depth of the adhesive strip is digitally displayed and precisely adjusted by the handwheel, achieving high-precision processing throughout the process
The inflation section adopts the bottom charging and top exhaust mode. The gas nozzles in the non-working area automatically close, resulting in a high gas utilization rate
Safety monitoring device, low-voltage automatic sound and light alarm

Glass Washer Quality:
The glass washer is equipped with sand and carbon filters along with soft coat low-e brushes. This combination ensures that the glass is not only cleaned thoroughly but also remains scratch-free.
Air knives are used to ensure that the glass is completely dry after washing.
Inspection and Spacer Placement Conveyor Panel:
The conveyor panel has a special treatment, which provides convenience for glass inspection.
TPE Applicator:
It offers precision application at high speeds, maximizing output.
The application head allows for inverse corners and can handle variable shapes.
Pressing Quality:
Ensures excellent sealant adhesion and presses the glass to the overall unit thickness with tight tolerances.
There is an optional gas filling feature with an initial percentage of 90%.
Additional Option:
Automatic glass placement at infeed and outfeed further reduces labor costs.
Line Choices:
The line allows for choices between IG (insulated glass) with TEP warm edge spacer and traditional aluminum spacer.
