This glass edging machine is equipped with a water circulation cooling system inside, which is both clean and energy-efficient, prolonging the service life of the equipment.
The lightweight body design occupies little space and is easy to move, making it suitable for configuration in small factories.
The dual diamond grinding heads design ensures high grinding efficiency of the glass edging machine, and the lifespan of the grinding heads can reach 3,000 meters.
The use of a telescopic universal wheel platform enables it to adapt to different sizes of glass.
A buffer device is equipped to ensure that the edge grinding accuracy error of the glass edging machine during operation is less than 0.01 millimeters.

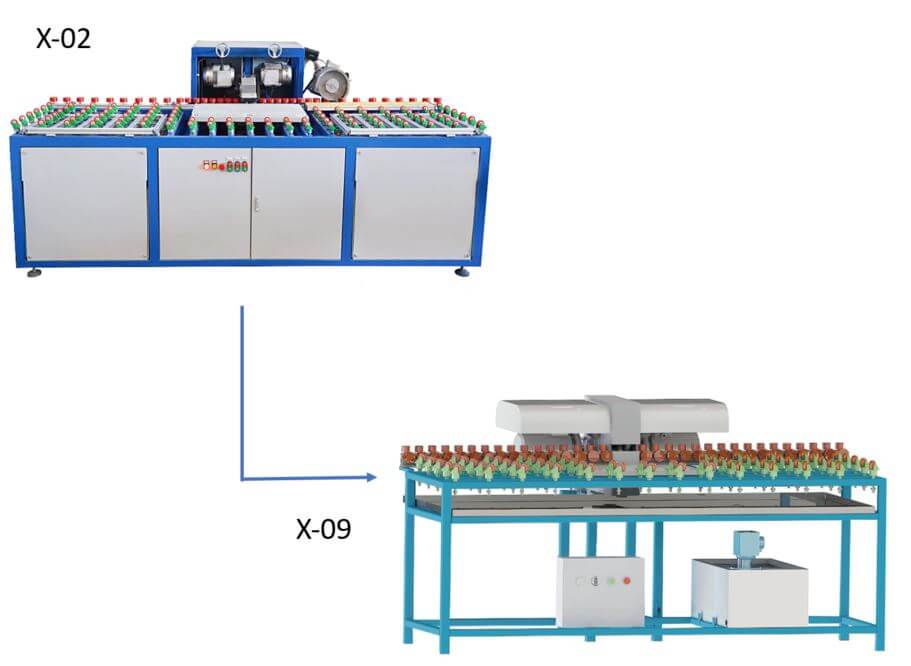

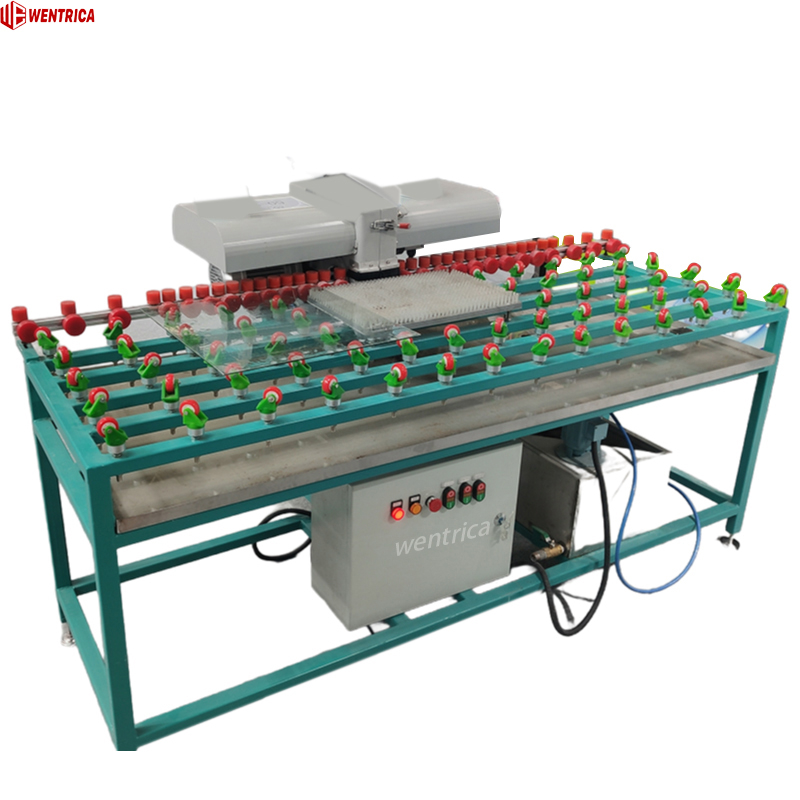

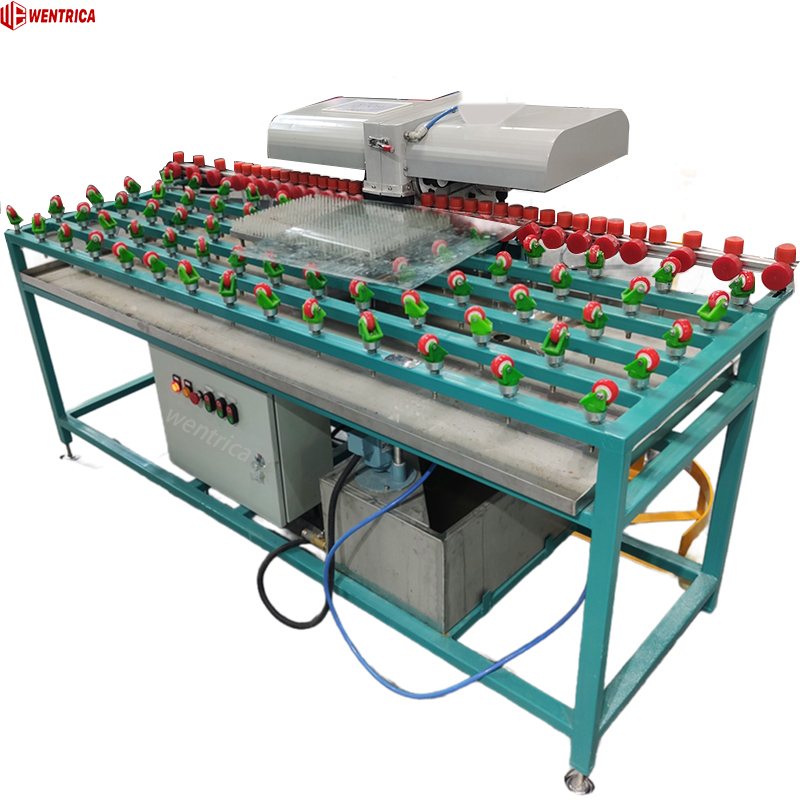

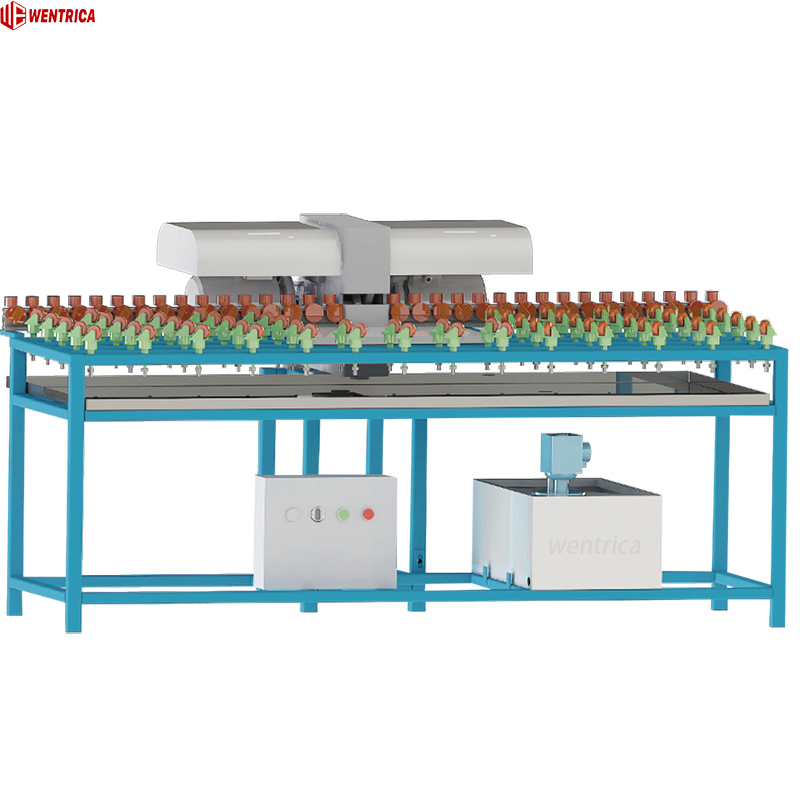

The X-09 glass edging machine is a simplified version of the X-02 glass edging machine. It has a smaller size and is specifically designed for small and medium-sized glass processing.
This glass edge polishing machine features a built-in water circulation system, dual diamond grinding wheels, and an expandable worktable design. It has stable performance and occupies a small area.
In addition, this equipment can be seamlessly connected to the front or side of the glass cleaning machine or even the back, forming an efficient production line.
2.Structure

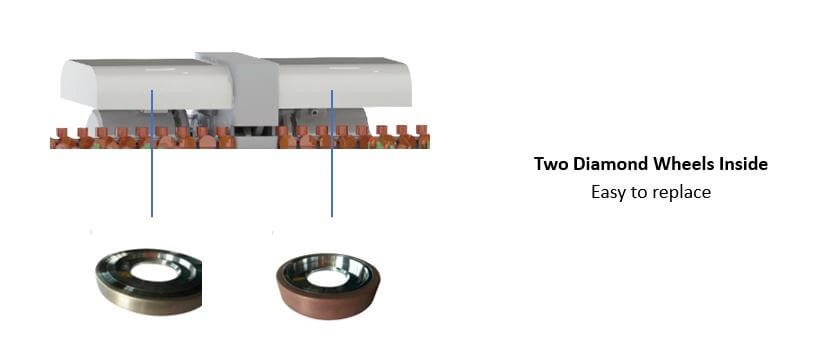

Double grinding wheel
This glass edging machine uses two replaceable diamond grinding wheels, which can achieve a smooth edge grinding effect and ensure long-term performance
Connection device
The device for connecting the glass edge polishing machine to other equipment from the front or side forms a continuous production process
Built-in circulating water system
Ensures clean cooling and dust-free operation, without the need for external pipes

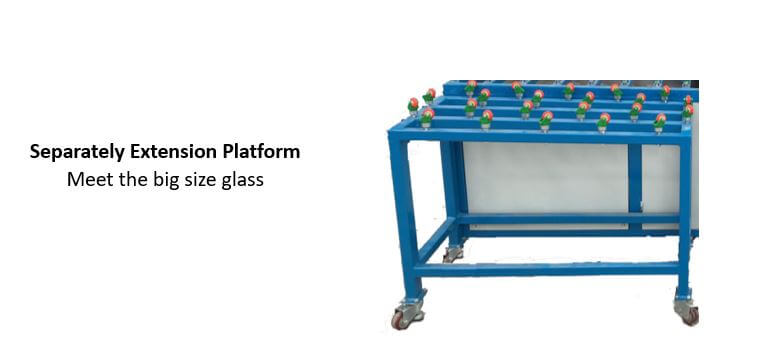

Scalable platform
The adjustable and telescopic platform enables the glass edge grinding machine to handle large-sized glass
3.Specification
Model
RSY-X-09
Power
1.6KW
Overall size
2000*1100*1050mm
Adaptive glass thickness
3mm-12mm
Small platform
1090*520*850 mm
Minimum processing size
300*300mm
Maximum processing size
1500*800mm
4.Pictures

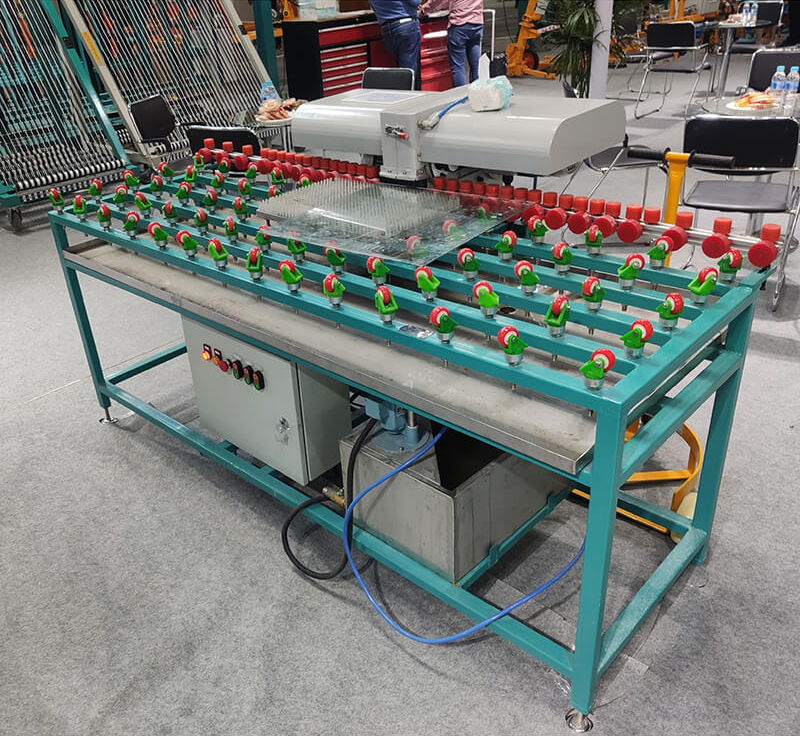

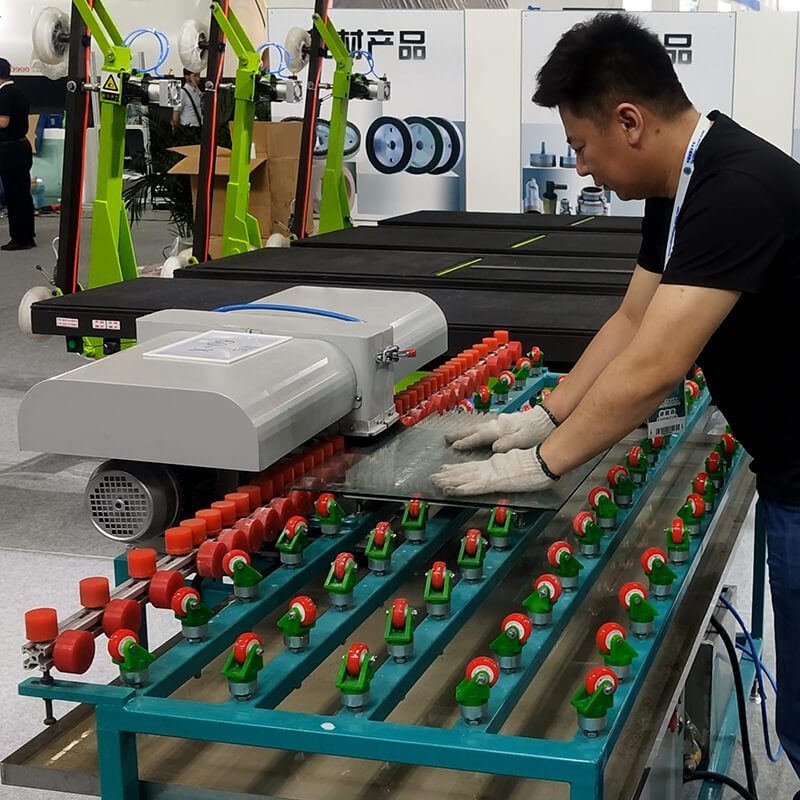

Application

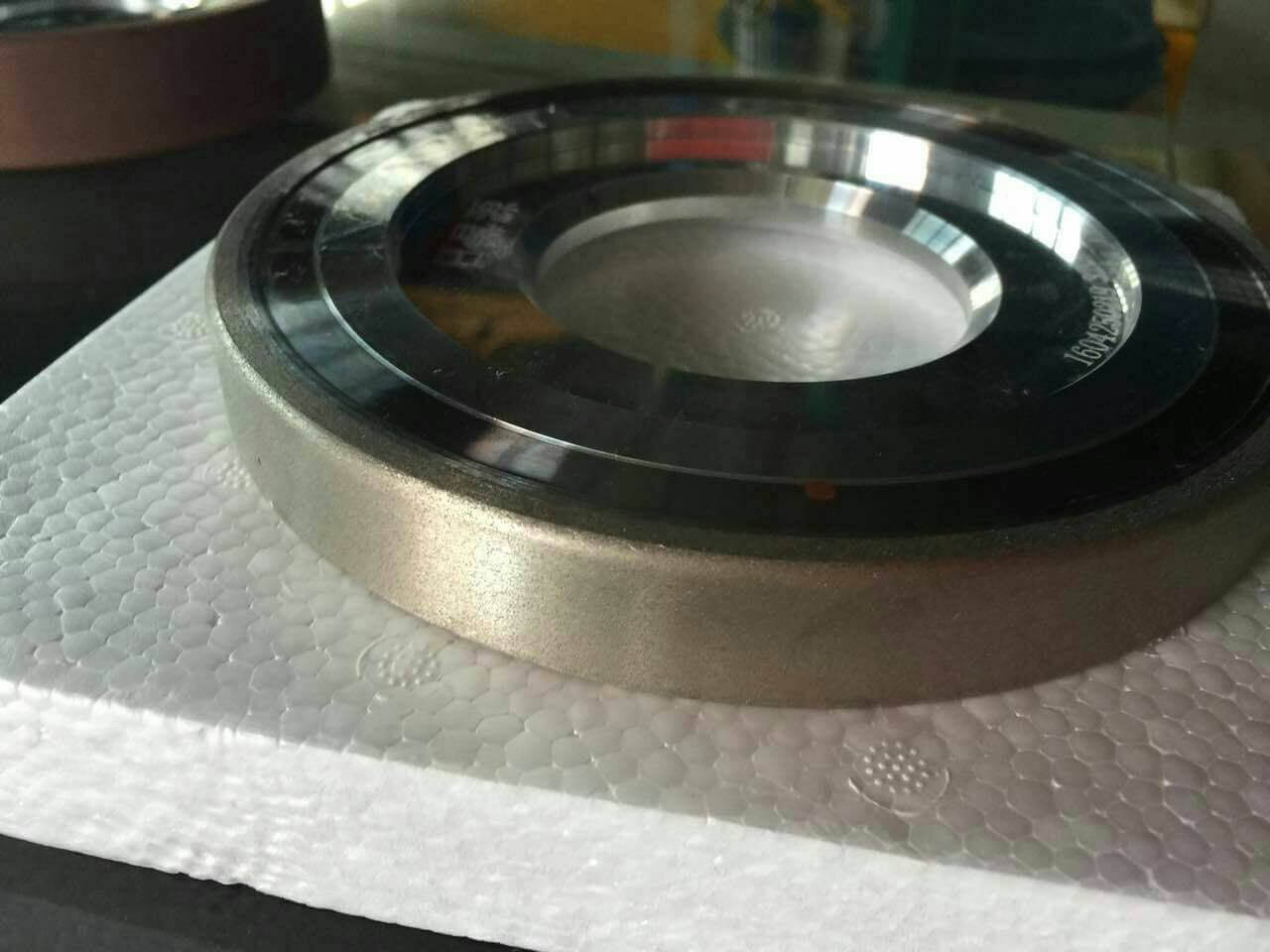

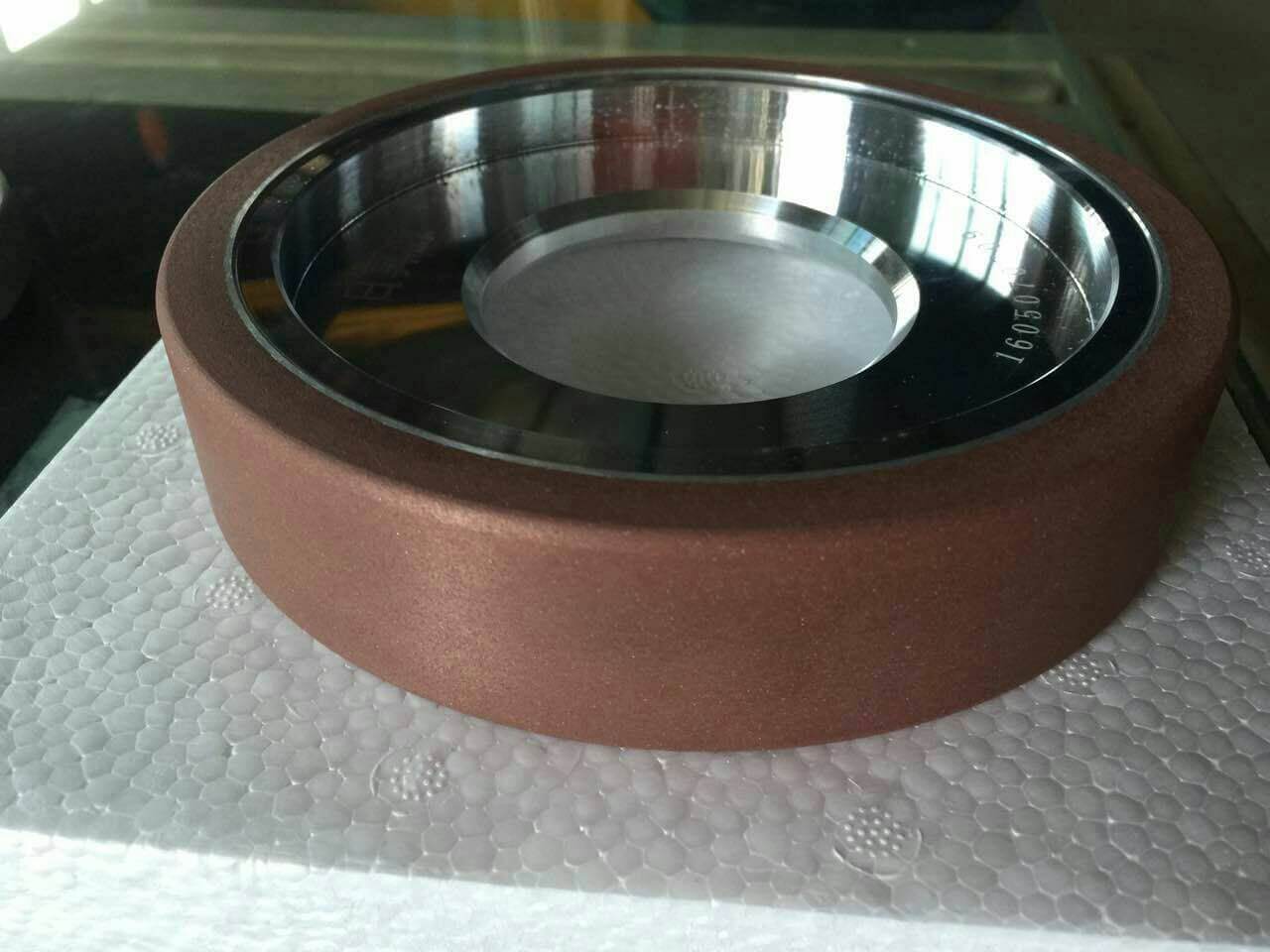

Diamond grinding wheel
5.FAQ
Question: Is your machine used for rough grinding or polishing?
Answer: Our glass edging machine is used for rough grinding and is suitable for chamfering operations before the glass undergoes quenching and insulation treatment.
Question: What structure does the grinding wheel of this glass edge polishing machine adopt?
Answer: The grinding wheel of this polishing machine is similar to that of a four-sided grinding machine. It has two diamond wheels.
Question: How long can the grinding wheel last?
A: Calculated based on an 8-hour working day, the grinding wheel of this glass edge polishing machine can last for six months.
