Glass Edging Machines

The YXM1 Glass Shape Edging Machine is professionally engineered for grinding and polishing the outer edges of shaped glass. It supports the processing of various edge profiles including flat edge with arris, pencil edge, bevel edge and OG edge simply by replacing the grinding wheel. Featuring an easily adjustable spindle height, the equipment adopts a pneumatic cylinder to realize automatic processing of round glass. The turntable drive motor and wear-resistant gear are integrated inside the base housing, with stepless speed regulation for flexible and stable operation, delivering high efficiency and reliable performance for glass edging work.

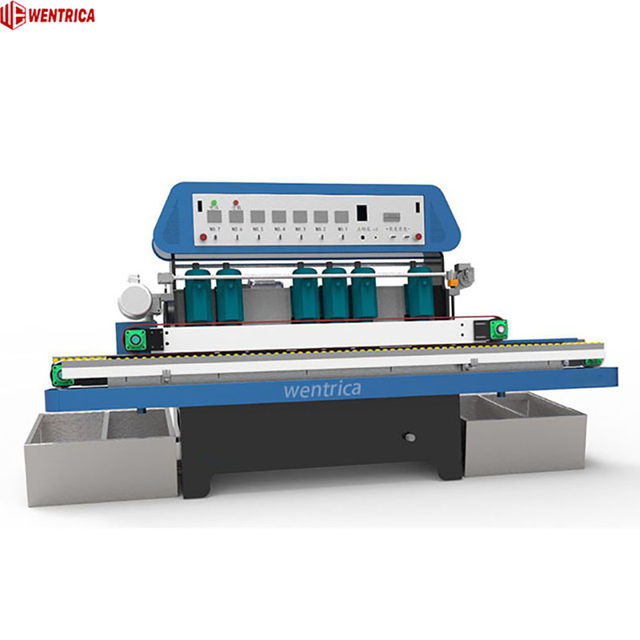

The XM351/XM351A/XM371 Glass Straight-line Beveling Machines are specifically designed for completing rough grinding, fine grinding, polishing of the bevel, and grinding of the bottom edge in a single operation on glasses with varying sizes and thicknesses. With their versatile processing capabilities, these machines can accommodate a wide range of glass specifications, making them an excellent choice for glass processing workshops and factories.

The ZM9 glass straight-line edging machine is designed for grinding straight edges and 45° arrises on flat glass of various sizes and thicknesses, with rough grinding, fine grinding and angle forming completed in one pass. It features a specially designed in-feed section for easy glass removal control, independent wool felt wheels with cerium oxide for bright finishes, and timing belt conveyors for high transmission precision. With synchronous front arris head movement, reliable ABB/Schneider electrical components and a full lubrication system, it supports continuous processing of same-thickness glass and can form a complete production line for glass shower doors. It offers three operation modes: manual, digital display, and PLC control with touch screen and pneumatic polishing.

This glass edging machine is equipped with a PLC control system, featuring pre-stored parameters, laser positioning, automatic monitoring, automatic process adjustment, and one-button start/stop functions. It is fully intelligent and operates automatically.
Equipped with dual protection devices for overload protection and emergency stop, ensuring a high safety factor of the glass edge polishing machine.
It is equipped with three types of grinding wheels: diamond grinding wheel, resin grinding wheel, and polishing grinding wheel, integrating coarse grinding, fine grinding, and polishing functions.
The servo motor and precision guide rails ensure that the glass edges ground by the glass edge polishing machine are smooth, with an error of less than 0.1 millimeters.
It is equipped with an internal water circulation system, which is highly efficient and energy-saving.
The body is made of fire-resistant cast iron, with strong resistance to deformation.

PLC+ frequency conversion control system, screen interface operation, featuring pre-stored parameters, automatic laser positioning, automatic detection, automatic adjustment of grinding speed and pressure, one-button start and stop functions, with a high degree of automation
Dual protection devices, automatic overload protection and emergency stop, with a high safety factor
Equipped with diamond grinding wheels, resin wheels and polishing wheels, it integrates rough grinding, fine grinding and polishing
The servo motor and precision guide rails ensure high edge grinding accuracy, with an error of less than 0.1mm and smooth edges
It is equipped with a built-in water circulation system, which is highly efficient and energy-saving
The fuselage is made of cast iron that has undergone fireproof treatment and is resistant to deformation.

Laser scanning positioning ensures that the positioning error is less than 0.1 millimeters.
The cast iron body is treated with fireproofing, resistant to deformation, and has an extremely long service life.
Equipped with 11 motors, with stable performance.
Dual protection devices for overload automatic power-off and emergency stop ensure the safety and stability of the equipment.
PLC control system, supporting one-click operation, with high automation level.
Built-in water circulation cooling system, with the function of cleaning and cooling.
Integrated with rough grinding, fine grinding, and polishing.


Eequipped with a dual protection system, including automatic overload protection and emergency stop protection, ensuring a high level of safety.
The servo motor and precision guide rails ensure that the vertical glass edging machine has a grinding accuracy error of less than 0.1 millimeters during operation, with smooth and wear-free glass edges.
An internal water circulation system is included for cleaning and energy conservation.
The casing is made of fire-resistant cast iron, resistant to deformation.
Equipped with diamond grinding wheels, resin grinding wheels and polishing grinding wheels, the glass bevel machine integrates coarse grinding, fine grinding and polishing functions.
1-year warranty
Motor lifespan: 20 years
Grinding wheel lifespan: 3,000 meters
Suitable for glass sheets and tiles

Equipped with diamond grinding wheels, resin grinding wheels and polishing grinding wheels, this glass edging machine integrates coarse grinding, fine grinding and polishing.
Equipped with a water circulation cooling system, with the function of dust absorption and lowering the temperature of the glass, it is clean and environmentally friendly.
The steel plate welded body and cast iron base ensure that the CNC glass edge polisher has extremely strong anti-deformation ability and an extremely long service life.
Low-power motor, automatically reducing power in standby mode, energy-saving and efficient.
Using imported synchronous belts and hydraulic clamping devices, precisely transporting the glass to the glass laser edge polishing machine.
Can process decorative glass, furniture glass, polygonal glass, tempered glass and other types of glass.
Equipped with an expandable platform, it supports the processing of various sizes of glass (25mm - 5m)

Multiple grinding heads operate synchronously, and chamfering, film removal and polishing are completed in one go
The servo control system and human-machine interaction interface enable automatic positioning and edge grinding of glass, achieving fully automated processing
Dual safety protection, self-diagnostic alarm + emergency stop device, high safety factor
Synchronous belt transmission, with an error of less than 0.05mm, achieves high-precision edge grinding
It is equipped with a built-in water circulation system, featuring adaptive water spraying. When the equipment is not in operation, it automatically switches over, which is environmentally friendly and energy-saving
Industrial aluminum profil frame + stainless steel sink, corrosion-resistant, stable structure and long service life
