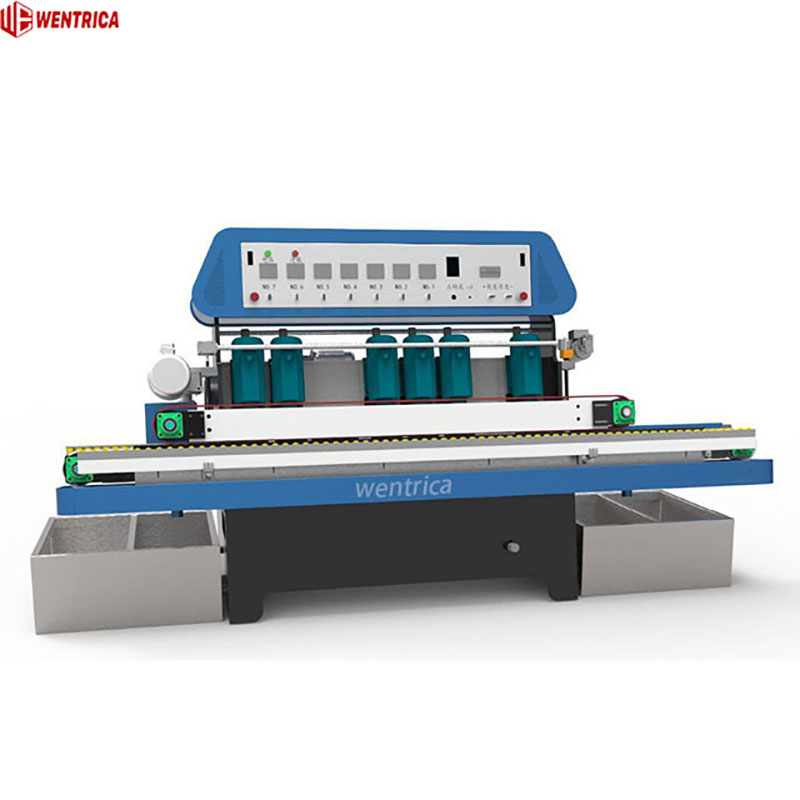

Home » Products » Glass Edging Machines » High Precision Horizontal Glass Beveling Machine with Adjustable Angles And Multiple Spindles for Flat Glass Edge Processing
Equipped with diamond grinding wheels, resin grinding wheels and polishing grinding wheels, this glass edging machine integrates coarse grinding, fine grinding and polishing.
Equipped with a water circulation cooling system, with the function of dust absorption and lowering the temperature of the glass, it is clean and environmentally friendly.
The steel plate welded body and cast iron base ensure that the CNC glass edge polisher has extremely strong anti-deformation ability and an extremely long service life.
Low-power motor, automatically reducing power in standby mode, energy-saving and efficient.
Using imported synchronous belts and hydraulic clamping devices, precisely transporting the glass to the glass laser edge polishing machine.
Can process decorative glass, furniture glass, polygonal glass, tempered glass and other types of glass.
Equipped with an expandable platform, it supports the processing of various sizes of glass (25mm - 5m)
This horizontal glass bevel machine is an efficient glass processing equipment. It is composed of a control system, a grinding system, a conveying system, a cooling system and a clamping system. It is suitable for processing the high-precision inclined edges of flat glass and can meet the needs of mass production. It is widely used in various fields such as building facades and household appliance panels.
2.Structure
Heavy-duty cast iron structure
The base, supporting components, guide rails and other key load-bearing parts of this glass edge grinding machine are all made of high-strength cast iron, featuring stability, durability and resistance to deformation.

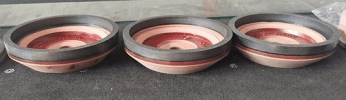

Multi-grinding head structure
This glass edging machine is equipped with diamond, resin wheels and polishing wheels, which can complete the processes of rough grinding, fine grinding and polishing in one go.

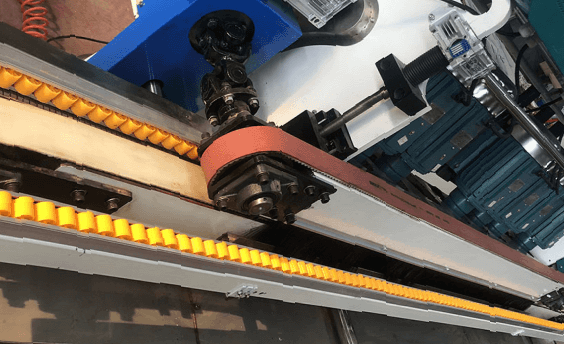

Stable conveying system
This system uses imported synchronous belts, which have moderate clamping force and friction. It can effectively prevent ultra-thin and fragile glass from cracking or falling during processing, solving the problem of thin glass transmission on the automatic glass edge polishing machine. Additionally, it is equipped with a worm gear transmission system, which can achieve smooth and uniform speed control (0 - 4 meters/minute).

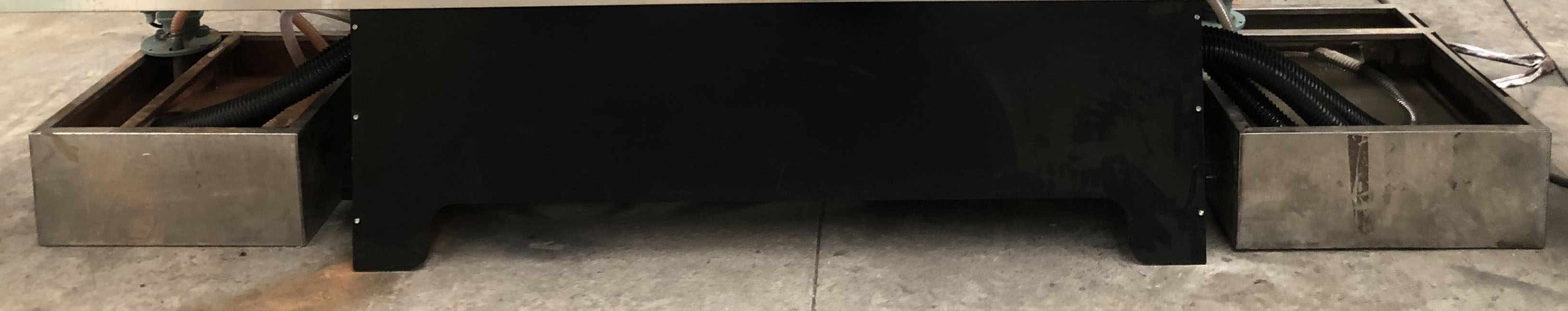

Equipped with cooling system
The bottom is equipped with a water tank. During the operation of the glass edge grinding machine, the water circulates to prevent water splashing.

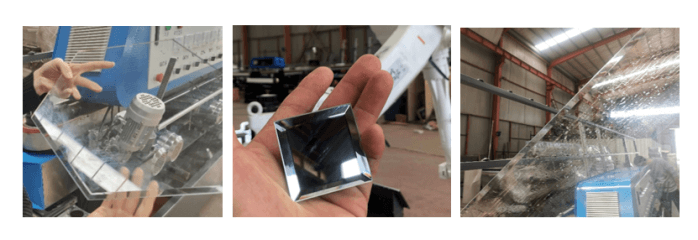

High-quality processing effect
The bottom is equipped with a water tank. During the operation of the automatic glass edge polishing machine, the water circulates to prevent water from splashing.
3.Specification
Horizontal Beveling Machine
Technical Parameters
TYJT-G7
TYJT-G8
Dimensions
3400*1000*1
730m
m
3400*1000*1730mm
Net Weight
1600kg
1600kg
Glass Processing Thickness
3-8mm
3-8mm
Angle
5-35-degree
5-35-degree
Max Bevel Surface Width
25mm
25mm
Mini Glass Size
40*40mm
40*40mm
Max Glass Size
1600*1600
1600*1600
Max Glass Size with Extension Tables
2440*3000
2440*3000
Speed
0-4m/min
0-4m/min
Voltage
380V, 50HZ, 3 Phrase
220V, 60HZ, 3 Phrase
380V, 50HZ, 3 Phrase
220V, 60HZ, 3 Phrase
Power
13kw
13kw
Number of the Motor Head
7
8
4.Pictures
5.FAQ
1. What materials can this glass beveling polishing machine handle?
This machine is specifically designed for processing flat glass sheets, including transparent, colored and low-tin glass. It is commonly used for processing glass for mirrors, tabletops and construction purposes.
2. How to operate this double edger straight line machine?
Place the glass plate on the workbench of the machine.
Adjust the angle and width settings of the bevel.
Start the machine and send the glass into the grinding and polishing wheels.
Monitor the process to ensure consistency in quality.
