Double grinding belt design, achieving efficient and precise film removal of glass
The glass edging machine is equipped with an eccentric wheel, which can adjust the position, tightness and grinding angle of the grinding belt, suitable for different types and sizes of glass
Built-in water circulation cooling system, clean and energy-saving
The main body is made of 304 stainless steel, rust-proof and has a long service life
The platform adopts a telescopic universal wheel base, suitable for various sizes of glass

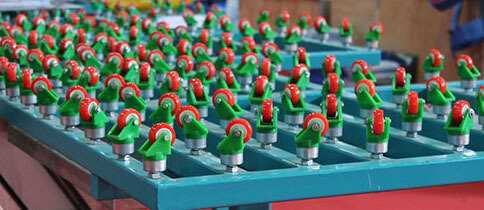

PU wheels is installed on the top of the platform to ensure that the glass moves in a straight line along the wheels when the glass edge polisher is working
Compact structure design, occupying little space, suitable for use in workshops and factories
The water-type sand belt glass edge polishing machine is a professional processing equipment that combines sand belt grinding with a water circulation cooling system. It mainly uses linear grinding of glass edges and is suitable for ordinary glass, tempered glass, and artistic glass, etc.
The core working principle is that the motor drives the sand belt to rotate at high speed, and then the abrasive on the surface of the sand belt grinds the glass edges. At the same time, the water circulation system equipped in the equipment continuously sprays cooling water onto the processing area during the edge grinding of the glass edge polishing machine, with functions such as cooling and reducing temperature, lubrication and friction reduction, dust removal and cleaning.
This equipment is divided into two models: basic type A and upgraded type C.

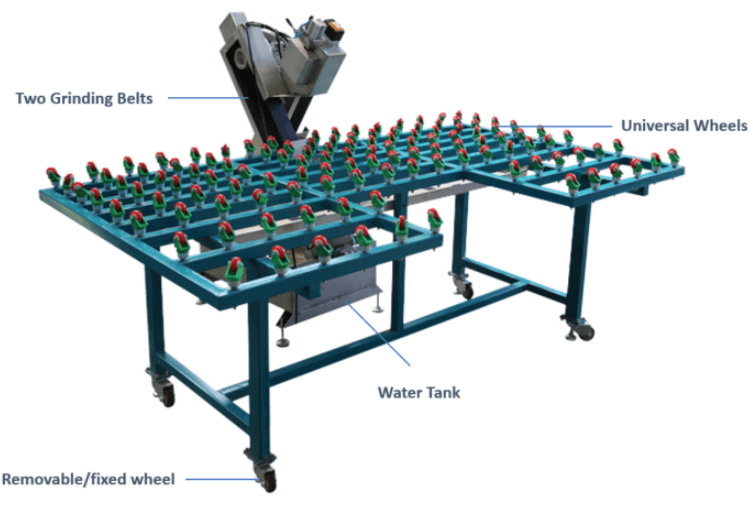

2.Structure

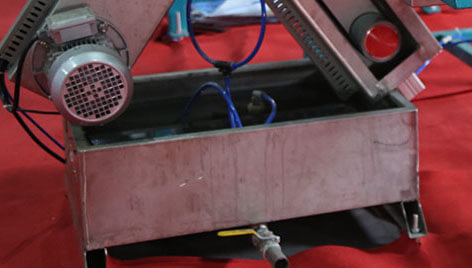

Water tank
The built-in water circulation system can remove glass dust, cool the grinding surface, and ensure the safety of workers.

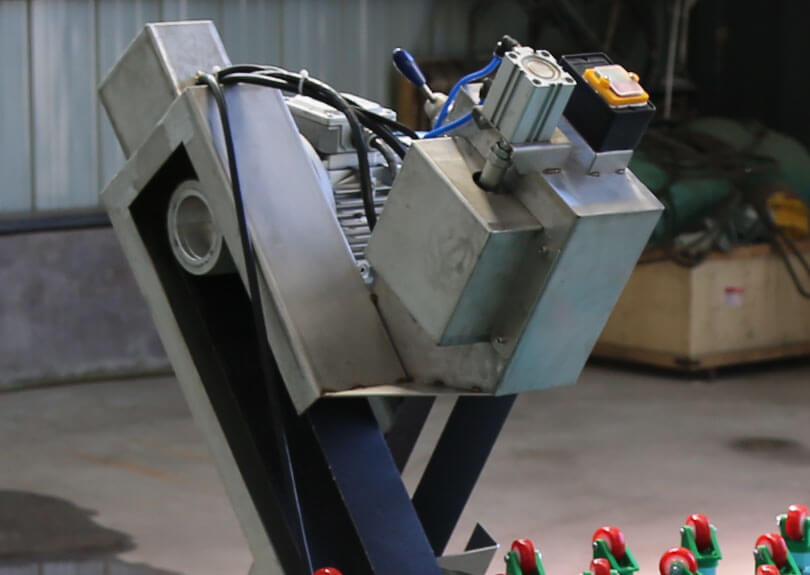

Double-layer grinding belt
This glass straight line edging machine is equipped with two high-speed grinding belts, which can achieve fast, efficient, low-noise and clean processing of glass edges.
PU wheels
When the glass edge grinding machine is in operation, it ensures that the glass moves in a straight line along the PU wheels.

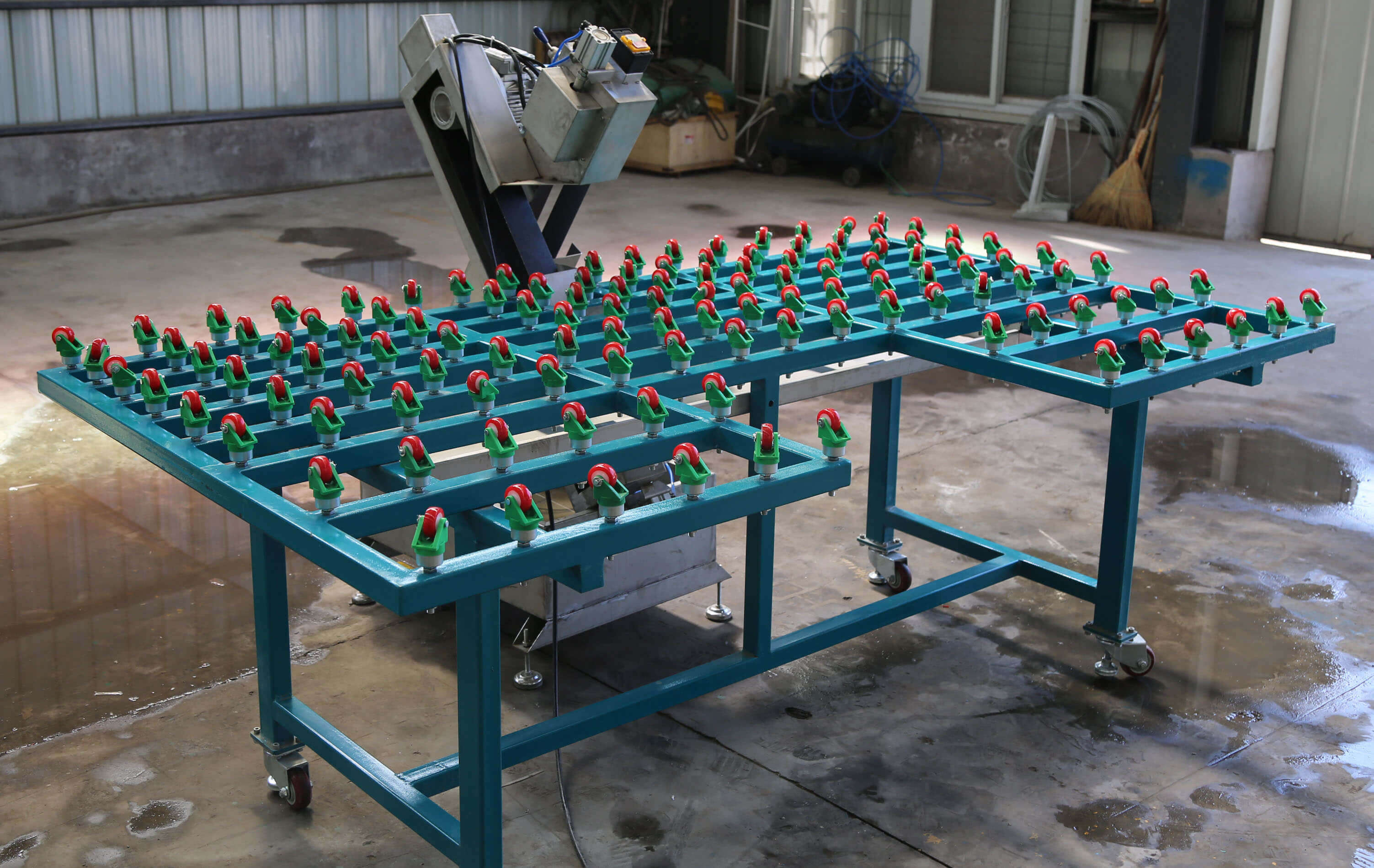

304 Stainless Steel Body
Corrosion-resistant, durable and easy to maintain, with an extremely long service life.

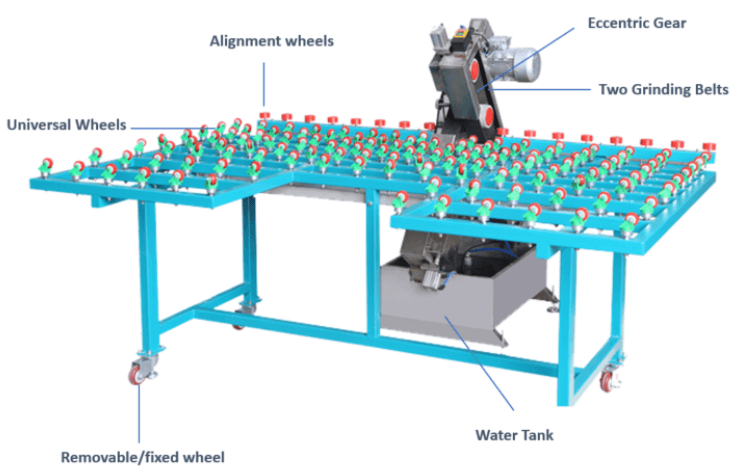

Type C Upgrade
Added straight PU wheels and eccentric adjustment wheels to ensure that the glass edge polishing machine can achieve straighter and more precise glass beveling processing.
Modular Design
The platform and motor can be easily disassembled for transportation and can be flexibly used in multiple working areas.
3.Specification
Model
RSY-SDMBJ03A
RSY-SDMBJ03C
Power
1.6KW
1.6KW
Host size
700*700*1300mm
700*700*1300mm
Platform size
2200mm*1200mm
2200mm*1200mm
Adaptive glass thickness
3mm-12mm
3mm-12mm
Minimum processing size
200*200mm
200*200mm
Maximum processing size
2000*2000mm
2000*2000mm
4.FAQ
1. How thick of glass can this glass edge grinding machine process?
The maximum thickness it can handle is up to 150 millimeters. However, the optimal cutting thickness may vary depending on the type of glass and the required edge quality.
2. What types of glass can this glass edge polishing machine process?
This machine is suitable for processing various types of glass, including tempered glass and laminated glass, electronic glass, automotive glass, furniture glass, and so on.
