The glass film deleting machine is a device specifically designed for removing coatings and films from the surface of glass.
It adopts a dual-track design and operates smoothly.
The pressure and thickness of the peeling wheels are adjusted by cylinders, with an accuracy of up to millimeter level.
A variable frequency speed control design is used, enabling the glass film deleting machine to adjust the speed according to different types of glass.
An air-floating platform is used, with low friction and minimal damage to the glass.
The double-layer peeling mode includes heating peeling and mechanical peeling, suitable for different process flows.
In the semi-automatic mode, the glass film deleting machine supports manual control and can be started and stopped at any time. In the fully automatic mode, the machine runs automatically through preset parameters.

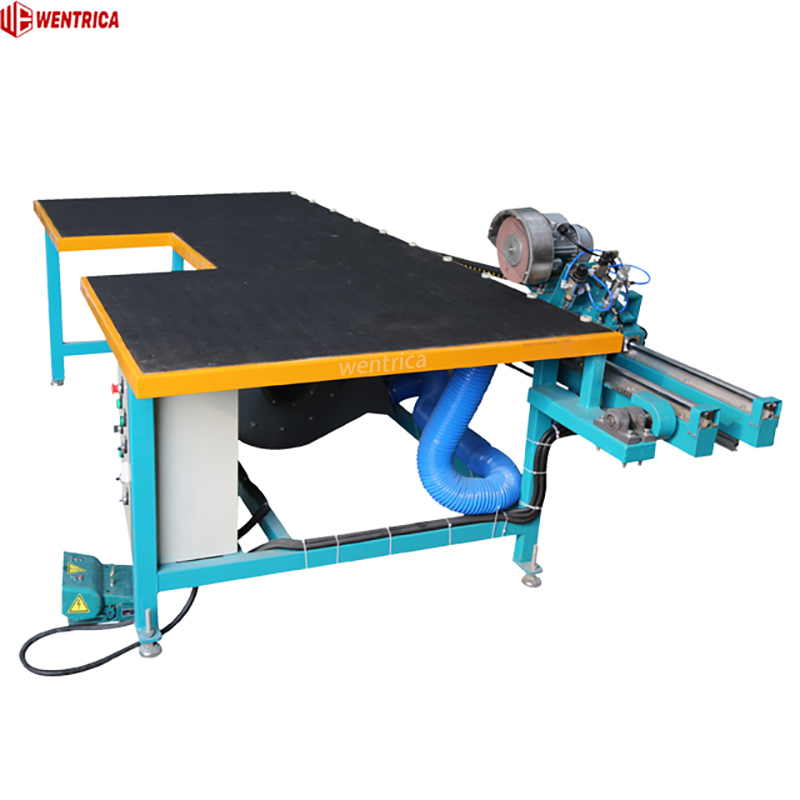

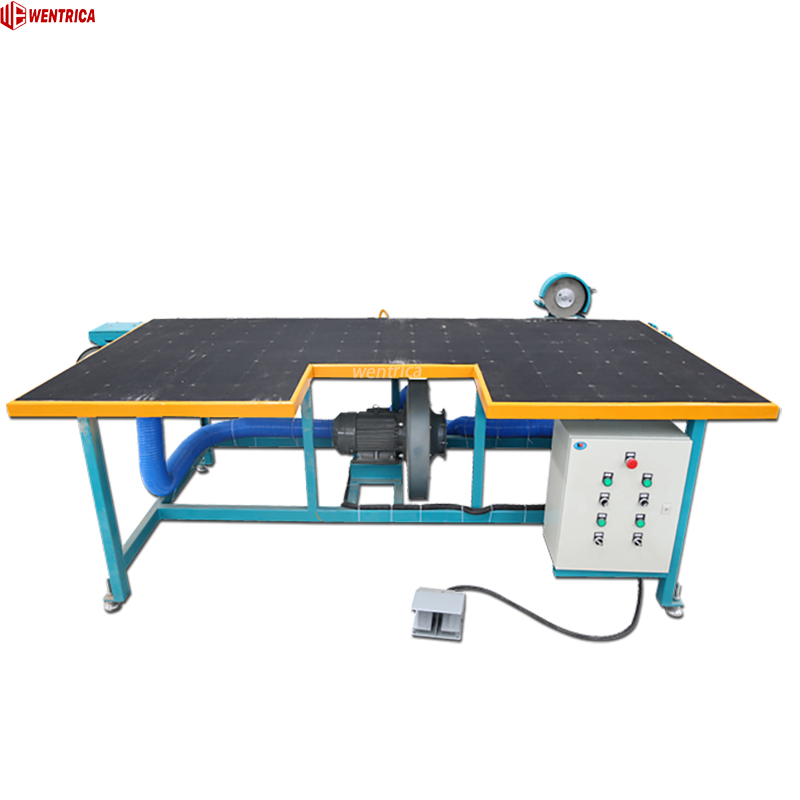

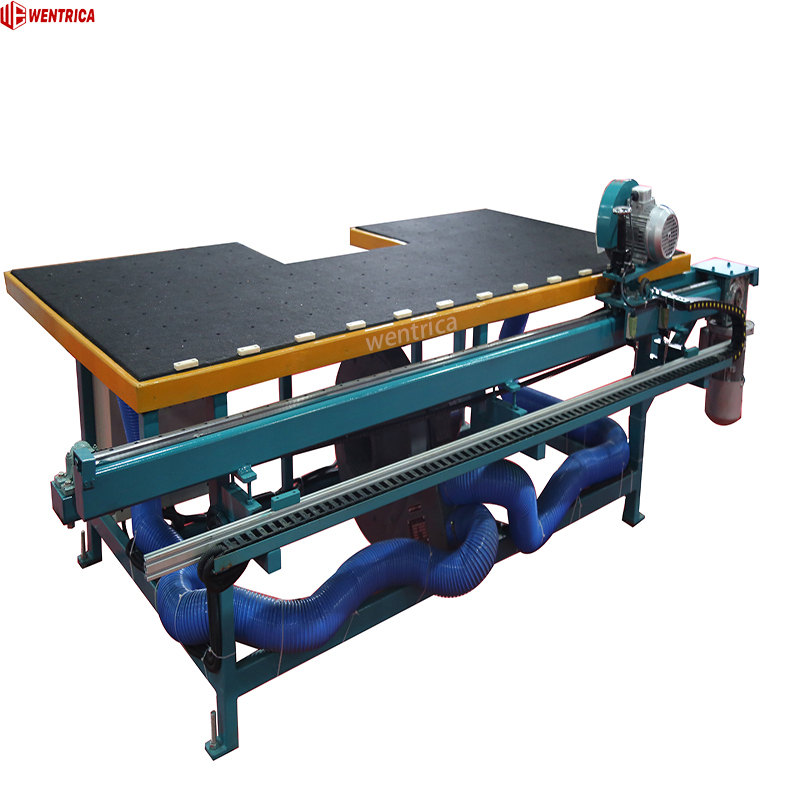

The dual-track air flotation glass film removal machine is a specially designed equipment used to achieve efficient, clean and undamaged edge film removal on low-emissivity glass and coated glass sheets.
This equipment is equipped with an air flotation platform, a dual-track structure and a variable frequency speed control function, ensuring that the glass film removal machine can flexibly adjust the film removal width and pressure to achieve rapid and efficient film removal.
The pressure system controlled by the cylinder ensures that a uniform pressure layer is formed between the air flotation platform and the glass, reducing direct friction during the movement and rotation of the glass, so that the glass film removal machine operates without causing scratches on the glass.
2.Structure
Dual independent tracks
Make the operation more stable and improve the film removal accuracy of the glass film deleting machine.
Air buoyancy support platform
A uniform pressure film is formed between the platform and the glass, reducing friction, allowing smooth glass movement and preventing scratches.
Adjustable grinding system
The grinding width, depth and grinding wheel height of the glass film deleting machine can be easily set according to the glass thickness and film type, removing the low-emission coating or reflective coating in the edge area cleanly and evenly.
Cylinder
The cylinder can precisely control the pressure of the glass film deleting machine - ensuring a high qualification rate in glass processing.
Safety device
It has overload protection function and an emergency stop button to ensure operational safety.
3.Specification
Air float Film-Removing Machine
Model
RSY-CM-QF04
Overall appearance
3000*1550*1080(mm)
Running mode
Fully-automatic and Semiautomatic
Running distance(Maximum)
2440（mm）
Power
1.6kW

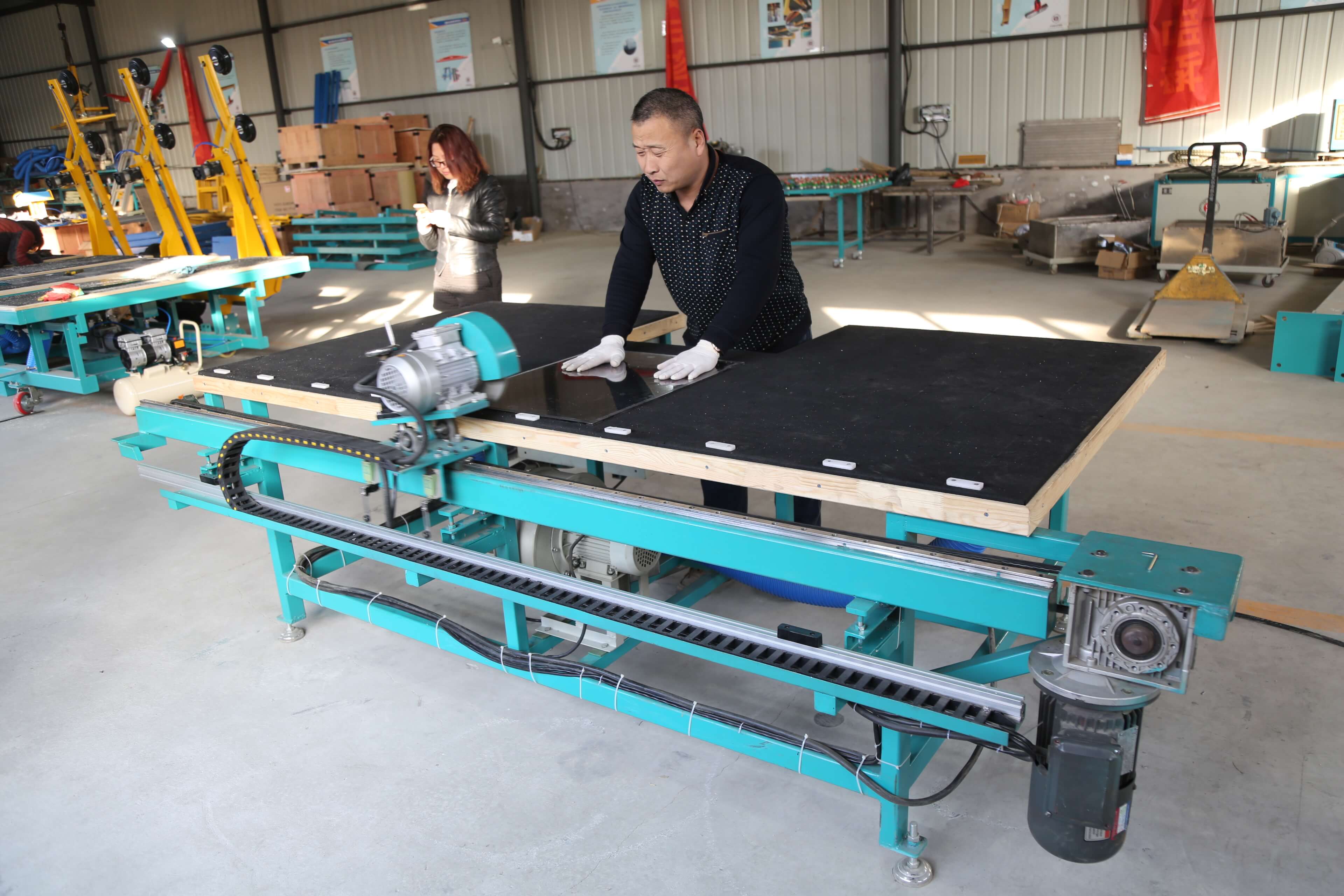

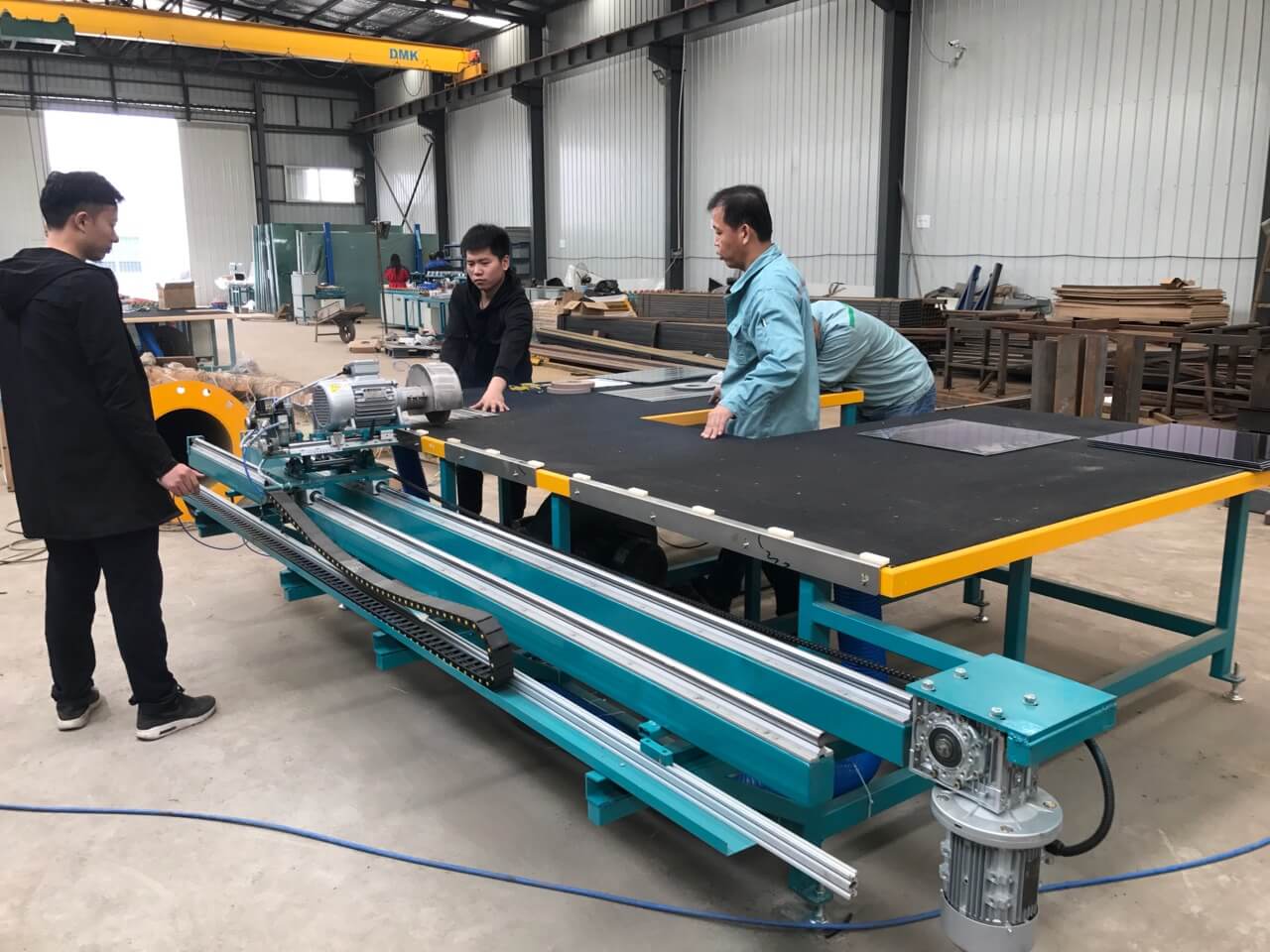

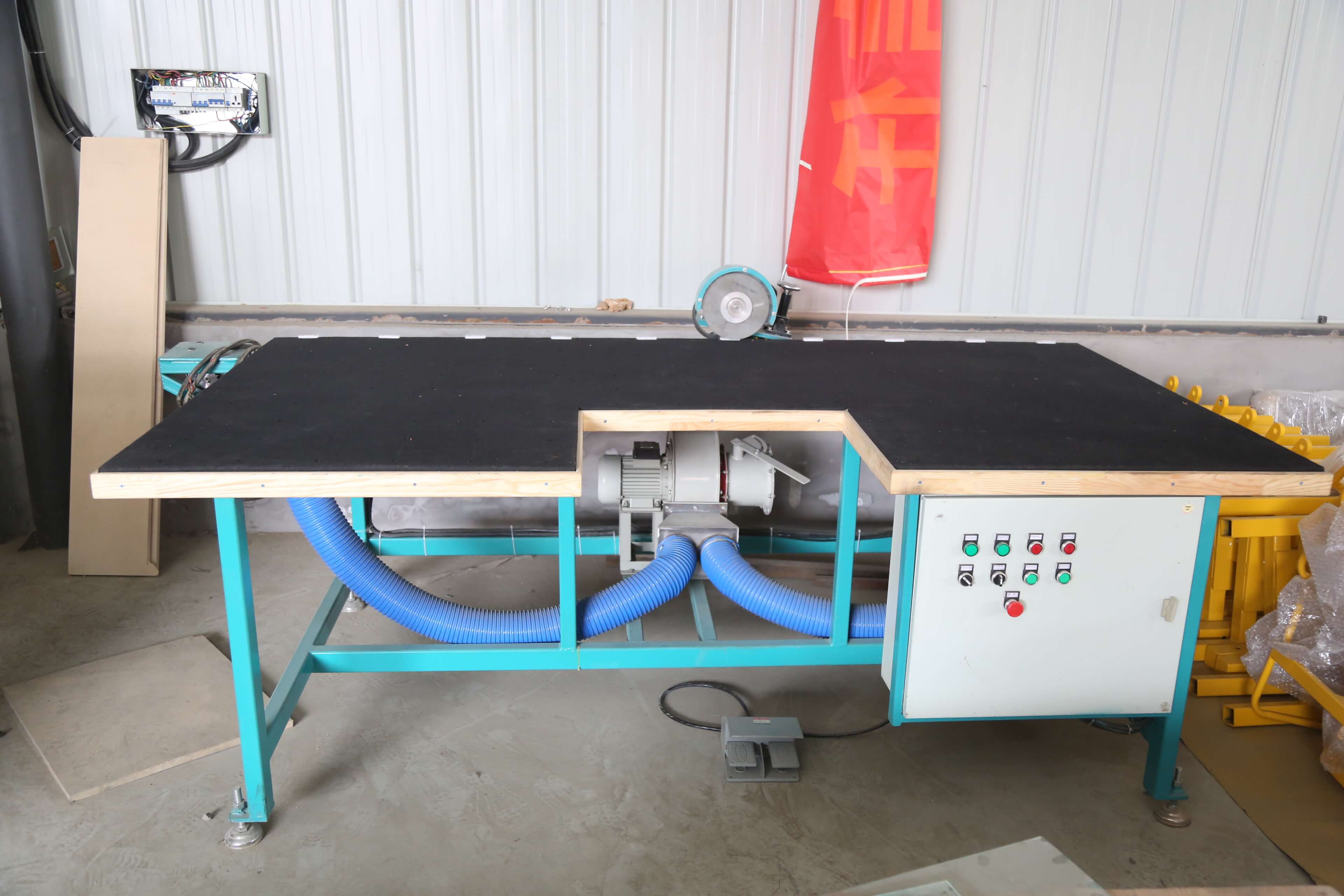

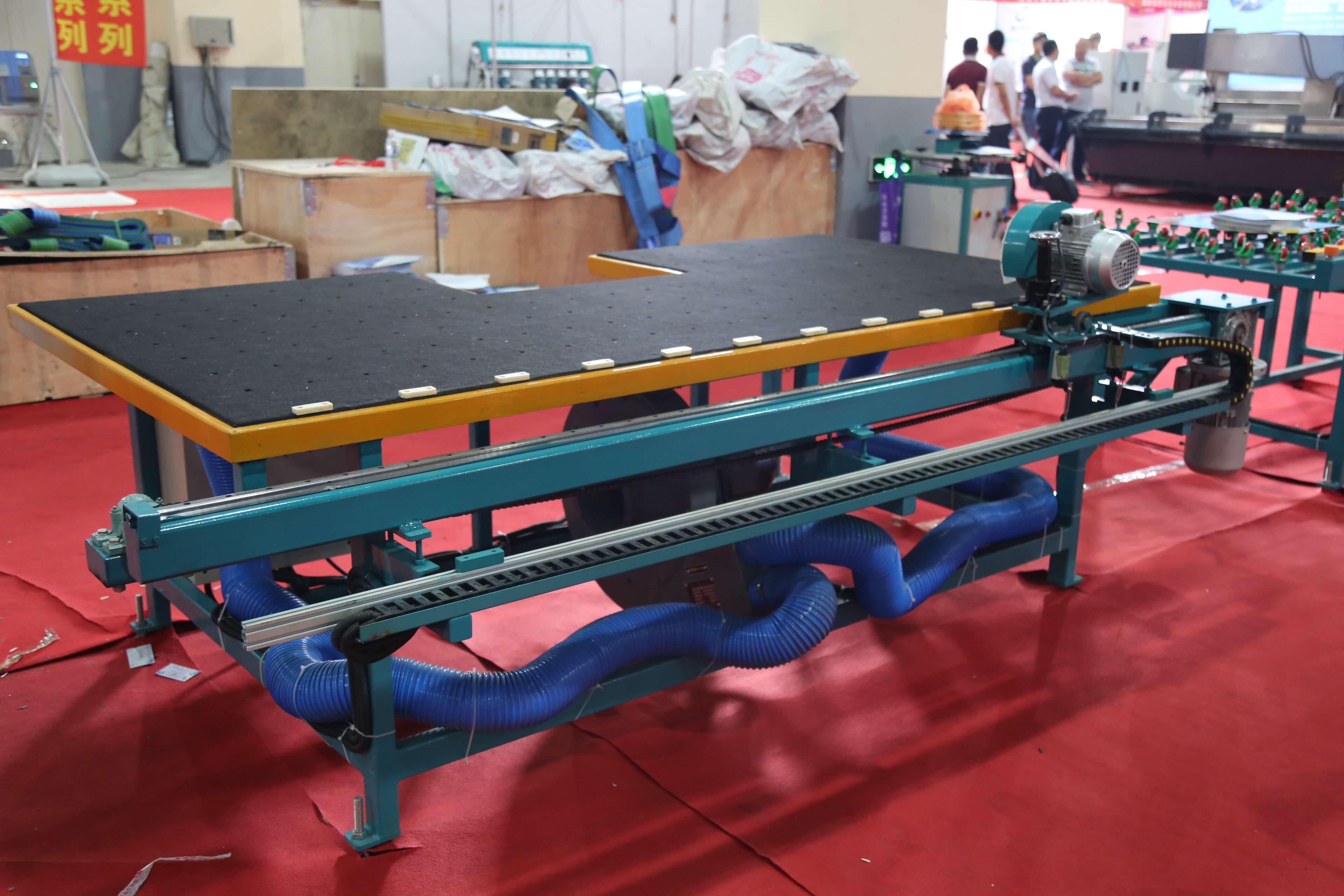

4.Picture
Application
5.FAQ
1. Can the low-e glass film deleting machine handle different film thicknesses?
Yes. The machine typically includes adjustable settings to accommodate different protective film materials and thicknesses.
2. How fast can the automatic glass film deleting machine remove the film?
The processing speed depends on the model specifications, but dual-track systems generally offer high-speed continuous operation for large-scale production.
