Eequipped with a dual protection system, including automatic overload protection and emergency stop protection, ensuring a high level of safety.
The servo motor and precision guide rails ensure that the vertical glass edging machine has a grinding accuracy error of less than 0.1 millimeters during operation, with smooth and wear-free glass edges.
An internal water circulation system is included for cleaning and energy conservation.
The casing is made of fire-resistant cast iron, resistant to deformation.

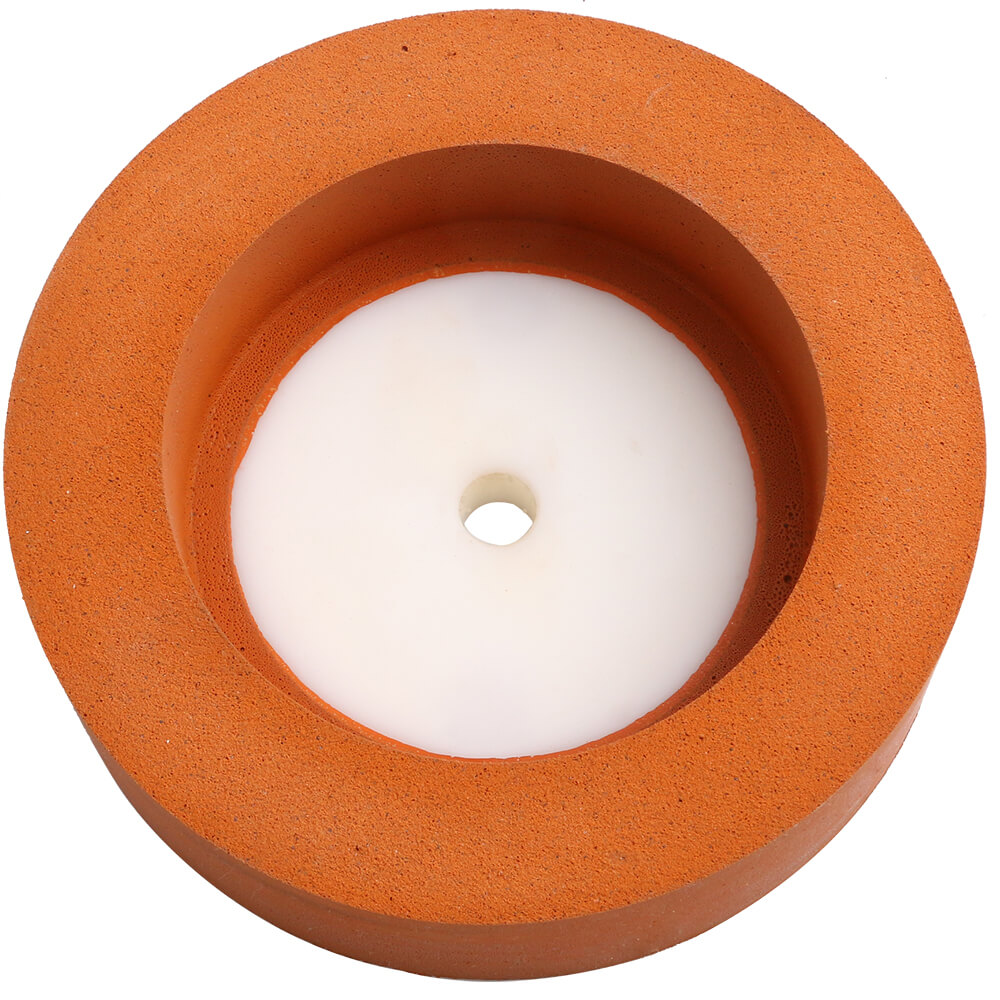

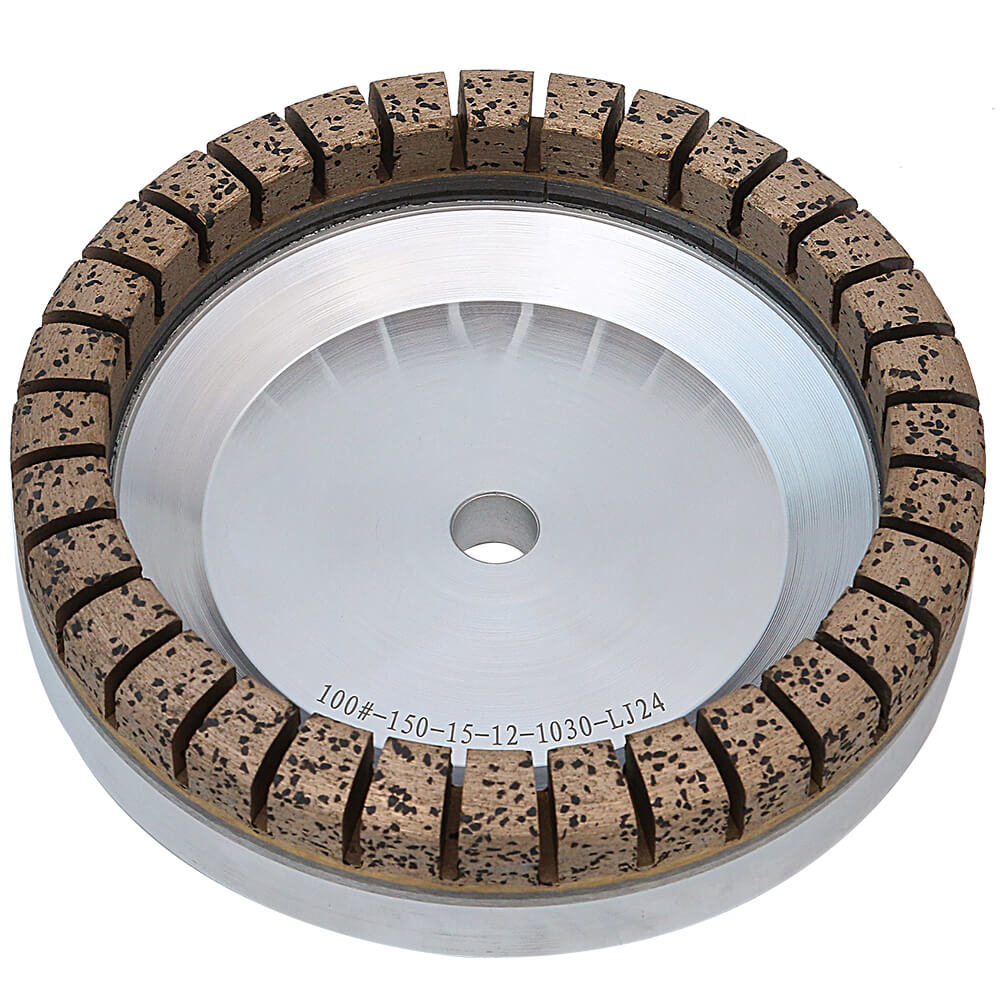

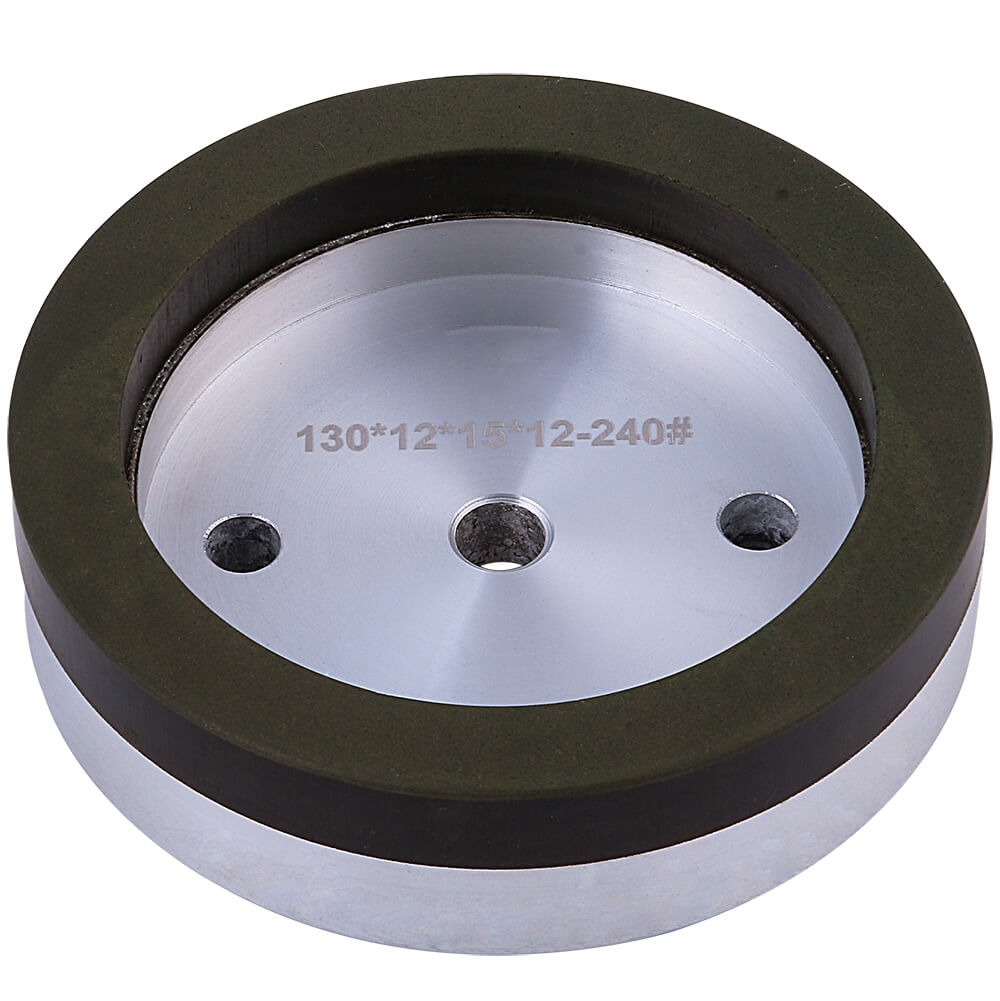

Equipped with diamond grinding wheels, resin grinding wheels and polishing grinding wheels, the glass bevel machine integrates coarse grinding, fine grinding and polishing functions.
The vertical glass edging machine is a new type of equipment for deep processing of glass. During the edge grinding process, the glass is placed vertically on the equipment. This changes the traditional glass chain conveying method and adopts the synchronous belt conveying method, which significantly impoves the accuracy of edge processing.
Furthermore，this vertical glass bevel machine has a compact structure, a reasonable layout, and a harmonious appearance. It is mainly composed of five systems: the control system, the grinding system, the clamping and conveying system, the cooling system, and the receiving system.
2.Structure
Control system
Equipped with instruments for displaying current and voltage, the operating status of the machine is clearly visible.
Grinding system
The automatic vertical glass edge beveling machine equipped with multiple grinding heads, including diamond wheels, resin wheels and polishing wheels, integrating coarse grinding and fine grinding. The service life of the grinding wheels can reach 3,000 meters, providing long-term and stable grinding performance.
Transport system
Transported by conveyor belts enables the vertical glass edging machine to have higher precision, more stable speed and adjustable characteristics. Compared to chain transportation, it has more advantages and can meet the transportation needs of different types of glass and different processes.
Cooling system
A circulating water cooling device with two pumps and two water tanks is equipped at the bottom of the glass edge beveling machine, which is energy-saving and environmentally friendly.Add grinding powder in the water tank to enhance the brightness of the glass during the grinding process.
Sturdy and durable structure
The steel plate of the machine body is made by seamless welding of cast iron, with a long service life.

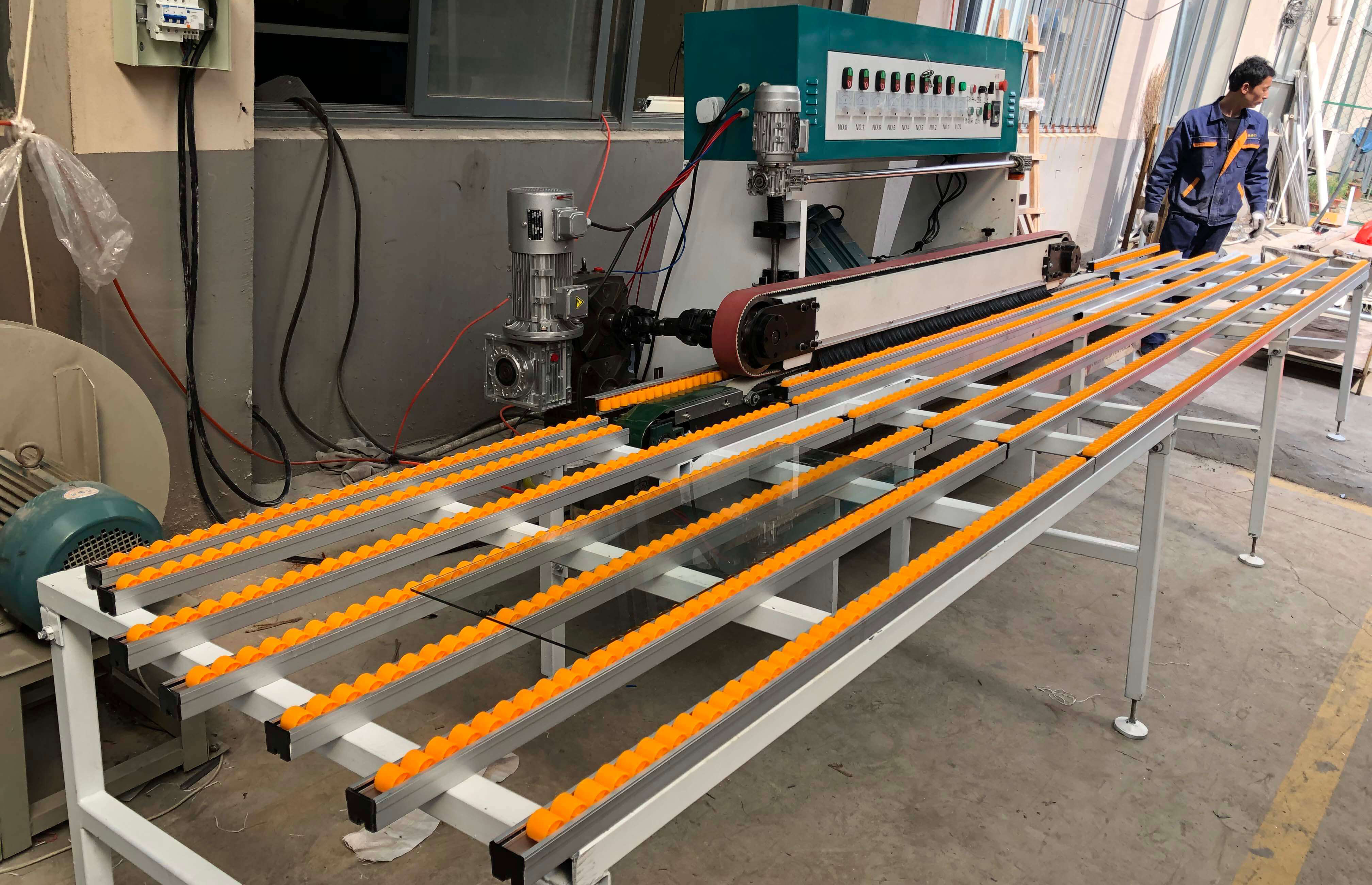

Customized large platform
Supports customized large platforms, suitable for ultra-large glass edge grinding.
3.Specification
Vertical Beveling Machine
Technical Parameters
TYJTLX-V7
TYJTLX-V8
Dimensions
4100*950*1900mm
4100*950*1900mm
Net Weight
2000kg
2100kg
Glass Processing Thickness
3-8mm
3-8mm
Angle
5-35-degree
5-35-degree
Max Bevel Surface Width
25mm
25mm
Mini Glass Size
40*40mm
40*40mm
Max Glass Size
2000*2000
2000*2000
Max Glass Size with Support Frame
Customized
Customized
Speed
0-4m/min
0-4m/min
Voltage
380V, 50HZ, 3 Phrase 220V, 60HZ, 3 Phrase
380V, 50HZ, 3 Phrase
220V, 60HZ, 3 Phrase
Power
13kw
13kw
Number of the Motor Head
7
8
4.Picture show

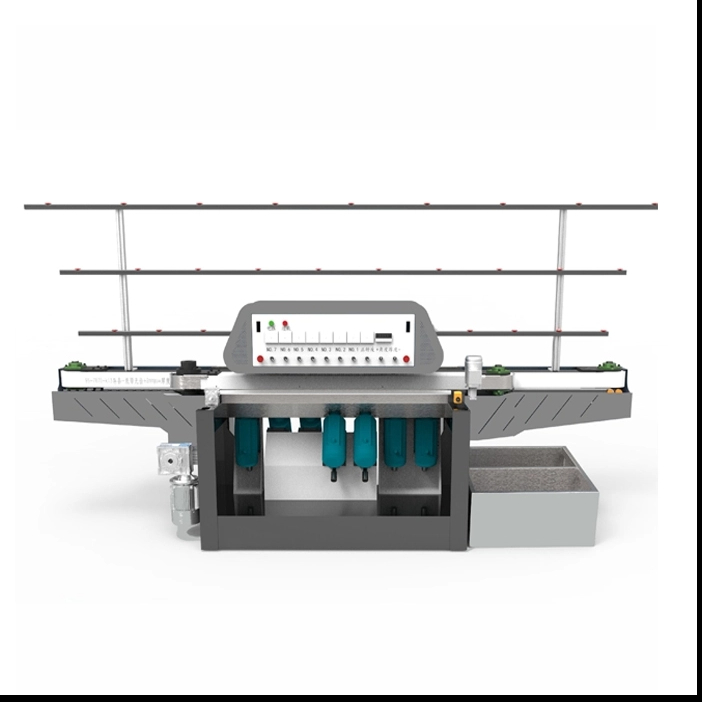

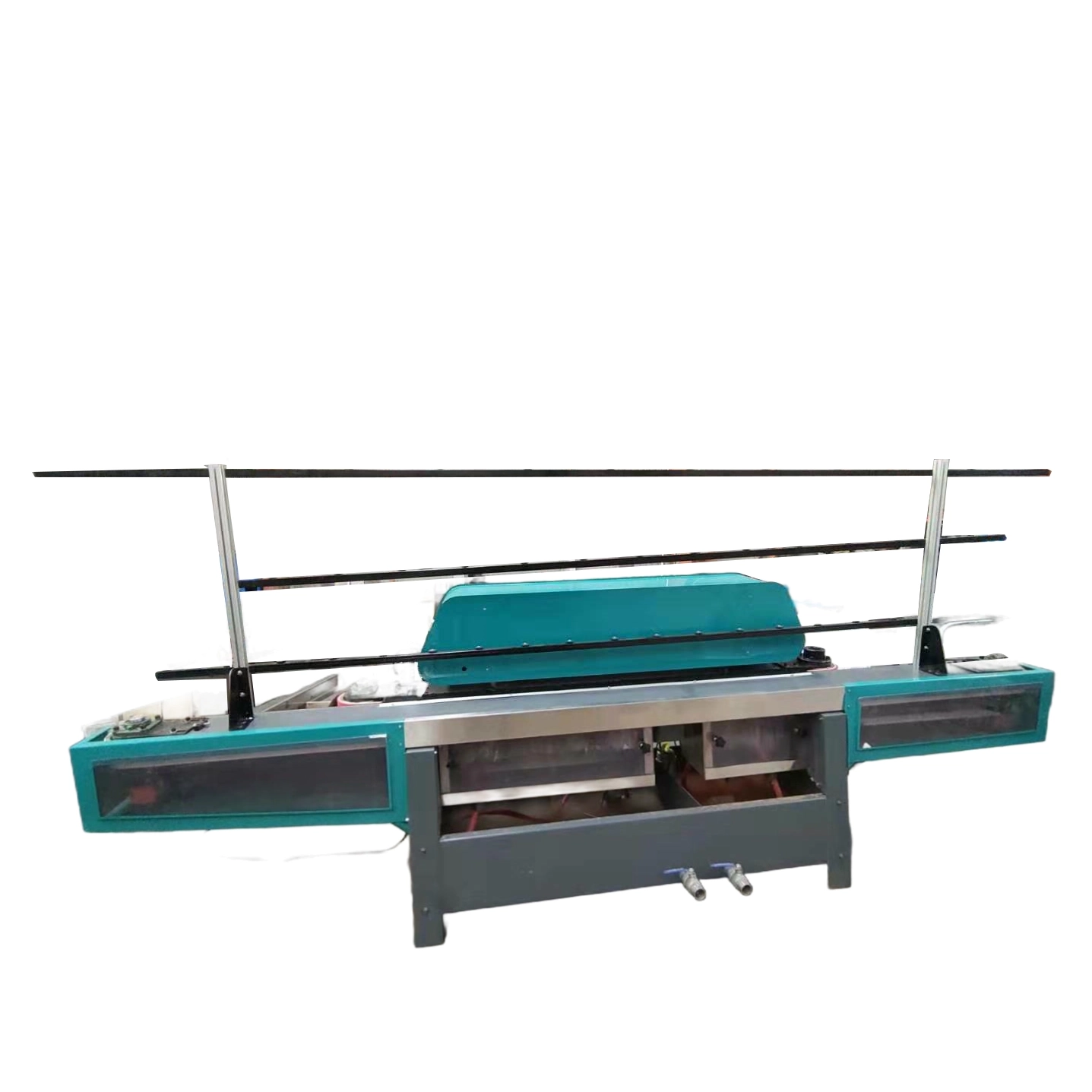

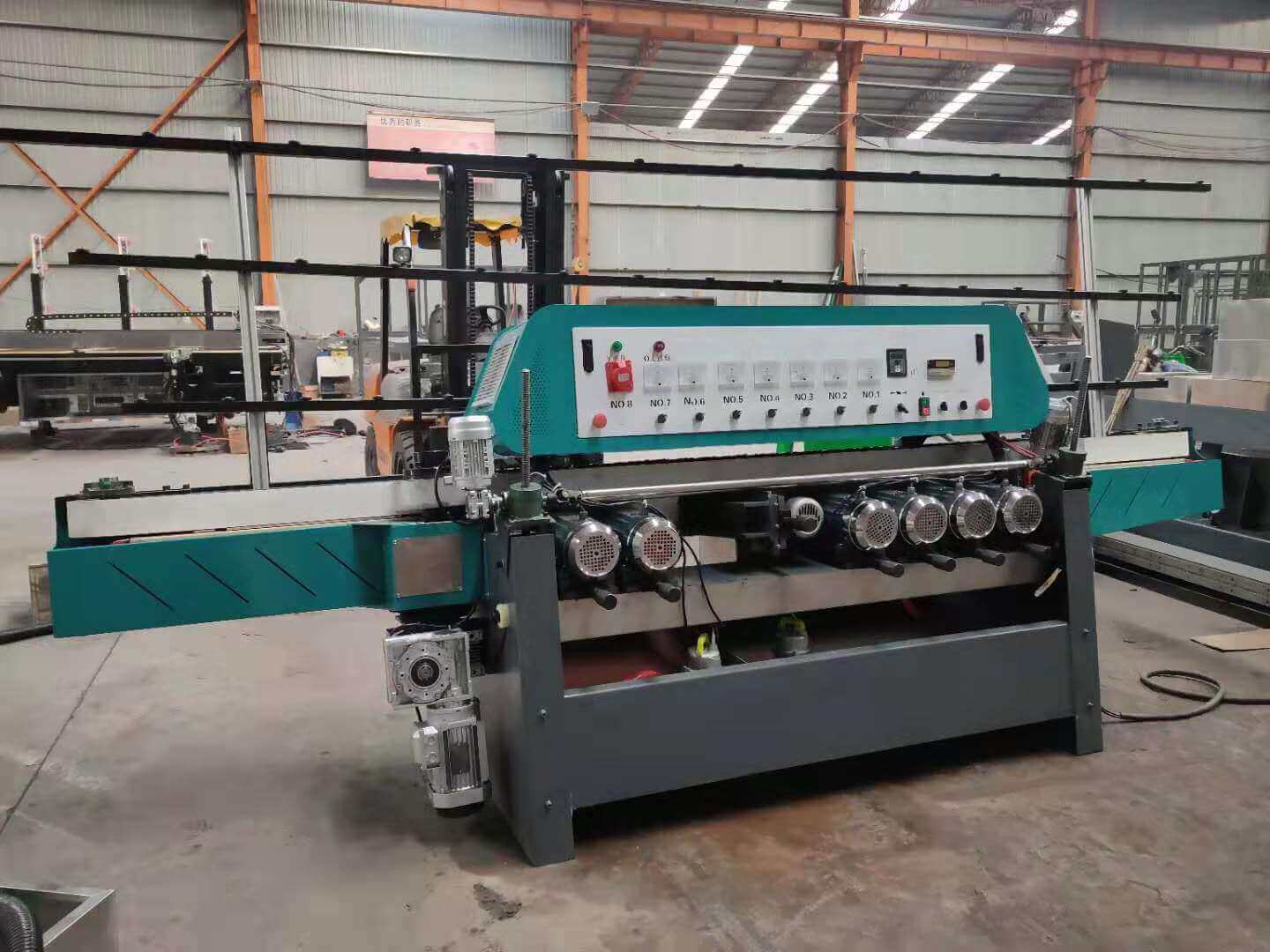

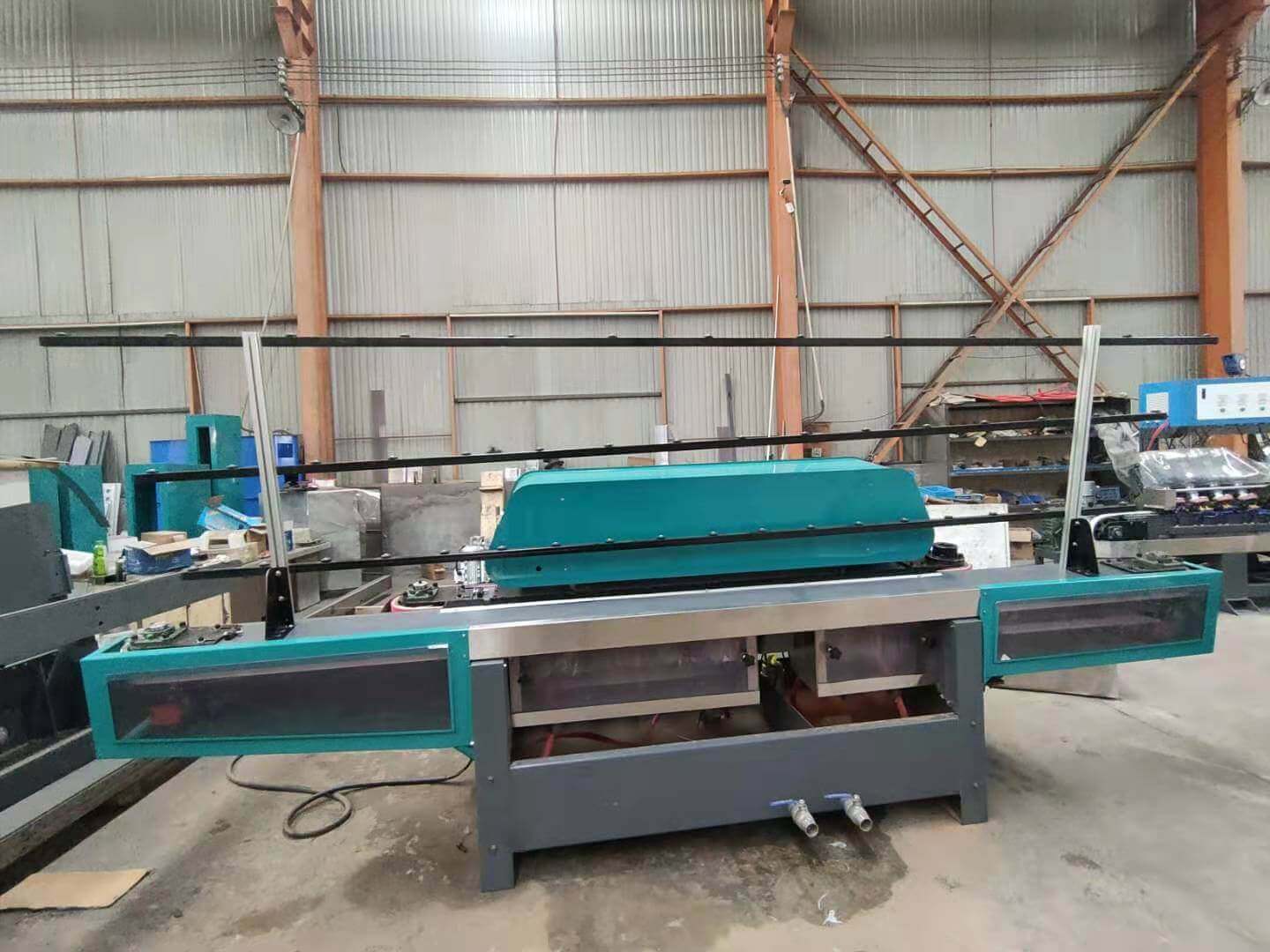

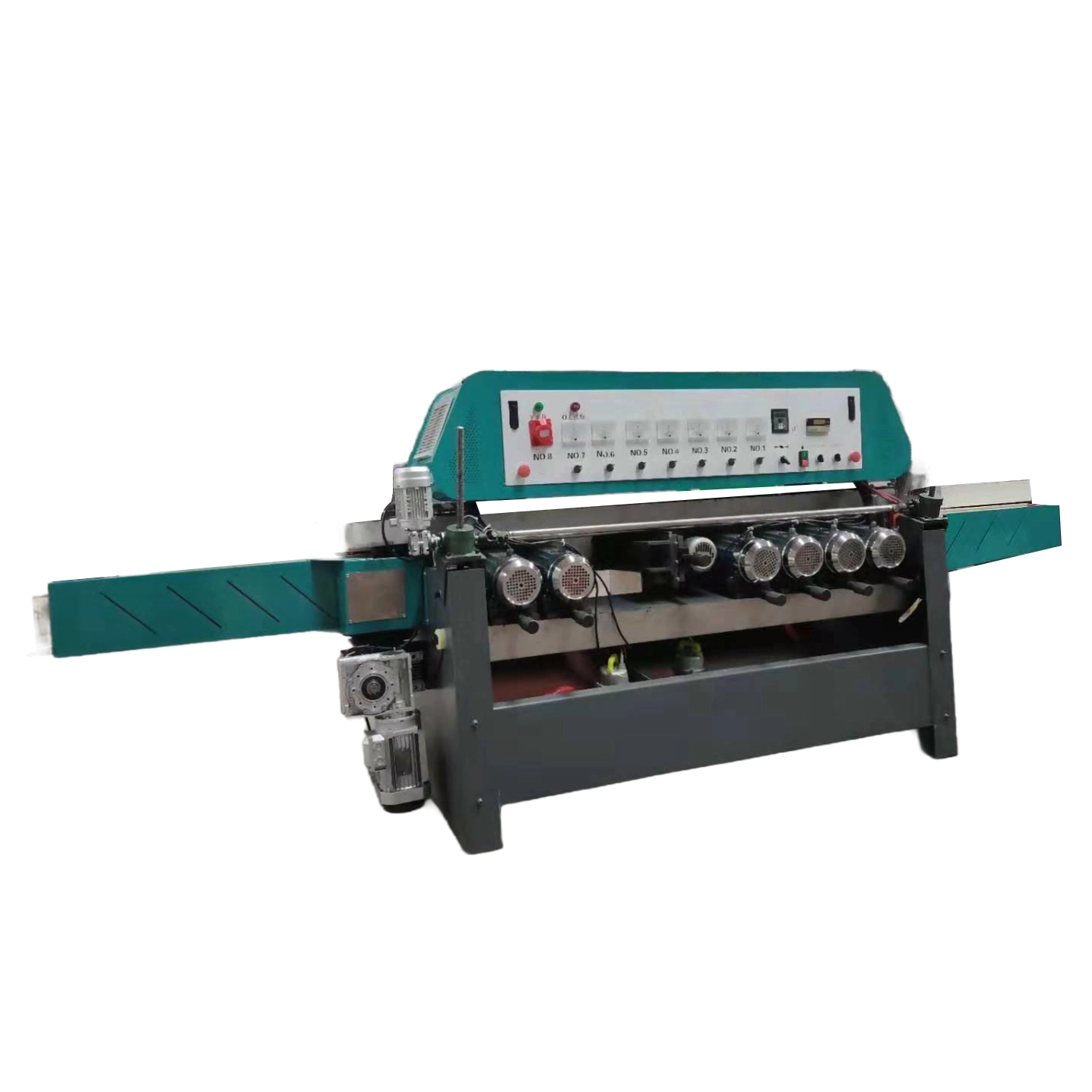

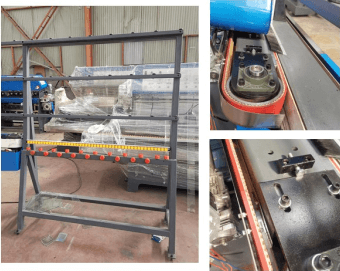

Physical picture
Finished product image

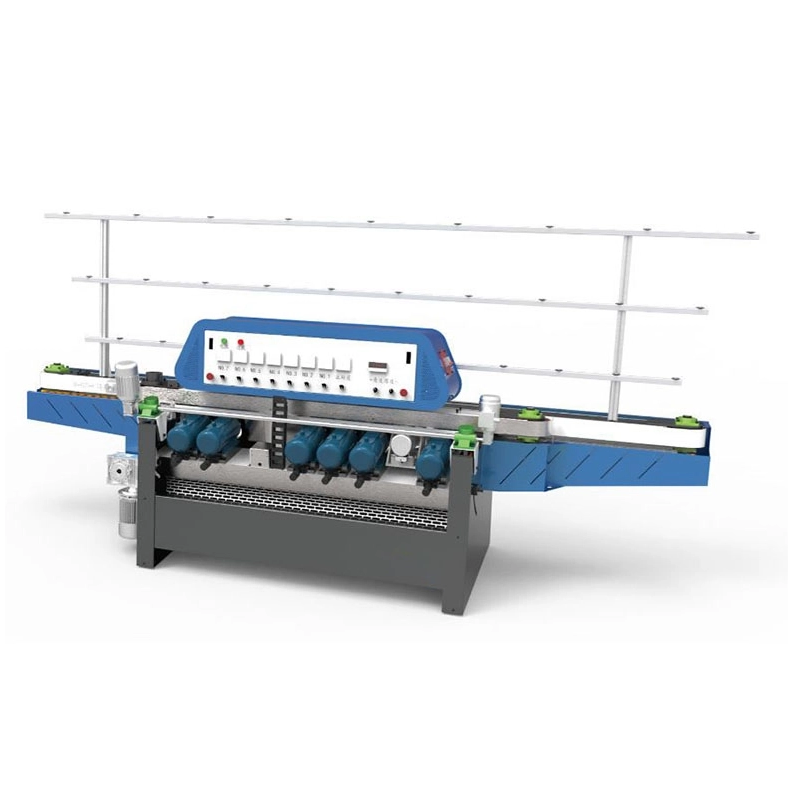

Structural diagram
5.FAQ
1. What types of glass can the high precision glass edge beveling machine process?
This glass edging machine is suitable for flat glass, tempered glass, laminated glass, mirrors, and architectural glass, with varying thicknesses.
2. What bevel angles can the machine achieve?
The vertical glass edge beveling machine can process angles from 0° to 45°.
4. How many spindles does the vertical glass edging machine have?
Specializes in providing comprehensive, one-stop solutions for the design, production, and export of equipment in the glass deep processing and door/window industries
