1.Describe

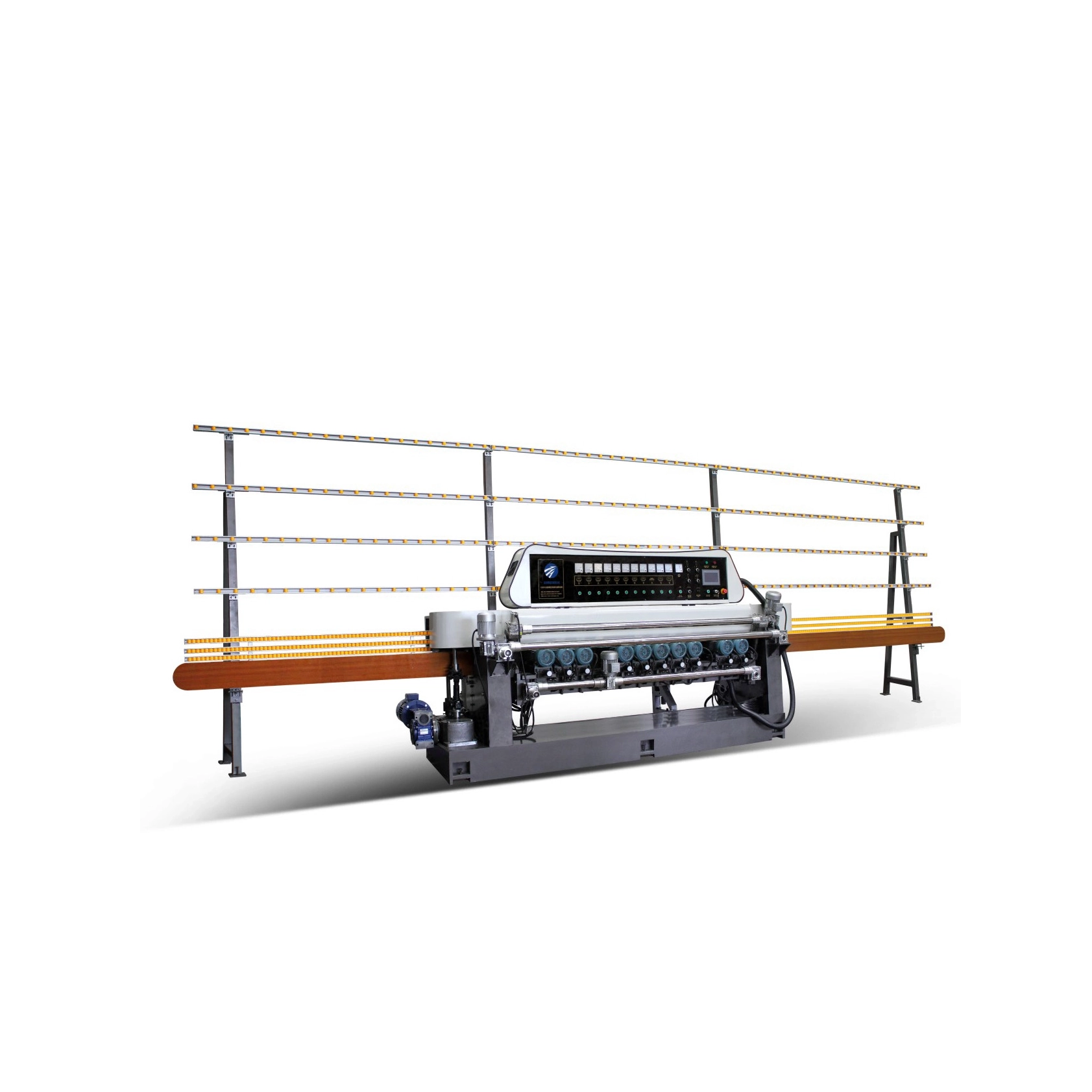

The high-speed straight-edge glass edge cutting machine is specially designed for efficient and precise processing of glass edges. It features a sturdy frame and a high-speed transmission system, ensuring stable operation even under continuous high-load conditions.

Each grinding head is independently driven, which guarantees consistency in precision and smooth edge effects. This machine is suitable for various glass thicknesses and is highly suitable for the manufacturing of architectural, furniture, and decorative glass.

2.Structure

• Heavy-duty frame structure - Made of high-strength steel or cast iron, ensuring the stability and anti-deformation ability of the glass edging machine during long-term operation.

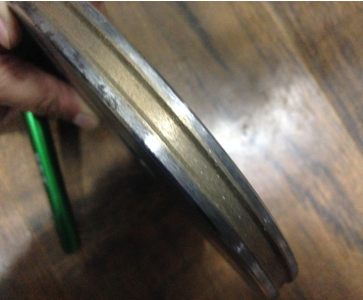

• Independent motor grinding head - Includes various grinding heads such as diamond grinding wheels, resin grinding wheels and polishing grinding wheels. Each grinding head operates independently, enabling the glass edge polishing machine to integrate coarse grinding, fine grinding and polishing functions.

• High-speed precise transmission - Utilizes synchronous belt transmission devices to ensure smooth, fast and precise glass transportation.

• Cooling system - Cyclic water cooling can prevent the glass from overheating and edge cracking.

• Intelligent control panel - Can control the entire operation process of the glass grinding machine with one button.

Items	Description
	Adopt SIEMENS PLC brand.
	Adopts armor plate 40Cr, stable function, the low possibility of breakdown.
	Grinding motors adopt the famous ABB brand to make the machines working precious.
	All electric parts adopt the famous Schneider brand to drive the machine more stable and durable.
	Coarse pitch chain in conveyor system that more durable and stable.
	Electric device to adjust the glass thickness.
	Electric device foradjustingthe glass angle. Easy to operate.
	With third bar functionwhich can move the motors out and in at the same time.
	We adopt Aluminum fluency stripsinstead of iron frame that brings the glass transmission more stable, durable for use and looks more beautiful.
	Adopt theItaly brand Barbieri timing beltto convey the glass.
	Adopt the frequency inverterfor adjusting speed to ensure the machine working more stable while processing.
	Adopt 2 pcs of quality stainless steel water tanks. One for water circulation size in 1400 * 500mm. The other one for cerium polishing water thank with mixer function diameter in 600 * 600mm.

3.Parameters

4.Picture

5.FAQ

1.What is the processing speed of this glass edge grinder?

It usually ranges from 1 to 10 meters per minute. The exact figure depends on the thickness of the glass and the requirements for edge processing.

2. How many grinding heads does this machine have?

This automatic glass edge polishing machine is equipped with 10 grinding heads, which can perform the processes of rough grinding, fine grinding and polishing simultaneously, thus achieving excellent edge grinding results.

3. Is this machine easy to operate?

Yes. This glass edge grinding machine is equipped with a PLC control system and a touch screen interface. It supports one-click operation and the machine can fully automate the entire operation process.
