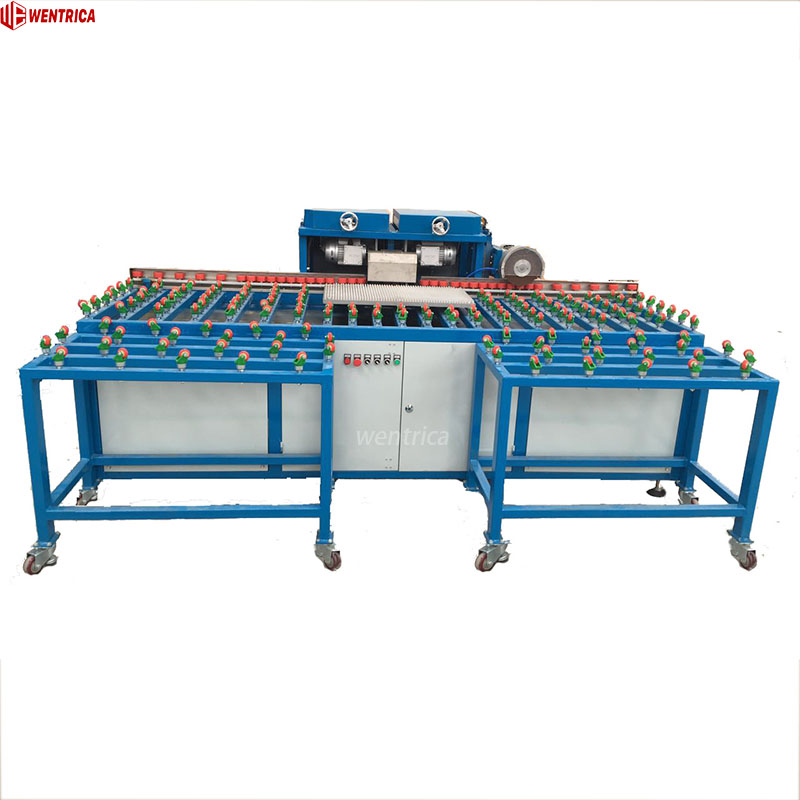

The glass double-sided edge grinding machine is a specialized equipment for glass edge grinding processing and an indispensable part of the glass deep processing field
It is equipped with two grinding wheels, namely diamond grinding wheels and resin grinding wheels, featuring high grinding accuracy and a service life of 1000 to 3000 meters
It is equipped with a buffer device, resulting in a low glass wear rate
The grinding wheel is movable and suitable for glass of various thicknesses and sizes
It can be connected to a cleaning machine for combined use
It adopts a telescopic nylon wheel platform to adapt to glass of different sizes
The configurable Low-E coating removal device can simultaneously remove the surface coating after edge grinding of the glass

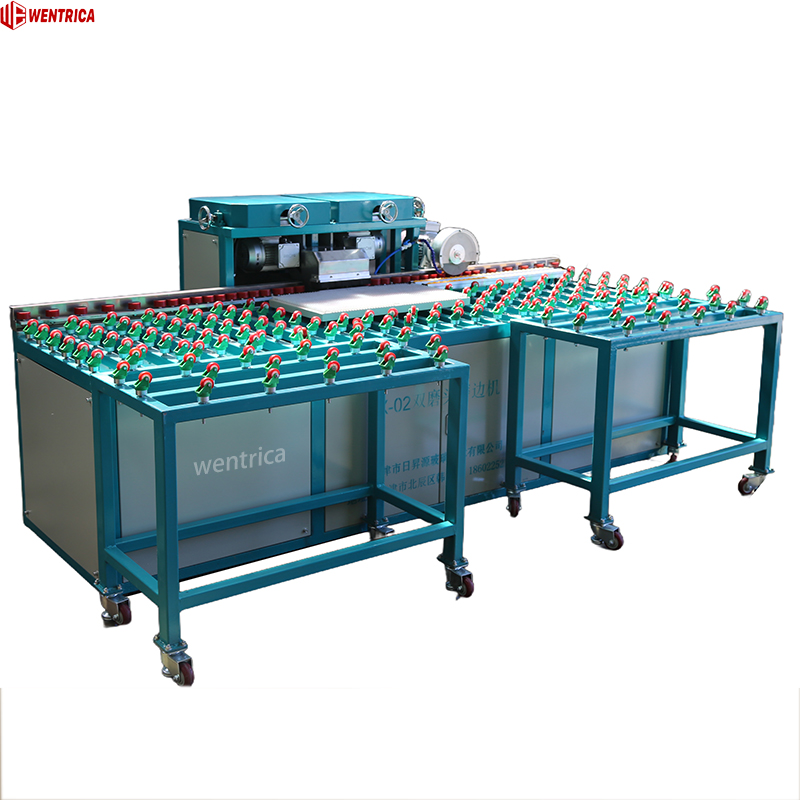

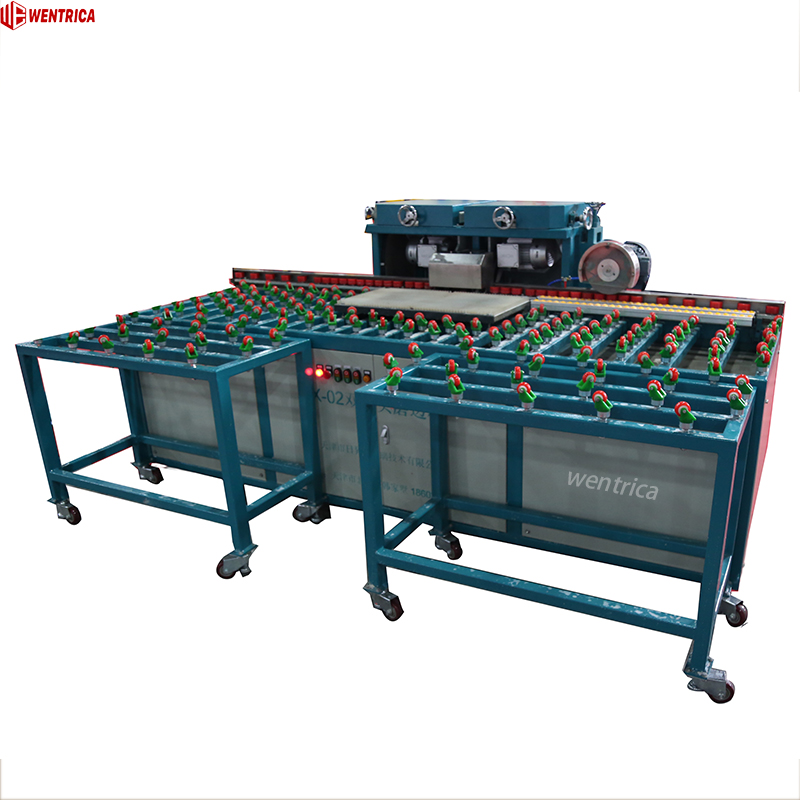

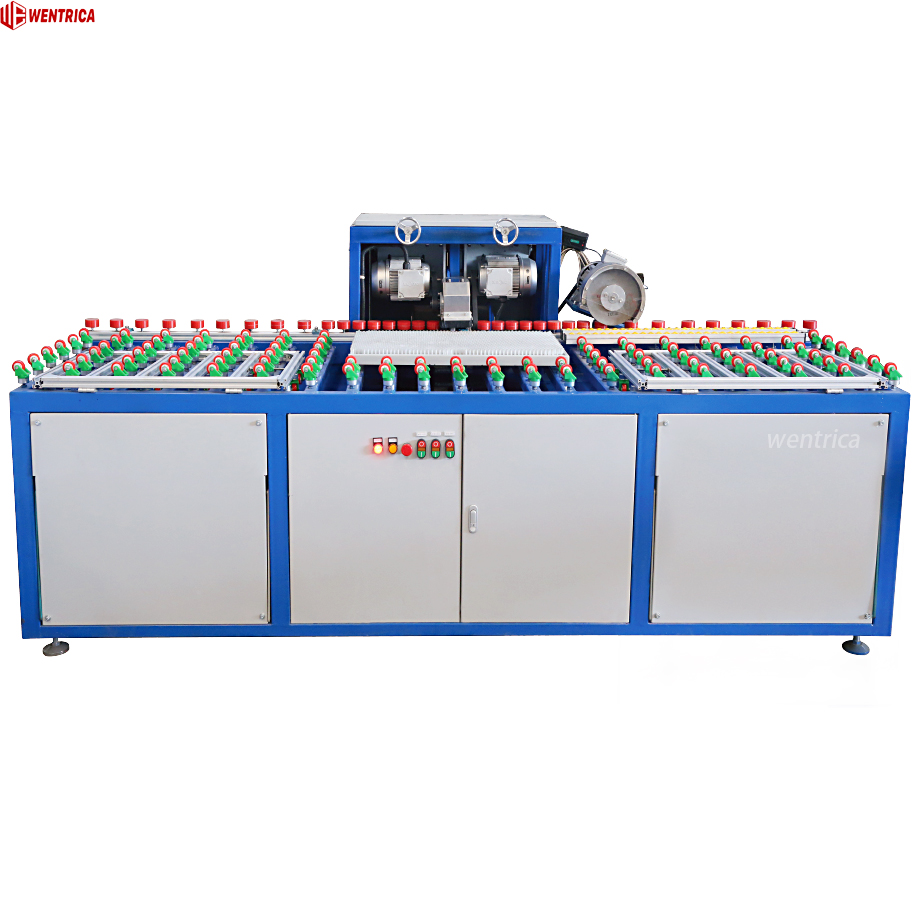

The double-head glass edge grinding machine is a specialized equipment used for grinding, polishing and chamfering the edges of flat glass. It adopts the four-step grinding principle and the floating grinding wheel structure. It is composed of the grinding head system, the transmission system, the cooling system and the control system. It is equipped with two grinding wheels made of diamond and resin, and can complete the rough grinding and fine grinding of the glass edge in one operation.
2.Structure
Double grinding head

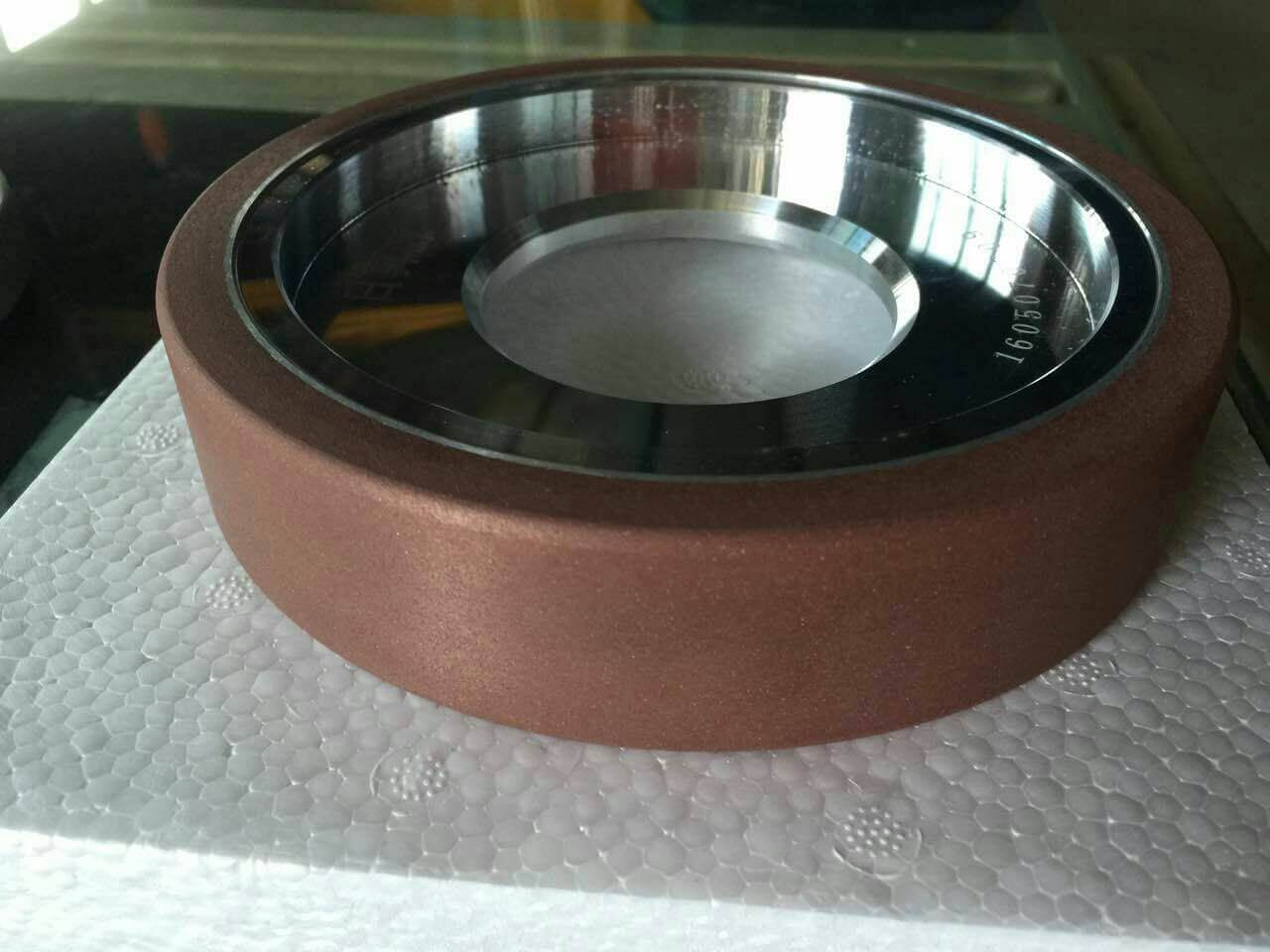

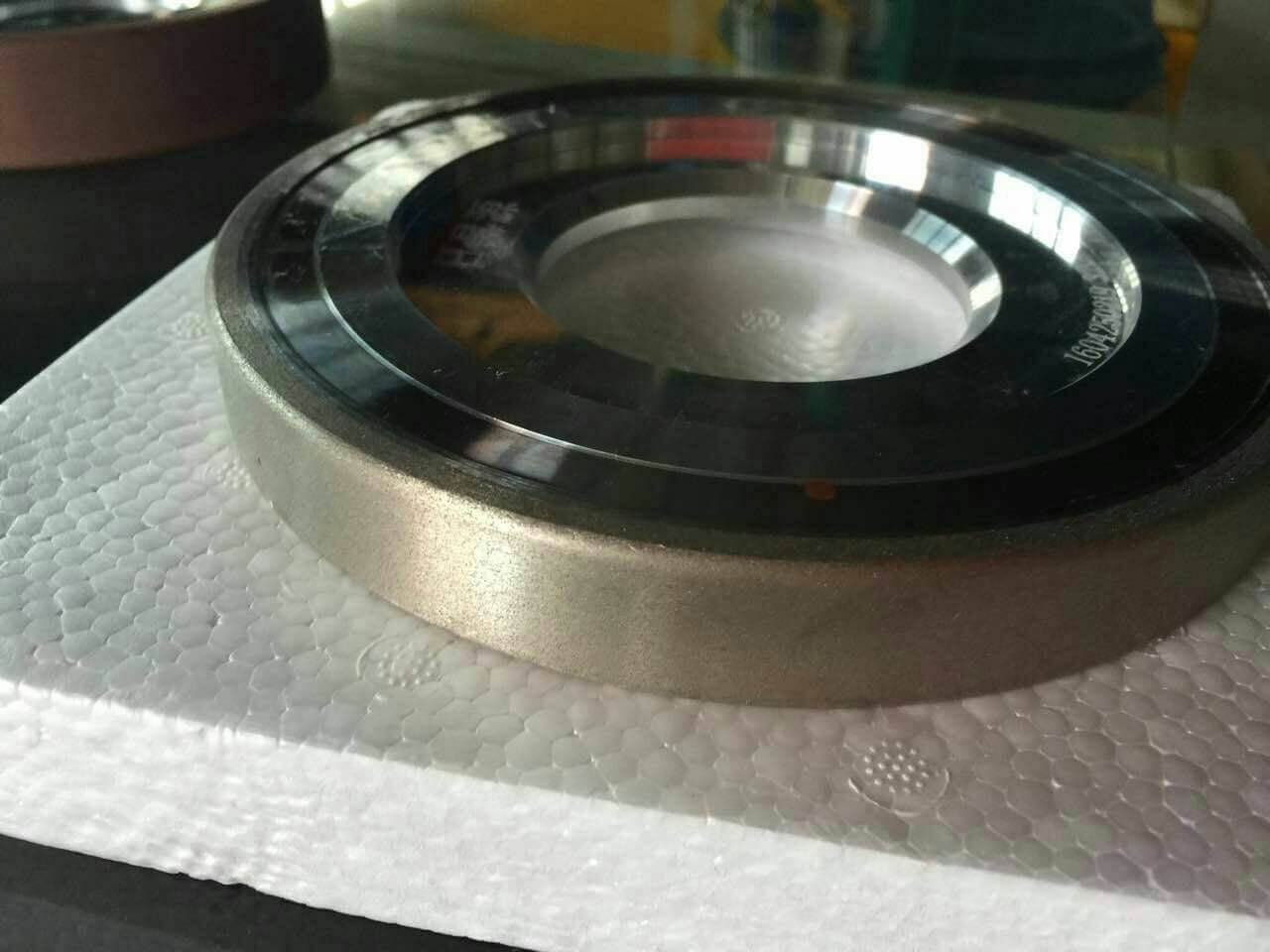

Double grinding wheels: This machine integrates two vertically arranged diamond grinding wheels and resin grinding wheels, forming an angled structure for simultaneous dual-side grinding. The grinding wheels are easy to replace and the spacing can be adjusted to accommodate different thicknesses of glass.
It can complete the rough grinding and fine grinding of the glass in one go.

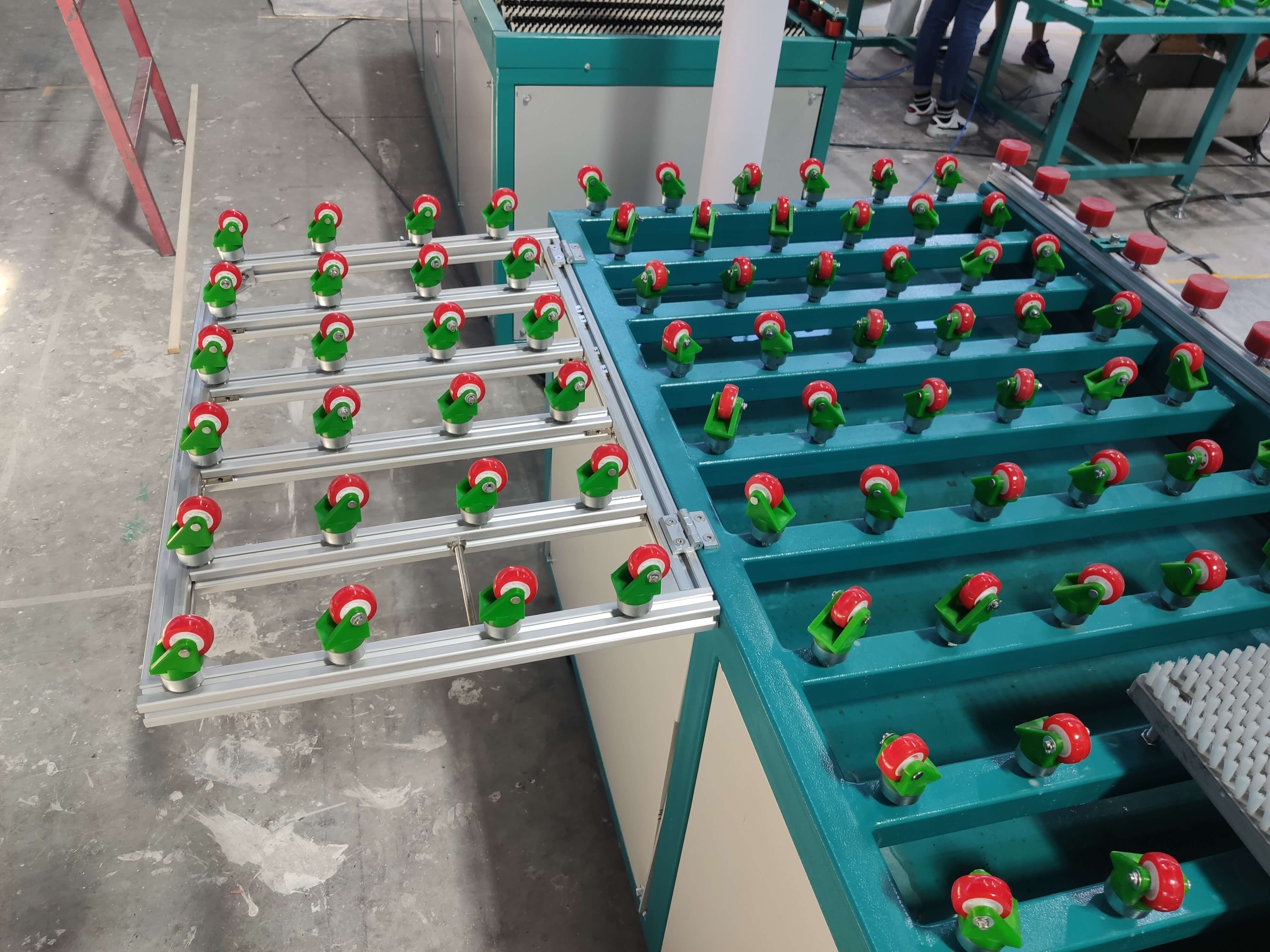

Extensible platform
The foldable working platform can handle large-sized glass panels, enhancing flexibility and operational convenience.
Configure wheels at the front end of the platform to ensure that the glass runs in a straight line.

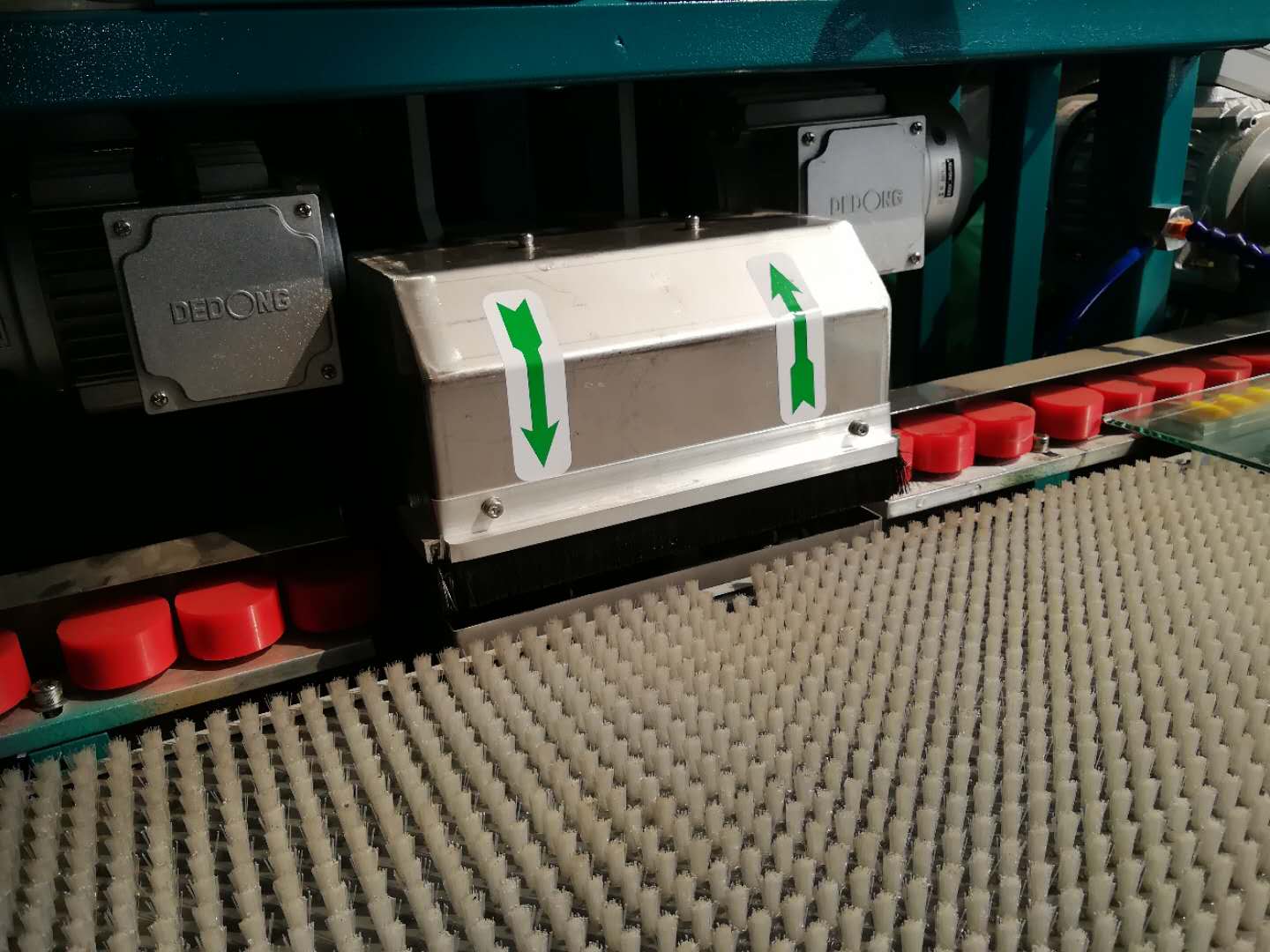

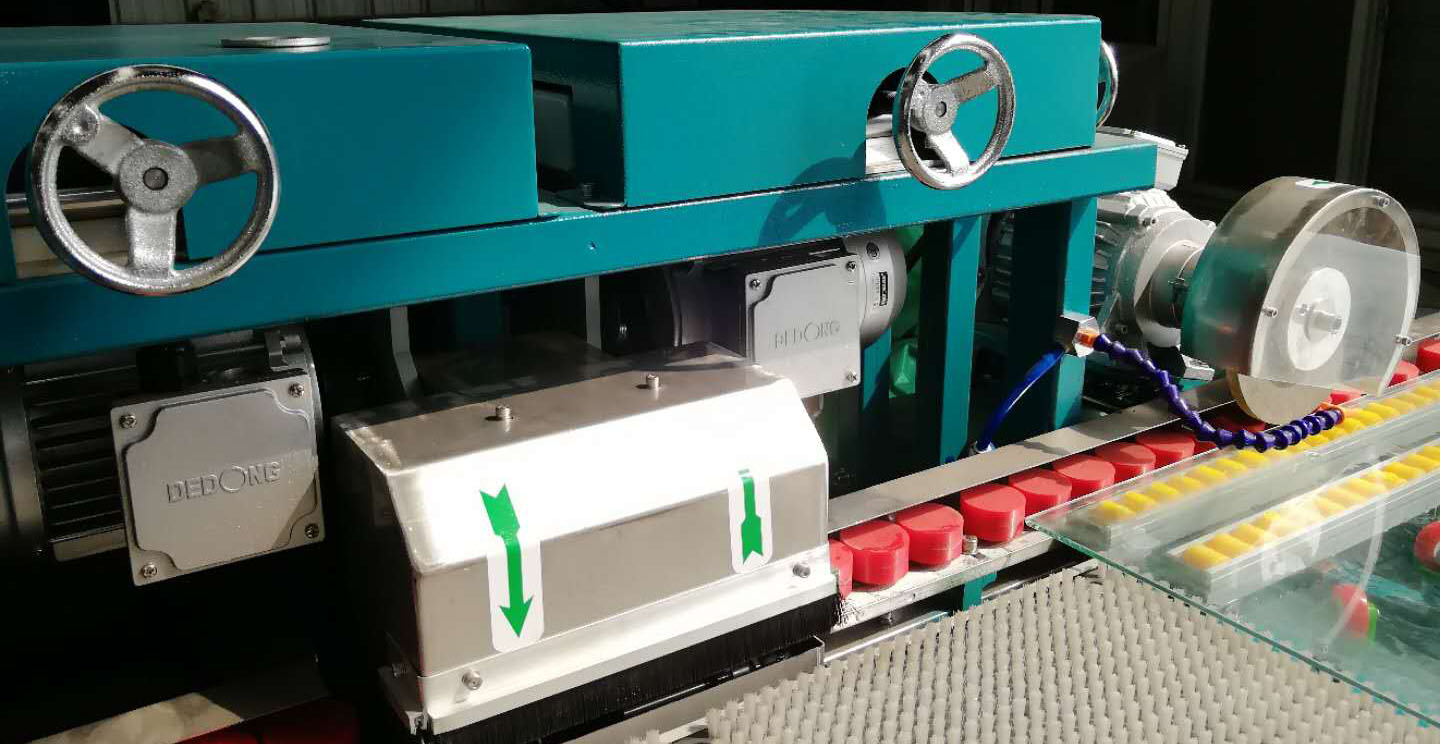

Independent low-emissivity coating removal device
A specially designed system for safely removing the low-emissivity film before edge grinding.
Capable of performing grinding on the entire peripheral edge including the bottom edge. Particularly suitable for the processing of tempered glass and insulating glass.
Easy integration
It can be used in conjunction with the glass cleaning machine to enable continuous production line operation.

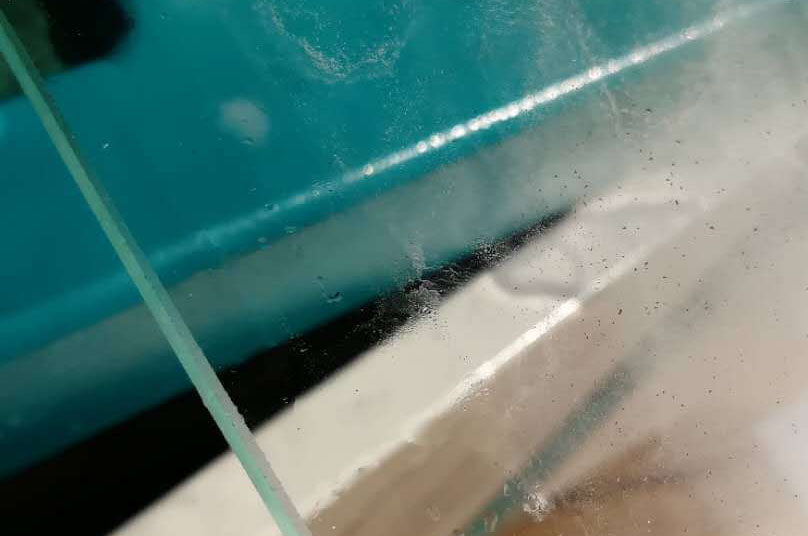

Edge grinding effect
3.Specification
Model
TYY-NX-02
Power
3.1KW
Overall size
2800*1250*1270mm
Adaptive glass thickness
3mm-12mm
Small platform
1090*520*850 mm
Minimum processing size
300*300mm
Maximum processing size
2000*2000mm

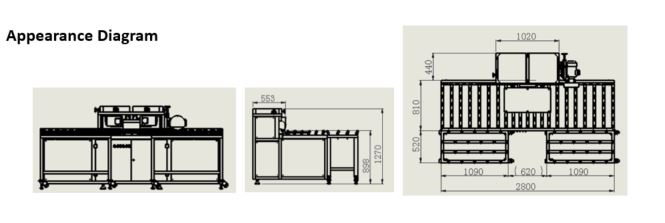

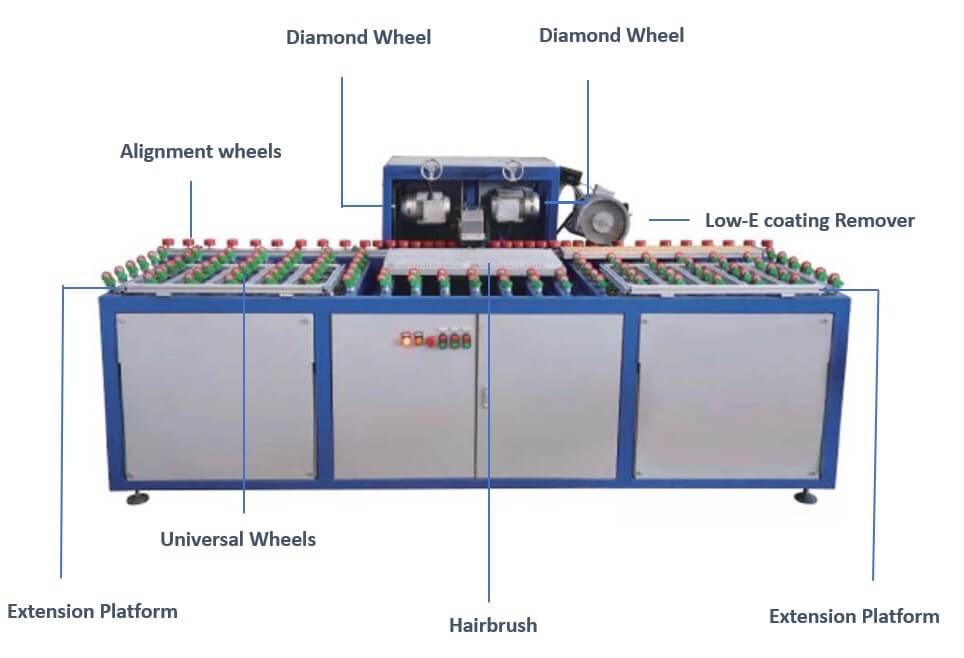

4. Appearance Diagram
5.FAQ
Q: Your machine is for rough grinding or polishing?
A: Our edging machine is for rough grinding, suitable for chamfering before the glass is tempered and insulated.
Q: Is your machine suitable for the irregular shapes make?
A: Our edging machine cannot grind the special shaped glass, because there is a row of standard wheels on the back of the platform. Our machine named TYRSY-08B is workable to the irregular shaped glass, like the triangles, waves, circles, etc.
Q: What structure does the grinding wheel of this edging machine use?

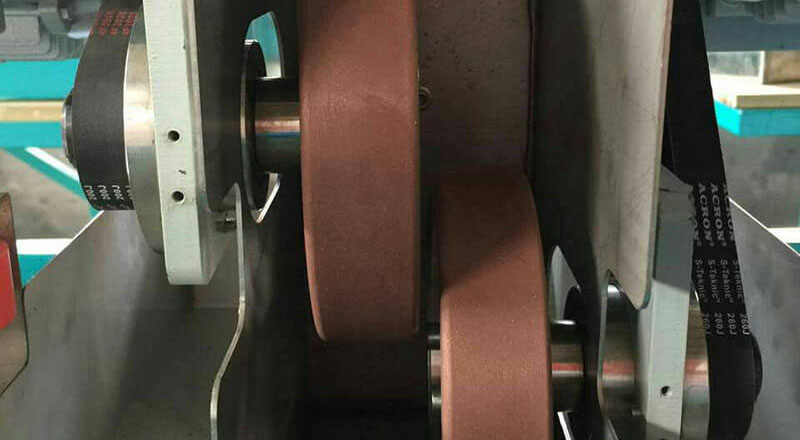

A: This edging machine uses a grinding wheel structure similar to a four-side grinding machine. It has two resin wheels or two diamond wheels. The two wheels are placed one on top of the other to form an included angle. The glass passes through the angles made by the two wheels.
Q: How long can the grinding wheels be used?
A: Based on working eight hours a day, the resin wheel can be used for more than one month, and the diamond wheel can be used for six months.
