Home » Products » Glass Handling Systems » X Type Electric Vacuum Glass Lift Elevator With 360° Rotation & Remote Control in The Field of Curtain Wall Construction.
The X type electric vacuum glass lift elevator is suitable for various plate-like objects such as glass sheets, steel plates, granite plates, and marble plates.
Adopt the Thomas vacuum pump, which is highly responsive, stable in performance, and capable of rapid adsorption and release.
Can be rotated 360° electrically or manually, and can be flipped 90°.
Equipped with a sound pressure monitoring device and a power-off self-locking device, ensuring a high safety factor.
Configured with an extendable arm to ensure it can adapt to different sizes of glass.
Powered by D12V batteries, with sufficient power supply, long battery life, and no need for power connection.
The sealed packaging component is waterproof and dustproof, suitable for outdoor and extreme weather conditions.
Can be remotely controlled, with a control range of 50 meters.

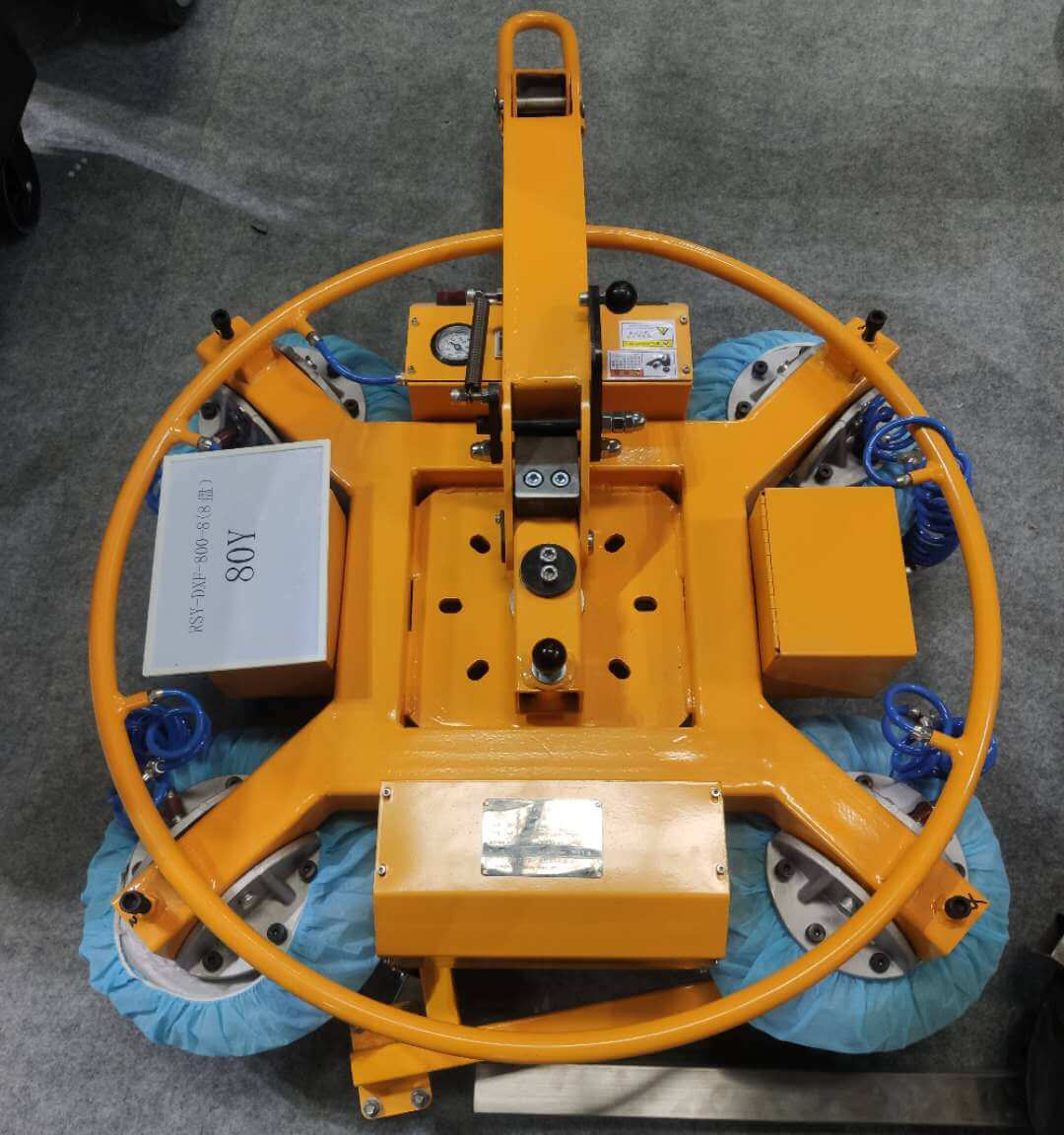

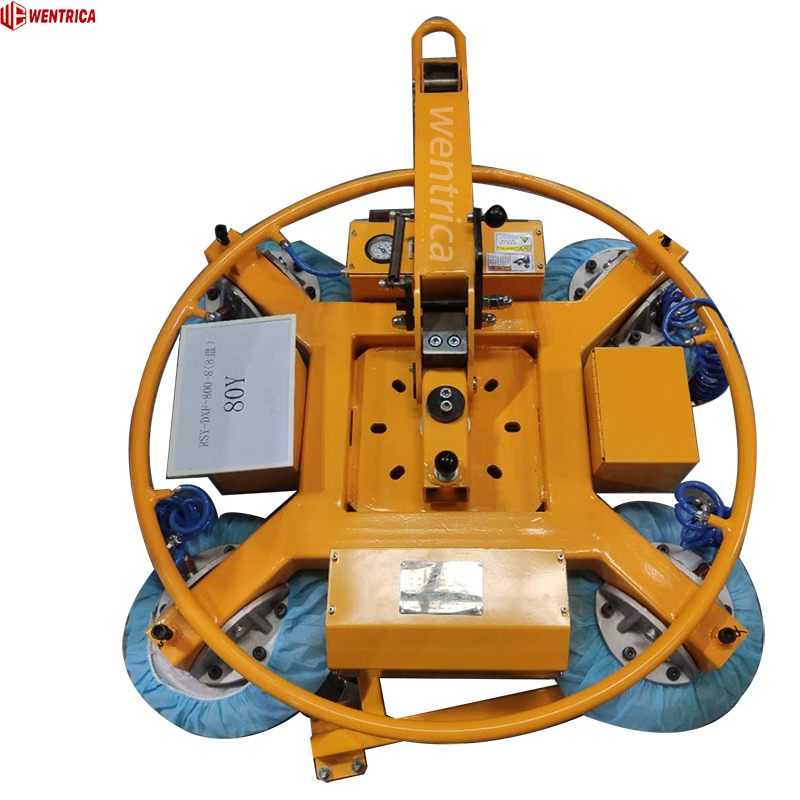

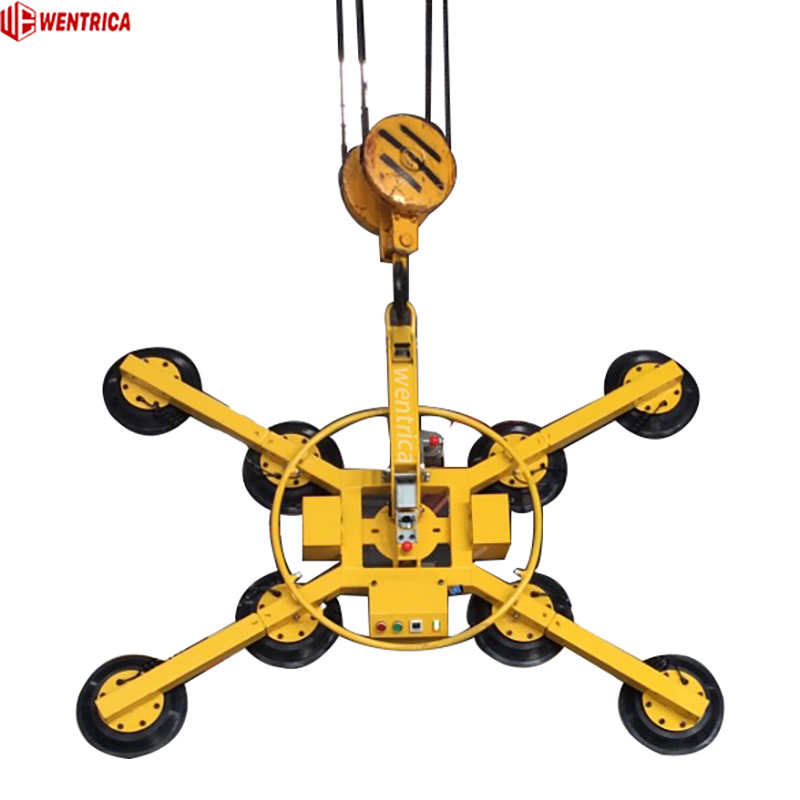

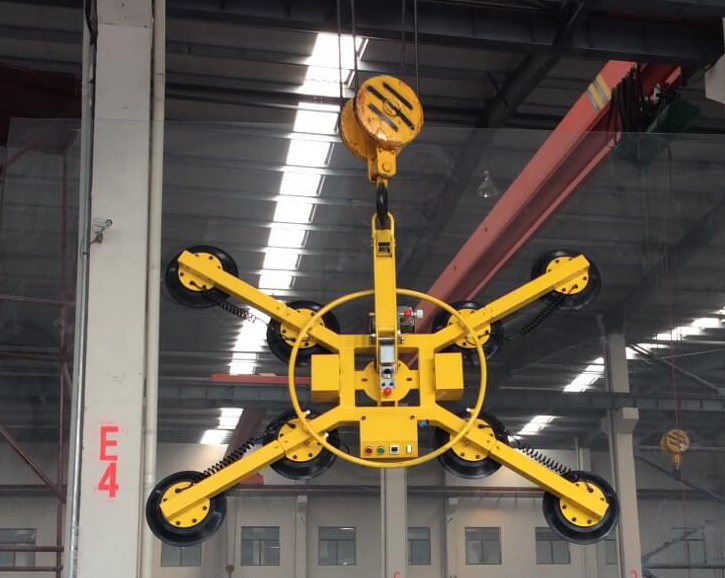

The X type electric vacuum glass lifter is a specialized glass lifting equipment that can perform operations such as rotation, flipping, and lifting on the glass. Its X-shaped crossbeam design features a stable structure that can evenly distribute pressure.

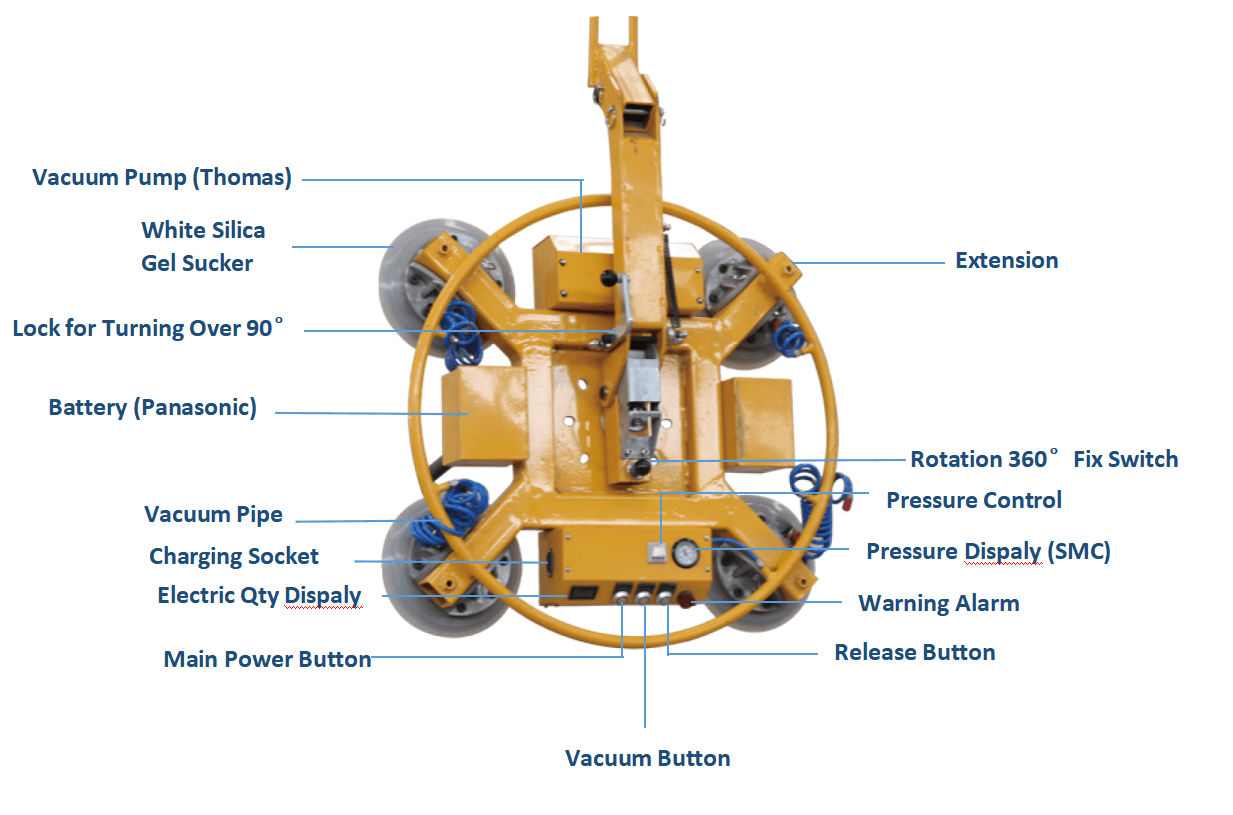

2.Structure

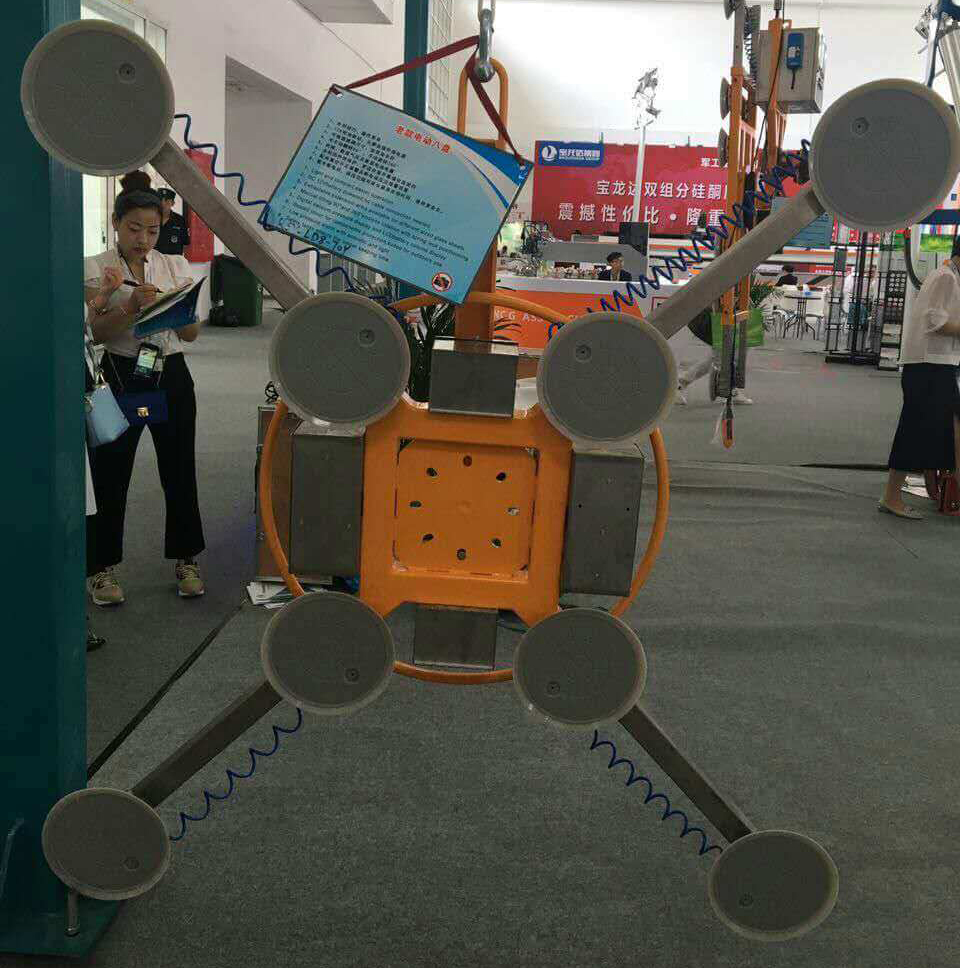

Suction Cup System
The glass lifting suction cups using silicone suction cups, they have excellent adhesion and anti-aging properties, and have a natural affinity for glass.
Each suction cup is equipped with a vacuum control valve, which can be controlled independently.

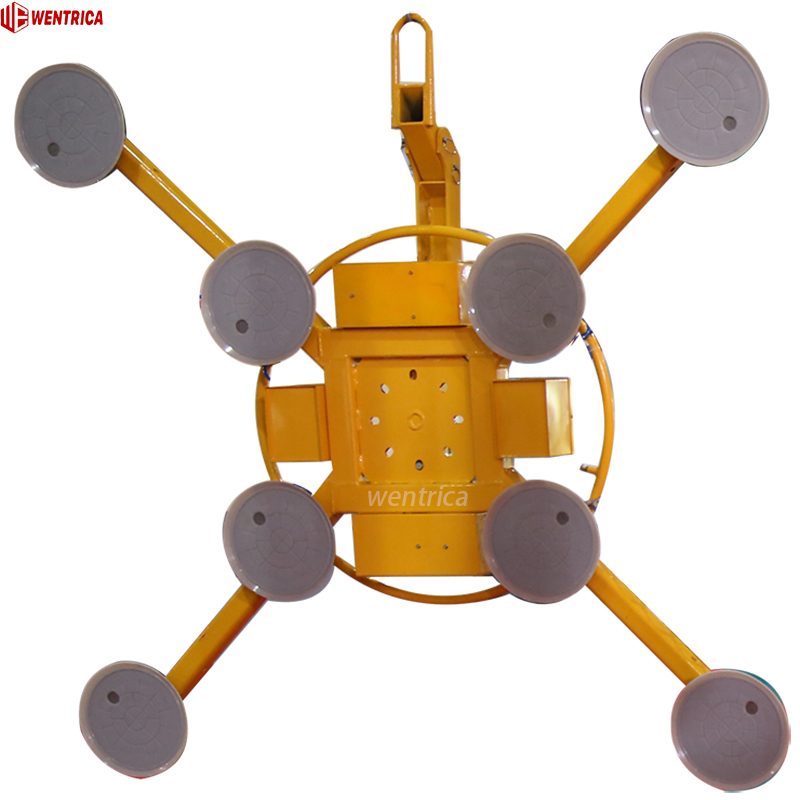

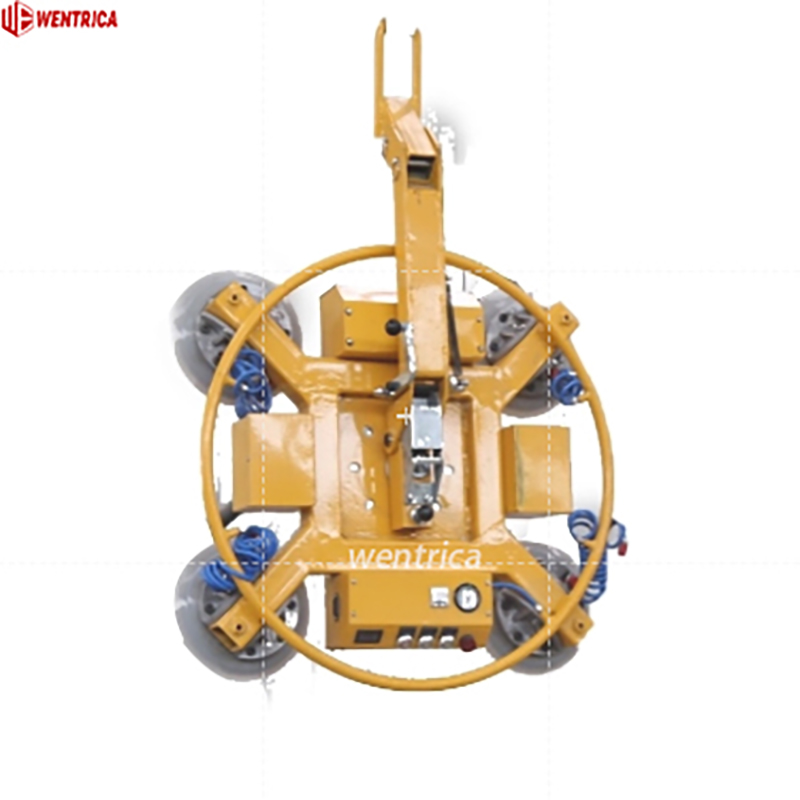

X-type Frame
Constructed with high-strength materials, featuring a stable structure and strong load-bearing capacity.
Rotation and Tilting Mechanism
The glass lifting equipment supports 360° rotation and 90° tilting for precise adjustment of panel angles.

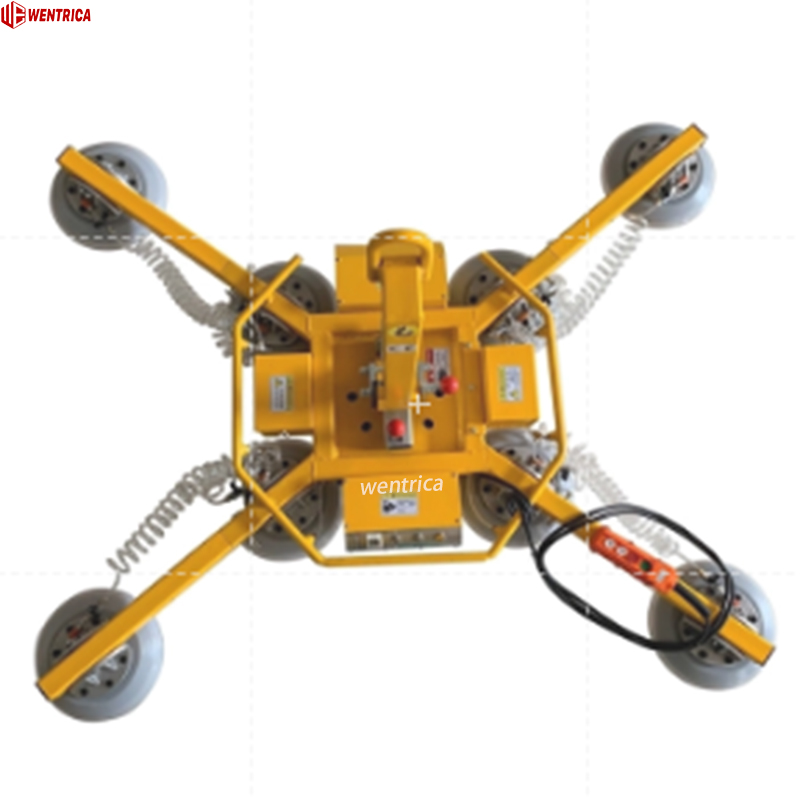

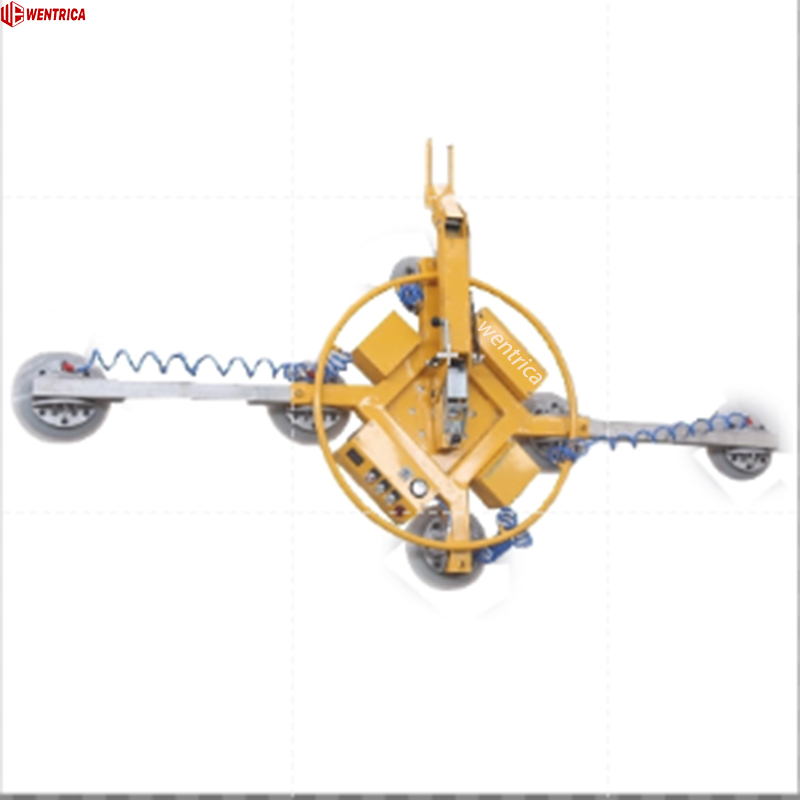

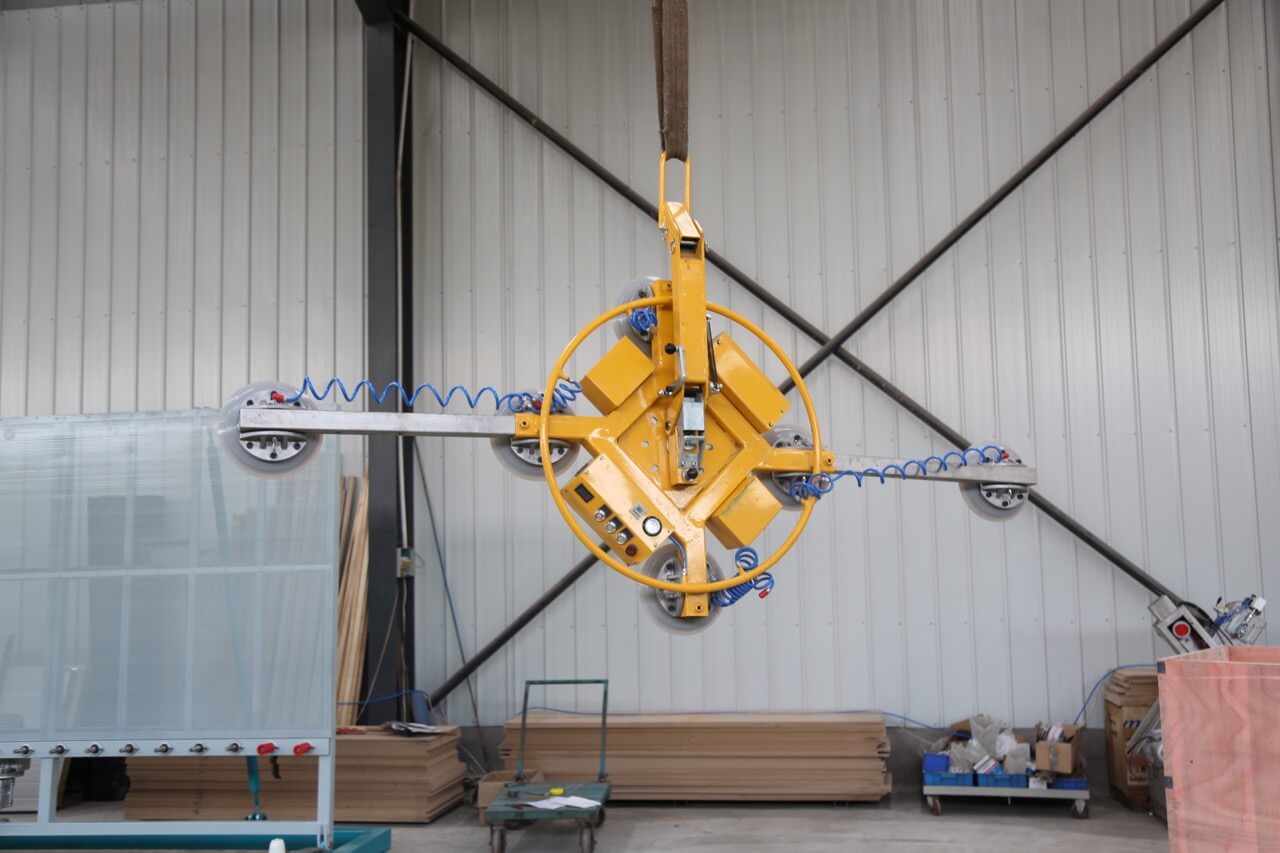

Extension Arm
Equipped with telescopic arms, which can accommodate different sizes of glass.
Safety Protection System
Equipped with vacuum pressure monitoring, audible and visual alarm functions, and automatic power-off locking feature. Vacuum system
3.Specification
DC12V Electrical Glass Lifter Sucker
Model:RSY－DXF500-4600-6800-8
Operating weight: 500/600/800KG
Sucker No.: 4/6/8
Operating electric pressure: DC12V
Battery Life: 30-40hours
Moment power-off protection: 10mintues
Work range: Rotate 360°;overturn 90°.
Vacuum Pump: Thomas(American)
Sucker material: white silica gel, suitable temperature:-40°to90°;leave no trace
Function: TheX type electric glass lifting device mainly suitable for outdoor screen installation/and indoor large-glass movement, it has rotating and flip function.
4.Usage steps

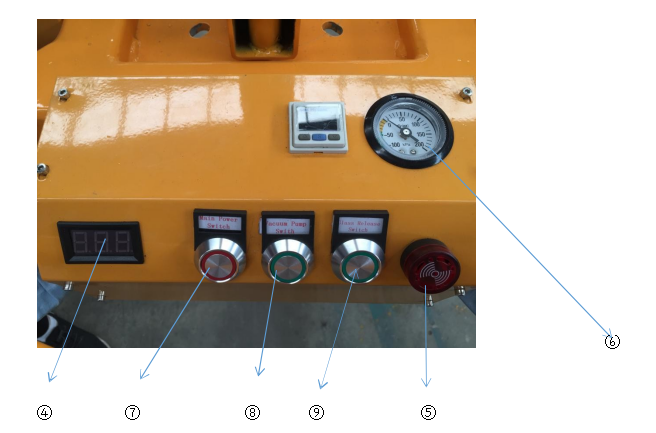

Step 1 :Please using glass lifter sucker close to the glass slowly, then Main power switch(⑦) to ON, and open Vacuum pump switch(⑧) to ON. When the Vacuum Gaugel (⑥)= -65(Negative Pressure mater =-65), can be used glass lifter sucker to lift glass.
Step 2: Please used glass lifter sucker to lift glass to the desired location, then glass release switch (⑨)to ON.
5.Application

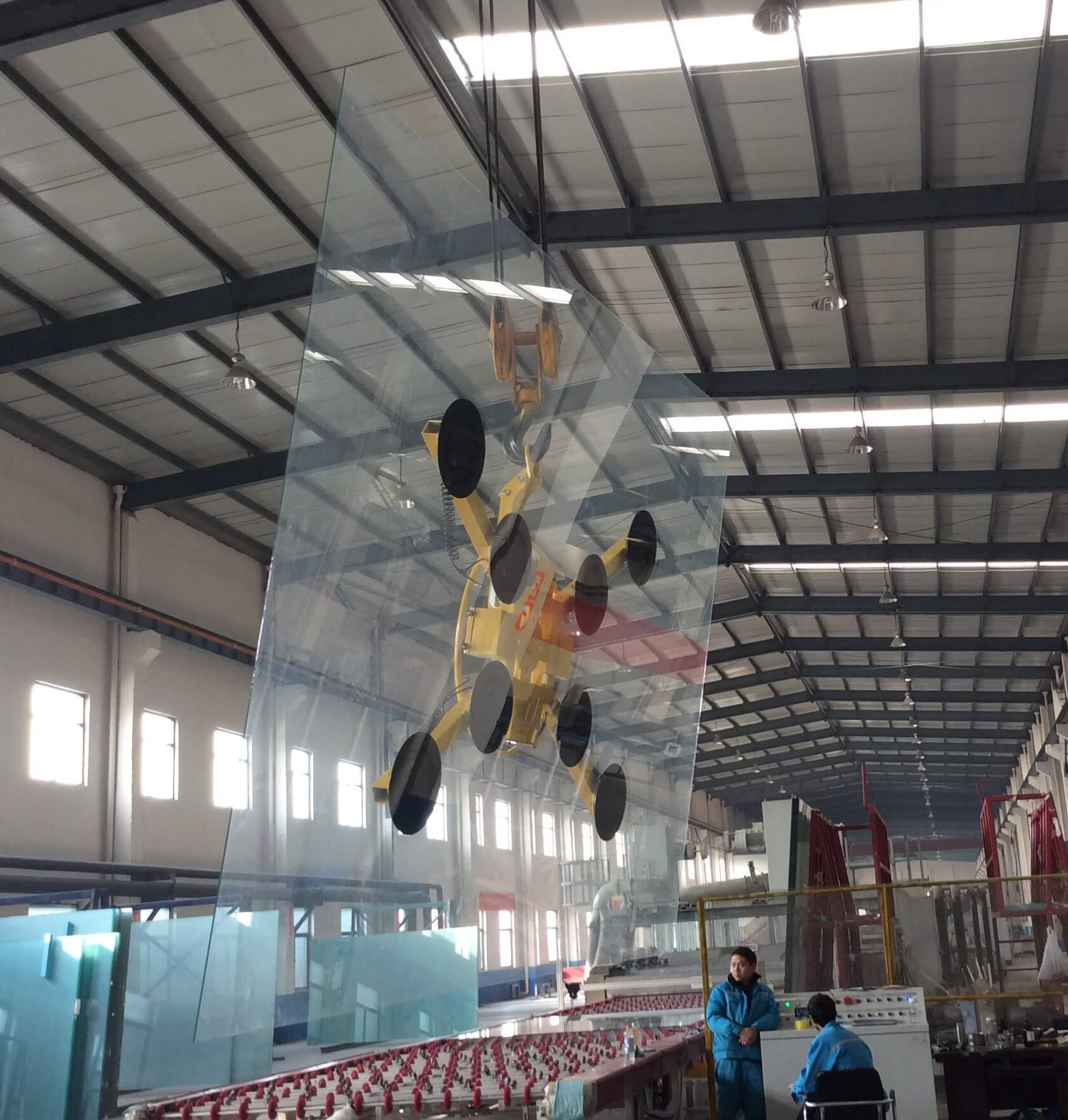

Application of X-shaped suction cups indoors and outdoors

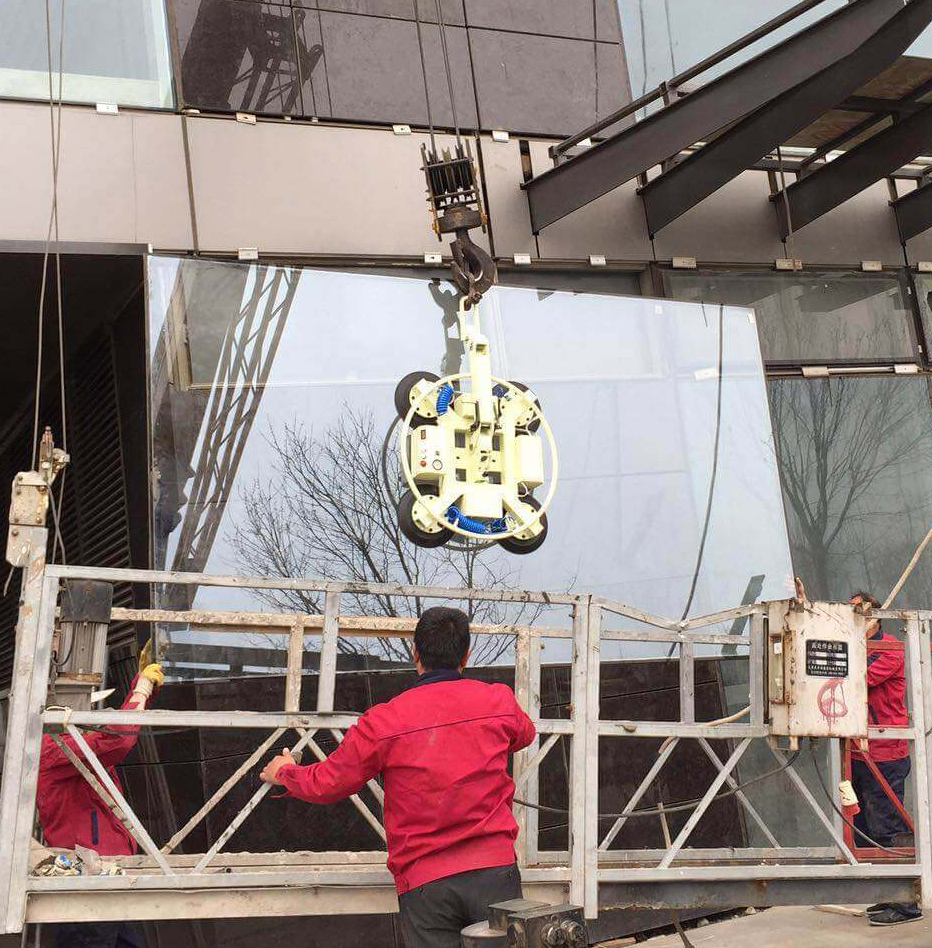

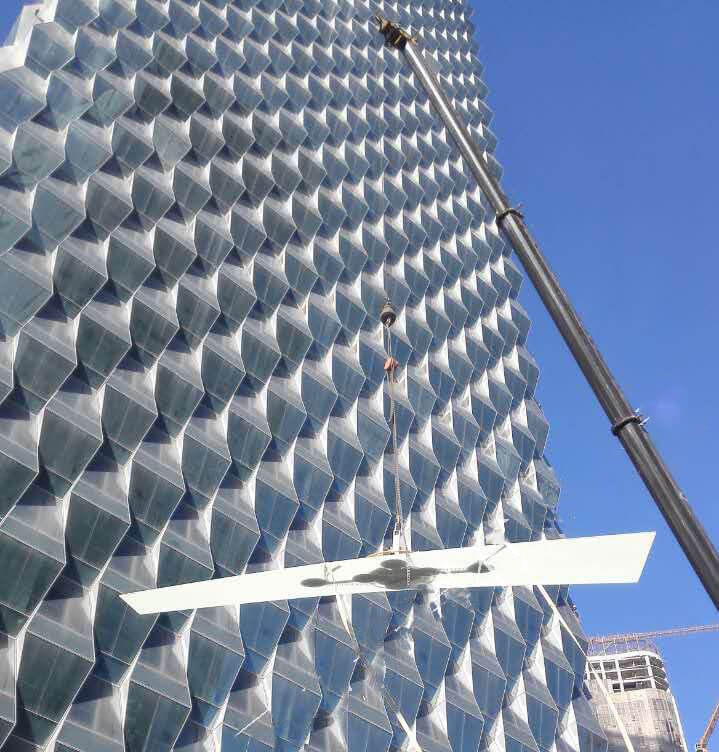

Application of X-shaped suction cups on glass curtain walls
6.FAQ
1. What materials can the X type electric vacuum glass lift elevator handle?
The lifter is mainly used for transporting glass plates, and it is also suitable for transporting other types of plates such as granite plates, marble plates, steel plates and plastic plates
2. What is the maximum load capacity of this electric glass vacuum lifter?
The load capacity and installation size of the lifter may vary depending on the configuration of the lifter, and it can be customized according to the customer's requirements. In addition, it is equipped with a telescopic arm that can adapt to different sizes of glass
