Powered by lithium batteries, the battery life lasts up to 4 to 6 hours. The portable vacuum glass lifter can be used without an external power source, which is convenient.
Can be manually flipped 90 degrees and rotated 360 degrees, allowing for precise positioning of the glass.
Equipped with three safety protection devices, including a vacuum deficiency alarm device, a digital pressure monitoring device, and an electricity cut-off protection device, ensuring that the glass will not fall off from the portable vacuum glass lifter within 15 minutes in case of an emergency.
The sealed protective components are dustproof and waterproof, enabling the glass lifter to work normally in extreme weather conditions.
The silicone suction cup has strong adhesion and can support a weight of 1.2 tons. The number of suction cups can be customized.
The linear vacuum glass lifter is a powerful glass handling and lifting device. Equipped with batteries, it is compact and flexible, and supports manual rotation and flipping. It operates sensitively and is suitable for indoor and outdoor use of small-sized glasses.

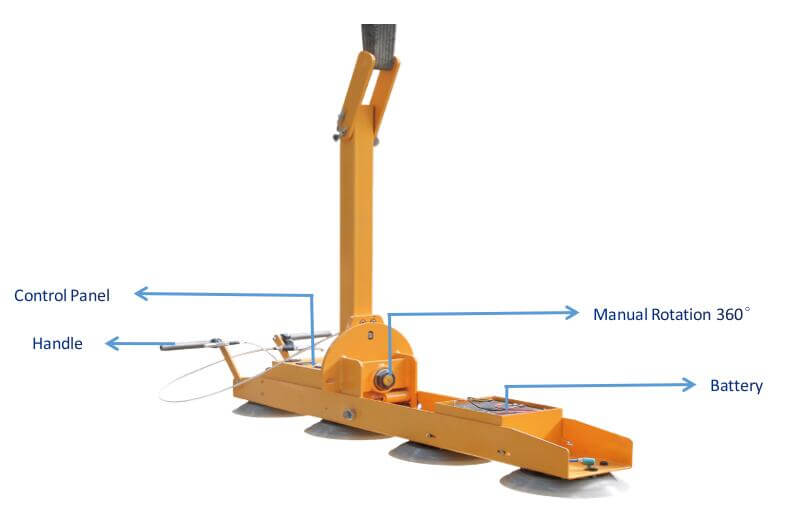

2.Structure
Suction Cups:
This vacuum glass lifter is equipped with special silicone material suction cups, which have strong suction power and will not scratch the glass; each suction cup can be controlled independently to achieve uniform pressure distribution.
Motor:
The high-performance motor drives the lifting process, ensuring that the vacuum glass lifter smoothly and precisely.
Frame Structure:
The frame is made of sturdy steel or aluminum and is coated to prevent rust, with a long service life.
Lift Device:
The lifting arm can be adjusted vertically or horizontally to ensure that the glass lifter can precisely adsorb and release the glass.
3.Specification

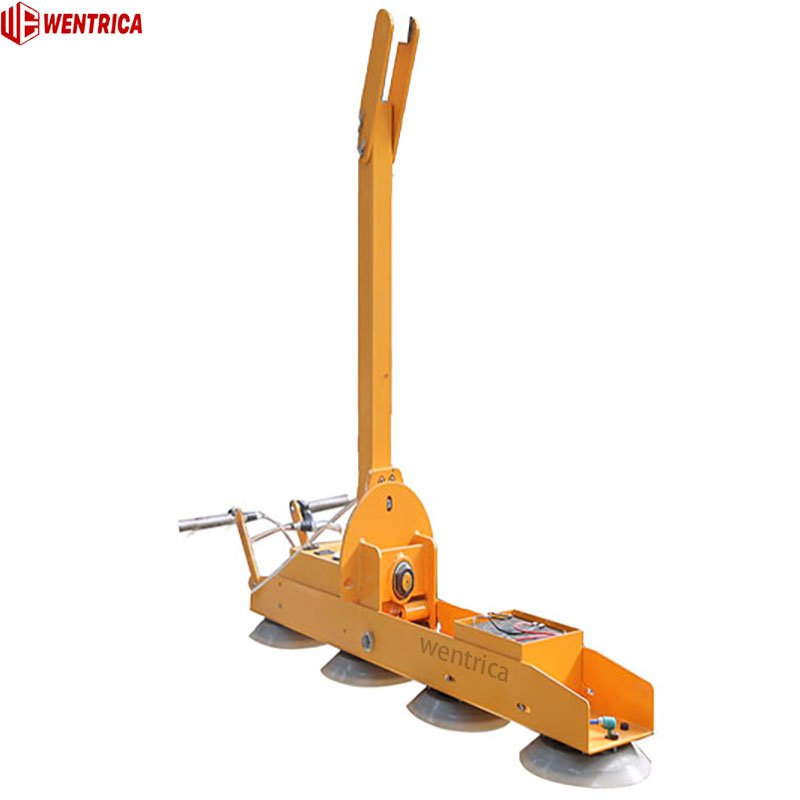

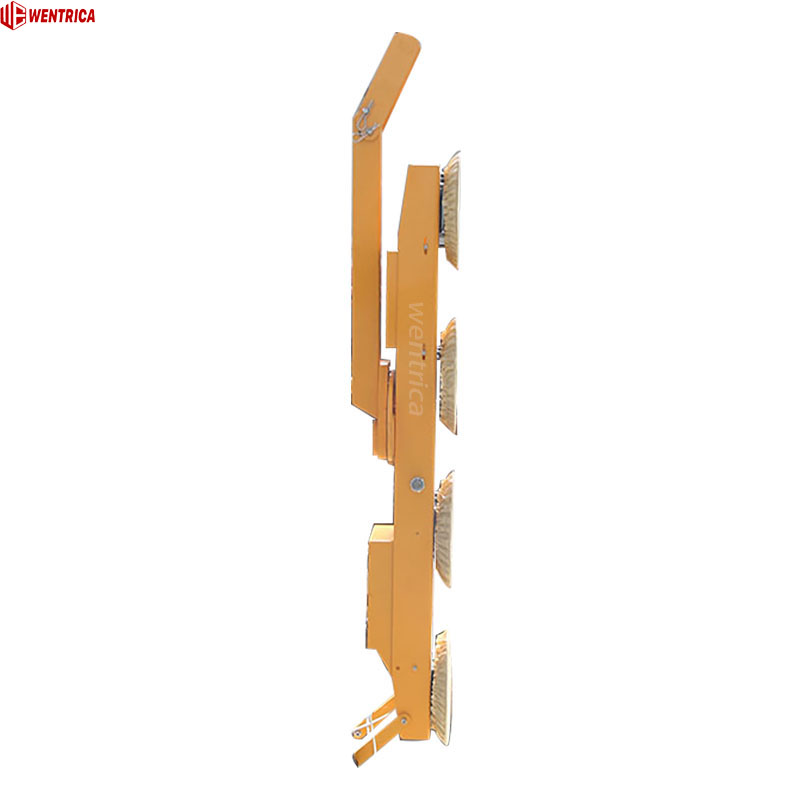

Line Type Electrical Glass lifter ( Manual turning over and rotation)
Model Data
Line Type Electrical Glass lifter
(Manual Rotation and Turning Over)
Use Range
Designed for small-sized glass, mainly suitable for outdoor screen installation/and outdoor small glass movement
Power
DC48V
Battery working life
30-40 hrs
Working Weight
350 kgs
Vertical Rotation
Manual rotation 360°
Horizontal Turning Over
Manual turning-over 90°
Control
Manual
Function
Voltmeter, power-off protection for 15 minutes without falling off; barometer, insufficient pressure alarm function
Vacuum System
Vacuum Pump
Air Power
Electric vacuum pump compressed air 6-9 Pa
Cup Qty
4
Lifting Method
Plug-in to the lifting tool
4.Pictures

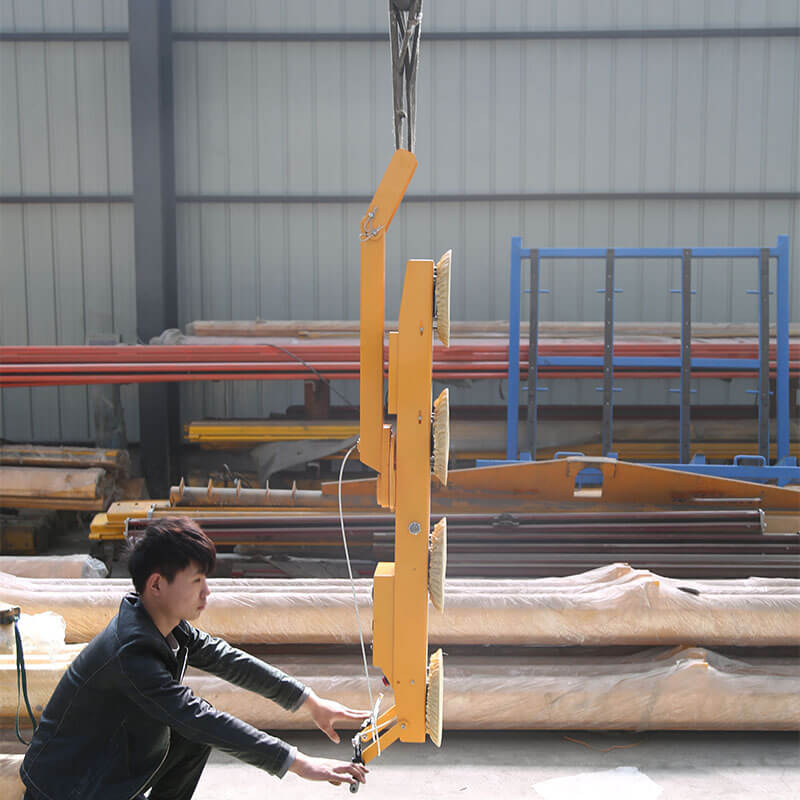

Vertical adsorption glass

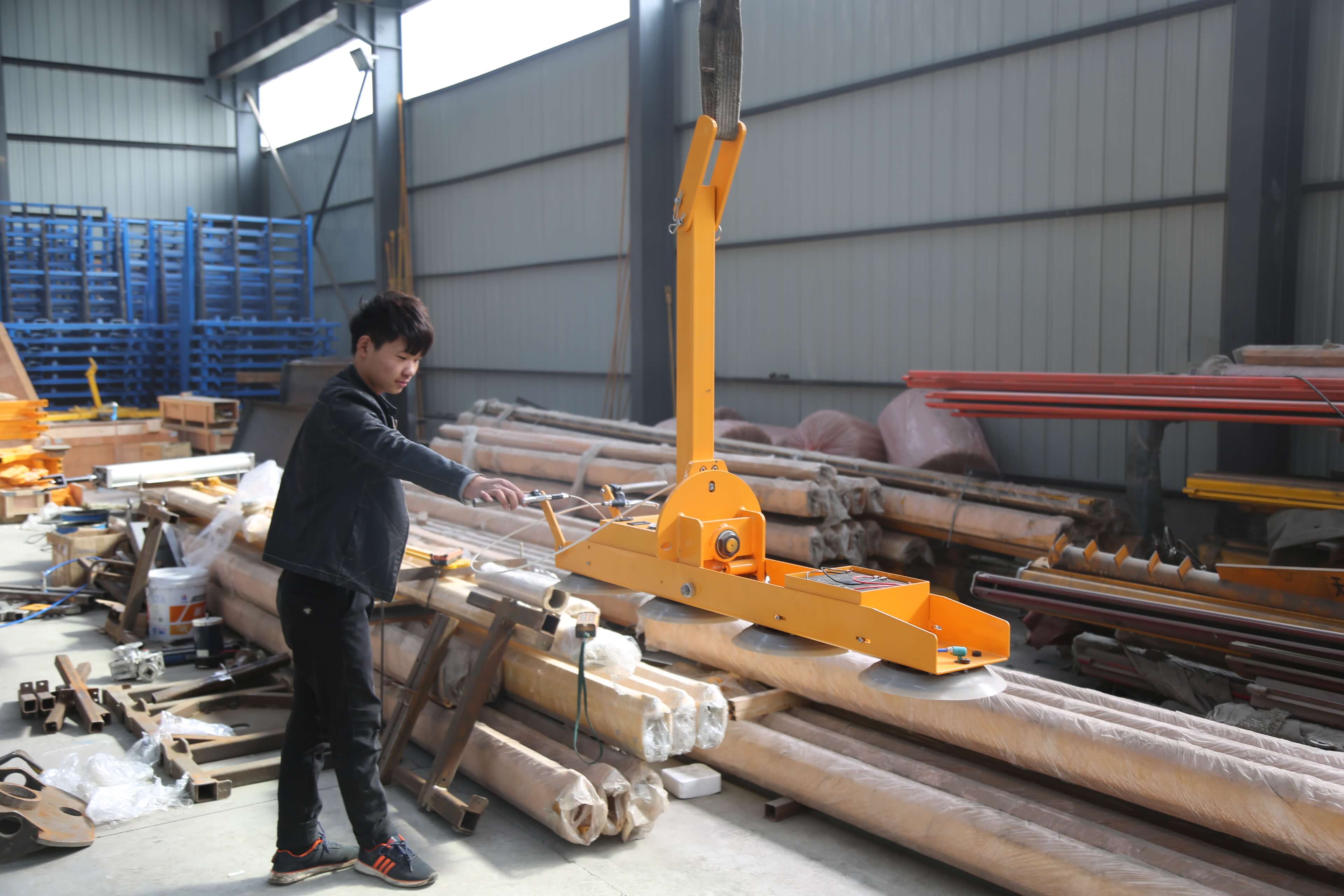

Horizontal adsorption glass
5.FAQ
1. How does the electric glass lifter work?
The lifter is driven by an electric motor to perform the lifting operation. It adjusts the position of the lifting arm horizontally or vertically and precisely positions the glass. Then, the suction cups are activated to firmly attach the glass.
2. Can this glass lifter be used for glasses of different sizes?
Yes, each suction cup of the lifter can be controlled independently, featuring high flexibility and being able to adapt to glasses of various sizes and thicknesses.
3. Can the lifter rotate or tilt the glass panel?
Yes, this vacuum glass lifter has the functions of manual 360° rotation and 90° flipping.
Specializes in providing comprehensive, one-stop solutions for the design, production, and export of equipment in the glass deep processing and door/window industries
