The glass lifting bar are specialized tools for lifting glass. Their unique design ensures that they have the capacity for heavy loads and dynamic balance, are safe and reliable, and have no risk of sudden slippage.
The high performance and flexibility of these glass lifting beam make them suitable for use in various fields such as curtain wall installation, warehouse glass transportation, and logistics transportation.
2.Structure
1)New
This new type of the glass lifting bar, designed in three dimensions, combines the advantages of various suspension bars.
Its applicable length range is from 2000 millimeters to 3660 millimeters.
The diameter of seamless steel tube is increased to 146mm.
Industrial-grade level 2 protection welding technology to ensure the safety of the glass lifting beam.

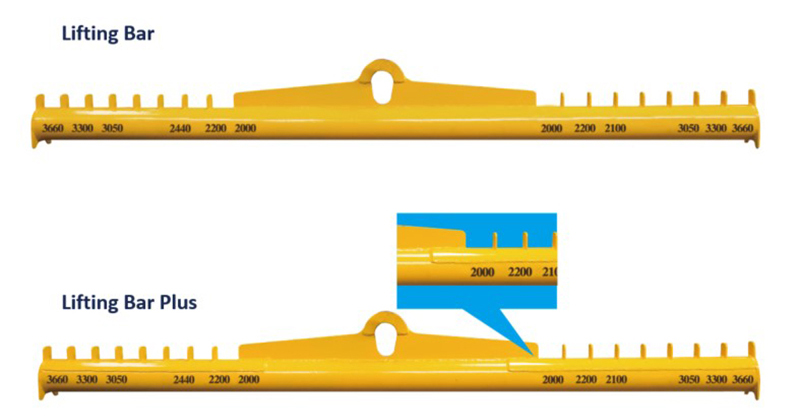

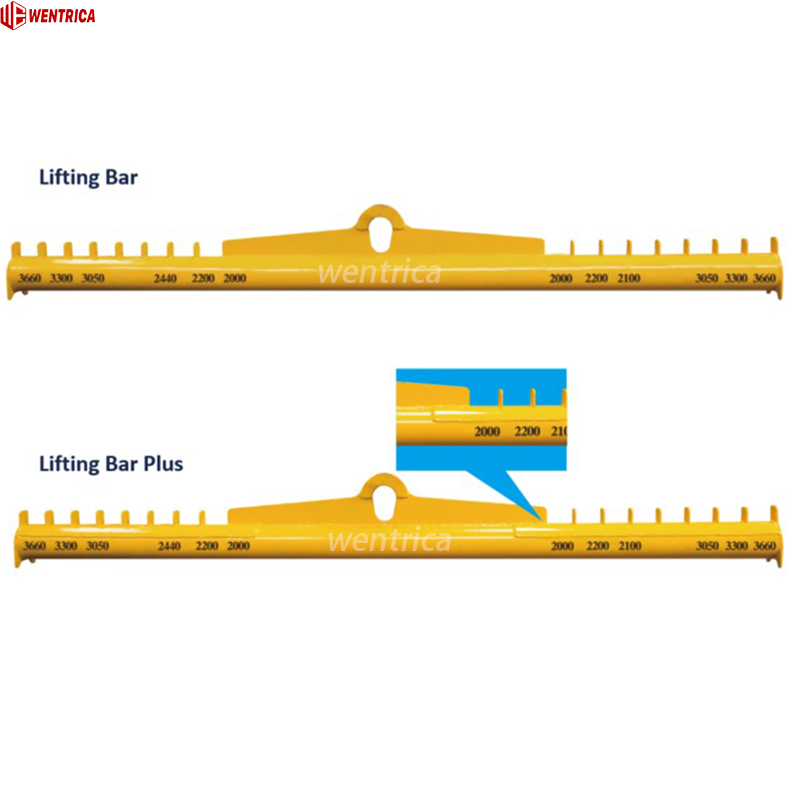

There are 16 lifting points, and each point is marked, suitable for the safe lifting of glass of various sizes.
Model
RSY-XSDGO8
Capacity
4 tons
Length
3150mm
Diameter
146mm
Suitable glass length
2000,2200,2400,3050,3300,3600(mm)
Slots number
8
Notes:
The length of the glass sling should be glass tall plus 700mm
The length of the glass hanging bar should be the glass length minus 500mm
2)Old
The traditional glass lifting bar is constructed using high-quality seamless steel tubes as the main load-bearing beam. It is designed based on mechanical principles, with precise calculations of both longitudinal and transverse load-bearing capacities, ensuring even force distribution and a scientifically rational structure.
With a maximum load capacity of 10 tons, it can lift glass of lengths 2440mm, 3050mm, 3300mm, and 3660mm.
This product is meticulously crafted with perfect attention to detail, offering a one-time purchase for lifelong use.
Customized production is also available based on customer requirements.
Model
Length
Wall Thickness
Liftable Glass Length
RSY—DDG06
3200mm (customizable)
30mm
2440mm, 3050mm, 3300mm, 3660mm
RSY—XDG07
2000mm (customizable)
30mm
2000mm, 2200mm, 2440mm
3.Picture
4.FAQ
1. What material is this glass lifting bar made of?
It is made of high-strength steel or aluminum alloy to ensure durability and a lightweight structure.
2. Can this glass lifting beam be used together with other lifting equipment?
Sure. It can be used in conjunction with cranes, hoists or vacuum lifters to safely lift and fix large glass panels.
