The fully automatic electric glass vacuum elevator is a dedicated equipment for loading, unloading and handling large and medium-sized glasses, and is often used in fields such as curtain wall installation and glass deep processing.
It is powered by lithium batteries and does not require a power source. Sealed protective components, dust-proof and water-proof, suitable for use in extreme outdoor weather conditions
Electric or manual 90° flip, 360° rotate, precisely position the glass
Three safety protection devices, namely vacuum insufficiency alarm device, digital pressure monitoring device and power-off protection device, ensure that the glass does not fall off for 15 minutes in case of emergency
The anti-slip suction cup device ensures that the glass will not suddenly fall off, with a high safety factor
The suction cup has a strong adsorption force and can bear a weight of 12 kilograms
The H-type electric glass vacuum lifter is specially engineered for handling large-size glass panels, particularly during outdoor screen installations, curtain wall mounting, or high-elevation lifting tasks. This glass lifting equipment features a sturdy H-shaped frame structure, with an electric 90° tilt function, a manual 360° rotation function, and up to 12 vacuum suction cups, capable of lifting glass panels weighing up to 1.2 tons.
2.Structure
Suction system
Composed of multiple independently operating suction cups, the suction force is evenly distributed, ensuring that the glass lifting device can firmly fix large-sized glass.
H-shaped frame
The frame of the glass vacuum lifter is made of high-strength materials, with stable performance and strong load capacity.
Vacuum system
Vacuum pump and control system, ensuring that the glass lifting device can quickly adsorb and release the glass.
Real-time vacuum monitoring system
Digital display screen shows the vacuum status in real time during operation. Once the pressure is low, an alarm sounds to indicate.
Power system
Vacuum generation, suction force release and lifting actions are all driven by electricity - no need to use an air compressor.
Wireless remote control system
Can be remotely controlled from a safe distance, saving manpower.
Rotation and tilt mechanism
The glass vacuum lifter can achieve 360° automatic rotation and supports manual 90° rotation.
Self-locking device
In case of unexpected situations such as low power supply or power failure, the safety protection self-locking device will lock the glass, ensuring that it will not fall from the glass lifting equipment within 15 minutes
3.Specification
Electrical Vacuum Lifter sucker (electrical turning over and rotation)
Model Data
Electrical Vacuum Lifter sucker
(Electrical Rotation and Turning Over)
Power
DC38V AC380V （optional）
Working Weight
1000-1500 kgs
Vertical Rotation
rotation 360°
Horizontal Turning Over
Electrical l turning-over 90°
Control
Manual/Remote
Function
Voltmeter, power-off protection for 15 minutes without falling off; barometer, insufficient pressure alarm function
Vacuum System
Vacuum Pump
Air Power
Electric vacuum pump compressed air 6-9 Pa
Cup Qty
12,14
Lifting Method
Plug-in to the lifting tool
4.Picture show

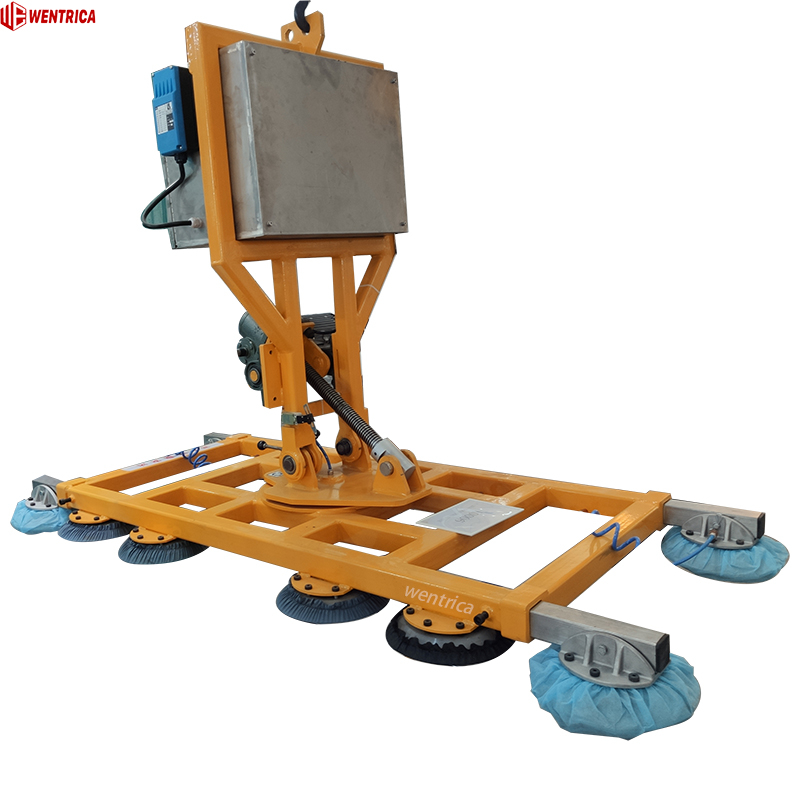

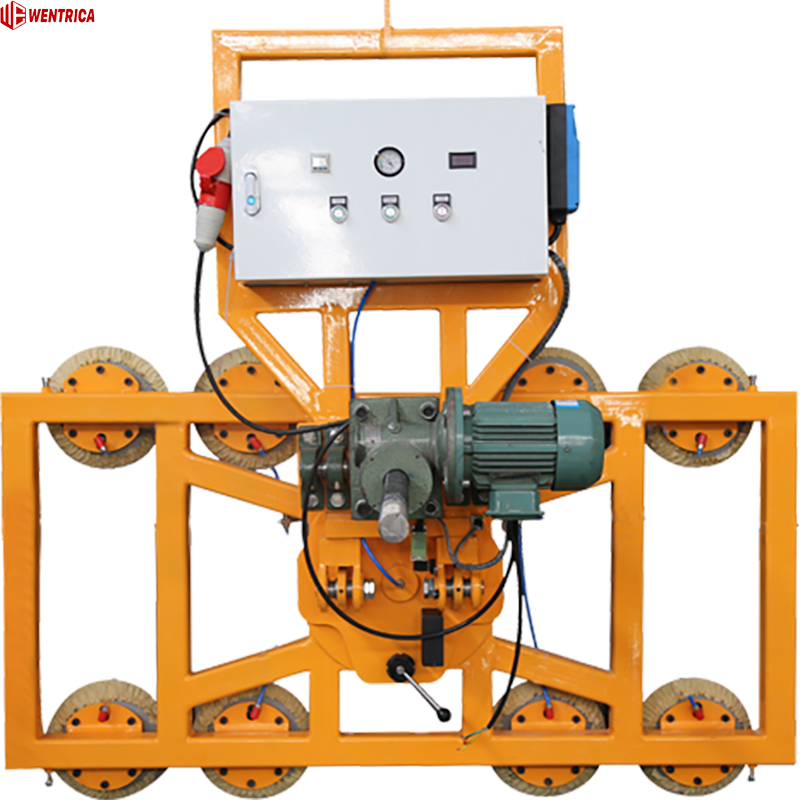

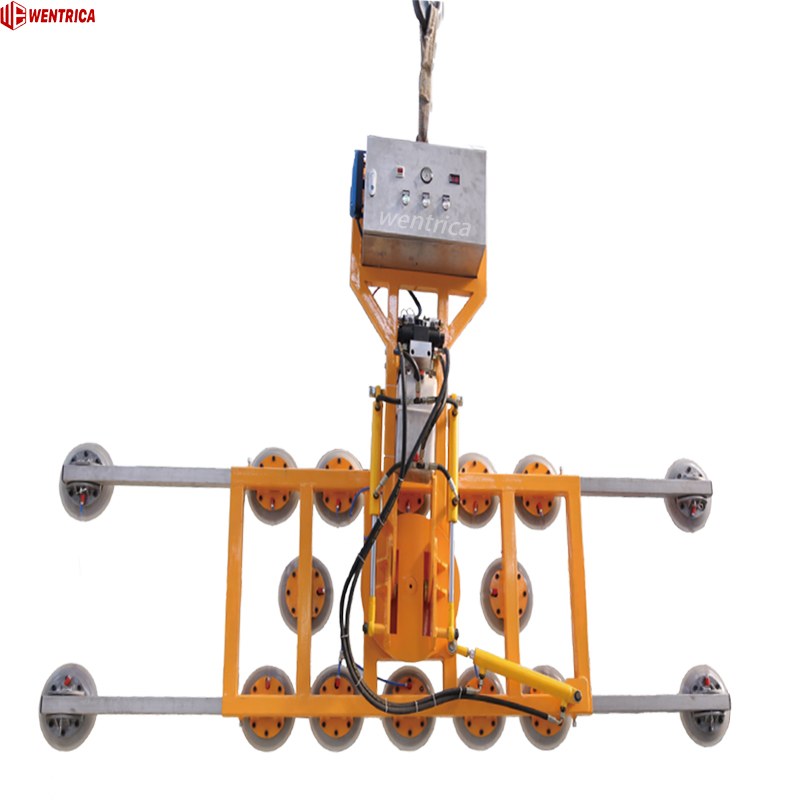

Physical picture
Application Diagram

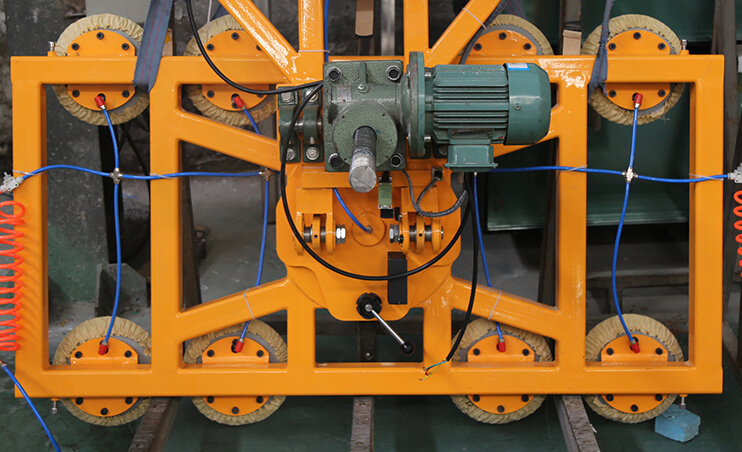

Frame diagram
5.FAQ
1. How does the electric glass vacuum lifter work?
The glass lifting equipment uses electric-powered vacuum pumps to create suction on the glass surface, combined with an adjustable frame and controls to lift, rotate, and tilt glass safely.
2. Can it rotate or tilt glass panels?
Yes, most H Type Electric Glass Vacuum Lifters allow rotation (90° or 180°) and tilting to facilitate installation and positioning.
