The height of the gantry lift and the span of the balance beam can be adjusted, which is suitable for different workshop layouts.
It has functions such as lifting, rotating and flipping, and can precisely position and adsorb glass.
Equipped with imported vacuum pads， with a working temperature range of -20°C to 90°C， adaptable to various environments.
It has safety protection measures and is equipped with an automatic locking device to ensure that the glass will not fall off the gantry lift accidentally.
Custom service： The height of the column， the span of the main beam， the safe working load， the vacuum suction cup and the mechanical fixing device can all be customized separately.
The gantry crane is a piece of equipment used for loading, unloading and transporting on the glass production line. It adopts a structure that combines the gantry frame with a vacuum lifting device, enabling it to easily handle the hoisting, positioning and installation of large panels with very little manpower required.
In addition, it is made of high-strength steel and features a wide-span beam design. Its adjustable height and customizable span make it suitable for different workshop layouts.
The modular design ensures convenient assembly, disassembly and movement of the ganty lift.
2.Structure
Heavy-duty frame - Made of high-strength steel, it is durable and has a long service life.
Integrated vacuum lifter - Can firmly fix glass and other panels without damaging them.
Balanced beam structure - Allows the vacuum lifter to freely move along the beam to achieve precise positioning.
Stable four-legged support - Ensures maximum safety and load stability during lifting operations.
Modular design - Facilitates quick installation and easy movement, with adjustable height and span, suitable for different workspace requirements and project specifications.
3.Specification

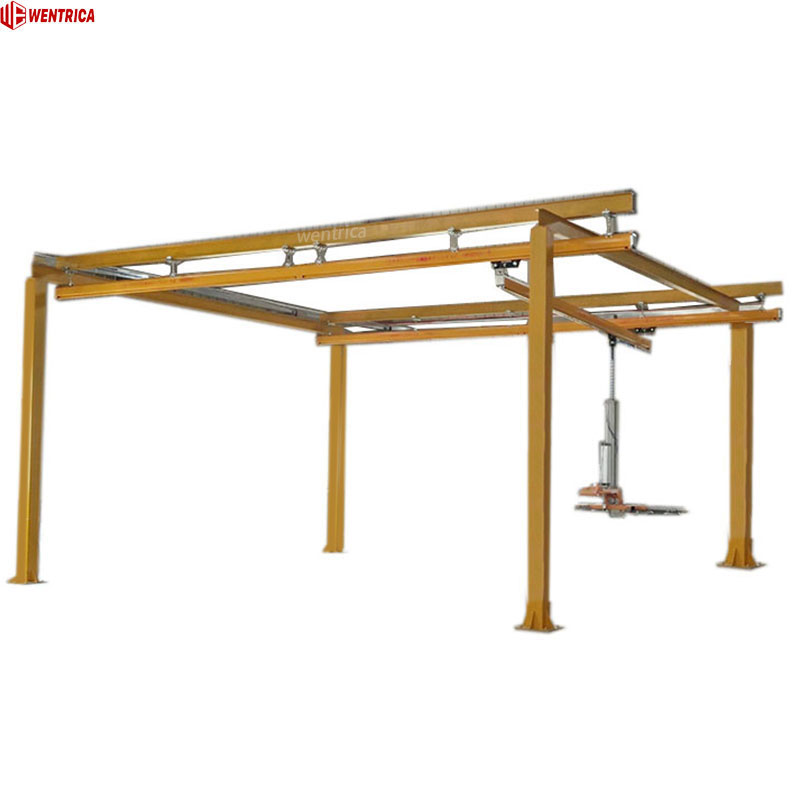

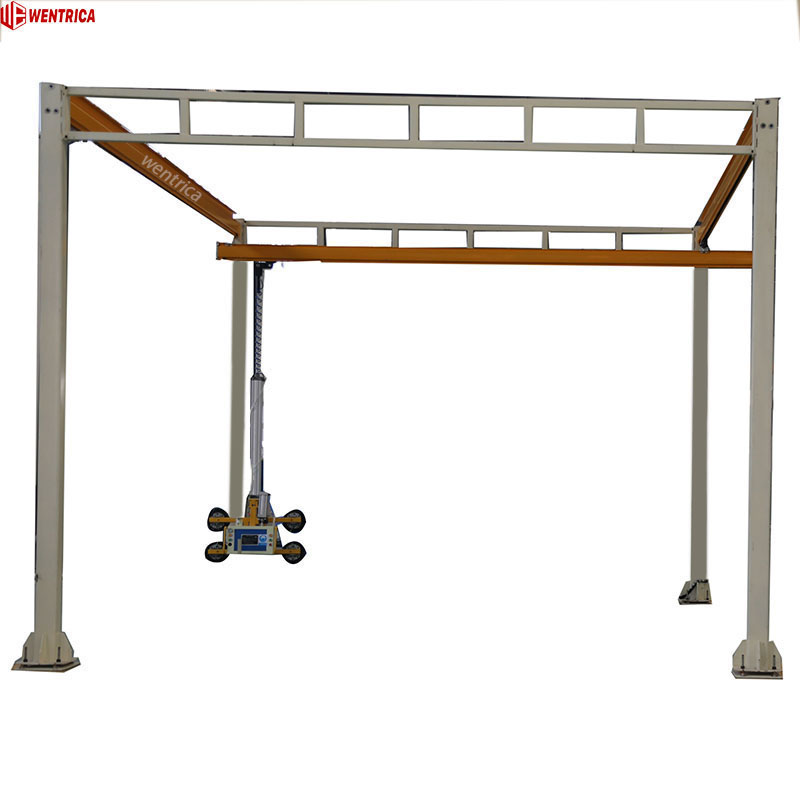

Gantry Lift
RSY-LM6PL6
Height
4382mm
Length
6240mm
Travelling Beam Width
6000mm
Operation Method
Manual Control
Operating Weight
350/450 kgs
Vertical Range
1200mm
Control System
SMC JAPAN
Airpower
0.6-0.8MPa
Sucker Qty
4/6
4.Picture

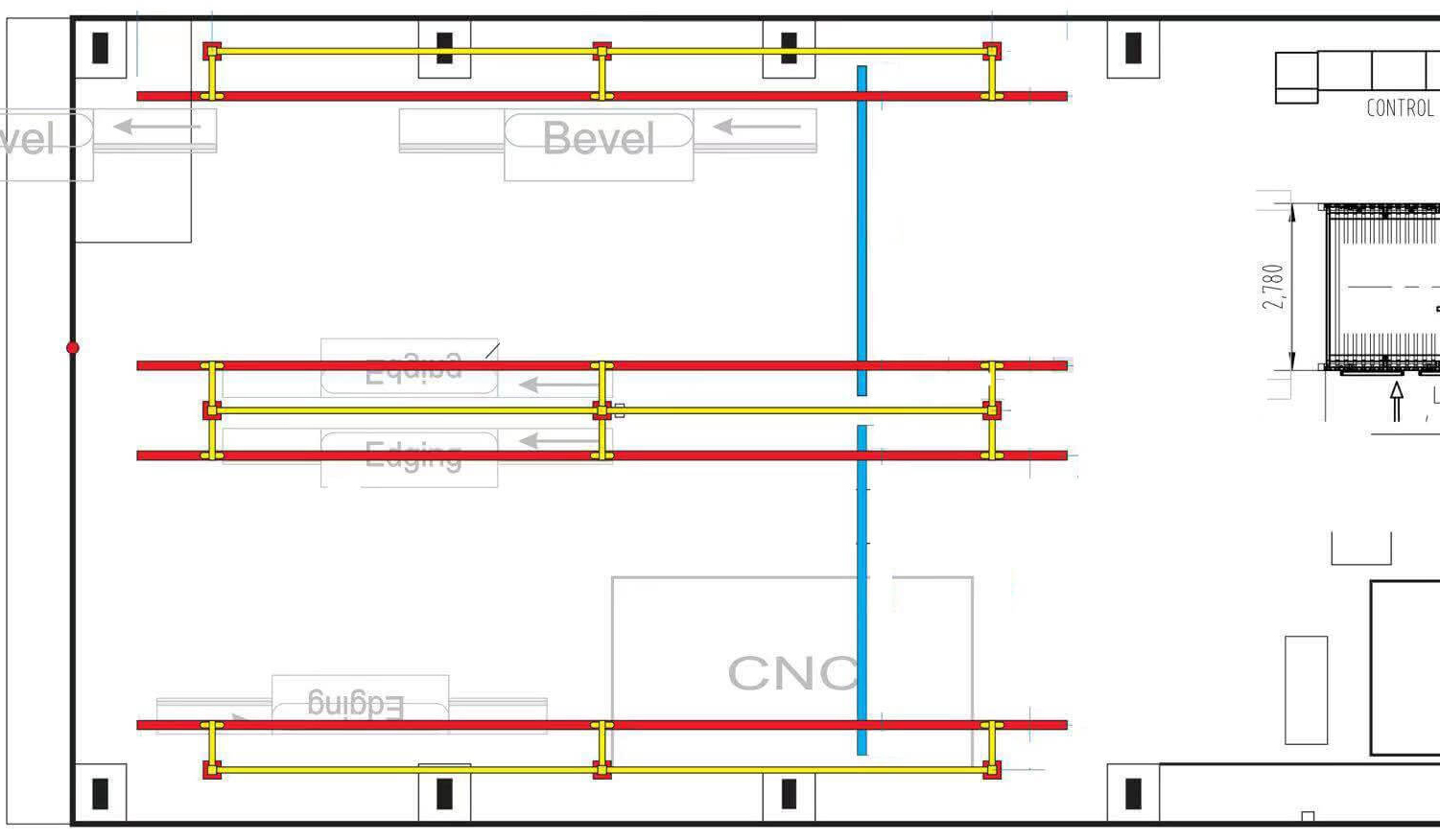

Factory physical layout drawing

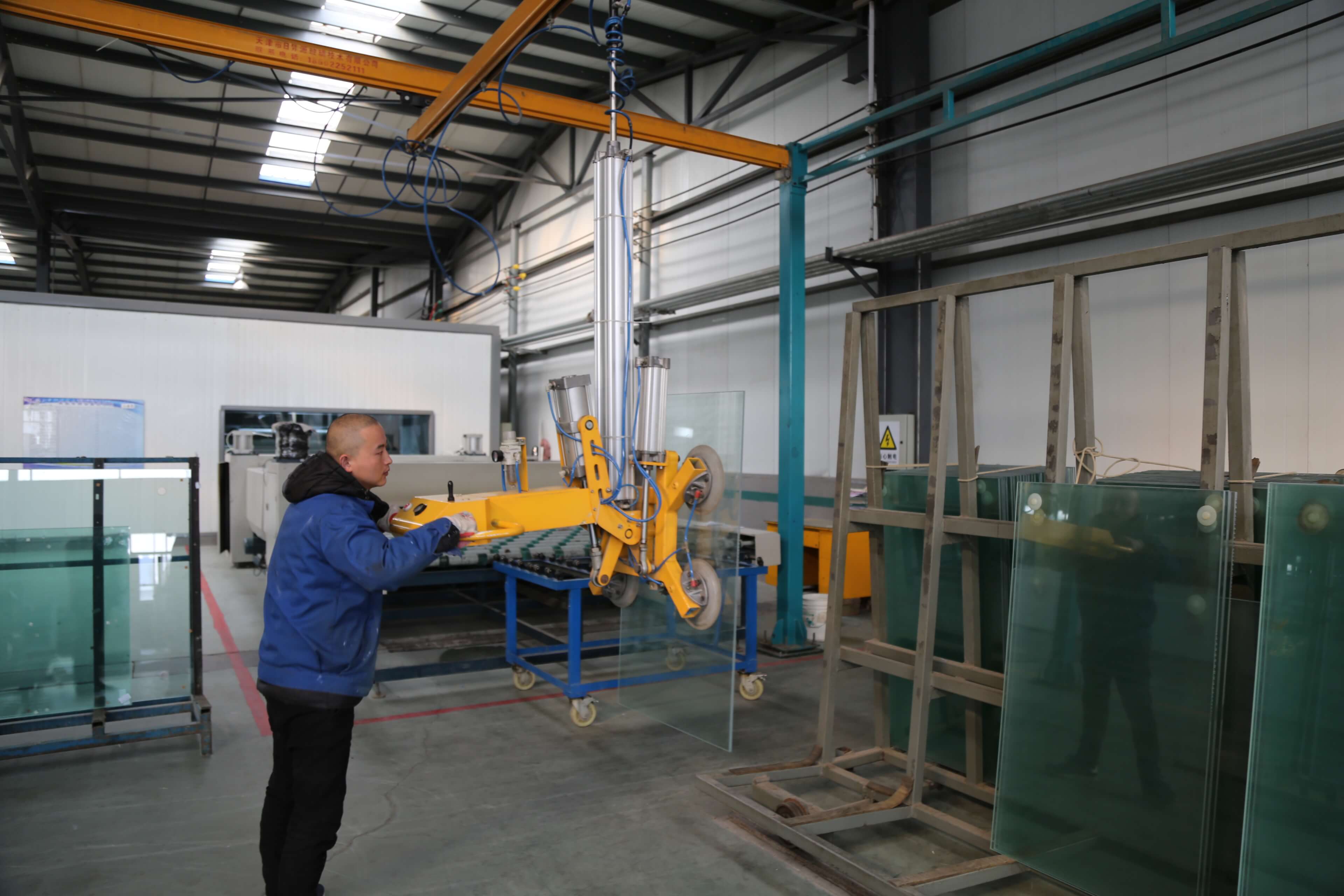

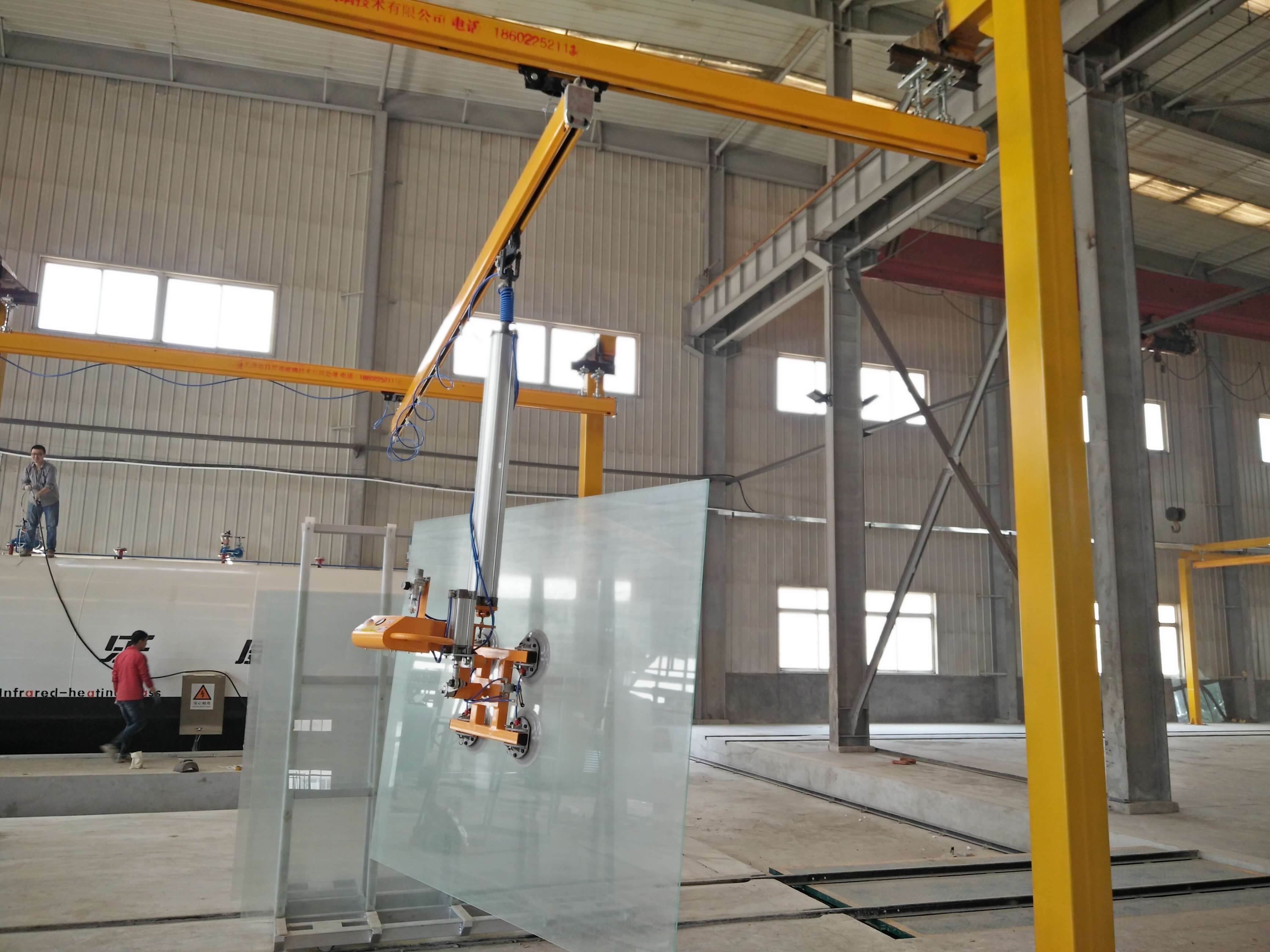

Glass gantry transports glass

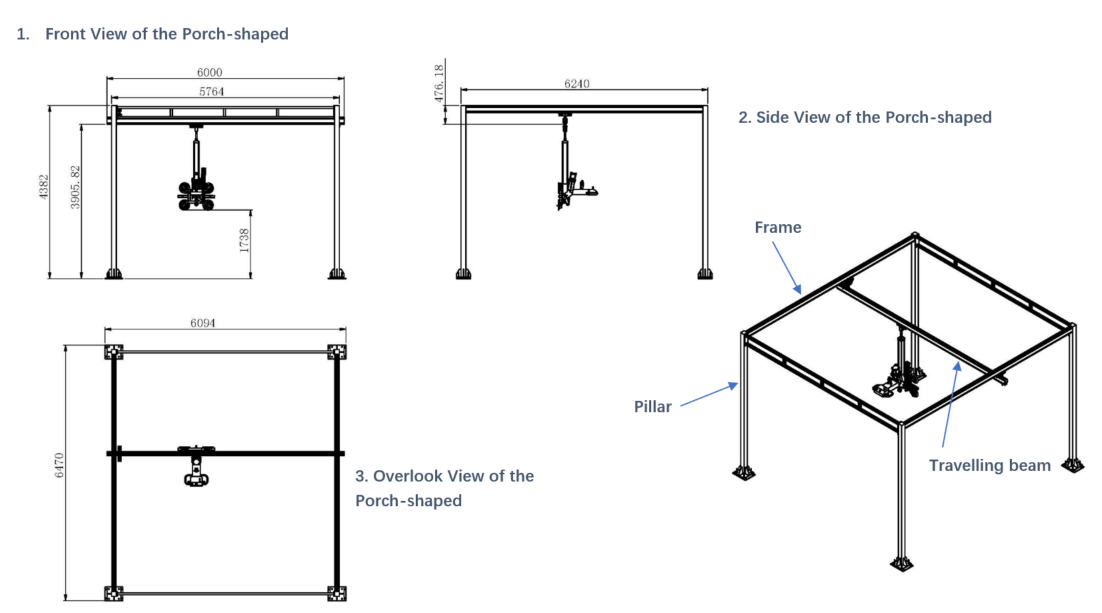

Framework diagram
5.FAQ
1. What materials are used to make the gantry crane?
It is usually made of the following materials:
Aluminum: Lightweight and corrosion-resistant, suitable for indoor or mild environments.
Steel: Heavier in weight but with greater load-bearing capacity, suitable for outdoor or heavy-duty applications.
2. How to assemble and disassemble the gantry lift?
Fix the provided accessories onto the crossbeam.
Adjust the height and span to the desired specifications.
Secure the gantry frame with locking pins or bolts.
