Made of high-strength steel, it has a stable structure and strong load-bearing capacity.
Have a wide range of applications and can safely lift and transport heavy glass panels, stone slabs, and industrial materials.
Divided into three types, which can be installed on the floor, walls, or I-beams, suitable for different environmental uses.
Each type of cantilever crane supports rotation and can be precisely positioned.
Compatible with various types of lifting equipment, such as electric cranes, chain blocks, vacuum lifters, glass fixtures, and forms a composite equipment with the cantilever crane to provide diverse handling solutions.

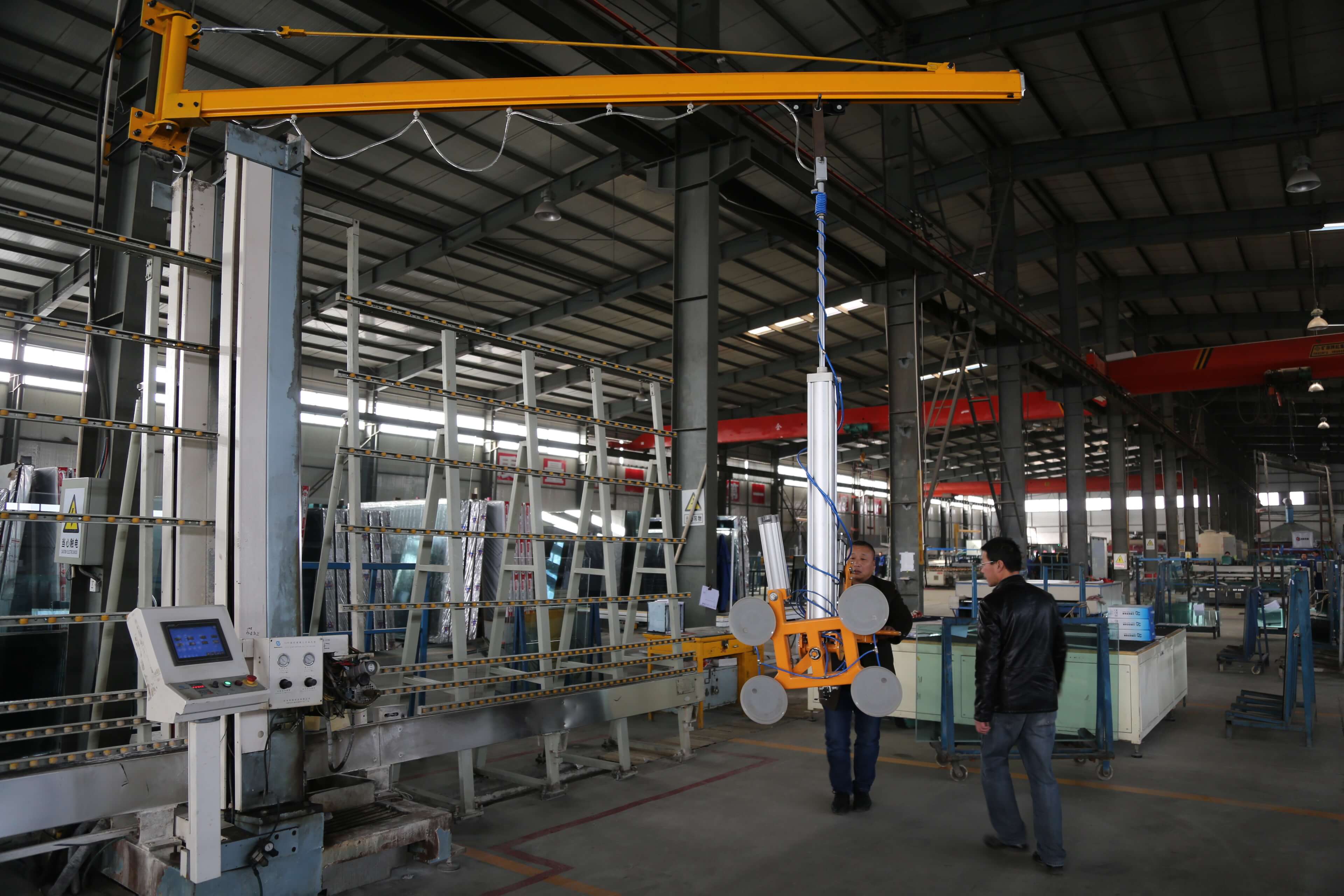

The cantilever crane is a type of crane with a horizontal boom. It is divided into three types: column type crane cantilever beam, wall cantilever jib crane and I-beam type crane, which are respectively fixed on the ground-mounted columns, walls or I-beams. Compatible with various lifting equipment, such as: glass vacuum lifters, glass fixtures, electric hoists. It has a wide range of applications and can be used for transporting various materials such as glass plates and stone slabs.
2.Structure
1). Column Type

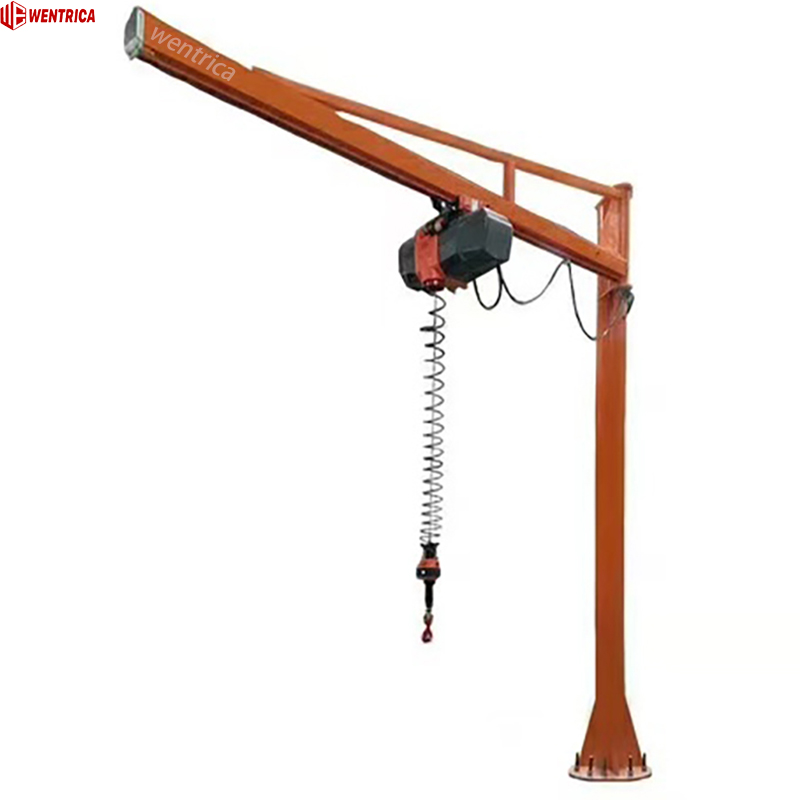

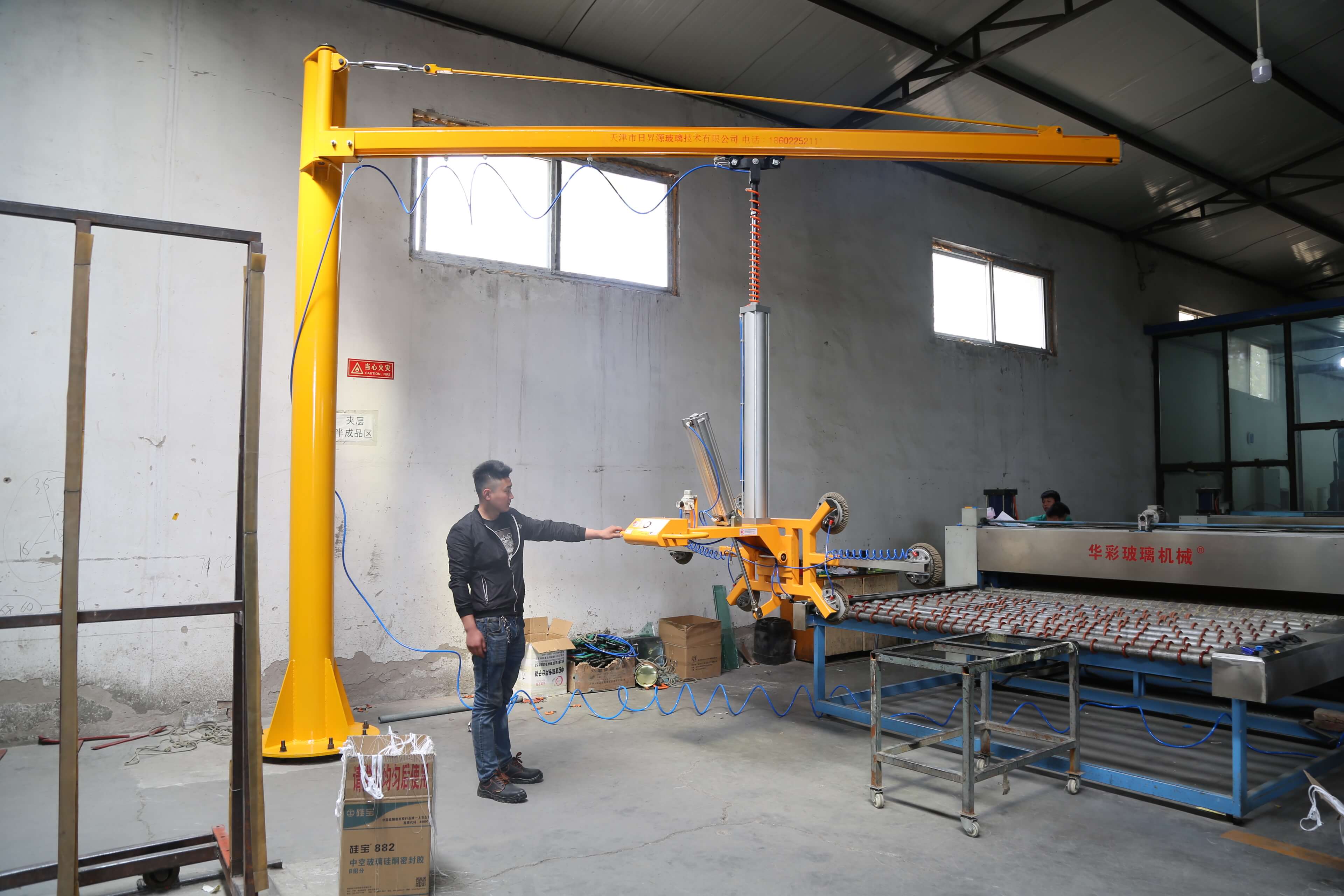

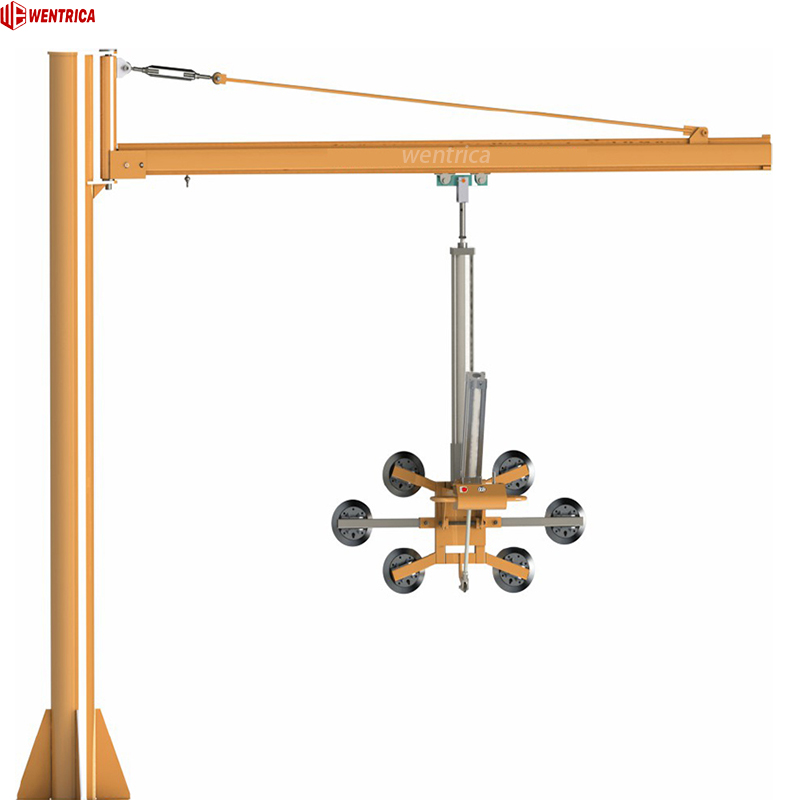

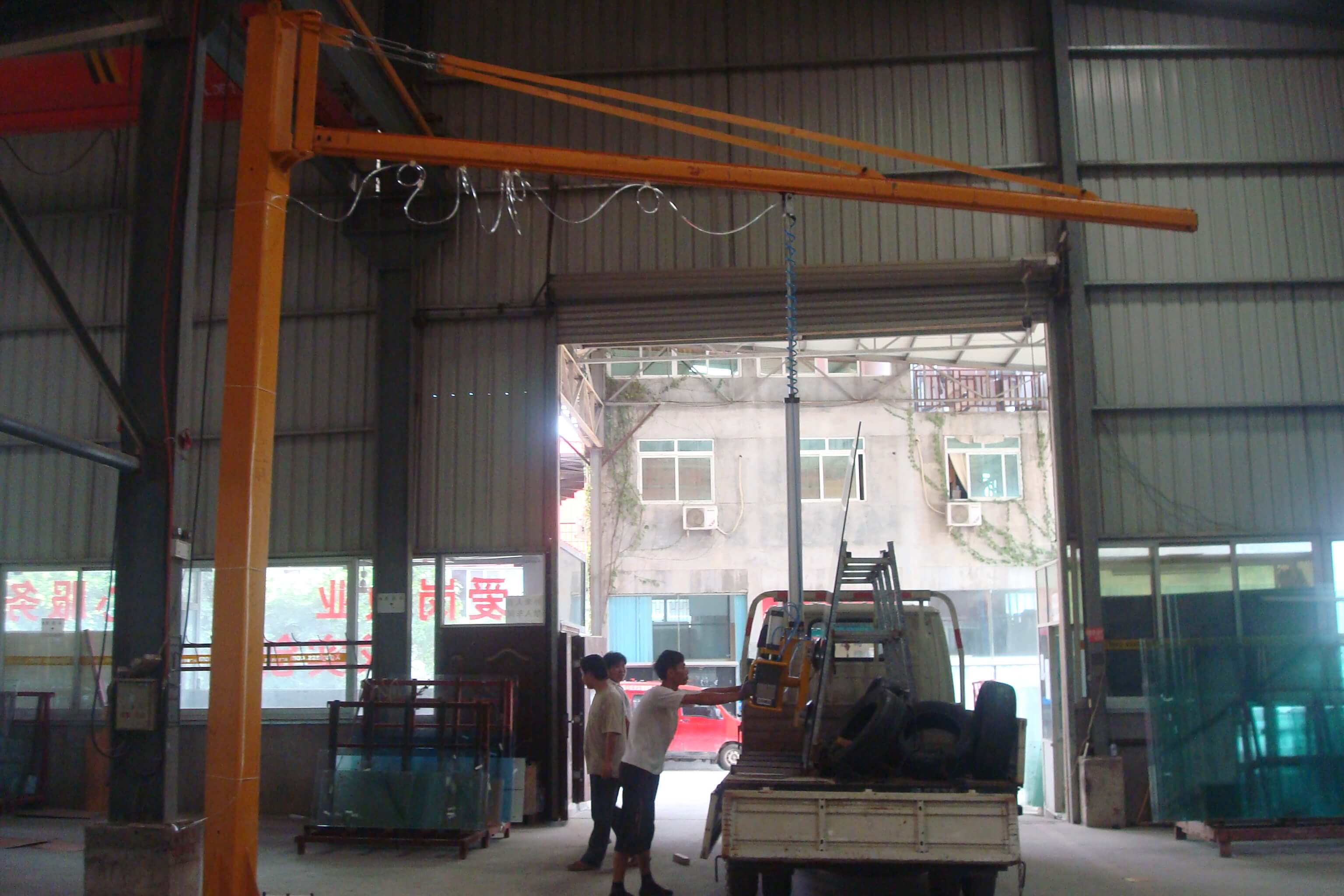

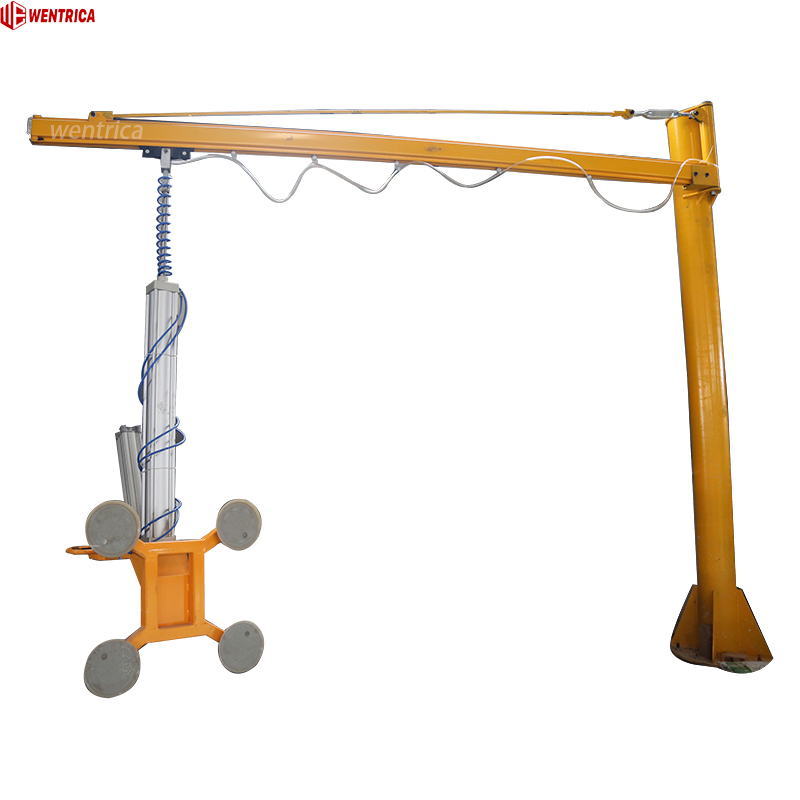

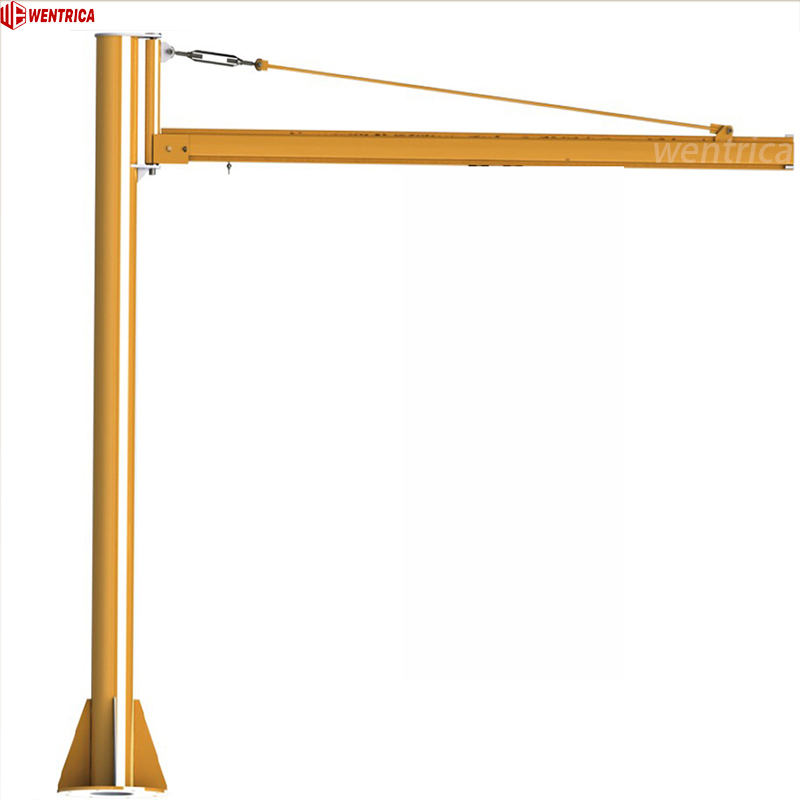

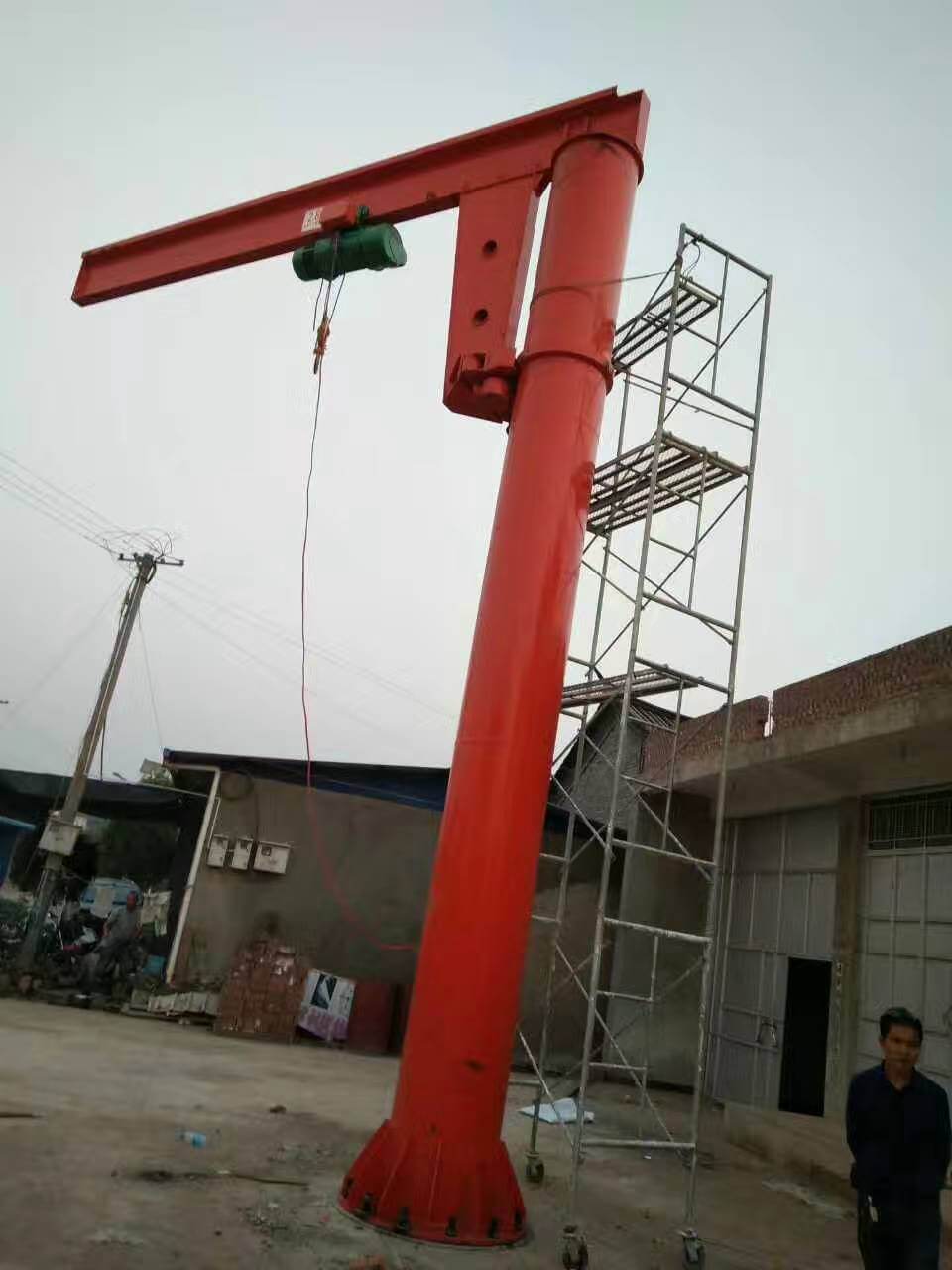

The column type crane cantilever beam is a freestanding design fixed directly to the workshop floor with a heavy-duty base plate. It does not rely on existing building structures, making it suitable for open production areas, warehouses, or places without strong supporting walls. This type offers 360° full rotation, stable load-bearing, and can be installed in different locations to maximize flexibility in material handling.
2). I-Steel Type

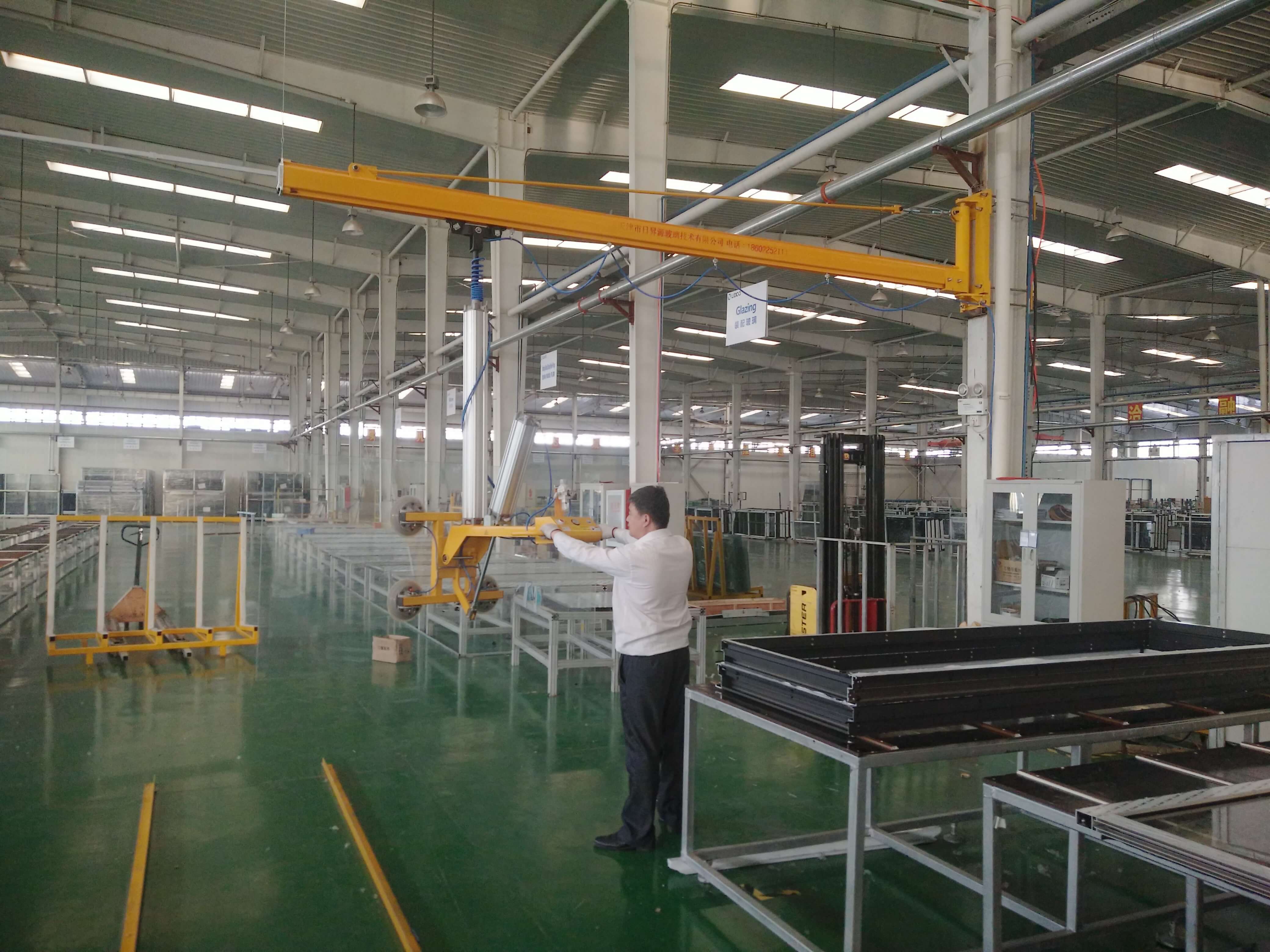

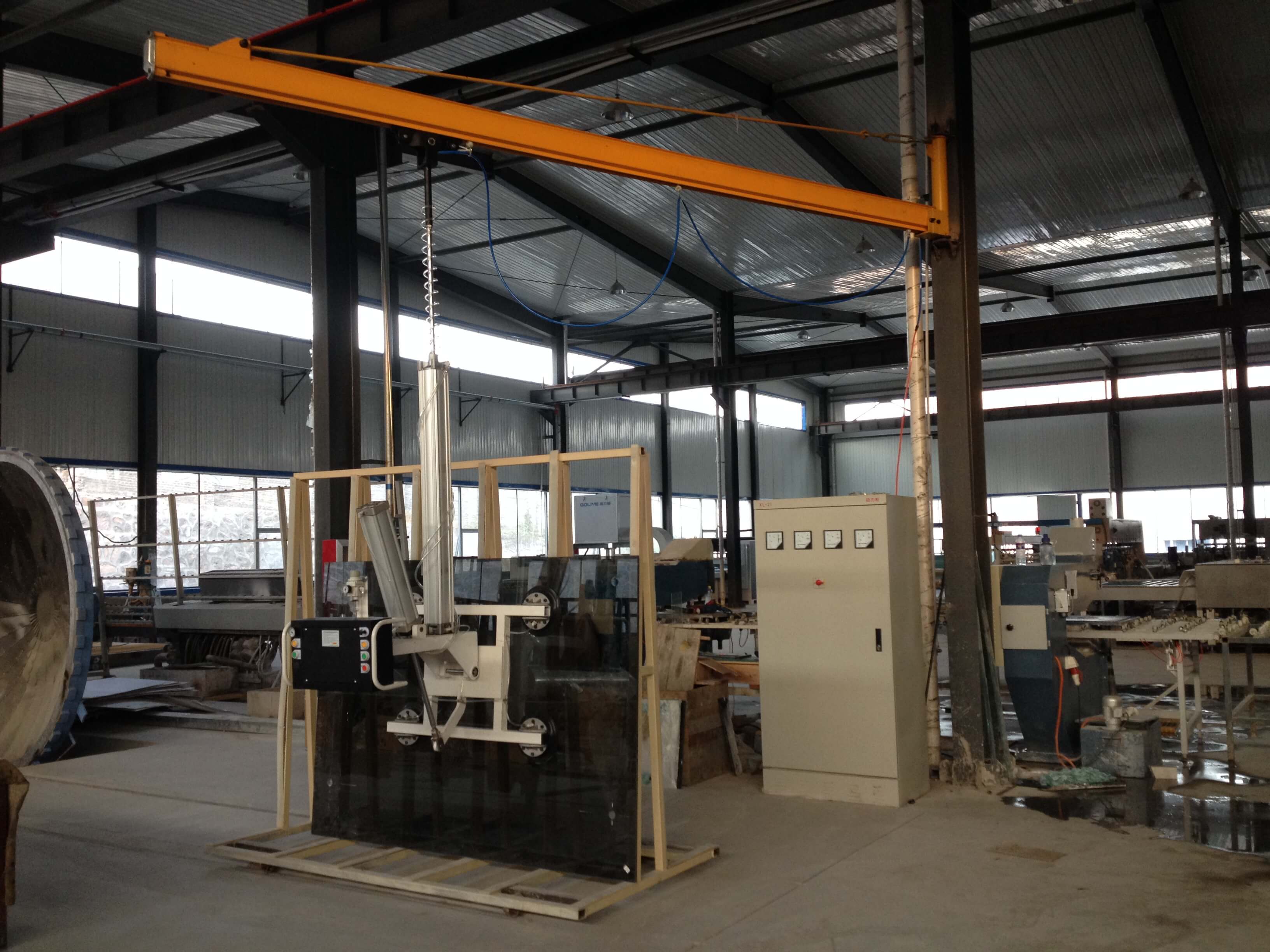

The I-Steel cantilever crane is designed for installation on I-beams or steel structures in workshops. The balance beam can rotate, and the lifting equipment can move along the crossbeam. This structure is often used for flexible material handling in spaces such as glass factories, heavy industries, and large warehouses.
3). Wall Type

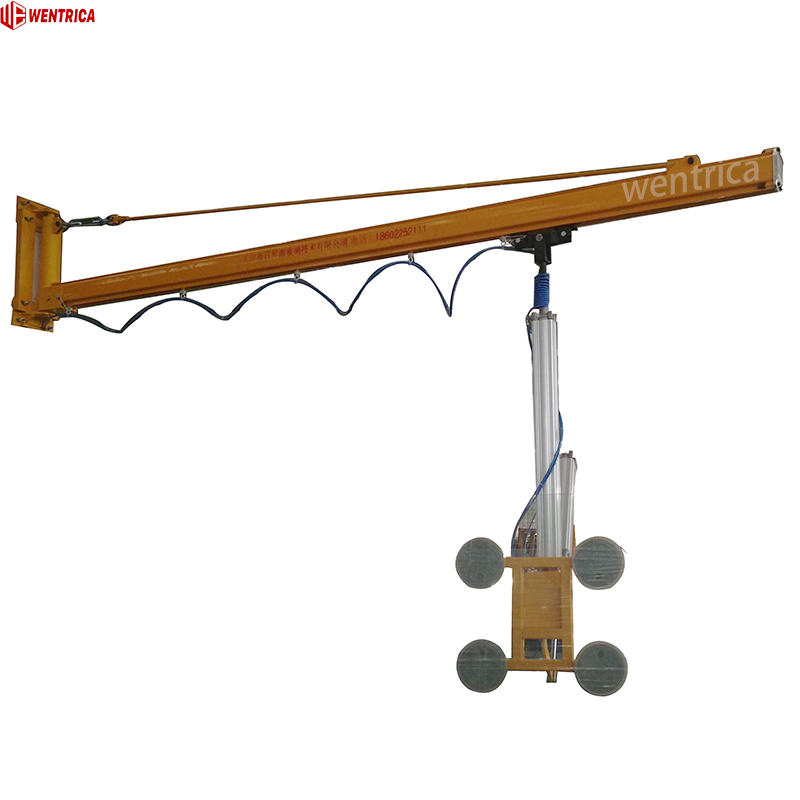

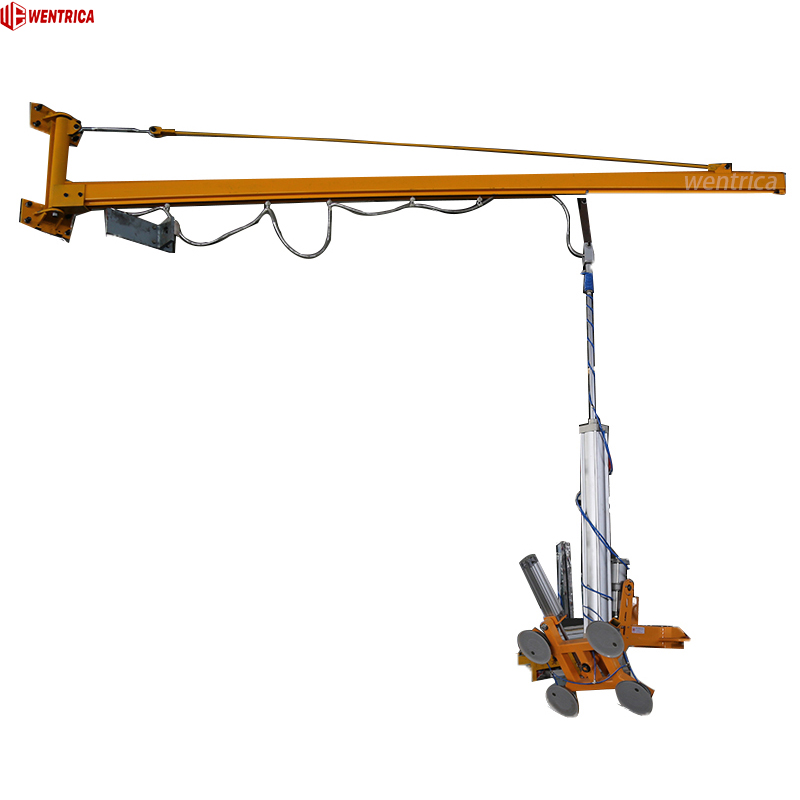

This wall mounted cantilever crane is directly installed on the workshop walls and is highly suitable for narrow working areas, assembly lines, or factories or workshops where floor installation is not possible. It supports a 180° rotation.
3.Specification
Model
TYRSY-XZ250/350/450
Power
Manual or Customized Motor
Regular Column Height
4350mm
Regular Arm Length
5000mm
Net Weight
235 kg(s)
Work Range
180-degree or 360-degree
Operation Method
Manual orRemote Control
4.Picture
5.FAQ
1. How does the electric hook on the cantilever crane work?
The electric hook is driven by an electric motor and moves along the boom, enabling vertical lifting and horizontal movement, significantly reducing the amount of manual operation.
2. What is the rotation range of the cantilever crane?
It supports rotation ranging from 180 degrees to 360 degrees. Among them, the column-type crane can rotate 360 degrees, while the wall cantilever jib crane and I-beam type cantilever crane can rotate 180 degrees.
Specializes in providing comprehensive, one-stop solutions for the design, production, and export of equipment in the glass deep processing and door/window industries
