The pneumatic glass vacuum lifter is a specialized equipment designed for loading, unloading and transporting large and medium-sized glass. It is commonly used in curtain wall installation, glass processing and other fields.
Electric or manual 90° flipping, 360° rotation, precise positioning of the glass
Equipped with three safety protection devices, including vacuum insufficient alarm device, digital pressure monitoring device and protection locking device device, to ensure that the glass will not fall off within 15 minutes.
Sealed protective components, dustproof and waterproof, can still work normally in extreme weather conditions.
Anti-slip suction cup device ensures that the glass will not suddenly fall off and has high safety.
Silicone material suction cup, strong adaptability and adhesion, can work normally within the temperature range of -30°C to 100°C, with an adhesion force of 800kg.
Lightweight, labor-saving, suitable for use in scenarios involving high-altitude operations or frequent movement.
Driven by compressed air, it does not rely on power supply and is suitable for outdoor use.

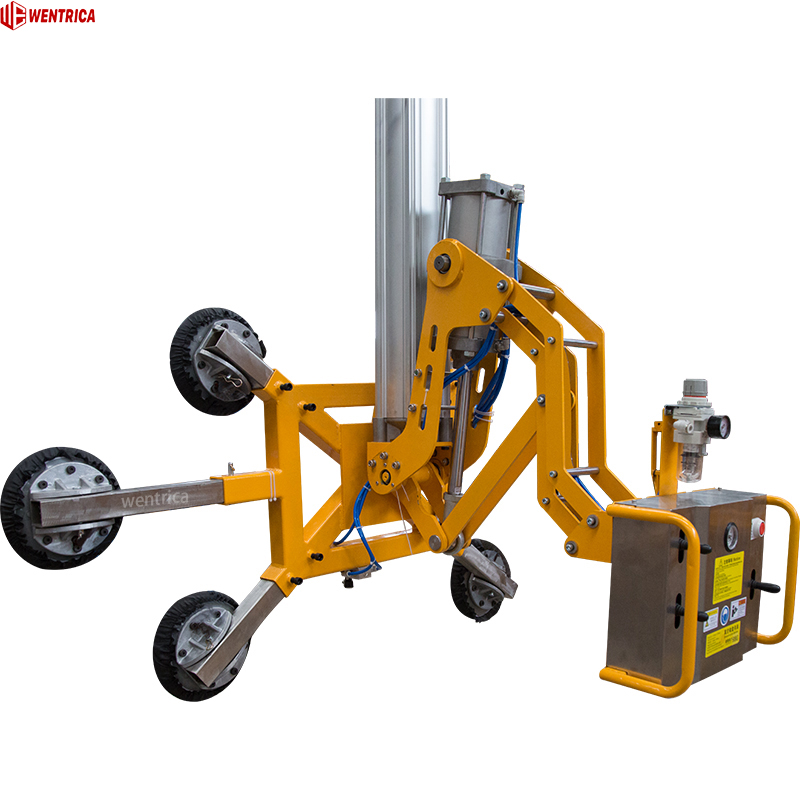

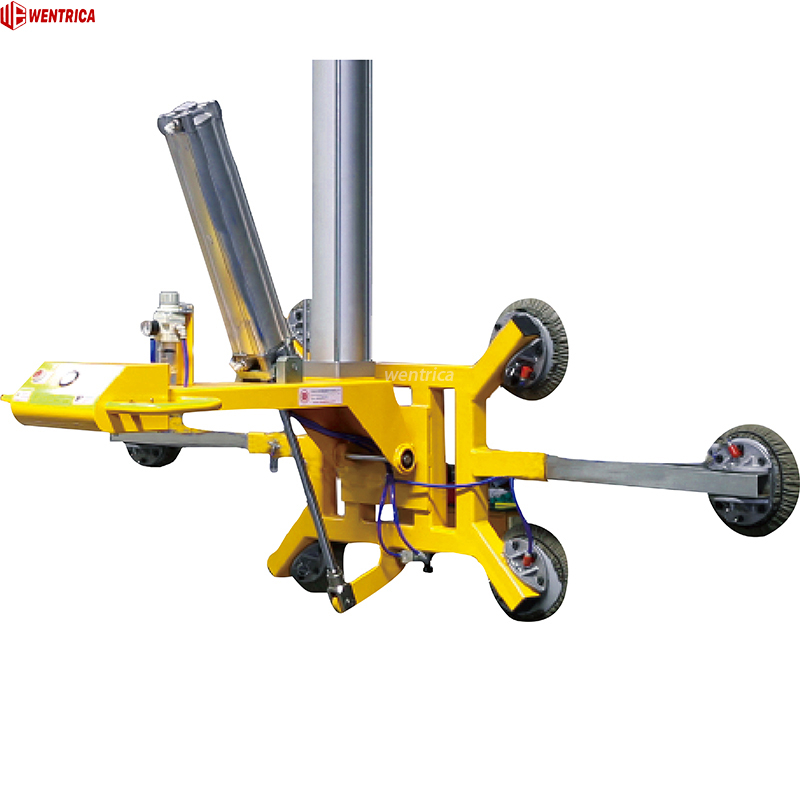

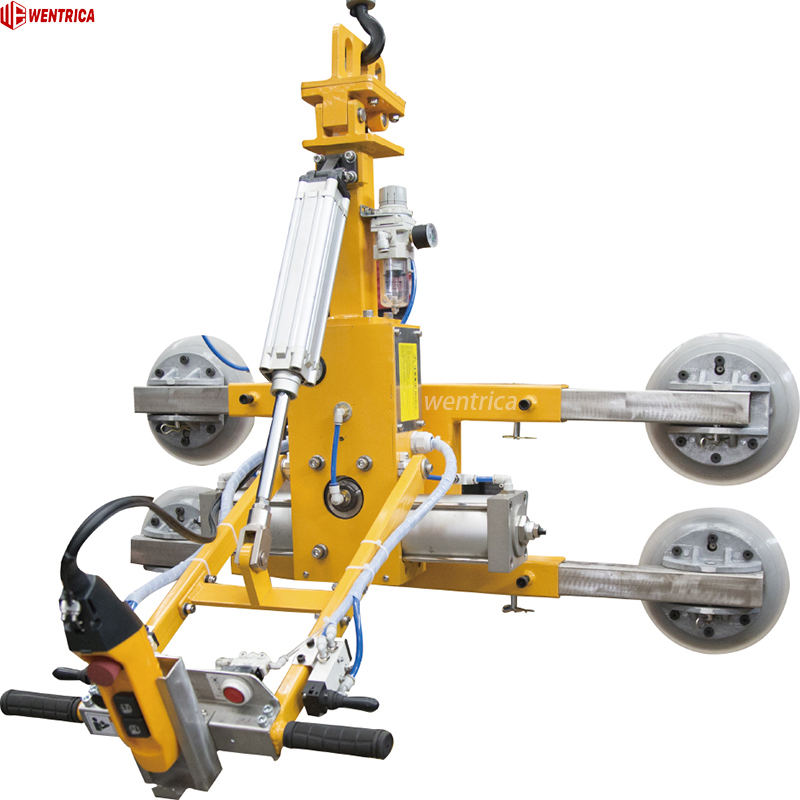

The Pneumatic Glass Vacuum Lifter with 90° Turn Over Function is designed for safe, efficient, and precise handling of large and heavy glass sheets. Built with a robust steel frame and equipped with a high-performance pneumatic vacuum suction system, it ensures a secure grip and smooth movement during transportation and installation.
2.Structure
Heavy-duty steel frame - Ensures structural stability and prevents deformation under heavy loads.
Pneumatic vacuum dust collection system - Has strong and reliable glass fixation capabilities and can achieve stable sealing.
90° pneumatic flipping system - Enables the glass to smoothly flip from a vertical position to a horizontal position, improving operational efficiency.

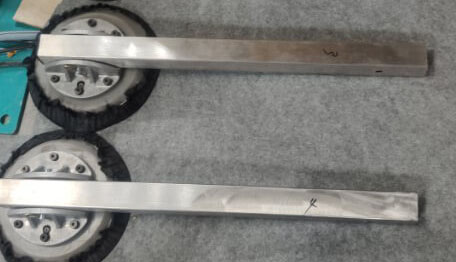

Adjustable suction cup layout - Suitable for flexible arrangement of different glass sizes and shapes.

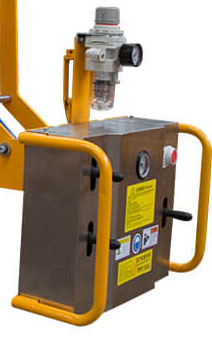

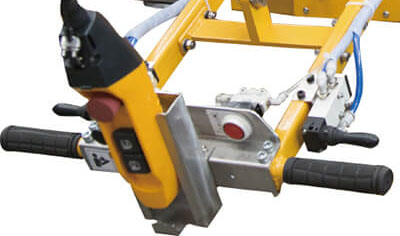

Ergonomic control handle - Makes operation more convenient, allowing one operator to complete lifting and turning operations.
Safety locking device - Can maintain suction force even in the event of air supply interruption, ensuring operational safety.
3.Specification
Model
RSY-FZ350/500
Working Load
350/500KG
Turn Over Degree
90-degree manual turn over
Vertical Lifting Max Distance
1.2 meters
Pad Quantity
4 or 6
Pad Diameter
250mm
Pad Material
Silica Gel
4.Picture

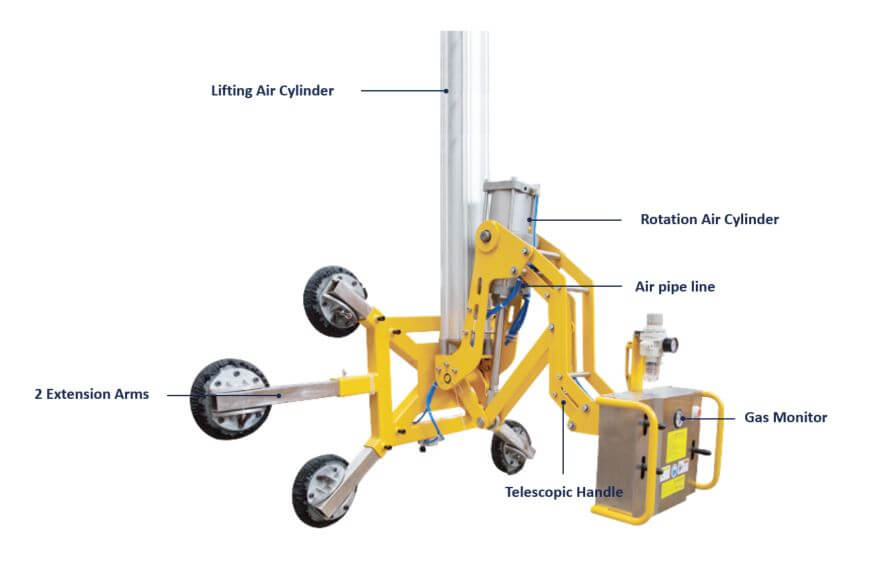

structure picture
5.FAQ
1. How does a pneumatic vacuum lifter work? The lifter uses compressed air to generate vacuum suction through suction pads, creating a strong grip on the glass surface. The operator can lift, rotate, or tilt glass panels safely.
2. Is it suitable for outdoor use? Yes, as long as the unit is made with corrosion-resistant materials and operated on stable surfaces. Avoid strong winds or uneven terrain.
