This super large electrical glass lifter is equipped with 24 industrial-grade vacuum suction cups (the number of suction cups can be selected). It is commonly used for high-altitude operations, such as curtain wall installation.
The dual safety system of vacuum alarm and power failure protection will lock the suction cups after a power failure and ensure that the glass will not fall off from the glass vacuum lifter within 15 minutes. The safety factor is very high.
Remote control, sensing range 50 meters
Battery-powered, long battery life, no need for wires, suitable for outdoor use
Sealed storage of parts, waterproof and dustproof, capable of working in extreme weather conditions
This super large electrical glass lifter is a specially designed solution for transporting large and heavy glass. It is controlled by an internal battery system, which enables the rotation and flipping functions of the glass lifter, while providing strong and stable suction force.
This allows the glass lifter to precisely position the glass. Multiple industrial-grade suction cups can achieve a uniform distribution of weight, ensuring a stable grasping effect and minimizing the risk of glass damage to the greatest extent. It is suitable for use in curtain walls, large windows, and architectural glass installation projects.

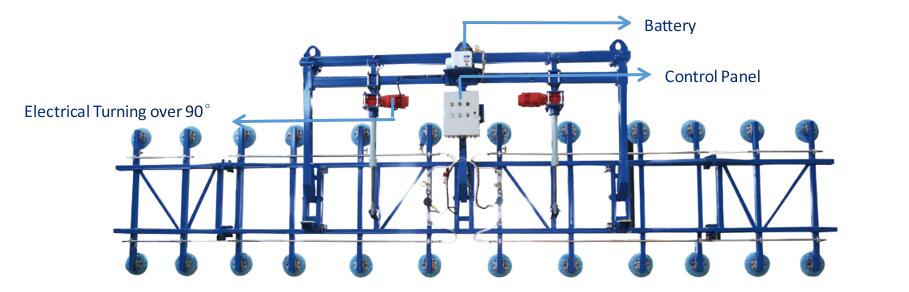

2.Structure
90° Electrical Rotation Device - The super large electrical glass lifter smoothly and controllably switches between vertical and horizontal positions, facilitating installation and operation.
Battery-powered System - Ensures the mobility of the glass vacuum lifter equipment without relying on an external power source, suitable for indoor and outdoor use.
Multiple Suction Cups - Distributes the load evenly, prevents panel deformation, and reduces the risk of damage.
Sturdy Frame Structure - Made of high-strength steel and coated with anti-corrosion coating, with a long service life.
Integrated Control Panel - Centralized control for lifting, lowering, and rotation operations, enhancing efficiency and safety.
3.Specification

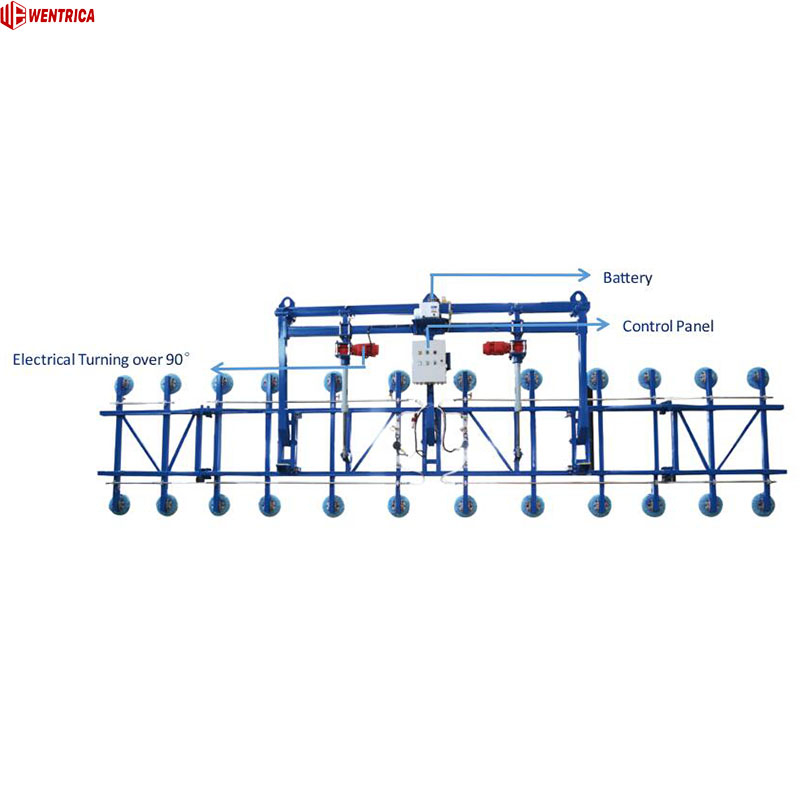

Super Large Hollow Double Clamp Sucker
Model Data
Super Large Hollow Double Clamp Sucker
Use Range
Designed for big-sized glass, mainly suitable for hollow glass production and glass movement
Power
DC48V AC380V （optional）
Battery working life
15-20 hrs
Working Weight
800 kgs
Control
Remote
Function
Voltmeter, power-off protection for 15 minutes without falling off; barometer, insufficient pressure alarm function,Clamping
Specializes in providing comprehensive, one-stop solutions for the design, production, and export of equipment in the glass deep processing and door/window industries
