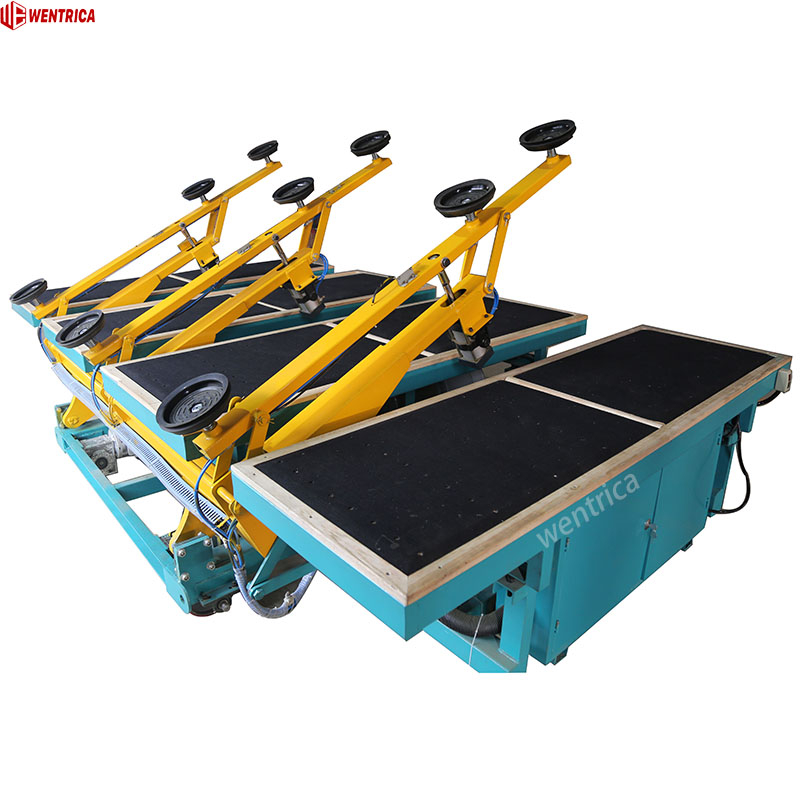

With a mechanical rotation design, the glass loading machine operates smoothly during movement, stopping, and changing the angle of the main arm, with minimal errors and high precision.
Electrical component comprehensive protection device, ensuring the safety and reliability of the glass sheeting machine operation
Customized low-power large fans and highly efficient quiet air compressors, with powerful performance, low energy consumption and low noise.
Imported frequency converter for intelligent speed control
All the core components are imported from well-known brands: the LS control card from South Korea, the Yaskawa servo motor from Japan, and the BEL suction cup.
In addition, this loading machine is divided into two models:
The semi-automatic glass loading machine is equipped with an unlimited remote controller, supports point operation, and has a "memory" function. Once the demonstration is completed, it can repeat the operation.

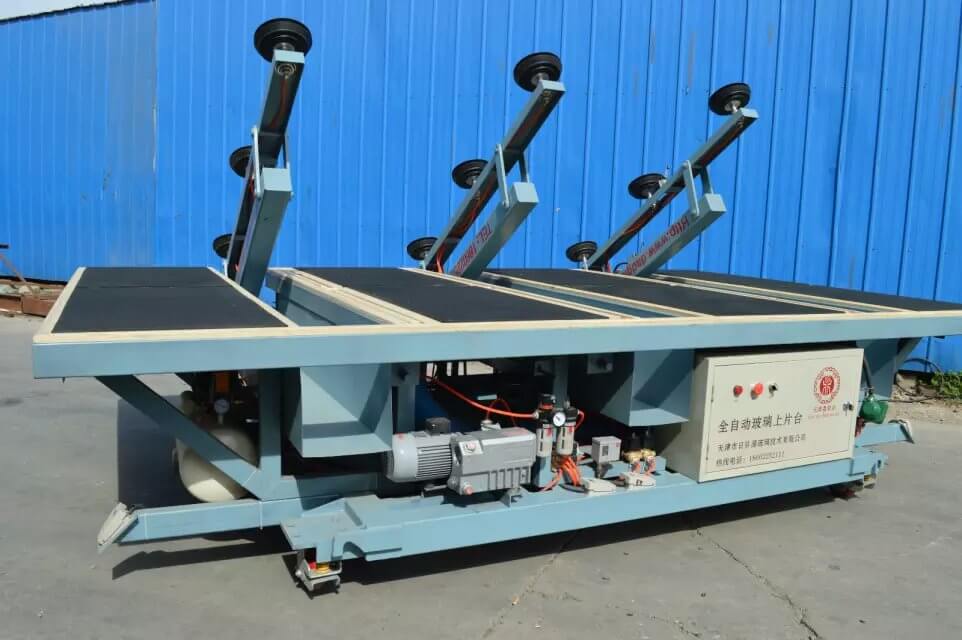

The fully automatic glass loading machine adopts a PLC control system, has one-button operation, is fully automated, integrates automatic film detection, 360° rotation, picking, and release, and also has the function of pre-storing parameters.
The glass loading machine is a specialized equipment that moves the glass raw sheet to the workbench through steps such as positioning, moving, adsorption, and release, and then transports it to other positions in the assembly line.
2.Mode
1) Automatic Mode
Turn on the main power supply, press the "Mode" button on the PLC screen, and the glass loading machine will enter the automatic processing procedure:
Locate the glass
Move forward and backward, left and right, approach the glass
Raise the large arm, control the angle, and adsorb the glass
After the suction cup comes into contact with the glass, the glass loading machine automatically adjusts the suction force to complete the adsorption
Lower the large arm, release the glass onto the workbench
Emergency stop:In case of any unexpected situation, please press the emergency stop button to immediately stop the operation. Press the start button again to resume the operation.
2) Manual Mode
Use the following controls on the remote:
↑: Move forward
↓: Move backward
← / →: Turn left or right
Rise: Raise the upper arm
Drop: Lower the upper arm
The manual mode enables the precise movement of the glass loading machine, facilitating positioning and loading operations in complex environments.
3.Structure

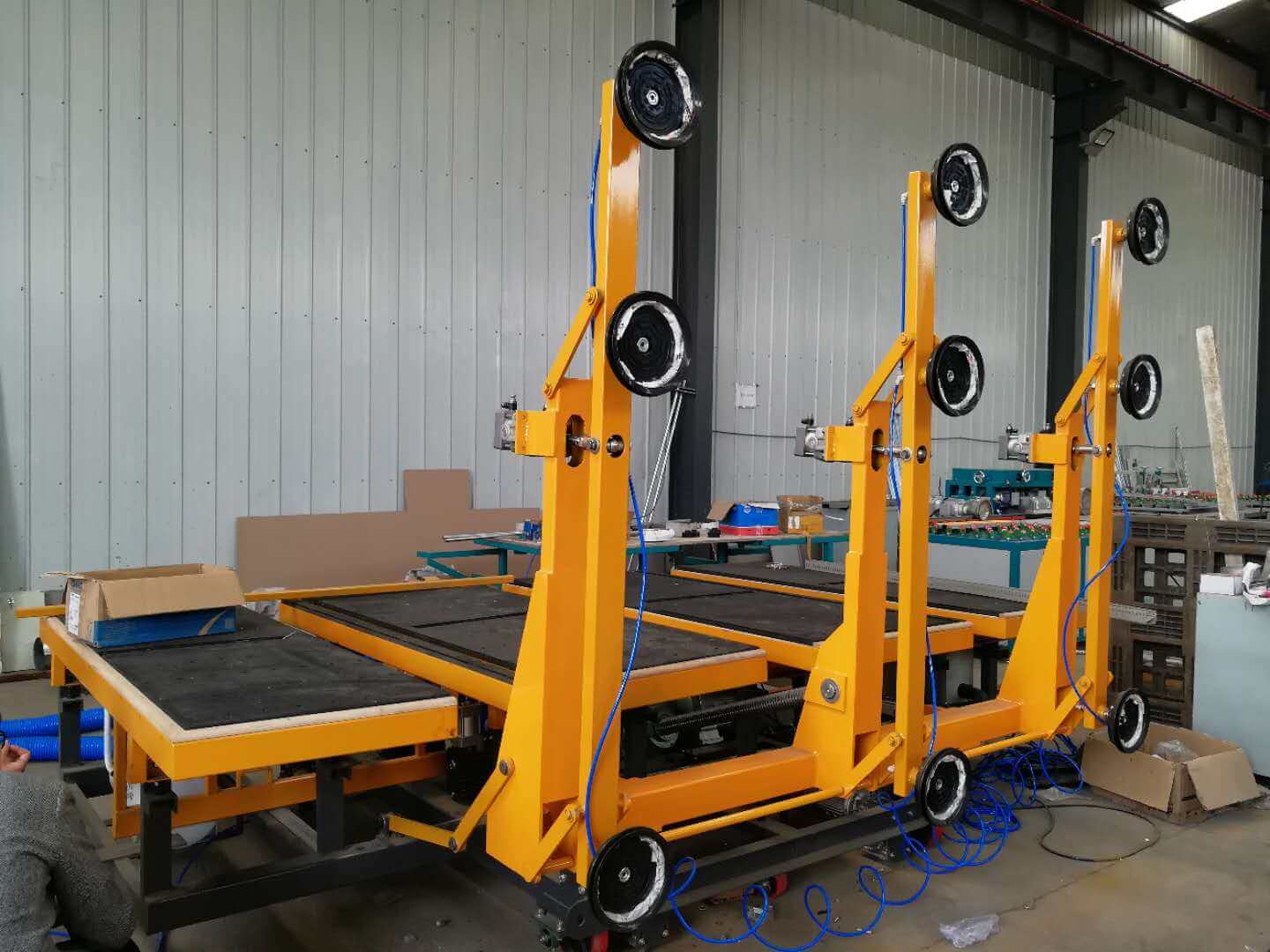

Suction System
Pure silicone suction cup, anti-aging, corrosion-resistant, long service life.

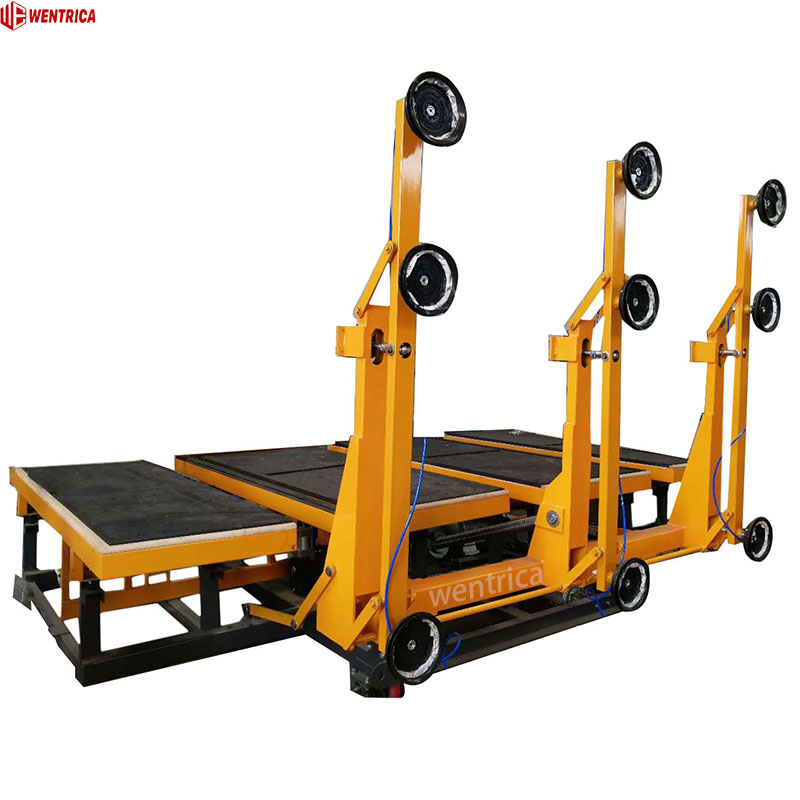

Boom arm
The boom arm is installed with a split-type boom structure, without welding issues, and the angle can be changed freely and precisely Framework.

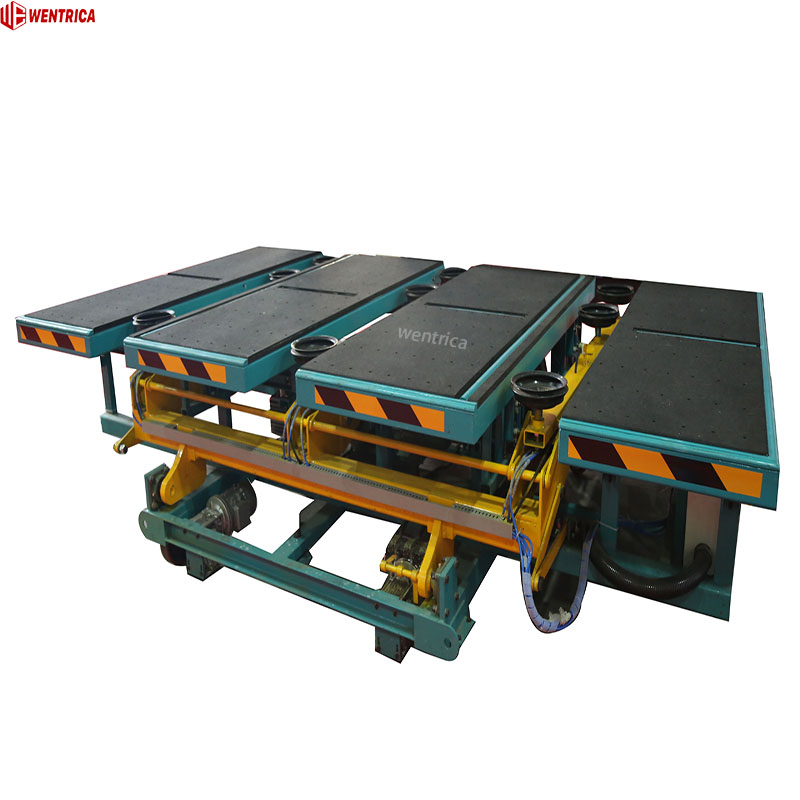

Framework
The sturdy and durable frame is paired with a stable base, ensuring stability and durability. The surface is treated with industrial-grade finish, preventing rust and corrosion.

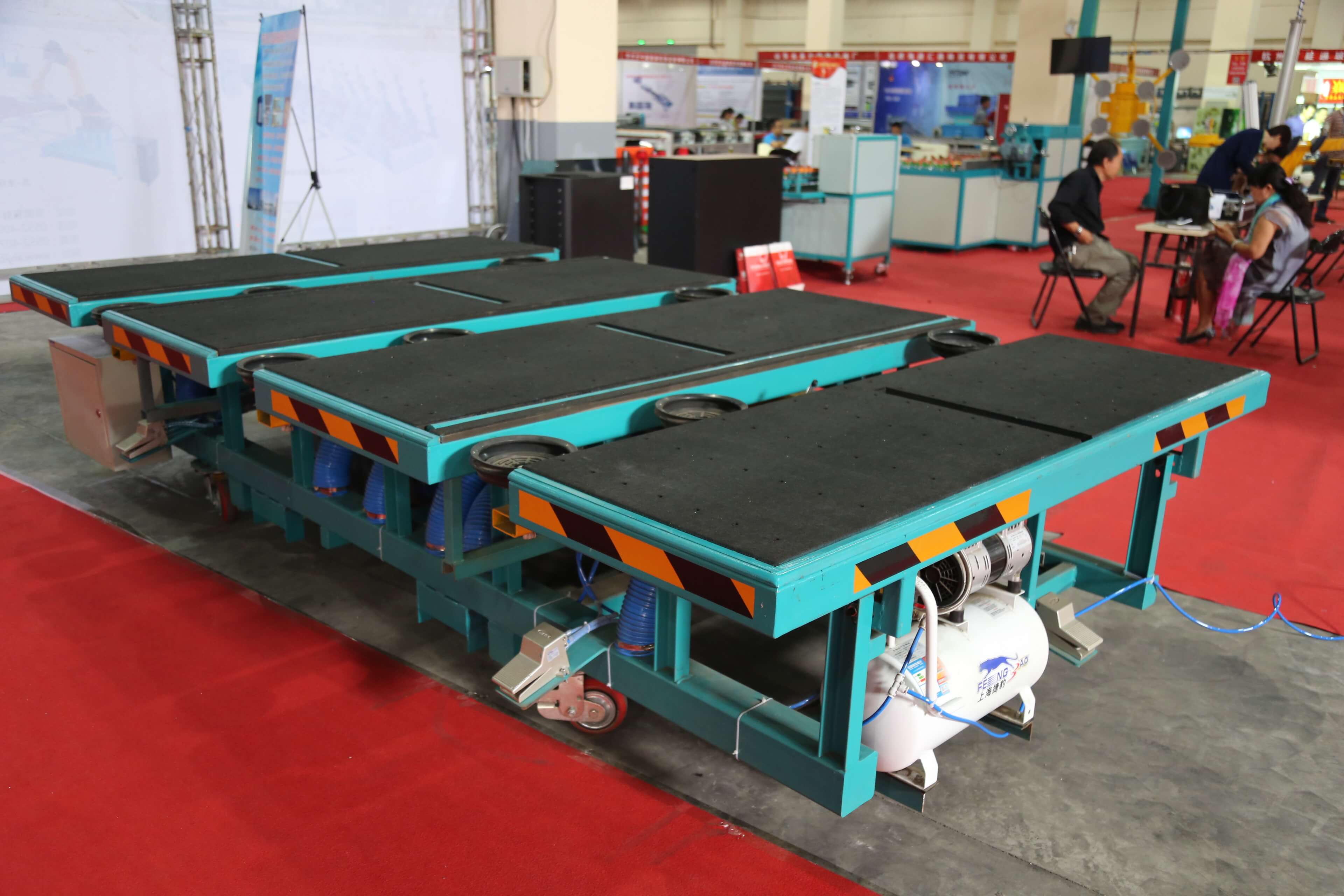

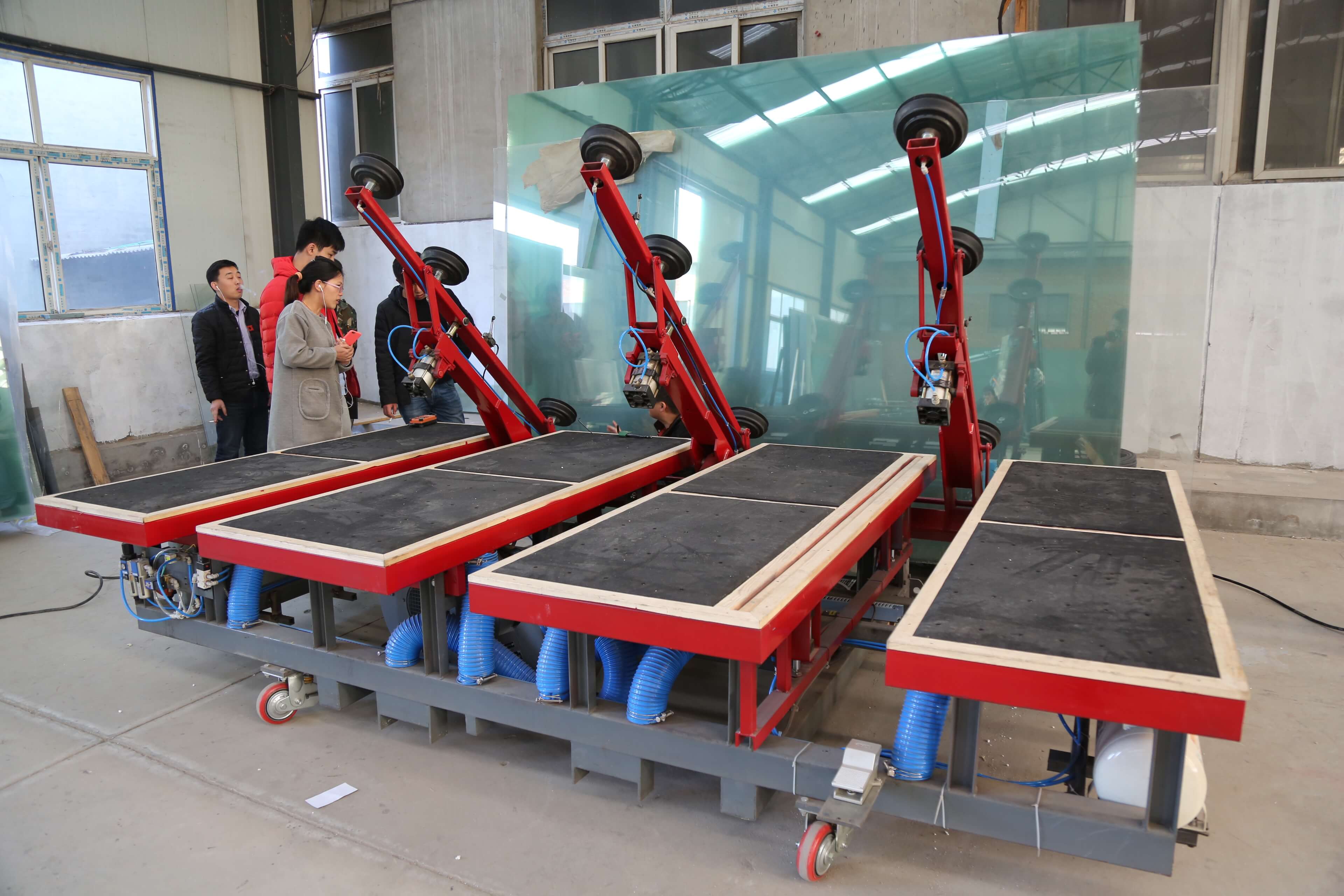

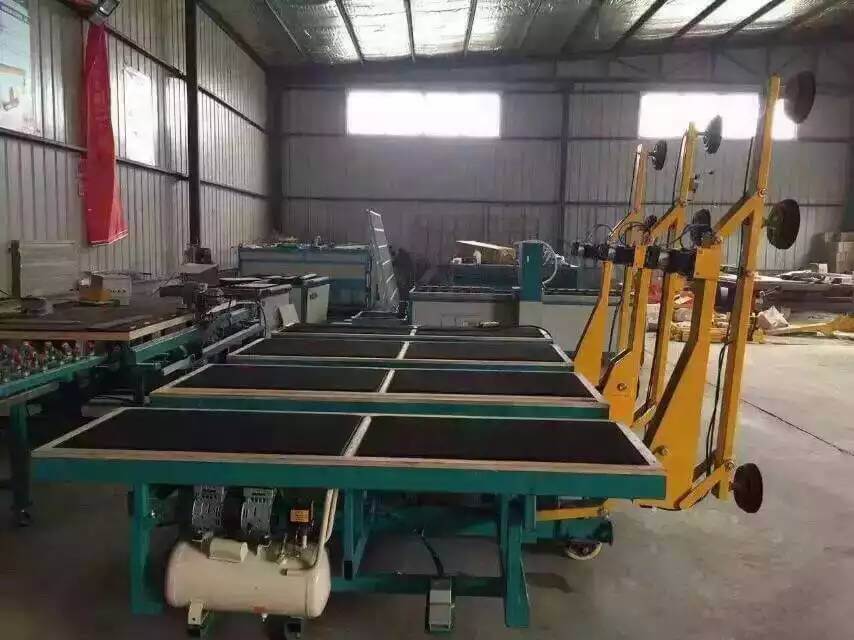

Air Floatation System
The air buoyancy platform is adopted, enabling the glass to move above the glass loading machine platform without any contact, flipping, and achieving no scratches and zero damage during movement.
Parameter
Specification/Value
Max. Glass Size
3660 × 2440 mm
Glass Thickness Range
3-25 mm
Max. Lifting Capacity
300-600 kg (optional)
Suction Cup Quantity
4/6/8 (customizable)
Power Supply
220V/380V/50Hz/3-phase
Rotation Angle
0°-180°
Tilting Range
0°-90°
Control Mode
Manual/Full-auto
4.FAQ
1. Can this equipment handle glasses of different sizes?
Yes, on the vertical arm of the glass loading machine, there are 3 suction cups distributed, which can hold standard-sized and non-standard-sized glasses.
2. Can this automatic glass loading machine be integrated with the glass cutting production line or other equipment? Yes. This loading machine has excellent compatibility in design, and can be physically and data-wise connected with various brands and models of glass cutting machines, glass edge grinding machines, cleaning machines, etc., thus enabling seamless integration of the automated production line.
3. What are the vulnerable parts of the glass loading machine equipment? How often should they be replaced?
The lubricating oil in the lubrication system also needs to be replaced regularly according to the manufacturer's recommendations.
4. Do you provide guarantee measures?
1). We offer a 12-month warranty service.
2). Technical support services can be provided via email, video or phone.
3). Including English operation manuals and video tutorials.
4). 24-hour online service and free professional technical support.
