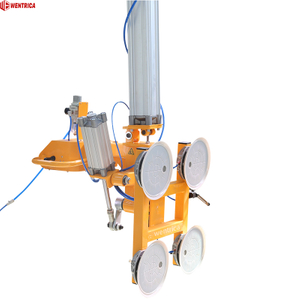

The pneumatic glass vacuum lifter is a specialized equipment designed for loading, unloading and transporting large and medium-sized glass. It is commonly used in curtain wall installation, glass processing and other fields.
Manual 90° flipping, 360° rotation, precise positioning of the glass
Equipped with three safety protection devices, including vacuum insufficient alarm device, digital pressure monitoring device and protection device, to ensure that the glass will not fall off within 15 minutes.
Sealed protective components, dustproof and waterproof, can still work normally in extreme weather conditions.
Anti-slip suction cup device ensures that the glass will not suddenly fall off and has high safety.
Silicone material suction cup, strong adaptability and adhesion, can work normally within the temperature range of -30°C to 100°C, with an adhesion force of 800kg.
Lightweight, labor-saving, suitable for use in scenarios involving high-altitude operations or frequent movement.
Driven by compressed air, it does not rely on power supply and is suitable for outdoor use.

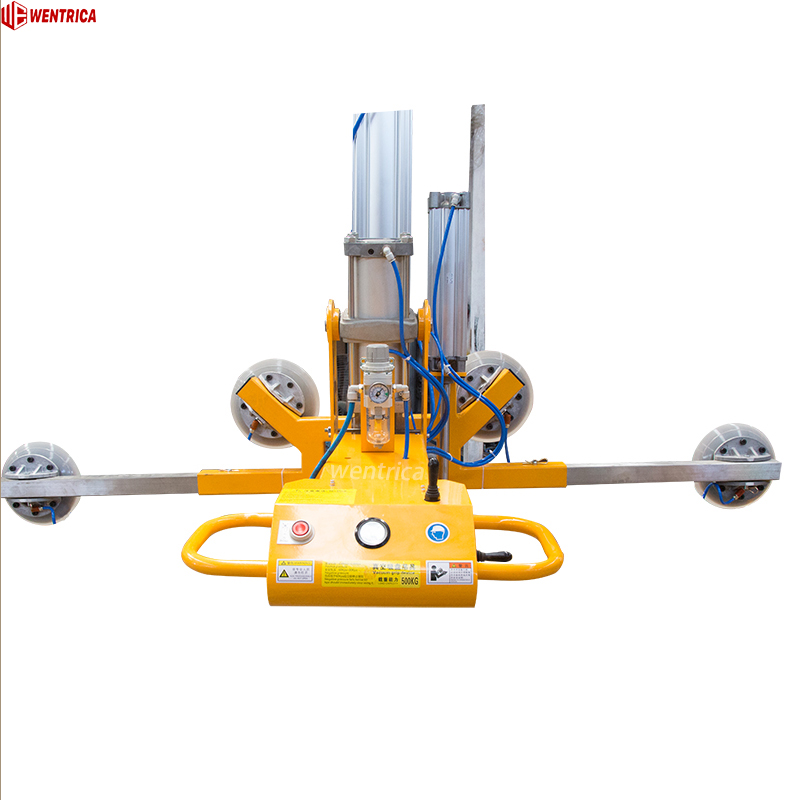

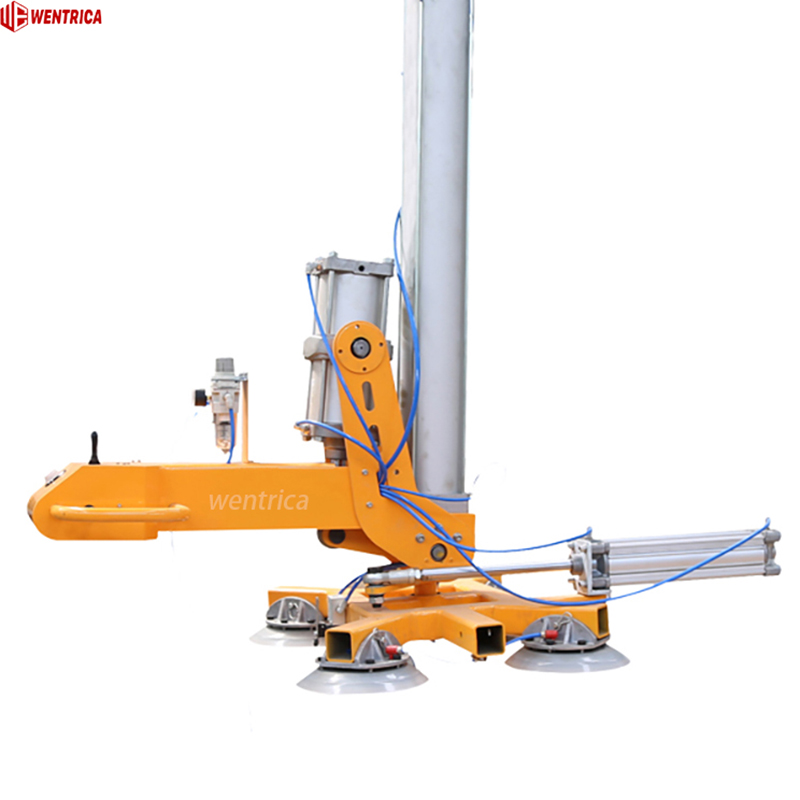

The Air-Powered Vacuum Glass Lifter – Rotation & Turn Over is a high-performance glass handling solution designed for safe, efficient, and versatile movement of large glass panels. Powered by a reliable pneumatic system, this lifter combines rotation and turn-over capabilities, enabling smooth transitions between vertical, horizontal, and angled positions without manual lifting.
Built with a heavy-duty steel frame and adjustable suction cup layout, it can handle various glass sizes and shapes while minimizing the risk of scratches, chips, or breakage. Ideal for glass processing plants, construction sites, and installation projects, this lifter boosts productivity while reducing operator fatigue.
2.Structure
Heavy-Duty Frame Construction – High-strength steel structure ensures stability under heavy loads and long-term durability.
Pneumatic Vacuum Suction System – Strong, consistent suction for secure glass handling without surface damage.
360° Rotation System – Allows free rotation of glass for precise positioning during processing or installation.
90° Turn-Over System – Smoothly flips glass between vertical and horizontal orientations, reducing manual handling.
Adjustable Suction Cup Layout – Adapts to different glass dimensions and shapes for maximum flexibility.
Ergonomic Control Handle – Simple, intuitive controls for easy operation by a single operator.
Safety Lock & Pressure Monitoring – Ensures secure holding even in case of air supply loss, improving workplace safety.
3.Specification
Model
RSY-FZ350/500
Working Load
350/500KG
Working Load
90-degree manual turn over & rotation
Vertical Lifting Max Distance
1.2 meters
Pad Quantity
4 or 6
Pad Diameter
250mm
Pad Material
Silica Gel

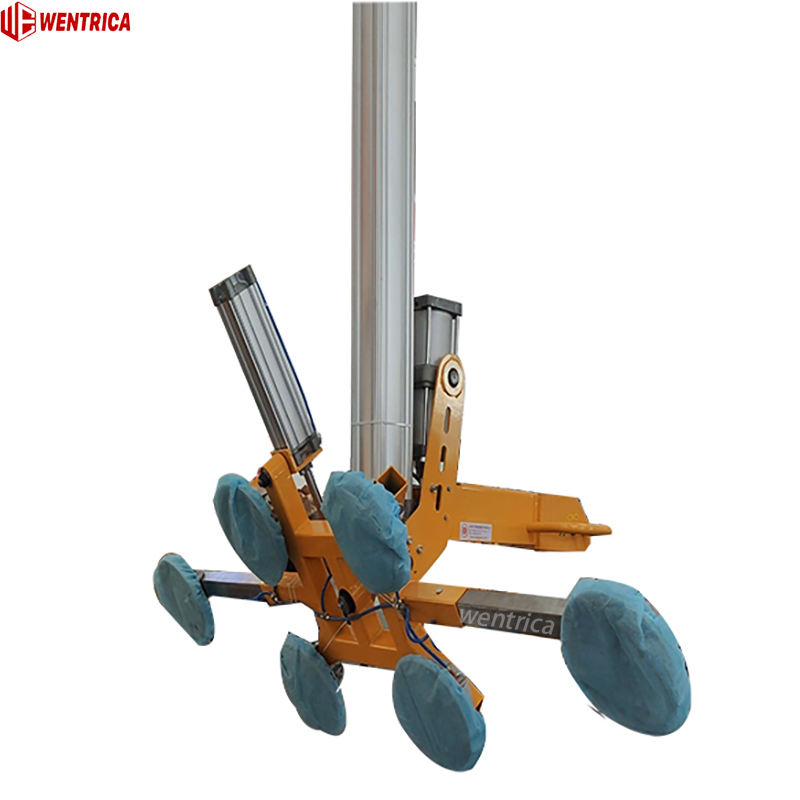

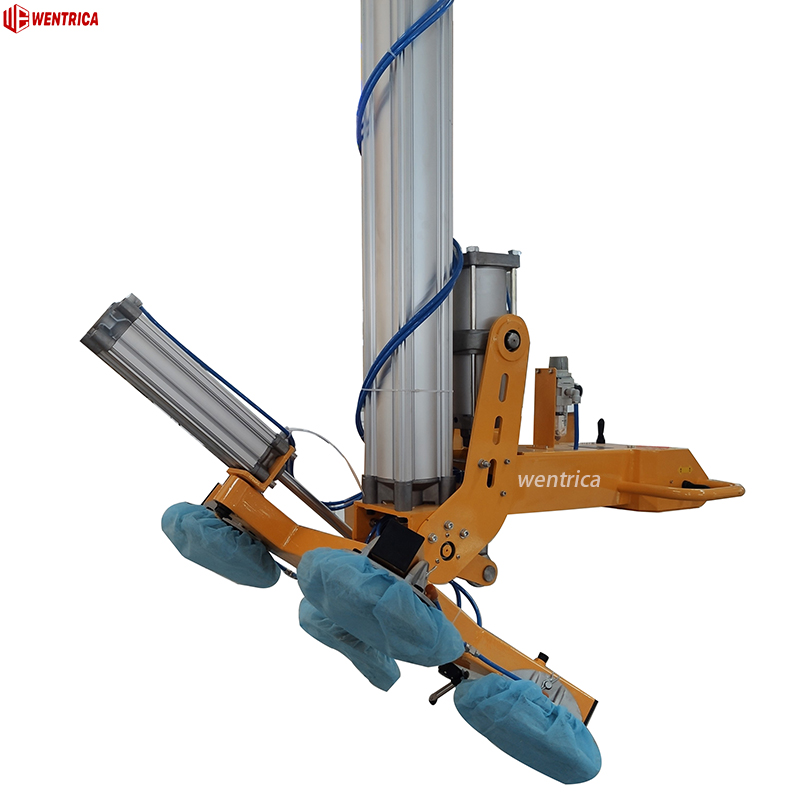

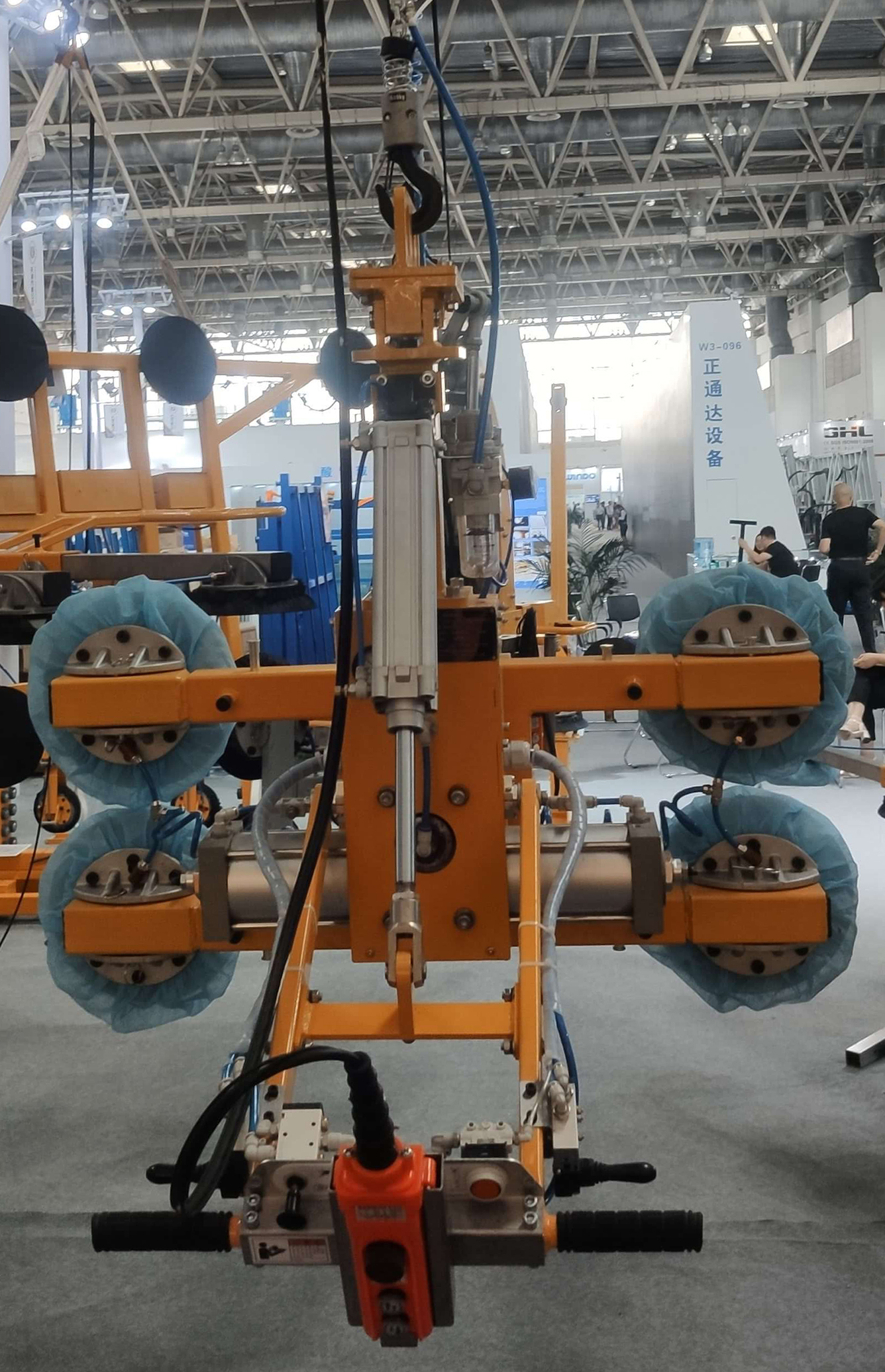

4.Picture

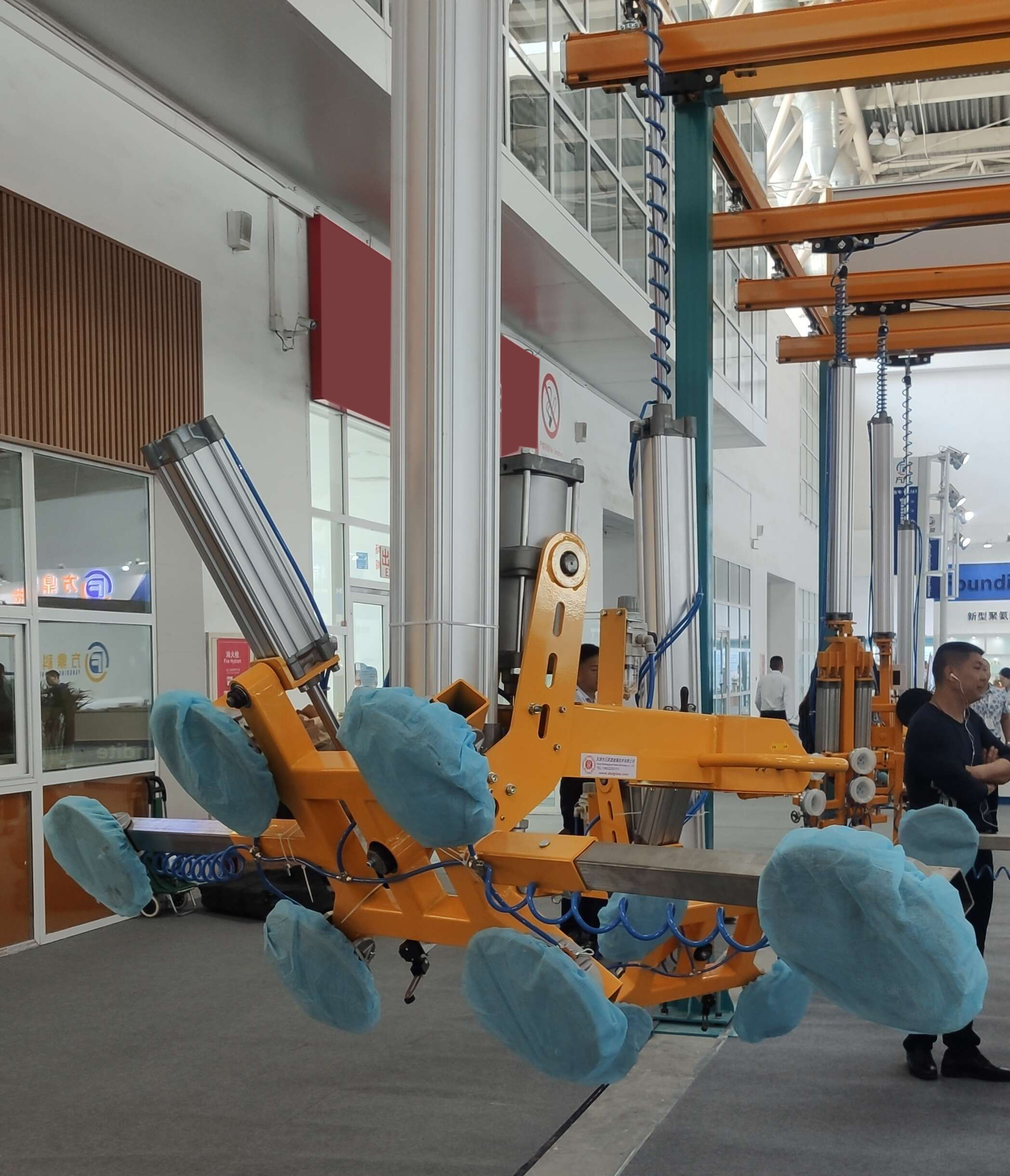

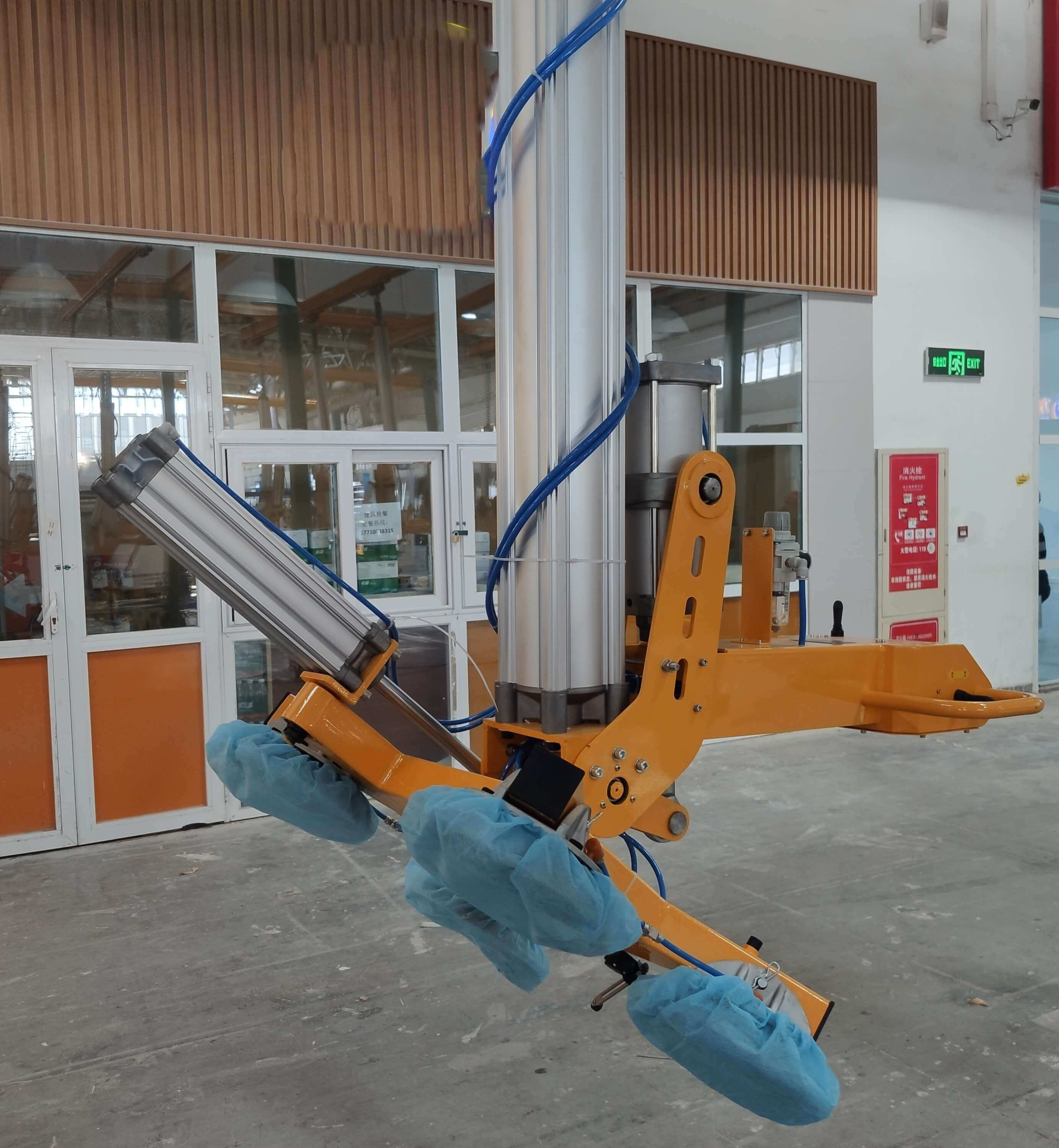

Application

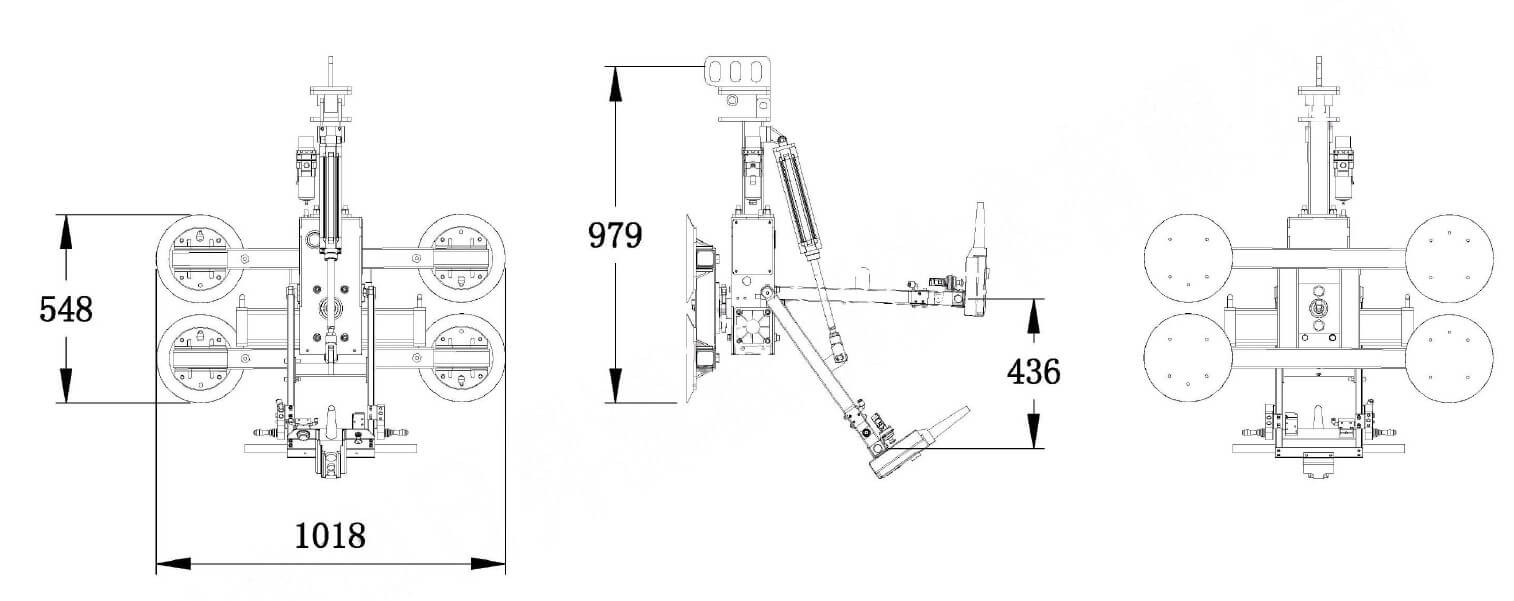

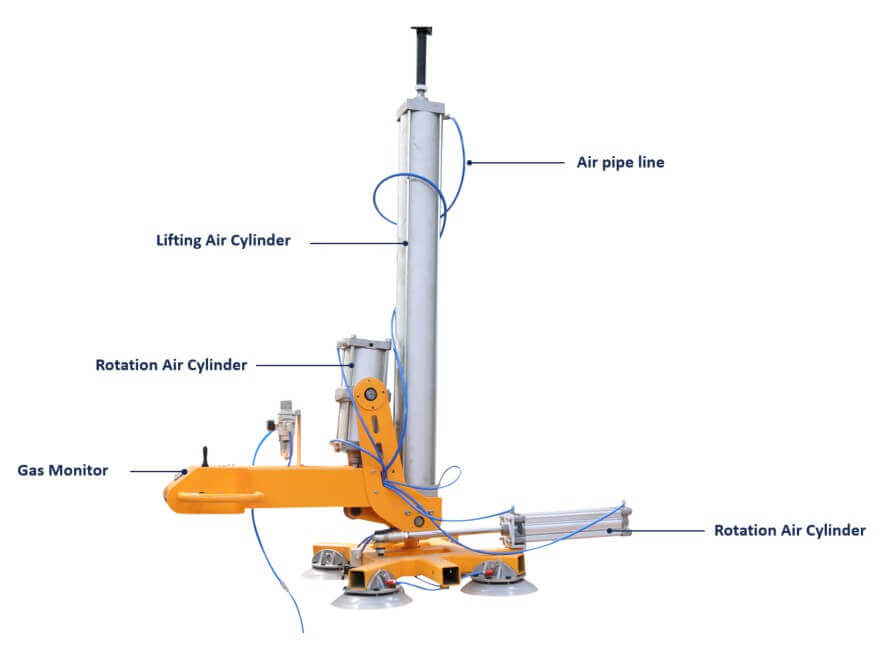

Structure Diagram
5.FAQ
1. How does the lifter work?
It connects to a compressed air supply to create a vacuum in the suction pads. The vacuum holds the glass panel securely, allowing safe lifting, rotation, and placement.
2. Is it safe to use?
Yes. It is equipped with vacuum pressure gauges, safety check valves, and sometimes audio-visual alarms to prevent accidents in case of air loss.
