Powered by lithium batteries, it does not require power supply. The battery can last for 4 to 6 hours and is suitable for outdoor use.
Electric or manual 360° rotation, precise positioning of the glass
Equipped with three safety protection devices, including vacuum insufficient alarm device, digital pressure monitoring device and power-off protection device, to ensure that the glass will not fall off within 15 minutes.
Sealed protective components, dustproof and waterproof, can still work normally in extreme weather conditions.
Anti-slip suction cup device ensures that the glass will not suddenly fall off and has high safety.
Silicone material suction cup, strong adaptability and adhesion, can work normally within the temperature range of -30°C to 100°C, with an adhesion force of 800kg.

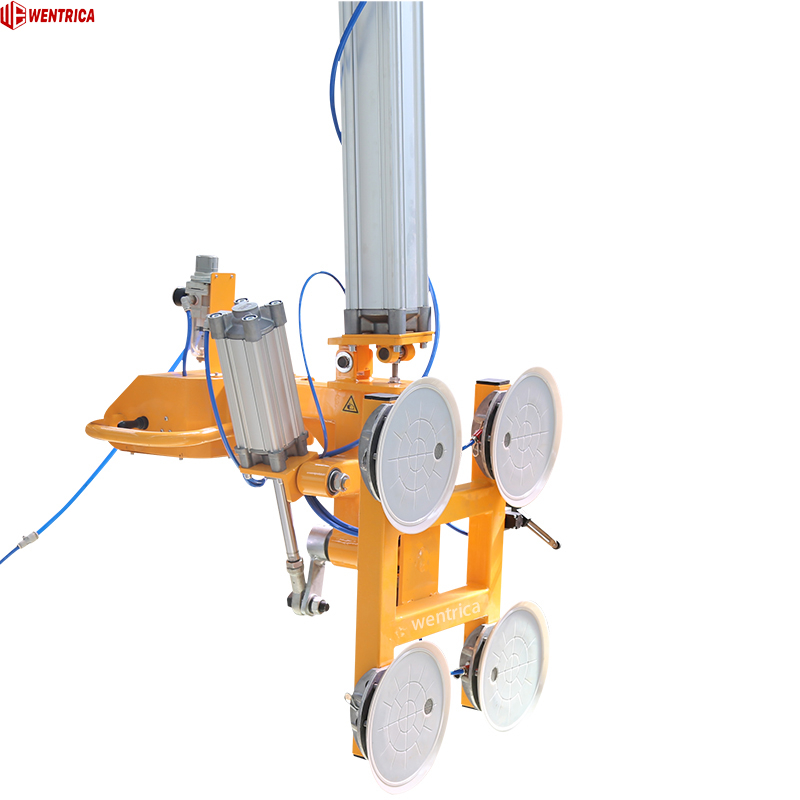

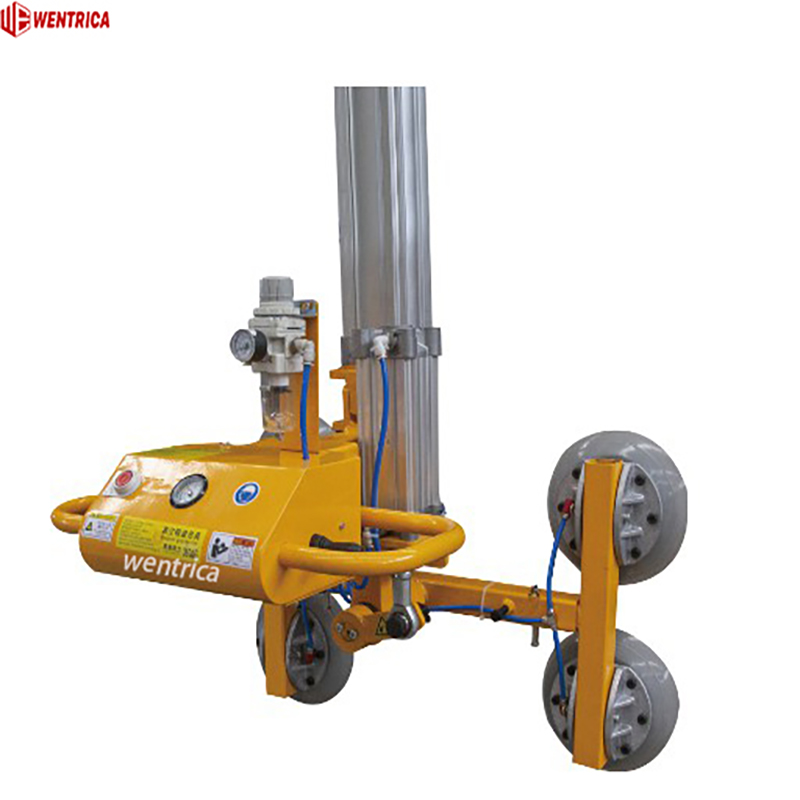

This pneumatic glass vacuum lifter with 360° rotation function is a powerful glass lifting equipment.
This vacuum glass lifter is driven by compressed air and is manufactured with high-quality components, such as the American Thomas vacuum pump and the Japanese SMC pneumatic control system. It has stable performance, enabling operators to easily position, attach, and move glass plates, significantly reducing manpower requirements and ensuring no damage to the glass. It is widely applied in areas such as curtain wall installation and glass processing.
2.Structure
Pneumatic Power System
Fully air-powered—no electricity required—ideal for safety-critical or explosion-proof environments.
Built-in Safety Device
Includes vacuum pressure gauge, air reservoir, warning alarms, and non-return valves to maintain grip in the event of air loss.
Fail-Safe Vacuum Lock
In case of air supply interruption or air hose rupture, the system automatically locks the vacuum to hold the glass securely for 10–15 minutes, preventing drops.
Modular Suction Cup Layout
Cup arms and positions can be adjusted to fit different glass sizes and shapes.
Strong Vacuum Suction Cups
Equipped with high-quality rubber suction pads, ensuring firm grip on glass surfaces without leaving marks.
360° Rotation System
Effortlessly rotate glass panels in place, improving operational flexibility during installation or processing.
Sturdy Steel Frame
Heavy-duty structure with powder coating ensures durability and rust resistance for indoor and outdoor use.
3.Specification
Model
RYS-XF350/500
Working Load
250/500KG
Rotation Degree
90-degree Rotation Button Control
Vertical Lifting Max Distance
1.2 meters
Pad Quantity
2,4 or 6
Pad Diameter
250mm
Pad Material
Silica Gel
4.Picture

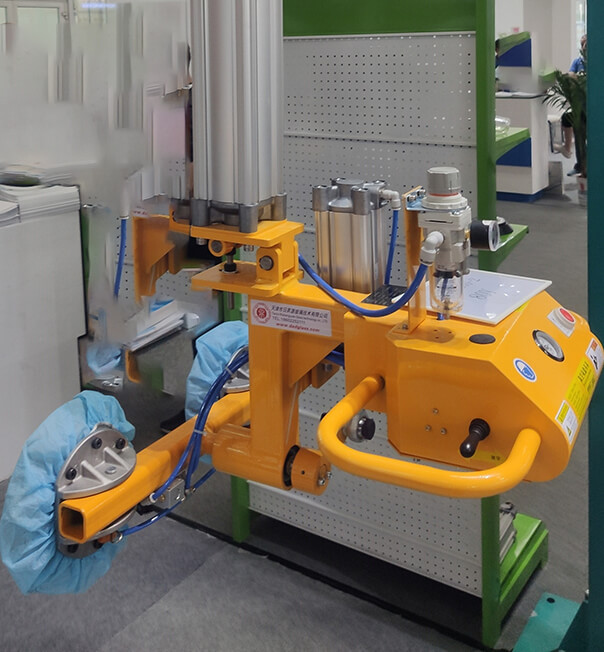

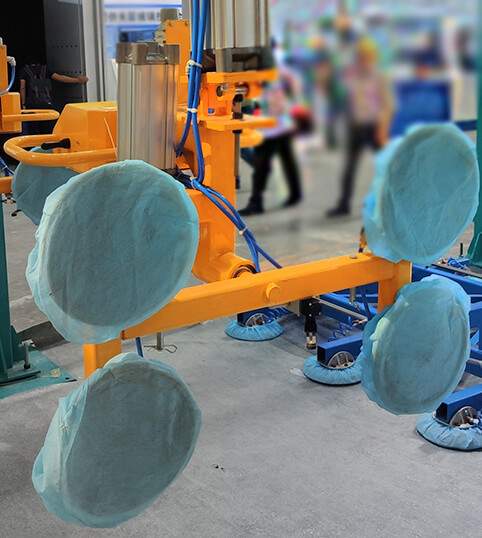

Application

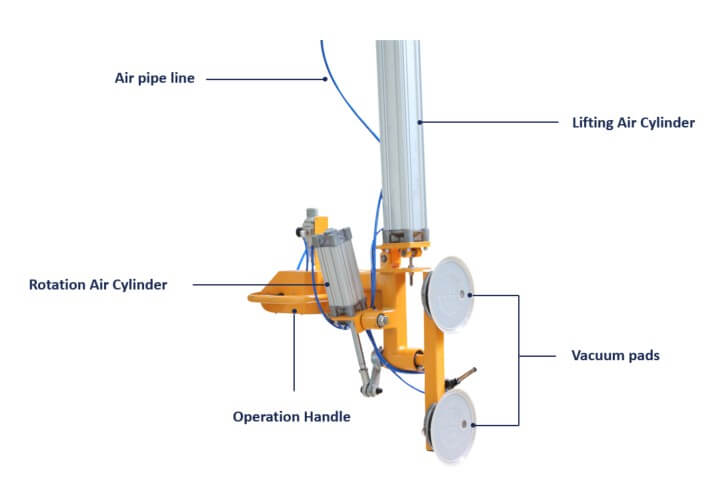

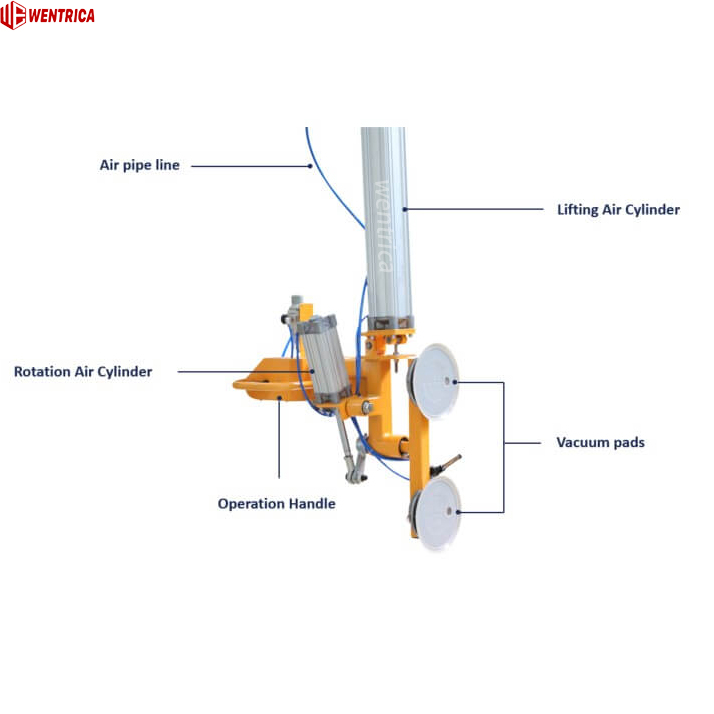

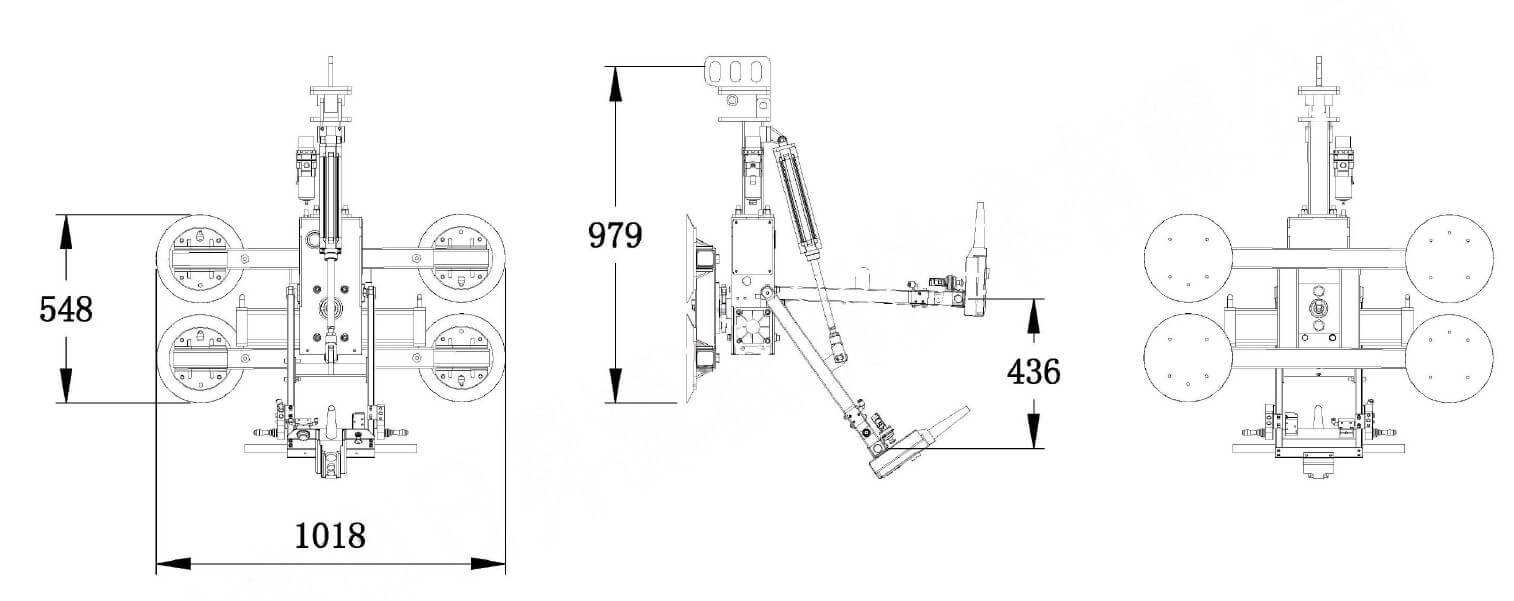

Structure diagram
5.FAQ
1. How does the 360° rotation function work?
The lifter is equipped with a rotational mechanism that allows operators to rotate the glass panel manually or pneumatically without detaching it from the suction pads, making installation easier.
2. What types of glass can it handle?
It can safely lift flat glass, tempered glass, laminated glass, and insulated glass units (IGUs) with smooth, non-porous surfaces.
