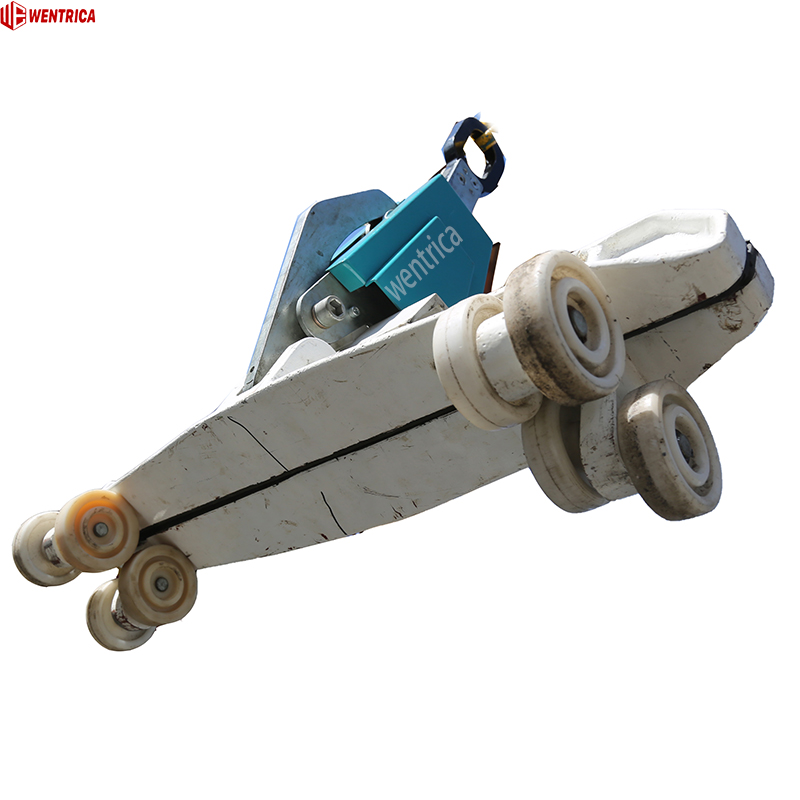

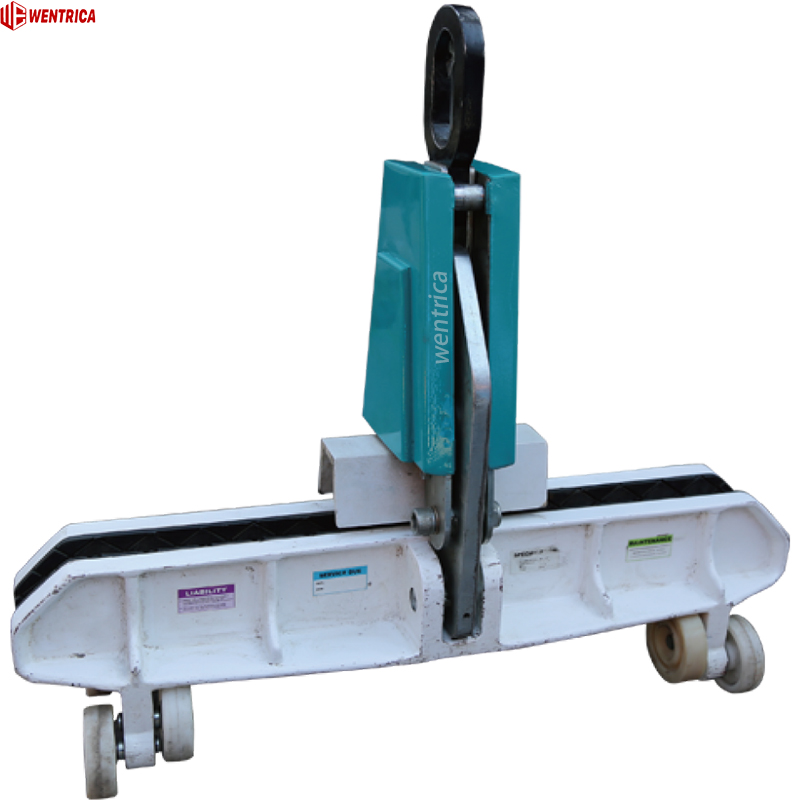

The LC glass hoisting clamp is designed in Italy and is a specialized equipment for hoisting medium and large-sized glass
It adopts a die-cast aluminum structure, which is resistant to deformation and has a long service life

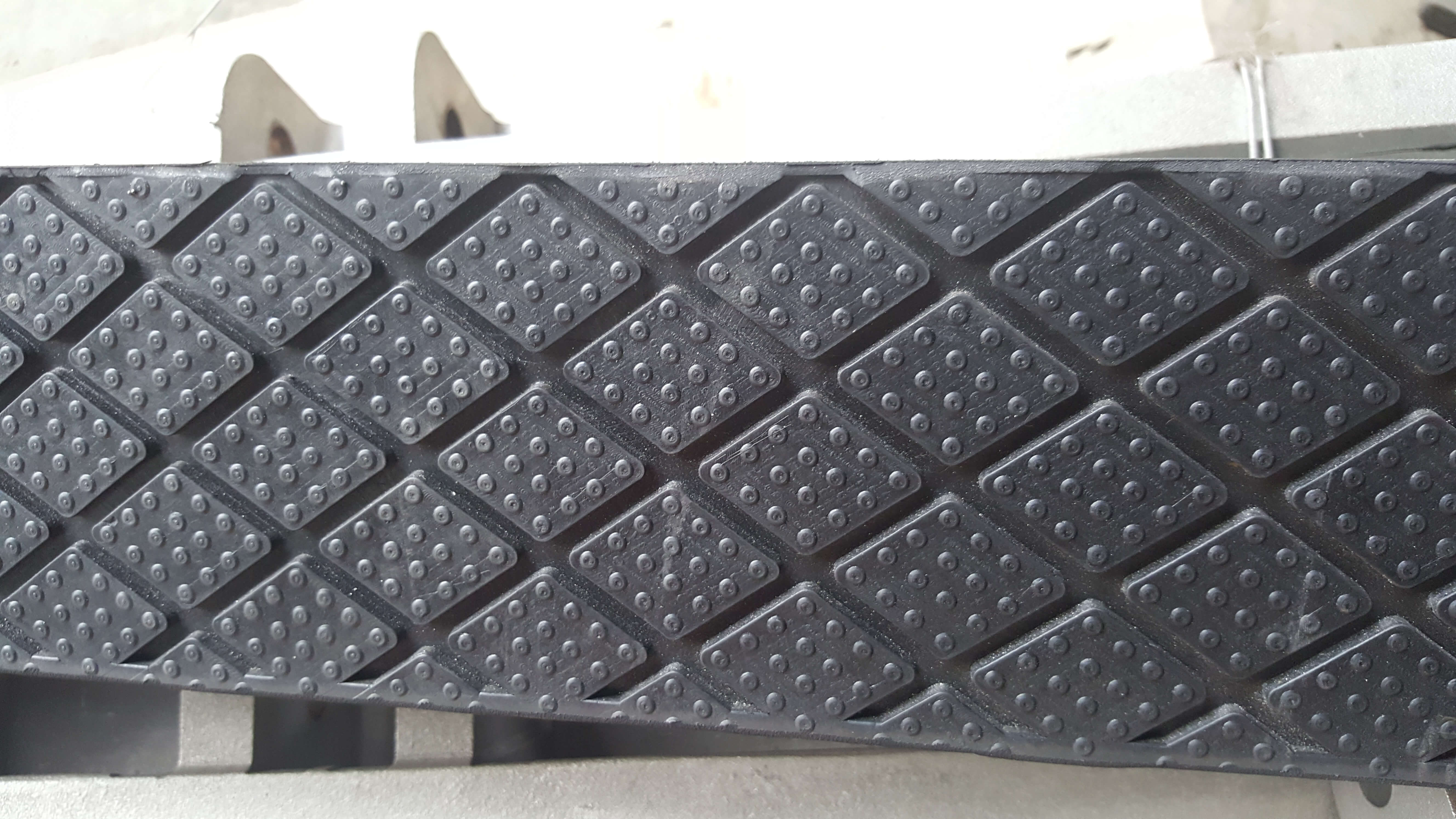

In the area in contact with glass, natural rubber is embedded into the aluminum surface through a hot-melt process and will never fall off. It has a natural affinity for glass and can also prevent glass from slipping
The design of four polyurethane casters enables the glass to slide along the casters into the interior of the lifting clamp at the beginning of the lift without touching the aluminum surface, thus avoiding damage
The LC glass lifting clamp is designed in Italy and is a precise equipment specifically used for safely lifting and transporting glass. It is made with cast aluminum technology and has a sturdy structure. The area in contact with the glass is embedded with natural rubber, which has a natural affinity with the glass. It is small, flexible, easy to carry and operate, and has strong adaptability. It can be used in workshops, warehouses, and outdoors. The maximum lifting weight can reach up to 1000kg.

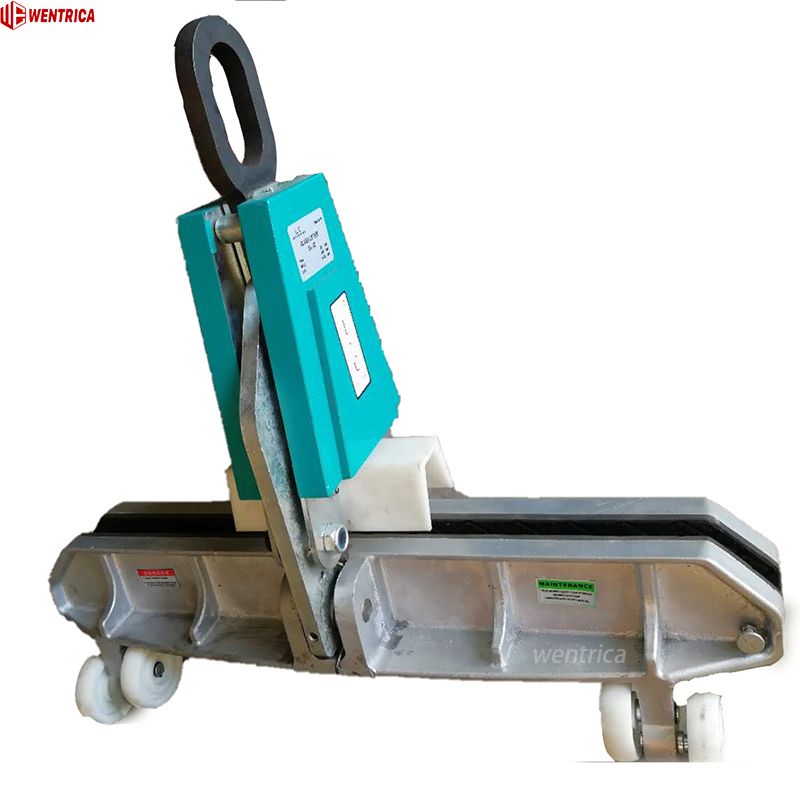

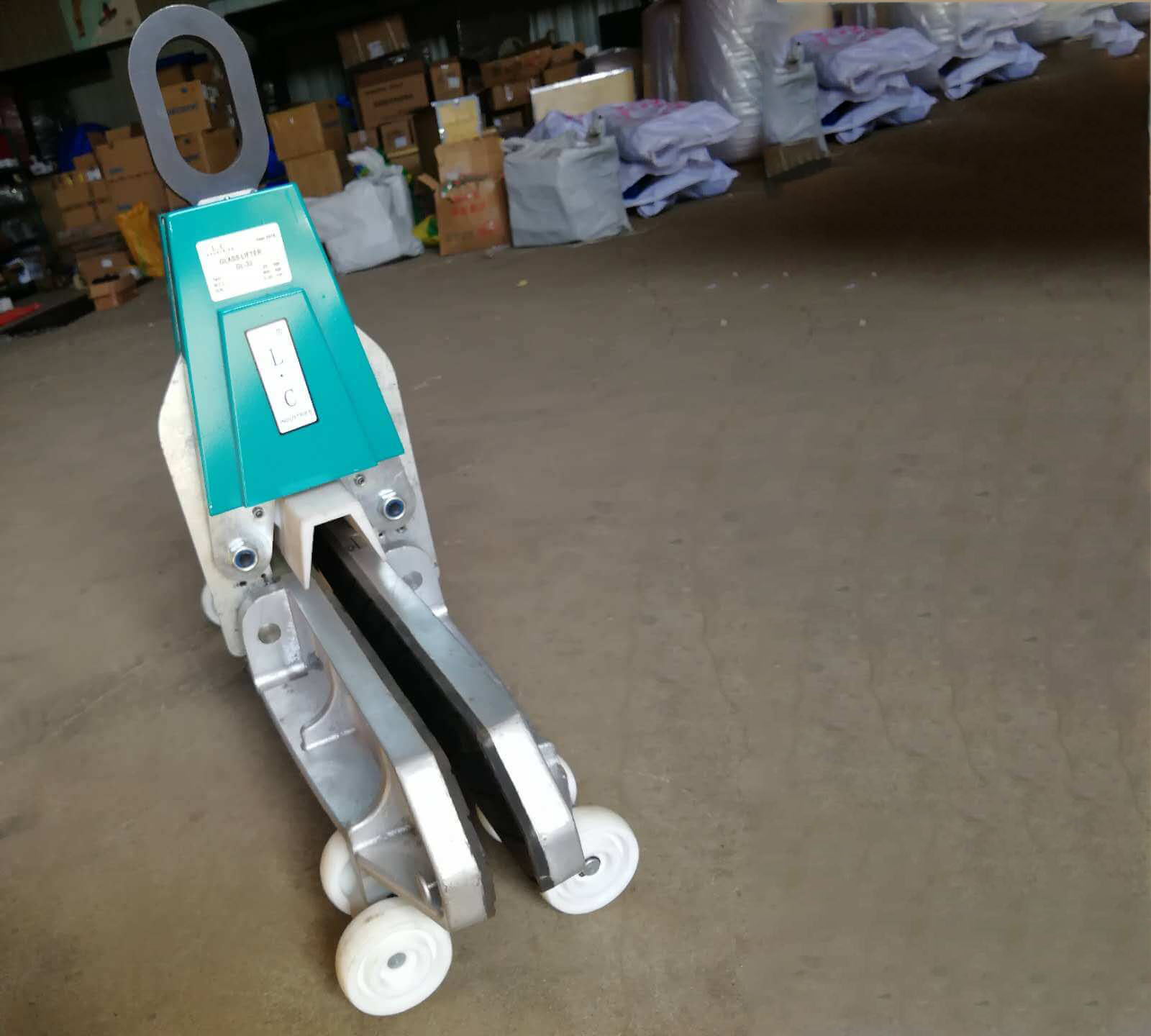

2.Structure
Clamping Jaw Device
The clamping part of the LC glass lifting clamp is forged from high-strength aluminum, providing strong clamping force. Natural rubber is embedded inside the clamping爪 to ensure that the glass is lifted without any damage and will not fall off.
Connection Device

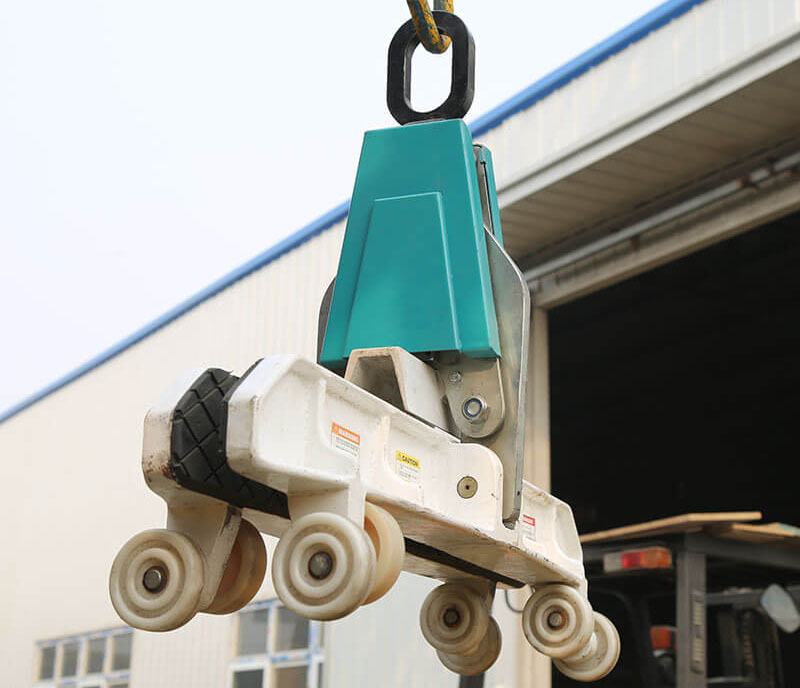

A metal ring is designed at the top of the LC glass lifting clamp, which can be used in conjunction with lifting equipment.
Adjustment Device
Adjustable bolts can adjust the opening and closing angle of the clamping to lift glass of different thicknesses.
Safety Device
A locking device and overload protection device are configured to ensure that the glass does not suddenly fall off, with a high safety factor.

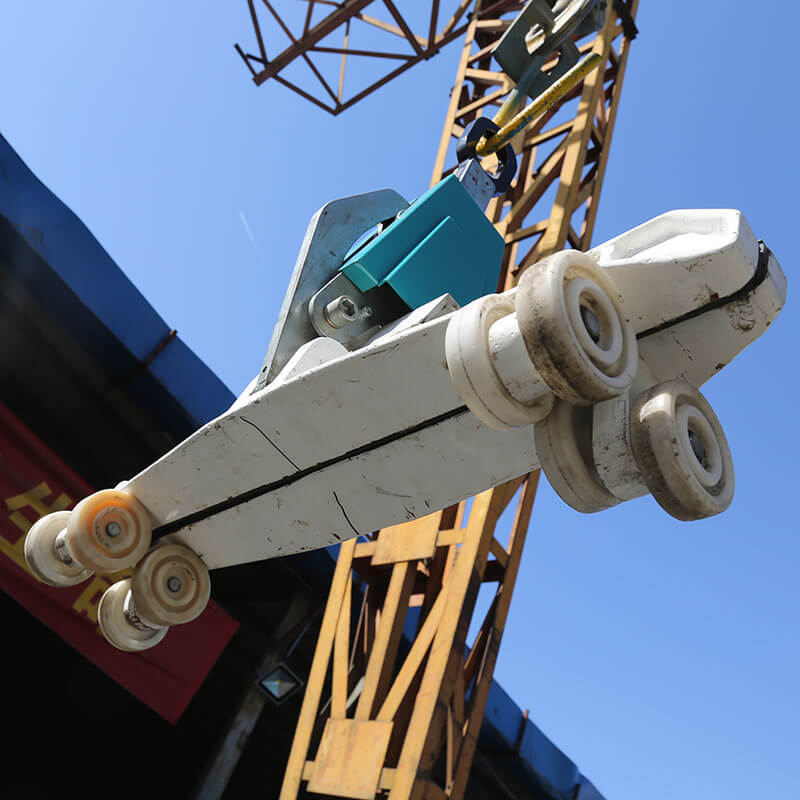

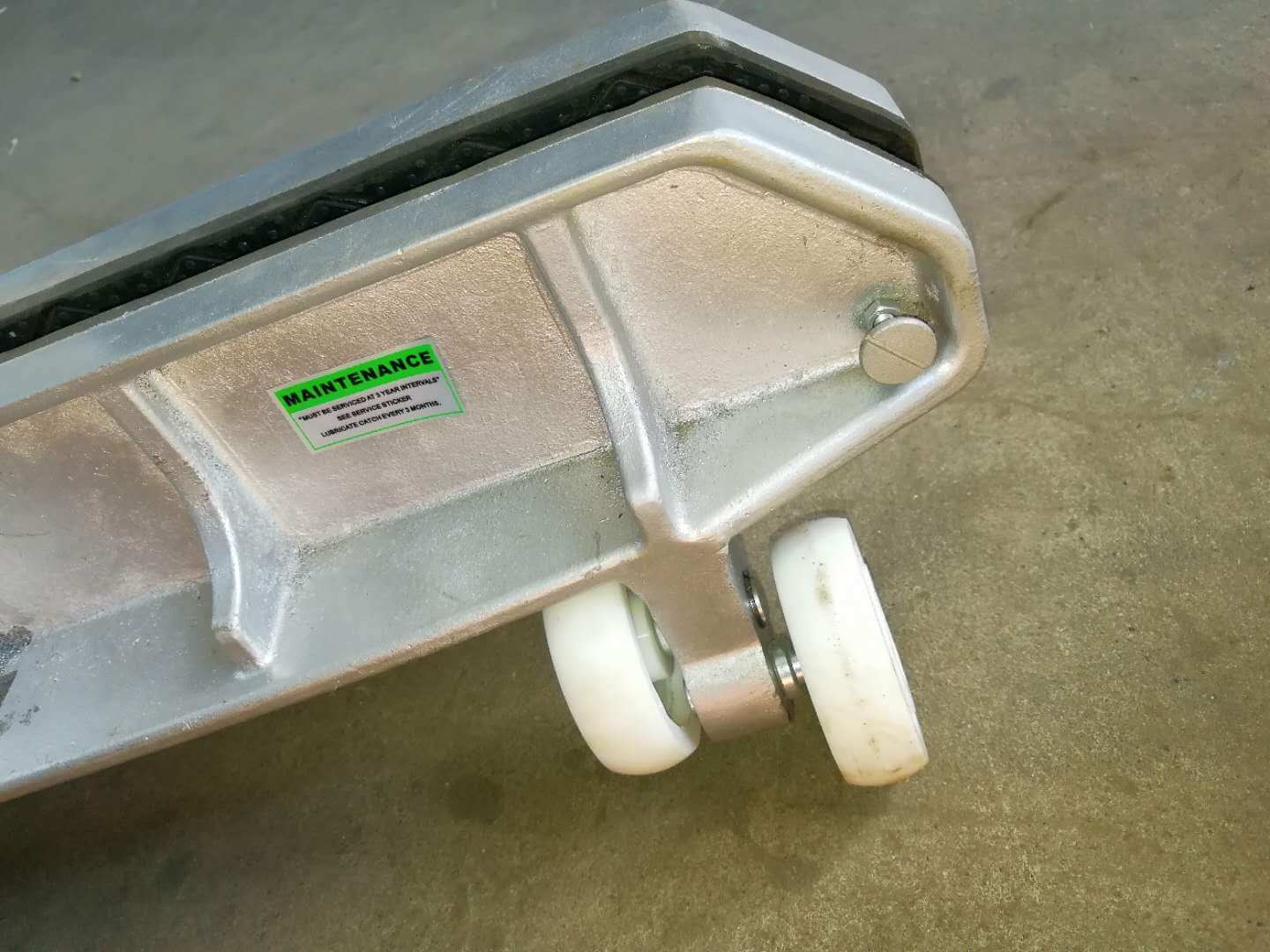

8-Wheel Guiding System
The bottom of the lifting clamp is equipped with 8 polyurethane casters. Four on the outside are used to lift the glass, and the four on the inside are used to prevent damage to the glass during the process of lifting it.
3.Configuration
Italy LC glass supporting clamp
Model
Size
Lifting weight
Glass thickness
Self weight
RSY-YDLDJ800
224*740*654(mm)
20-800kg
4-19mm
25kg

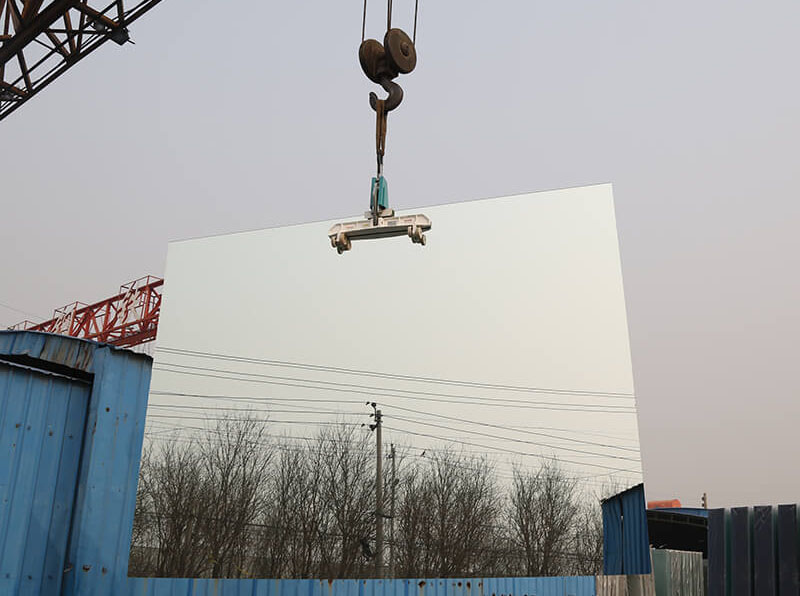

4.Application
5.FAQ
1. What are the load-bearing capacity and the range of glass thickness that this LC glass lifting clamps can handle?
The lifting clamps usually can withstand glass thicknesses ranging from 4 to 19 millimeters, and depending on the model, their working load-bearing capacity ranges from 20 to 1,000 kilograms.
2. How does the glass lifting clamps protect the glass from damage?
The die-cast aluminum frame ensures extremely high strength.
The natural rubber pads are closely bonded to the aluminum material, preventing detachment and ensuring a firm grip on the glass.
Eight polyurethane rollers - four are internal and used to guide the insertion process, and the other four are external and used to ensure no direct contact with the aluminum part during lifting.
3. How light is this glasss lifting clamps?
Although the lifting clamps can withstand a load of up to 1 ton, but it is relatively lightweight - typically about 25 kilograms.
