Inside a Glass Machinery Factory: How Wentrica Moves from Design Review to Factory Acceptance

What glass was used in the factory demonstration? That question can change a machinery purchase. A plant ordering a route for triple-glazed units still has an unanswered job if the trial used only two panes. Put the intended construction on the acceptance list before choosing a model. A glass machinery factory can then demonstrate the work the buyer is actually buying it to do.

The same Wentrica range may serve a workshop buying a single edging station and a plant planning an insulating-glass route. Their orders will need different discussions. With a replacement station, the adjoining conveyors are already there. On a new route, their position is still a choice. Wentrica supplies cutting, edging, washing and insulating-glass equipment; decide which part of that range your project actually calls for.

Glass Machinery Factory Capabilities That Matter to Buyers

A project is a set of interfaces

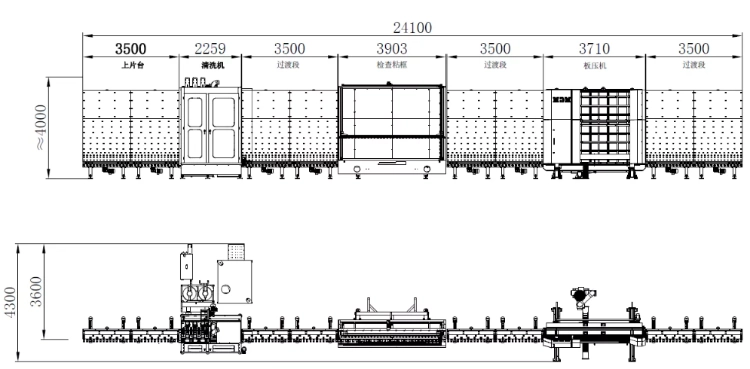

Between the edger and its receiving conveyor, there may be a manual step. Put it on the layout. The issue is not whether manual handling is acceptable; it is whether the production plan allows a person to do it. If purchasing expects an automatic handoff while the offer leaves that movement to the operator, the disagreement is about scope and needs settling before fabrication.

Questions a buyer can ask early

A rare format does not automatically justify a different machine. The regular work may suit the proposed model while the exception stays on an existing route. That is a legitimate scope decision, provided it is written beside the excluded drawing. The supplier then has a defined job to accept rather than an unspoken promise to cover every possible order.

For example, consider the High-Speed CNC Glass Cutting Machine when the purchase includes cutting. Start with the file the operator will receive and the pane it must produce. Loading and accuracy are approval points for that job, with the final range confirmed in the order.

Steelwork and Mechanical Build

Structure before decoration

The structure of Wentrica insulating-glass equipment uses welded steel; relevant internal sections have stainless-steel accessories. A maintenance inspection can follow the wet areas, where cleaning access matters most. Removable panels and room around the working components are worth examining on the selected model. The frame specification must still be agreed for that model and glass range.

Motion must protect the glass

Multi-pane matching is one reason to examine the belt arrangement carefully. Wentrica can configure its insulating-glass line with double belts and a telescopic function. The trial should use the intended construction: two panes, three or four, where supported and agreed. An accepted two-pane run does not establish how an untested three-pane unit will be handled.

Process Modules with a Purpose

Cleaning and inspection

For coated glass, soft brushes alone are not an acceptance result. Wentrica offers customized soft-brush configurations in its insulating-glass washing section, but the sample still needs inspection after drying. The operator will use the agreed inspection point before assembly. A black-panel conveyor with LED illumination is available; its specification and the surface checks belong to the selected order.

A horizontal route may use the High-Efficiency Horizontal Glass Washing Machine. The coating decides which cleaning result is acceptable. Any heating or water-treatment option needs confirmation for the chosen model, and the test should include a dry-surface check at the outfeed.

Controls and energy use

The suction area need not stay the same for every sheet. A Wentrica press can be configured to activate areas according to pane size, and an air-float back panel is available for transport and matching. These choices belong in the configuration discussion. Their presence is not a measured energy-saving percentage: that would require consumption figures under the agreed operating conditions.

The TPE Warm Edge Insulating Glass Line WE-ZC-53/54-7 is one possible destination for the washed panes. Agree which unit constructions the selected configuration will handle and how pressing and gas filling will be accepted. Belt arrangement and supported glass range remain confirmation points for the particular order.

From Workshop Test to Customer Site

Acceptance is a process, not a signature

Factory visits run more usefully when the samples have already been chosen. Take a triple-glazed order: its construction has to be on the test list, with the relevant dimensions and measurement method. A double-glazed unit may be convenient for the demonstration but does not close that purchase question. Keep the original unit identifier when any failed sample is corrected, so acceptance has a traceable result.

Installation and training

Installation, commissioning and training can be included in a Wentrica technician visit on specified projects. The workshop has its own preparation schedule. Connections and lifting equipment need to be ready, and the trainees need time away from other duties. An unfinished air supply, for example, can prevent the planned machine trial. Wentrica and the buyer must agree the visit length and costs for the order.

For an edging station such as the Automatic Glass Edge Grinding Machine, ask the maintenance team to examine the proposed cooling and tooling arrangement. Have the commissioning plan include the edge profile the plant will actually order; motor arrangement and maintenance scope remain model-specific approval points.

What Wentrica Should Show in a Proposal

Request a Glass Machinery Factory Quotation

A glass machinery factory quotation is easier to assess when the request contains real order drawings and the workshop plan. Wentrica will need the intended thickness range and production target. For a replacement station, show the equipment already on either side. The selected model then has a defined job and a defined space, instead of a loosely specified requirement for fast glass processing.

Read the quotation as the price of a defined job. It should be possible to locate the chosen configuration and the agreed commissioning work without having to infer either from a product description. Training and recommended spares need the same clarity. Where a required option is priced separately, include it in the comparison total; otherwise the cheaper figure may simply describe less equipment.

Conclusion

Use the factory visit to close a particular technical question: the multi-pane arrangement, cleaning access or another point that matters to the Wentrica order. Keep the answer with the drawing revision used for the test. The remaining open items are the next engineering discussion, not a footnote to acceptance.

FAQ

Q1: What should a glass machinery buyer review before fabrication?

A drawing for the intended production job gives the discussion a firm starting point. Its dimensions and thickness must fall within the approved configuration. An unconfirmed value stays open, even when the rest of the design is ready.

Q2: Why do structural details matter in glass equipment?

At a transfer, the pane is changing supports. Both the small and large production formats need to be considered. One trial format cannot establish the entire range; an adjustment may be necessary for another.

Q3: What belongs in a factory acceptance test?

For each sample: unit identifier, size, construction, settings and result. A corrected run retains that identifier. The plant can then distinguish a tested correction from a successful run on different glass.

Q4: Which site responsibilities should be written into the order?

The workshop needs the agreed connections and lifting arrangements before the technician visit. Confirm floor suitability and who will attend training. Wentrica and the buyer also need agreement on drainage where applicable, visit duration and travel costs for this order.

Q5: How can a proposal be made easier to compare?

Put the required configuration beside each price. Add separately charged items that the plant needs, including the agreed training and commissioning work. Compare the resulting scope totals, leaving optional extras clearly separate.
