1.Description

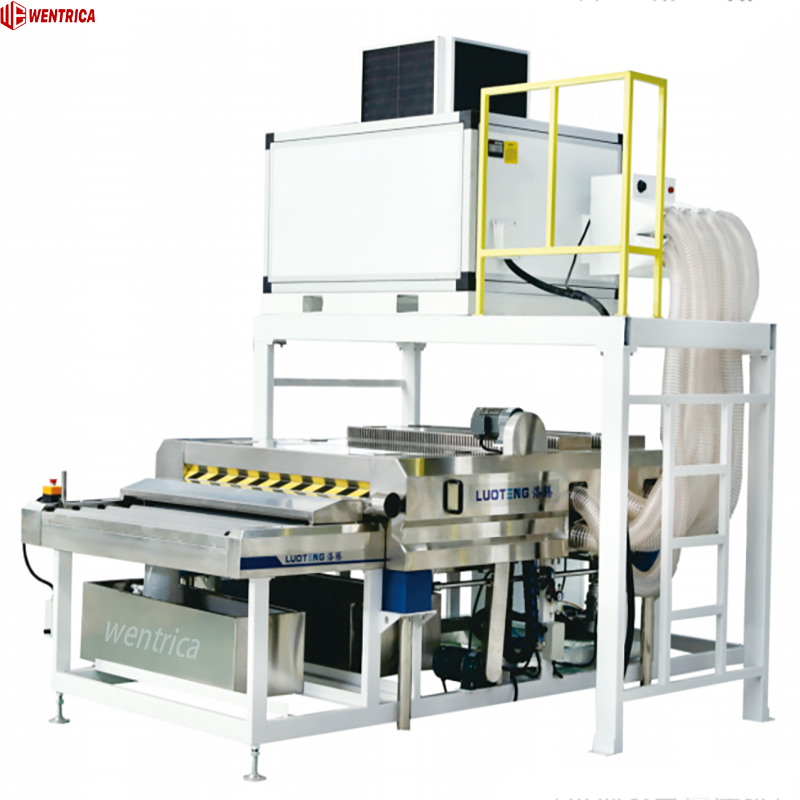

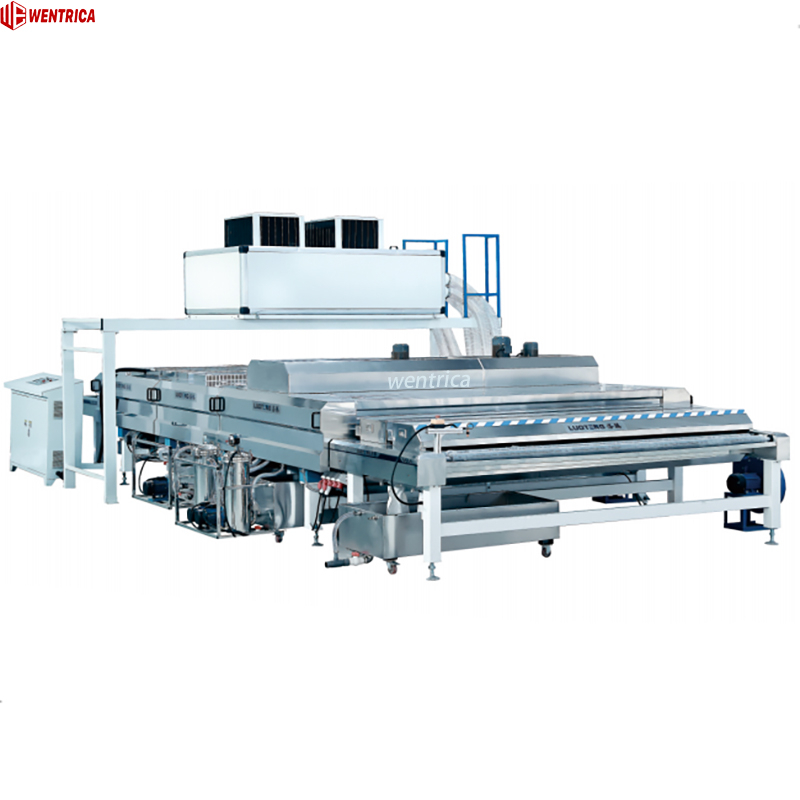

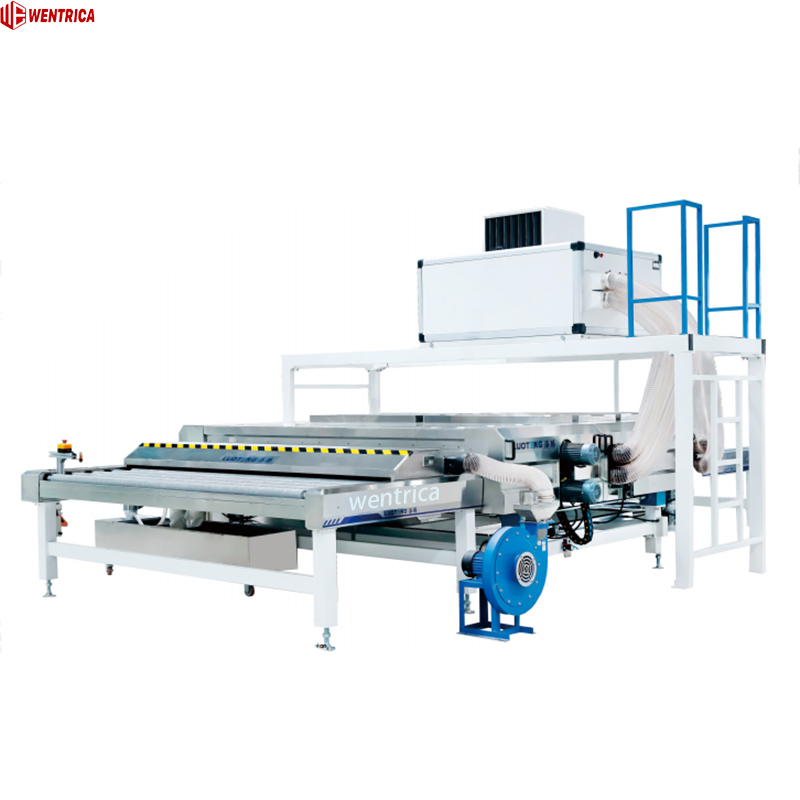

The Horizontal Type Glass Washing Machine is a specialized equipment used in the glass processing industry to clean, wash, and dry flat glass sheets before subsequent processes such as tempering, laminating, coating, or insulating.

It adopts a horizontal conveying structure, where glass is transported flat on rollers through multiple cleaning sections equipped with soft brushes, circulating water systems, and hot air drying units. This ensures the glass surface is dust-free, oil-free, streak-free, and completely dry, ready for high-precision production.

The machine is widely applied in architectural glass, automotive glass, furniture glass, and photovoltaic glass manufacturing due to its efficiency, versatility, and ability to handle both ordinary and Low-E coated glass without surface damage.

2.Structural Features

1. The transmission adopts gear transmission and frequency conversion speed regulation. The brush roller of the cleaning part rotates respectively with two sets of motor independent belt drive, stable rotation and extended service life. The special glass with independent cylinder lifting can achieve high cleaning requirements.




1. Aluminum alloy assembled structure, no scrap concept, permanent use, high efficiency and energy saving up to 70% efficiency.

2. Spray plastic on the outside of the entire sheet metal parts of the frame.

3. The conveying roller (Φ75mm) adopts imported butyl rubber (South Korea) vulcanized all-coated stainless steel shaft structure (it is strictly prohibited to contact acidic liquid).

1. The bearing seat of the whole machine adopts the new waterproof and wear-resistant bearing seat independently developed.

2. The sheet metal in the water contact part of the cleaning part is all stainless steel.

3. Three pairs of brush (Φ160mm) stainless steel shaft configuration (can be washed LOW-E glass ordinary coated glass, does not damage the coating surface.)

1. The cleaning section and the air cadre can be lifted and lowered as a whole 350mm (to facilitate the cleaning of rubber rolls, roller brushes and equipment maintenance)

1. Two pairs of special aluminum alloy wind knife, good wind drying effect with heating system.

1. The air inlet of the fan box is equipped with an air filter, and a variety of noise reduction measures and exhaust devices are adopted in the air knife area to ensure low noise and little interference; The whole fan box is installed in the upper part of the studio with an independent fan holder for easy cleaning and inspection.

2. The cleaning machine water tank can be moved to facilitate the water tank cleaning, water inspection, etc., so that the cleaning effect of the cleaning machine is cleaner.

3. Touch screen intelligent display, easy manual operation; The operation is simple, and the connection is the best configuration to reduce labor.

1. The electric cabinet is equipped with an energy meter to monitor and see the energy consumption in real time.

3.Main configuration and features

4.Technical parameter

5.Matters of Concern

• The products are transported by sea and packaged in simple packaging.

• Delivery time: 50-60 days from the signing of the contract to pay the deposit;

• Acceptance address: debugging and acceptance at your site; Acceptance criteria shall be the technical standards determined in the contract.

• 40% prepayment from the date of signing the contract, 60% of the payment before delivery.

• Service: The whole machine warranty period is one year.

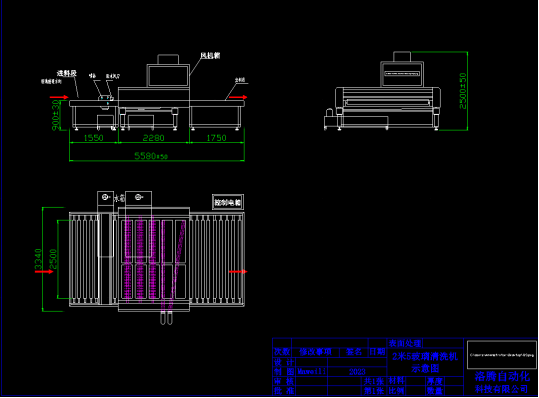

6.Washing Machine Plan
