Low-E glass can improve the thermal performance of a window unit, but its coated surface changes how a fabrication line must handle washing, drying, inspection, and downstream assembly. For a procurement team, the key question is not simply whether a washer is fast. It is whether the machine protects the coating, produces a consistently dry surface, and gives operators enough control to prove the result.
This guide turns those requirements into a practical evaluation method. It separates essential questions from optional features, shows where a supplier proposal needs confirmation, and gives a sample acceptance plan for architectural and insulating-glass production.
The Buying Decision in One Page
What the machine must prove
A suitable line should demonstrate four outcomes on representative Low-E samples: no visible coating damage, a clean and dry surface after the final air stage, stable transport without glass marking, and repeatable results across the specified sizes and thicknesses. Capacity claims matter only after these release conditions are met.
What remains project-specific
Brush material and pressure, water temperature, filtration, drying arrangement, glass range, conveyor speed, and inspection lighting should be confirmed against the actual coating and product mix. Do not treat a catalogue description as a complete acceptance specification.
Start with the Coating, Not the Machine
Map the surfaces that can be damaged
Before requesting quotations, document the coating location, glass thickness, maximum and minimum dimensions, edge condition, protective film policy, and the time between washing and assembly. Include commercial defects such as scratches, haze, water marks, particles, fingerprints, and residual moisture.
Ask for a controlled sample run
The sample list should include the smallest and largest common formats, the most sensitive coating, a long production run, and a planned changeover. Record incoming surface condition and compare it with the washed result. If a value is not agreed, mark it To be confirmed in the technical proposal.
The washer is only one part of the surface-quality chain. A High-Speed CNC Glass Cutting Machine can be reviewed upstream when the project also needs controlled cutting and piece identification.
Evaluate the Washer by Function
Brushes and contact pressure
Low-E glass requires a cleaning method compatible with the coating and inspection standard. Ask which brush materials are available, how pressure is adjusted, how wear is monitored, and how a new brush is qualified. Where a proposal mentions soft-brush options, confirm the final setting during sample testing.
Water and drying management
Water quality can change a finished surface. The quotation should identify filtration, water heating, circulation, cleaning access, backwash or drainage, and the method used to keep the final rinse stable. Drying should be checked for streaks, droplets, edge carryover, and air marks at the selected speed.

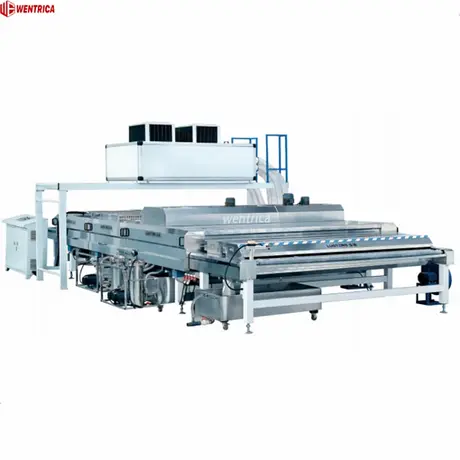

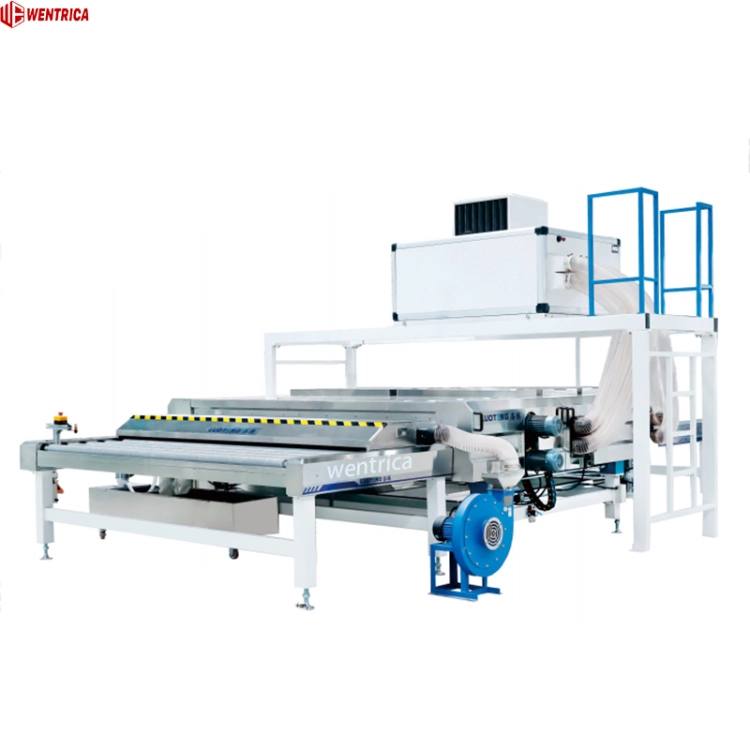

The High-Efficiency Horizontal Glass Washing Machine is a relevant reference when comparing brush selection, drying, water management, and cleaning access. Confirm Low-E compatibility, water treatment, heating, and acceptance criteria for the intended glass.
Transport and inspection visibility
A clean sheet can still be damaged by poor transfer. Review conveyor contact surfaces, spacing, operator sight lines, lighting, and the handoff to spacer application or assembly. Define where a questionable sheet is held and how its identity is preserved.
Compare Configurations with a Procurement Matrix
Evaluation area
Evidence to request
Decision rule
Coating protection
Brush specification, pressure adjustment, sample result
Release only after coating checks pass
Surface cleanliness
Water system, filter plan, final rinse details
Define particle, mark, and haze limits
Drying
Air arrangement, speed range, sample images
No visible droplets or streaks at approved speed
Operator control
Recipes, alarms, inspection lighting
Settings can be changed and recorded
Maintenance
Brush replacement, tank cleaning, spare parts
Maintenance access is practical and safe
Integration
Infeed/outfeed height, labeling method, layout
Confirm the downstream handoff
Connect Washing to the Finished Unit
The downstream risk
A washer should be evaluated in the context of the next process. If the surface moves into spacer application or an insulating-glass line, the time between drying and assembly, the coated-face orientation, and the inspection record become part of the machine decision. The line should make it easy to identify a held sheet before it is sealed into a unit.
For a complete line review, compare the washer handoff with the Automatic Glass Edge Grinding Machine and confirm edge condition, cooling, and transport requirements before assembly.
Where insulating glass is the destination, the TPE Warm Edge Insulating Glass Line WE-ZC-53/54-7 can be considered as a downstream reference. Confirm unit types, gas-filling method, pressing sequence, and production records for the project.
Run a Practical Factory Acceptance Test
Use the same evidence the plant will use
A useful FAT should cover several sizes, thicknesses, coating positions, line speeds, and a planned changeover. Inspect the surface before and after washing, verify dryness at the outfeed, record settings, and check that an operator can repeat the result after normal cleaning or brush replacement.
Put commercial questions beside technical questions
Ask for installation scope, commissioning, training, utilities, spare parts, warranty, service response, layout drawings, and responsibilities for water, drainage, ventilation, and floor preparation. Request a written list of standard, configurable, and To be confirmed items.
Where Wentrica Can Support the Project
Wentrica can be considered when a fabricator wants to evaluate washing as part of a connected glass-processing route. The proposal should be built around the coating mix, sample list, inspection method, layout, and downstream process. That makes the final selection easier to compare and easier to accept.
Send representative drawings, glass and coating details, production rhythm, water and power conditions, available floor space, and acceptance checks. Ask for a sample-run plan before treating any configuration as final.
Conclusion
The right Low-E glass washing machine is defined by controlled surface protection, stable drying, visible inspection, maintainable water systems, and a testable handoff to the next station. Turning those outcomes into sample criteria lets a procurement team compare suppliers on evidence instead of speed claims alone.
FAQ
Why is Low-E glass more demanding to wash?
Its coated surface can be more sensitive to contact, pressure, residue, and handling marks. Final settings should be confirmed with actual samples.
What should be checked during a washer sample test?
Check coating appearance, particles, water marks, haze, residual moisture, transport marks, and repeatability across sizes and speeds.
Which water-system details belong in the quotation?
Ask about filtration, heating, circulation, cleaning access, drainage, final-rinse control, maintenance, and utility limits.
How should a washer connect to insulating-glass production?
Confirm outfeed height, orientation, inspection timing, sheet identification, time to assembly, and the hold process before sealing.
What makes a factory acceptance test useful?
Use real product samples, record settings, include changeovers and normal cleaning, and define pass or fail criteria before testing.
