The cutting head of this glass cutting machine can rotate 360 degrees and supports various shapes of cutting.
With the PLC control system, it has a series of functions such as screen control, drawing import, preset parameters, laser positioning and one-click cutting, achieving the high intelligence and full automation of the glass cutting machine equipment.
The PLC control system is imported from Siemens of Germany, the cutting wheels and servo motors are imported from the brand ABB of Japan. High-performance components ensure the excellent performance and long service life of the glass cutting machine.
The dual safety protection devices of the tool head collision prevention system and the machine emergency braking system provide a high safety coefficient for the glass cutting machine.
The gear rack and pinion transmission and laser automatic positioning ensure a cutting error of less than 0.05 millimeters.

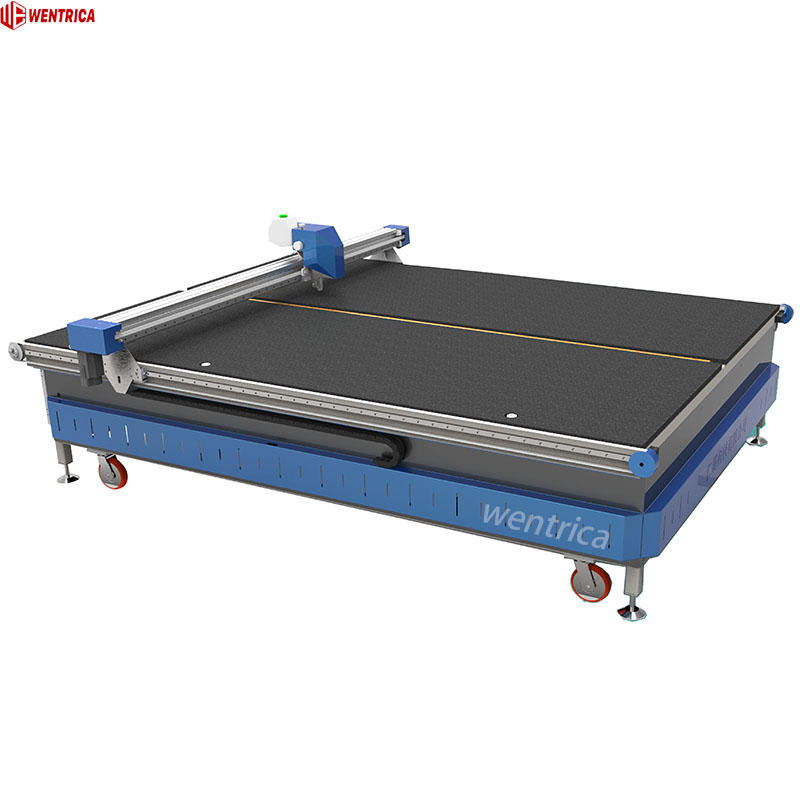

Industrial casters are installed at the bottom, enabling the equipment to move flexibly.

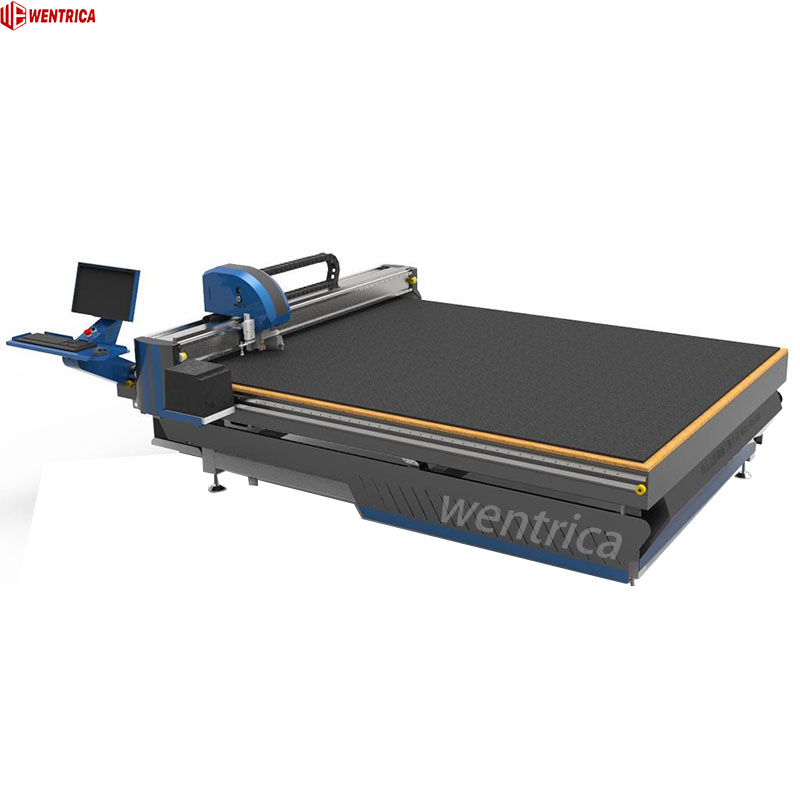

This glass cutting machine is composed of components such as PLC control system, cutting head, transmission system, and air-floating platform.
Its working principle is that after a single-button start, the equipment automatically completes the entire process of laser positioning and laser cutting. It supports various shapes of cutting on various types of glass (float glass, tempered glass, insulating glass, low-emissivity glass, etc.), such as straight lines and irregular shapes.
2.Structure
Smart typography
Input the glass size, the size of the glass to being cut and the cutting shape into the control panel, leaving the left work to the glass cutting machine, highly improved the work efficiency and time saving.
Automatic cutting
The cutter head is made of German Bolero head and can be rotated freely in 360 degrees to cut any shape. Computer control, automatic cutting according to optimized layout.
Air floating platform
The machine has an air floating system, and more than one hundred air holes are evenly arranged on the cutting table to ensure the stability of the airflow. It is very easy to push and pull the glass.
3.Parameters
Technical Parameters
TYJTQG-2420
TYJTQG-3624
Dimensions
3600*2900*1400mm
4700*3600*1400mm
Height of the Working Table
820mm
820mm
Glass Max Processing Size
2440*2000
3600*2400
Cutting Thickness
3-19mm (air pressure control)
3-19mm (air pressure control)
Cutting Speed
0-180m/min
0-180m/min
Voltage & air pressure
380V/50HZ, 0.6MPA
380V/50HZ, 0.6MPA
Installed Power
5 KW
6 KW
Net Weight
1500KG
1700KG
4.FAQ
1. What types of glass can be cut with a CNC Glass Cutting Machine? It can cut tempered glass, float glass, laminated glass, coated glass, and other flat glass types used in architecture, furniture, and automotive industries.
2. How thick of glass can this glass cutting machine process? The CNC glass cutting machines handle glass thickness from 2mm up to 25mm or more.
3. Can CNC Glass Cutting Machines perform custom shapes or patterns? Yes, with CAD/CAM software integration, the machines can cut custom shapes, logos, holes, and intricate patterns with high precision.
