TPE Warm Edge Insulating Glass Line(WE-ZC-53/54-7)


Availability:

Quantity:



Inquire Add to Basket

Glass Washer Quality:
The glass washer is equipped with sand and carbon filters along with soft coat low-e brushes. This combination ensures that the glass is not only cleaned thoroughly but also remains scratch-free.
Air knives are used to ensure that the glass is completely dry after washing.
Inspection and Spacer Placement Conveyor Panel:
The conveyor panel has a special treatment, which provides convenience for glass inspection.
TPE Applicator:
It offers precision application at high speeds, maximizing output.
The application head allows for inverse corners and can handle variable shapes.
Pressing Quality:
Ensures excellent sealant adhesion and presses the glass to the overall unit thickness with tight tolerances.
There is an optional gas filling feature with an initial percentage of 90%.
Additional Option:
Automatic glass placement at infeed and outfeed further reduces labor costs.
Line Choices:
The line allows for choices between IG (insulated glass) with TEP warm edge spacer and traditional aluminum spacer.

Model:
WE-ZC-53
Brand:
wentrica

Insulating Glass Line IG line double glazing triple glazing TPE insulating glass TPSS insulating glass automatic glass Insulating Glass machine insulated glass spacers lisec ig line

Product Description

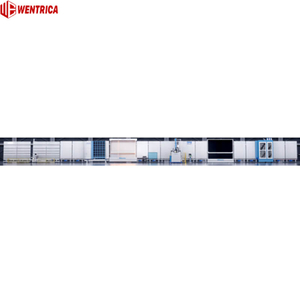

Equipment layout drawing:

Insulating glass production line configuration and technical parameters:

No.	Name	Brand	Model	Origin
1	Motion Controller PLC	Inovance		China
2	Servo Motor	Inovance		China
3	Planetary Gearbox	Xinbao	Japan
4	Conveyor Motor	Xinling	China
5	Worm Gear Reducer	Jiaoxing	China
6	Sensor	Omron		Japan
7	Cylinder	AIRTAC		Taiwan
8	Linear Guide	AIRTAC		Taiwan
9	Low Voltage Electrical Appliance	LS (LG Industrial)		Korea
10	Water Pump	Lingxiao	China
11	Power Supply	MEAN WELL	24V	Taiwan
12	Ball Screw	Hiwin		Taiwan
13	Timing Belt	SIT		Italy
14	Chain	Yongli Baihe		China
15	Bearings for Washer/Press Machine	NSK, EZO (Imported Bearings)		Germany

Technical parameters:

No.	Main Equipment Parameter Item	Parameter
1	Minimum Processing Size	180mm x 360mm
2	Maximum Processing Size	2700mm x 3500mm
3	Conveyor Wheel Height from Ground	500-550 mm
4	Glass Washing Speed	0-10 m/min
5	Glass Washing Thickness	3–15 mm
6	Laminated Glass Thickness	12–75 mm
7	Laminated Glass Accuracy	±0.5 mm (tested with 1m x 1m single-chamber glass)
8	Glass Conveyor Tilt Angle	6–9°
9	Maximum Single Glass Load Capacity	350kg
10	Transition Section Conveyor Speed	0-50 m/min
11	Equipment Dimensions	24.1m × 4.3m × 4m (L × W × H)
12	Total Power	AC380V 50Hz ≈65kW
