How to Reduce Rework in Glass Processing: A B2B Control Plan from Cutting to Insulating Glass

Rework in glass processing rarely comes from one dramatic failure. More often, a wrong orientation, an unrecorded edge defect, a dirty surface, or a mismatched spacer is discovered after the piece has already consumed time at several stations. The result is lost capacity, uncertain delivery dates, and a difficult question: can the unit be corrected, or must the glass be scrapped?

A control plan answers that question early. It assigns a check to each handoff, defines how a nonconforming piece is isolated, and keeps the production record attached as the job moves from cutting through insulating-glass assembly. This approach is useful for a new line, an expansion, or a plant that needs more consistent quality without adding a second inspection department.

Build the Quality Logic Before Buying Equipment

Define Rework, Scrap, and Hold

Use one definition across production, quality, and purchasing. Rework is a correction that returns a piece to a prior or additional operation; scrap is material that cannot be economically released. A piece waiting for inspection is not yet rework. This distinction matters because a high rework count may reflect better detection rather than worse processing, while hidden rework can appear as late shipment or unexplained material loss.

Start a simple defect register with the job number, glass identity, station, defect code, discovery time, disposition, and responsible process owner. Useful defect codes include dimension, orientation, edge chip, coating mark, washer residue, spacer position, seal continuity, and assembly mismatch. Review the register weekly by process stage rather than by operator name.

Control the First Handoff: Cutting

Keep the Job Identity Attached

The first control point is not the saw or table; it is the release of the correct job. Each sheet or cut piece should carry an identifier that survives stacking, edging, washing, and assembly. The identifier can be a label, barcode, traveler, or controlled digital record, but it must connect the physical piece to the drawing, glass type, thickness, orientation, and next operation.

A CNC route should be evaluated for how it receives revised files, handles remnants, verifies orientation, and reports completed pieces. See the

High-Speed CNC Glass Cutting Machine for a product reference, then confirm nesting, loading, software integration, accuracy, and traceability requirements in the technical specification.

At the cutting exit, check length, width, diagonal difference, edge condition, and the position of any coating or low-emissivity face. Do not allow a doubtful piece to enter edging simply because the next station is available. Mark it as hold and route it to a defined decision point.

Make Edge Quality Visible

Inspect the Edge Before It Disappears into the Unit

Edge defects are often difficult to see after a unit is assembled, yet they can affect handling safety, seal contact, and later breakage. Define the edge inspection under consistent lighting and specify the acceptable chip size, arris condition, straightness, and profile for each product family. The inspection record should identify the wheel set or recipe used when a defect repeats.

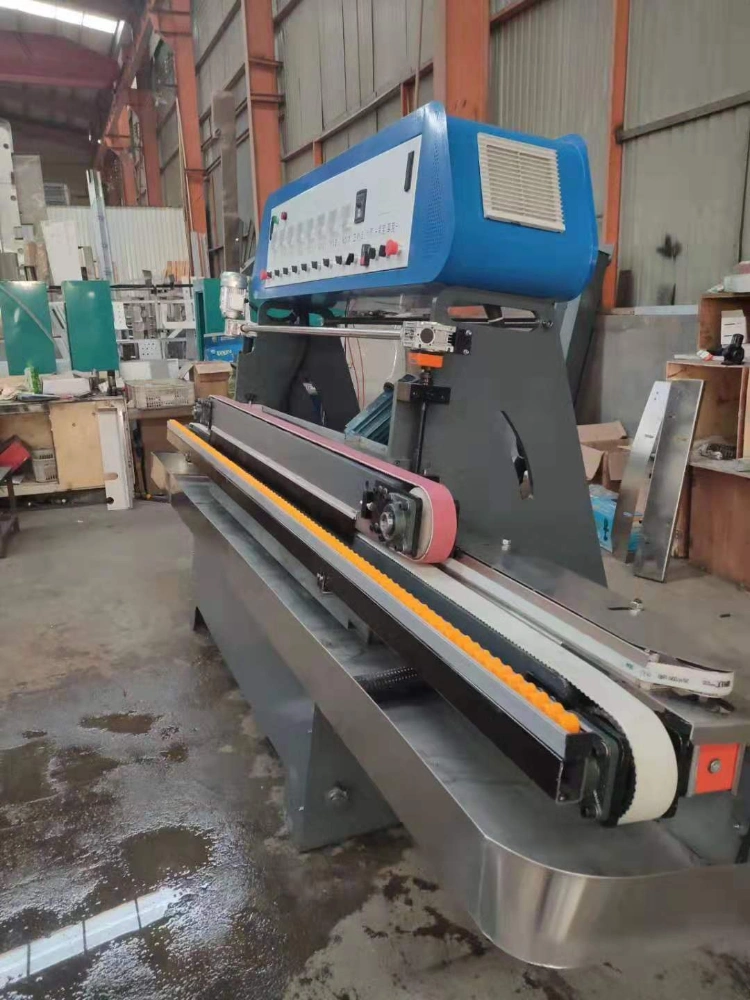

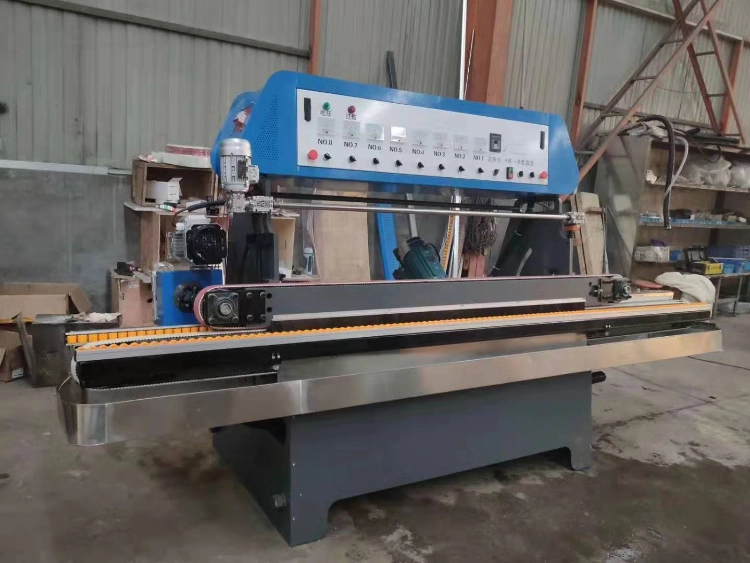

A PLC-controlled line such as the

Automatic Glass Edge Grinding Machine can be considered for repeatable straight-edge work. Treat motor count, edge type, thickness range, cooling arrangement, tooling, and changeover method as project fields to confirm rather than automatic promises.

Keep an edge-failure sample board near the station. Operators can compare a fresh chip, a coolant mark, a wheel line, and an acceptable arris without relying on memory. When the same defect appears on several jobs, stop and check wheel wear, clamping pressure, lubrication, cooling flow, and alignment before increasing inspection frequency.

Turn Washing into a Release Gate

Separate Clean-Surface Release from Rewash

A washer can hide a process problem when the surface is inspected only after the insulating-glass unit is closed. Place the release check after drying, before spacer application or assembly. Check for particles, water marks, scratches, coating damage, and residual moisture. Record the washer recipe and water condition when a surface defect is found so that quality staff can separate machine causes from incoming-glass causes.

The

High-Efficiency Horizontal Glass Washing Machine is a useful reference when comparing brush selection, drying, water management, access for cleaning, and inspection layout. Low-E protection, brush specification, water heating, filtration, and acceptance criteria should be confirmed against the actual coating and glass mix.

Create a clear bypass rule. If a washer check fails, the piece should move to a marked rewash or hold lane rather than back into the main queue. That small buffer prevents a single dirty sheet from interrupting every order behind it.

Protect the Insulating-Glass Handoff

Verify the Unit Before Pressing and Sealing

Insulating-glass rework is expensive because a mismatch may be discovered after spacer application, pressing, or sealing. Before assembly, verify pane pair, cavity width, spacer type, corner condition, orientation, and any step-unit requirement. At the assembly point, confirm that the spacer frame, glass edges, and production record describe the same unit.

A warm-edge insulating-glass route such as the

TPE Warm Edge Insulating Glass Line WE-ZC-53/54-7 can be reviewed for a configuration that may include double, triple, or quadruple units and three-side step units. Confirm the supported size range, gas-filling method, pressing sequence, belt arrangement, and final acceptance tests for the project.

At the press and seal stages, use checks that can be completed before the unit leaves the line: cavity alignment, corner position, seal continuity, gas-fill record where applicable, and visible contamination. A unit that fails one check should keep its identifier and be placed in a quarantine rack with a documented disposition, not returned anonymously to the assembly queue.

When a Defect Is Found

Correct the Piece, Then Correct the Process

Correction restores one piece; root-cause action prevents the next ten failures. Every rework ticket should therefore have two fields: immediate disposition and preventive action. Immediate disposition may be re-edge, rewash, replace spacer, reopen for inspection, or scrap. Preventive action may involve a recipe lock, a maintenance task, an operator prompt, a fixture change, or a supplier check.

Set a time limit for quarantine. If a piece remains unresolved beyond the agreed window, escalate it to production and quality leadership. This prevents “temporary” holds from becoming hidden inventory and keeps delivery planning honest.

Translate the Control Plan into an RFQ

Fields the Supplier Should Confirm

Include these fields in the RFQ and acceptance plan. Ask the supplier to identify what is standard, what can be configured, what requires customer utilities, and what must be confirmed during a sample run. Also request training scope, maintenance access, spare parts, drawings, installation responsibilities, and the method used to transfer production data between stations.

Where Wentrica Fits

Request a Proposal Around Evidence

Wentrica can be considered when a plant wants to connect cutting, edge finishing, washing, and insulating-glass operations into a traceable route. The useful buying question is not simply which machine is fastest. It is which configuration makes the required checks visible, keeps held pieces identifiable, and gives operators practical access to cleaning, cooling, tooling, and maintenance points.

When requesting a technical proposal, send representative drawings, glass types and coatings, thicknesses, smallest and largest formats, expected batch sizes, defect history, utilities, layout limits, and the proposed release checks. Ask for a sample-run plan that demonstrates both good pieces and a controlled response to a failed check.

Conclusion

Lower rework begins with earlier decisions. Lock identity at cutting, inspect edges before washing, make surface quality a release gate, verify the insulating-glass handoff, and quarantine doubtful units with a clear disposition. Once those controls are written into the RFQ and acceptance plan, equipment selection becomes easier to compare and continuous improvement has reliable data to work with.

FAQ

Q1: What is the most important control for reducing glass processing rework?

Keep the job identity attached to every piece and require a release check at each handoff. Traceability lets the team isolate one defect without losing the status of the rest of the order.

Q2: When should a defective glass piece be quarantined?

Quarantine it as soon as a required dimension, edge, surface, orientation, or assembly condition is uncertain. A marked hold lane is safer than allowing a doubtful piece to consume time at the next station.

Q3: How can a washer reduce rather than create rework?

Use the washer exit as a release gate, record water and brush conditions, and provide a rewash or hold lane. This keeps surface defects from being discovered only after spacer application or sealing.

Q4: What should a supplier confirm for an insulating-glass line?

Confirm glass range, cavity and unit types, spacer options, gas-filling method, pressing sequence, belt arrangement, inspection points, utilities, training, and acceptance tests against representative samples.

Q5: Which data should be reviewed each week?

Review rework rate by process stage, defect code, product family, machine recipe, and disposition time. The trend should show whether a correction is reducing repeat failures rather than only moving them downstream.
