How to Plan a Glass Processing Line for Mixed-Order Production

Mixed-order production is difficult when every job changes the required glass size, edge finish, washing method, or assembly sequence. A line that performs well on one repeat product may still create queues, extra handling, and quality variation when orders arrive in short runs. The planning challenge is to connect each process without removing the flexibility that makes a fabricator competitive.

This guide presents a practical way to design a glass processing line around order variety, changeovers, inspection points, and future capacity. It is intended for owners, production managers, and purchasing teams preparing a new plant, an expansion, or a staged automation project.

Map Orders Before Selecting Machines

Begin with an order map rather than a machine list. Group the last 6–12 months of orders by glass type, maximum and minimum dimensions, thickness, edge treatment, drilling or shaping requirements, coating, and final assembly. Record the quantity of changeovers, the average batch size, and the jobs that frequently return for correction.

This map reveals whether the line needs a high-throughput core, flexible work cells, or a combination. It also identifies where a single large machine could become a bottleneck. Keep uncertain future volumes separate from confirmed demand; capacity assumptions should be marked To be confirmed until the order forecast is approved.

Separate the Line into Product Families

Mixed orders become easier to control when products are assigned to compatible process families. Flat rectangular pieces may move through cutting, edge finishing, washing, and assembly. Special-shaped pieces may need a different positioning or edge-finishing route. Insulating glass adds spacer application, inspection, pressing, and sealing requirements that should be planned as a connected downstream family.

Use family-based routing to reduce unnecessary changeovers. A purchasing brief can define one primary route and one flexible route, then state which products may bypass a station. This prevents a new line from being designed around an average order that does not actually exist.

Design the Cutting Stage for Order Release

Cutting is often the first point where mixed orders compete for time. Define how jobs are released, how remnant sheets are handled, and how the operator confirms the work order before cutting. Nesting, labeling, and unloading should be considered together because a fast cut does not improve output if pieces are difficult to identify or stage.

For a CNC route, review the

High-Speed CNC Glass Cutting Machine as a reference point for automated cutting, then confirm the supported glass range, loading method, software interface, accuracy, and work-order connection in the project specification.

Match Edge Finishing to the Mix, Not the Average

Edge finishing should be selected from the actual product mix. Straight edges, bevels, rounded profiles, and special shapes can have different tooling, clamping, cooling, and inspection needs. If a line is expected to serve both repeat rectangular work and smaller special-shaped batches, define how the flexible route is scheduled and where finished pieces wait for the next process.

The

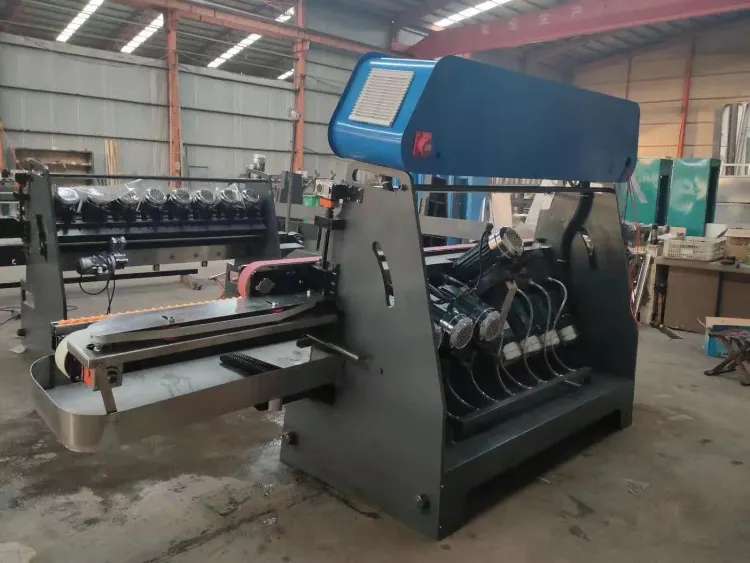

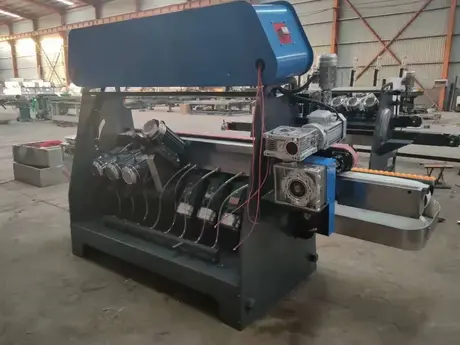

Automatic Glass Edge Grinding Machine can be used as a product reference for a PLC-controlled edging route. Confirm the final motor arrangement, edge type, glass thickness, cooling, and tooling before treating it as a standard configuration.

Put Washing Where Quality Can Be Checked

Washing should not be treated as a hidden utility step. In mixed-order production, coating, thickness, and surface condition can change between jobs. Define the inspection point after washing, the response to visible marks, and whether a piece can be returned without interrupting the entire line.

For large flat sheets, review the

High-Efficiency Horizontal Glass Washing Machine when comparing brush selection, drying, water management, access for cleaning, and the expected inspection method. Low-E compatibility, brush details, water quality, and acceptance criteria must be confirmed for the project rather than assumed.

Plan the Insulating-Glass Route as a Separate Control Loop

An insulating-glass route has different control needs from single-sheet processing. It must coordinate spacer application, assembly, gas filling, pressing, sealing, and inspection while preserving the identity of each order. Define where the unit receives its production record, how different spacer types are selected, and how a held unit is returned to the correct queue.

The TPE Warm Edge Insulating Glass Line WE-ZC-53/54-7 provides a reference for a route that can be configured for double, triple, and quadruple units and three-side step units. Confirm the supported glass range, gas-filling method, belt arrangement, and acceptance test for the actual order mix.

Build Changeovers into the Layout

A mixed-order line needs deliberate changeover zones. Provide space for incoming sheets, work-in-process, rejected pieces, tooling, and completed batches without blocking the main aisle. Keep the loading direction, operator sight lines, and maintenance access visible on the layout drawing.

Write the Acceptance Plan Before the Purchase Order

A flexible line should be accepted against representative orders, not only an empty-machine demonstration. Select samples that cover the smallest and largest formats, the most frequent edge type, the most sensitive coating, and the longest or most complex assembly route. Define what will be measured, who records it, and what happens when a sample does not meet the agreed result.

The purchase package should also identify installation scope, commissioning, operator training, drawings, utility responsibilities, spare parts, warranty, service response, and any travel or accommodation obligations. If a value is not yet agreed, write To be confirmed rather than treating a sales estimate as a contractual specification.

Use a Staged Automation Roadmap

A plant does not need to automate every operation on the first day. A staged roadmap can start with the bottleneck that limits order release, then add washing, edge finishing, spacer application, or sealing as the order mix becomes more stable. The roadmap should preserve consistent identifiers and inspection data so that later equipment can join the same production logic.

Wentrica offers equipment across cutting, edging, washing, and insulating-glass processes. When requesting a quotation, send the order map, layout constraints, product families, sample list, utilities, and expansion plan so the proposed configuration can be matched to the way the factory will actually operate.

Conclusion

Planning a glass processing line for mixed orders is an exercise in flow control. Start with real order families, separate incompatible routes, protect inspection points, design changeover space, and define acceptance around representative products. A staged configuration can then add capacity without forcing every order through the same machine path.

FAQ

What is the first step when planning a glass processing line for mixed orders?

Start with an order map covering dimensions, glass types, edge treatments, batch sizes, changeovers, and recurring quality issues.

Should all glass products pass through the same processing route?

No. Compatible product families can share a core route, while special shapes or insulating-glass units may need flexible or separate downstream routes.

How can a factory reduce changeover losses?

Group compatible orders, define changeover zones, standardize recipes and tooling, and provide buffers that prevent one adjustment from stopping the whole line.

What should be included in a line acceptance test?

Use representative samples covering size, thickness, coating, edge type, and assembly complexity, then record dimensional, surface, sealing, and process results against agreed criteria.

Can automation be added in stages?

Yes. A staged roadmap can begin with the bottleneck and reserve layout, utility, control, and identification provisions for later stations.
