Low-E glass is the backbone of modern energy-efficient architecture, but its delicate metallic coating is a nightmare for handlers. Even a tiny scratch on that silver layer can lead to oxidation and total rejection of a high-value IGU. To protect your bottom line, you need equipment that treats the glass surface with extreme care. Wentrica is a professional manufacturer specializing in glass handling solutions, focusing on safety and efficiency through their advanced factory production. They provide reliable, CE-certified machinery tailored for the global B2B glass trade.

Low-E Coating Vulnerability in Glass Processing

The production line is where most damage happens. Unlike standard float glass, Low-E glass features microscopic layers of silver and metal oxides. These layers are susceptible to both physical abrasion and chemical reactions. If your handling process isn't perfect, you end up with expensive scrap instead of a finished product.

Sensitive Nature of Soft Coating Layers

Soft-coat Low-E is particularly fragile. These coatings are literally just atoms thick. Touching them with bare hands or rough industrial materials causes immediate, irreversible damage. The industry sees a lot of failures because people underestimate how easily the vacuum process can disturb these thin films.

Financial Impact of Surface Scratches

A single scratched pane in a double-glazing unit means the whole unit is garbage. You lose the cost of the glass, the gas filling, the spacer bars, and the labor. In large-scale facade projects, these losses stack up fast. High-end clients won't accept anything less than optical perfection.

Common Risks During Vacuum Lifting Operations

Traditional lifters use hard rubber pads. When the vacuum pulls, the pressure concentrates on the edges of the pads. This uneven force can "pinch" or "bruise" the coating. Most defects found during final inspection actually originate from the loading or unloading stage where the suction was applied.

Why Common Suction Cups Leave Permanent Marks on Glass

Standard vacuum components are designed for heavy lifting, not delicate surfaces. They prioritize grip strength over surface integrity. Using a generic lifter on a Low-E surface is like wearing work boots on a polished hardwood floor; it might get the job done, but it leaves a mess behind.

Chemical Migration from Standard Rubber Pads

Inexpensive black rubber pads often contain oils and carbon black. Under vacuum pressure, these chemicals can migrate onto the glass. This leaves a "ghost mark" that only shows up later or prevents proper adhesion of secondary sealants. It’s a common headache in IGU production.

Mechanical Friction and Pressure Distribution Issues

Sliding a suction cup even a millimeter during positioning creates friction. This friction generates heat and physical stress that strips the Low-E layer right off the glass. Without specialized "soft-touch" technology, the mechanical bite of the vacuum is simply too aggressive for sensitive coatings.

Environmental Contaminants Trapped Under Vacuum Seals

Dust and glass fines love to hide on suction pads. When you apply vacuum, these tiny particles are pressed into the coating with several tons of force per square inch. You need a system that keeps the contact area clean or uses materials that can absorb these particles without scratching the pane.

Technical Principles of Markless Vacuum Lifting Technology

True markless lifting isn't about luck. It’s about material science and engineering. To handle Low-E glass without marks, you have to change how the suction cup interacts with the glass at a molecular level. This is where professional gear makes the biggest difference.

High-Performance Non-Marking Polymer Materials

Switching to high-grade silicone or specialized white rubber helps a lot. These materials don't bleed chemicals. They are softer and more flexible, conforming to the glass surface without the need for excessive "crushing" force. This keeps the silver layer intact.

Specialized Pad Geometries for Pressure Equalization

Better pads have a flatter profile and internal ribs. This design spreads the vacuum force across the entire surface of the pad. By avoiding high-pressure points at the rim, you reduce the risk of structural "dimples" or coating displacement on the glass.

Clean-Surface Contact Protocols for Sensitive Glass

Professional setups often include protective covers or specific cleaning cycles for the pads. Keeping the lifter in top shape is just as important as the lifter itself. If the equipment is dirty, the most expensive pad in the world will still leave a scratch.

Strategic Solutions for Damage-Free Low-E Glass Handling

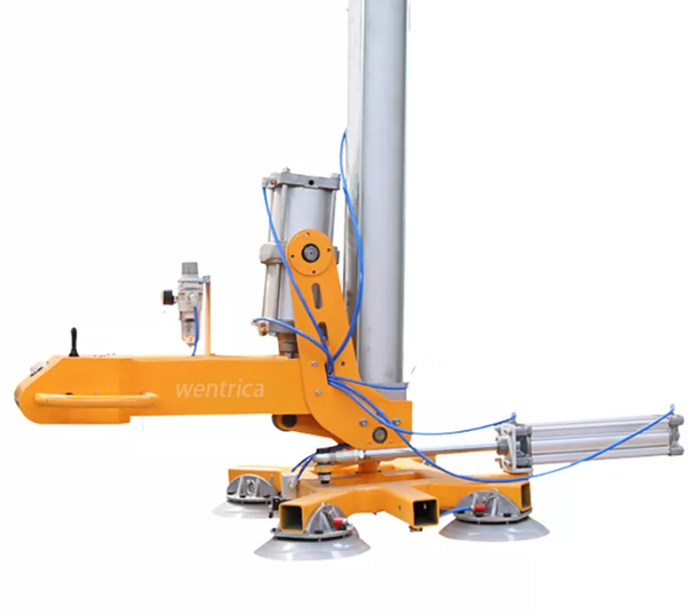

The right strategy involves picking tools that offer control. You need to be able to move the glass smoothly and park it precisely. For heavy facade glass, using an Air-Powered Vacuum Glass Lifter with 500kg Capacity allows for stable, controlled movement that prevents accidental dragging.

Integration of Air-Powered Lifting Precision

Pneumatic systems provide a much smoother engagement than manual pumps. The build-up of vacuum is consistent. This gradual suction prevents the "shock" to the coating that often occurs with lower-quality equipment. It’s about finesse, not just raw power.

Implementation of Soft-Touch Engagement Systems

Some systems use spring-loaded buffers on the suction cups. When the lifter touches the glass, these springs absorb the impact. This ensures that the pads sit perfectly flat before the vacuum starts, which is a huge factor in preventing edge marks on the coating.

Regular Maintenance Cycles for Suction Components

You have to check your pads daily. Rubber hardens over time. A pad that worked fine six months ago might be too stiff today. Replacing pads before they become brittle is a small price to pay compared to the cost of a ruined Low-E tempered pane.

Comparison of Manual vs Automated Vacuum Lifting Results

In a busy shop, manual handling is a recipe for disaster. People get tired, they slip, and they drop things. Automation or semi-automated lifters take the human error out of the equation. This is especially true for large architectural glass.

Labor Efficiency and Safety Metrics

A good lifter allows one or two people to do the work of four. But it’s not just about speed. It’s about consistency. A machine doesn't get distracted and accidentally drag a suction cup across a coated surface. It follows the same path every time.

Scrap Rate Reduction in High-End Projects

The math is simple. If a specialized lifter reduces your scrap rate by even 2%, it pays for itself in a few months. For Low-E glass, where the material cost is double or triple that of clear glass, the ROI is even faster.

Long-Term ROI for Specialized Glass Fabricators

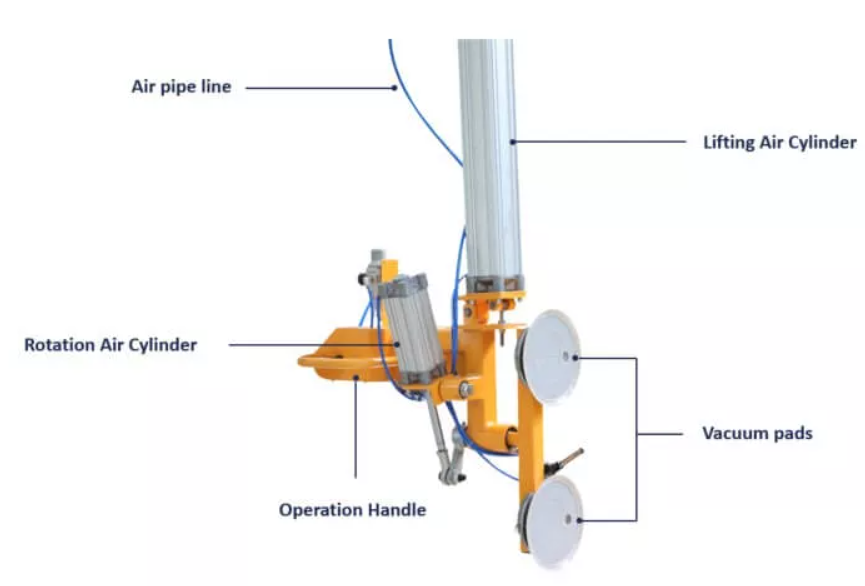

Investing in quality equipment builds your reputation. Clients want to know their glass is handled with the best tools. Using a Pneumatic Glass Vacuum Lifter with 360° Rotation shows a commitment to precision that manual handling simply can't match.

Exceptional Performance of Wentrica Glass Vacuum Lifters

Wentrica designs their lifters for the real world. They know that glass factories are dusty, busy, and demand high performance. Their equipment isn't just about moving weight; it's about protecting the product.

Advanced 360° Rotation for Flexible Facade Handling

Moving large panes into a vertical frame or a horizontal cutting table requires flexibility. The 360° rotation feature on Wentrica lifters ensures you never have to wrestle with the glass. Smooth rotation means no jerky movements that could cause the pads to skip and scratch the coating.

CE Certified Engineering for 500kg Load Stability

Safety is non-negotiable. With a 500kg capacity and full CE certification, these lifters provide the stability needed for heavy tempered or laminated Low-E units. The vacuum system includes safety tanks and warning buzzers, so you never lose a load due to power failure.

Custom Suction Pad Solutions for Coating Protection

Every glass type is different. Wentrica offers different pad materials and configurations to suit specific Low-E types. Whether you are dealing with hard-coat or the most sensitive triple-silver soft coat, there is a configuration that minimizes surface contact stress.

Essential Features for Selecting the Right Glass Lifter

Don't just buy the cheapest unit. Look at the specs. You need to know how the machine handles air pressure, how many pads it has, and what safety features are built in. A little research now saves a lot of money on replacement glass later.

Critical Technical Specification Checklist

Check the vacuum pump capacity and the number of independent vacuum circuits. Dual circuits are better for safety. Look at the frame material—square steel tubing (like 60603mm) provides the rigidity needed to prevent the glass from flexing while being lifted.

Necessary Safety Certifications for Global Markets

If you are importing equipment, CE certification is the gold standard. It ensures the lifter meets strict structural and electrical safety rules. It also usually means the manufacturer has a higher standard of quality control in their factory.

Diverse Configuration Options for Different Glass Sizes

Your lifter should be adjustable. Extension arms and movable suction pads allow you to handle small windows and massive facade sections with the same machine. This versatility is key for a growing glass business. For more details on these setups, visit the Wentrica contact page to discuss your specific production needs.

FAQ

Q1: Can I use standard suction cups for Soft-Coat Low-E glass?

A: It is not recommended. Standard cups often leave marks or scratches that are visible after the glass is installed. You should use markless pads made of high-quality polymers.

Q2: How often should I replace the suction pads on my lifter?

A: Depending on use, pads should be inspected monthly and usually replaced every 6 to 12 months. If the rubber feels hard or shows cracks, replace it immediately to avoid glass damage or safety risks.

Q3: What is the benefit of a pneumatic lifter over a manual one?

A: Pneumatic lifters offer consistent vacuum pressure and smoother movement. They reduce physical strain on workers and significantly lower the chance of accidental damage to sensitive coatings.

Q4: Does the 500kg capacity lifter work for tempered glass?

A: Yes, it is ideal for tempered glass, IGU units, and heavy facade glass. The vacuum pads are designed to provide a secure grip on both flat and slightly textured tempered surfaces.

Q5: Will the vacuum lifter work if the power goes out?

A: Professional lifters, like those from Wentrica, include a vacuum storage tank. This provides enough reserve suction to keep the glass held safely for several minutes, allowing you to lower it to the ground.
