CNC Four-Edge Glass Grinding Machine Vs Traditional Edging Lines Which Is Better

Glass edging is not only a finishing step. It affects safety, strength, dimensional accuracy, and the way the finished glass performs in later processes such as tempering, laminating, insulating glass assembly, and architectural installation. A cut glass edge is sharp. It may also carry tiny cracks from cutting. Good edge grinding removes sharp points, reduces local stress, and gives the glass a cleaner, more stable size.

For many glass factories, the old question is still there: should you keep using traditional edging lines, or move to a CNC four-edge glass grinding machine? The answer depends on your glass type, order size, labor cost, accuracy needs, and how much space you have on the shop floor. Traditional lines still have their place. But when you handle rectangular building glass in steady batches, four-edge CNC grinding can change the whole rhythm of production.

What Is the Real Difference Between CNC Four-Edge Grinding and Traditional Edging Lines?

Traditional edging lines often rely on separate machines or repeated passes. A straight-line edging machine may process one edge. A double edging machine can grind two opposite sides at the same time. For large batches of flat rectangular glass, that is already a big step forward. But you still need to think about loading, rotating, size changes, corner treatment, and extra handling.

A CNC four-edge glass grinding machine is built to process all four sides of rectangular flat glass with higher automation. It combines feeding, positioning, grinding, conveying, discharging, water circulation, electrical control, and safety systems into one coordinated line. This is why the comparison is not just “machine vs machine.” It is more like “process flow vs process flow.”

Traditional Edging Lines Are Familiar but More Dependent on Handling

Traditional straight-line edging machines are common because they are easy to place, easy to train, and suitable for different workshops. They work well when production is not too large or when glass sizes change often.

The weak point is handling. If you need to grind four edges, glass may need to pass through different machines or be rotated and fed again. Each move adds time. Each move also adds risk. Scratches, corner chips, diagonal error, and wrong-side feeding often come from these small steps. Workers know this well. A few millimeters off can ruin a good sheet.

CNC Four-Edge Grinding Makes the Process More Continuous

A CNC four-edge machine is closer to a full-flow solution. The glass enters, gets positioned, and the machine detects the size. Grinding heads and positioning devices work with servo motors, guide rails, and precision gears. This creates a more stable route for the glass.

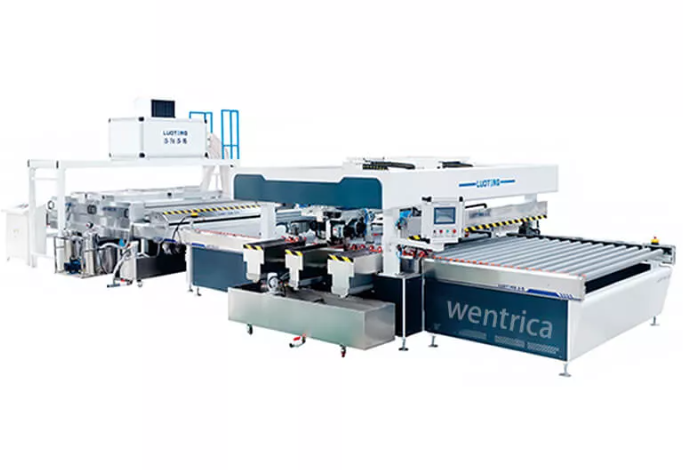

Wentrica offers the Automatic Cnc Horizontal Type Glass Four Edges Grinding Machine for Industrial Building with CE Certified, designed for chamfering, film removal, bottom grinding, and four-side processing of rectangular flat glass. For building glass plants, that matters. Less back-and-forth work usually means fewer handling mistakes.

Which Machine Gives Better Edge Quality?

Edge quality is affected by grinding wheels, cooling, clamping, transmission, glass positioning, and operator setup. A machine with more automation is not automatically better if the basics are poor. Good grinding still comes from stable contact, correct pressure, enough cooling water, and proper maintenance. Simple truth, but many factories learn it after a few bad batches.

Traditional edging lines can produce clean edges when adjusted well. CNC four-edge grinding is stronger when you want repeated quality across many sheets.

Grinding Head Layout Matters More Than Many Buyers Expect

In glass edging, the grinding head is one of the most important parts. A poor wheel setup can lead to chipped edges, burnt edges, bright edges, or uneven corners. Traditional straight-edge machines may have several grinding heads, and in general, more heads can support better precision and higher output.

A four-edge CNC machine takes this idea further by arranging multiple grinding systems around the four-side process. The Wentrica four-side solution uses four sets of corner grinding head systems, and each set has four grinding wheels for corner grinding. The cross design helps with durability and corner consistency. For architectural glass, that is useful because corners often decide whether the sheet looks clean after installation.

Cooling Can Make or Break the Result

Cooling water is not a small detail. If water flow is poor, the glass edge may burn, turn dark, or show rough marks. In daily production, clogged pipes are common, especially when cutting powder and polishing residue build up.

Traditional machines need frequent water checks. CNC four-edge machines also need water care, but the water system is part of the whole design. A clean water path, stable flow, and timely tank cleaning help keep edge quality steady. Not exciting, but very real. Good factories often spend more time checking water than talking about fancy control panels.

Which Option Is More Efficient for Building Glass Production?

Efficiency is not just machine speed. It also includes setup time, operator movement, glass rotation, rework rate, and how fast a new size can enter production. A slow machine with fewer mistakes may beat a fast line with constant corrections. So the better question is: which one saves total production time?

For rectangular building glass, CNC four-edge grinding often has the stronger case. It reduces repeated handling and supports automatic detection and positioning. That can be a big help when you process window glass, door glass, façade glass, and insulating glass panels in repeat sizes.

Traditional Lines Work Best for Lower Pressure Production

If your factory handles many custom jobs, small batches, or mixed shapes, traditional edging equipment may still be practical. You can choose a straight-line machine, beveling machine, round edging machine, or special-shaped edging machine according to the job.

The downside appears when the order volume grows. A traditional line may need more people to load, unload, turn, measure, and inspect the glass. Two or three people may operate some double-edge grinding setups. When labor cost rises, this becomes harder to ignore.

CNC Four-Edge Grinding Cuts Extra Steps

The Wentrica CNC four-edge machine adopts a human-machine interface control method, automatic glass size detection, servo motion control, and a bus communication system. The conveyor speed range can reach 1.0–35 m/min, and the machine is made for 3–12mm glass thickness. These numbers are useful for buyers because they show where the machine fits: regular architectural flat glass, not every thick or shaped glass job.

The main benefit is simpler flow. Fewer rotations. Fewer manual checks. Fewer chances for diagonal error. For factories that push daily output, this is often where the savings come from.

Which One Handles Accuracy Problems Better?

Accuracy problems in glass edging usually show up as diagonal deviation, big and small heads, uneven grinding, bright edges, or wrong final size. These defects often come from belt tension, uneven grinding amount, poor clamping force, worn screws, or bad positioning.

Traditional lines require skilled operators to adjust these points often. CNC four-edge machines try to reduce this dependence through automatic detection and more stable motion control.

Transmission and Clamping Are Key to Stable Glass Movement

A common cause of size error is unstable glass movement. If the belt is loose, the glass can drift. If the clamping force is too low, the sheet can slide. If it is too tight, thin glass can crack or vibrate.

Wentrica’s four-edge machine uses a synchronous belt transmission structure. Two rollers are driven by one synchronous belt, which helps the transmission stay more precise and stable. Its positioning and grinding head movement rely on servo motors, guide rails, and precision helical gears. This is the kind of structure buyers should ask about, because it affects output every day, not just during factory testing.

Self-Diagnosis Saves Time During Fault Checks

Traditional machines can be repaired and adjusted, but fault finding may take time. Operators check belts, wheels, pressure, water, and size settings one by one. That is normal, but it slows production.

A CNC machine with self-diagnosis and alarm display gives the operator a faster starting point. It does not replace maintenance staff. It just makes the problem less hidden. For a production manager, that difference can decide whether a line stops for 15 minutes or half a shift.

You can also visit the Wentrica company profile to check the company background before placing a purchase inquiry. For overseas buyers, supplier stability is part of the machine decision.

Which Machine Is Easier to Maintain Over Time?

A traditional line may look easier because many technicians already know it. Spare parts can also be simpler. Still, maintenance depends on how the machine is used. Poor cleaning and poor lubrication can hurt any machine.

CNC four-edge machines need more disciplined maintenance. But they also bring systems that reduce random adjustment and manual guesswork.

Daily Cleaning Is Still Non-Negotiable

No glass edging machine stays healthy without cleaning. Water tanks should be cleaned. Nozzles should be checked. Grinding dust should not be allowed to harden on covers, shafts, chambers, or filters. When the grinding wheel becomes dull, processing time gets longer, and edge quality drops.

This is not glamorous work. It is shop-floor reality. A good maintenance habit often gives more value than one extra feature in the brochure.

Automatic Oil Injection Helps Reduce Wear

The Wentrica four-edge machine uses an advanced automatic oil injection system for the grinding head motion guide rail. This supports smoother movement and lowers the chance of guide rail wear from dry running.

The frame design also matters. According to the product data, the main frame is welded with profiles, then treated by annealing and precision gantry milling. That helps the machine keep stable processing accuracy over long use. If you plan to run regular building glass orders, frame stability should be on your checklist.

For a wider view of production capability and equipment support, you can also check Wentrica’s factory information.

Which One Should You Choose?

There is no single answer for every factory. A small workshop with flexible orders may still prefer traditional edging lines. A factory making large batches of rectangular building glass may get better value from CNC four-edge grinding.

The cleaner decision is based on your product mix.

Choose traditional edging lines if you need:

· Lower starting cost

· Simple straight-edge work

· Flexible small-batch production

· Easier basic maintenance

· Different machines for different edge types

Choose a CNC four-edge glass grinding machine if you need:

· Four-side processing in a more continuous flow

· Better support for high-volume rectangular glass

· Automatic size detection

· Chamfering, film removal, and bottom grinding in one route

· More stable positioning and transmission

· Less manual handling

Wentrica positions its Automatic Cnc Horizontal Type Glass Four Edges Grinding Machine for Industrial Building with CE Certified for industrial building glass applications. It is a better fit when the buyer cares about output, repeated accuracy, and a cleaner production flow. If your factory already struggles with corner chipping, diagonal deviation, or too much manual turning, this machine type deserves a serious look.

What Should Buyers Check Before Ordering?

Before buying, do not only ask for price. Price matters, of course. Everyone knows that. But the cheaper line can become expensive if it creates rework, delay, and waste.

Check these points first:

· Glass thickness range

· Minimum and maximum glass size

· Conveyor speed

· Edge type and chamfering ability

· Film removal function

· Grinding wheel layout

· Servo control and positioning method

· Water system design

· Alarm and self-diagnosis function

· Spare parts and after-sales support

· CE certificate and export documents

A reliable machine purchase is a process decision. If four-edge grinding can remove two or three handling steps, the benefit may show up in output, labor planning, breakage rate, and delivery time.

For detailed quotation, layout advice, or export support, you can contact Wentrica through the contact page.

FAQ

Q1: Is a CNC Four-Edge Glass Grinding Machine Always Better Than Traditional Edging Lines?
A: Not always. It is better for high-volume rectangular flat glass, especially building glass. Traditional edging lines may still fit small workshops, special shapes, or low-volume jobs.

Q2: What Glass Thickness Is Suitable for This Type of Four-Edge Grinding Machine?
A: The Wentrica four-edge grinding machine is designed for 3–12mm glass, which matches many architectural and industrial building glass applications.

Q3: Why Does Automatic Glass Size Detection Matter?
A: Automatic detection reduces manual measuring and setup mistakes. It helps the machine adjust faster and keeps production smoother when different glass sizes enter the line.

Q4: Can One Machine Handle Chamfering Film Removal and Bottom Grinding?
A: Yes. The Wentrica four-edge grinding solution is built for chamfering, film removal, and bottom grinding, so it can reduce extra process steps in rectangular glass production.

Q5: What Is the Biggest Buying Concern for Overseas Buyers?
A: The biggest concern is usually not only price. Buyers should check machine stability, edge quality, spare parts, certification, after-sales support, and whether the equipment fits their real glass size range.
