In CNC glass cutting, the bridge is not just a moving beam. It decides how steady the cutting head runs, how clean the score line stays, and how much edge work comes after cutting. For buyers comparing factory equipment, Wentrica supplies glass deep processing and window and door equipment, with a focus on practical machine selection, production planning, and export support.
A cutting bridge made from aerospace Al-Mg alloy sounds like a small detail at first. In a real glass factory, it is not small. When the bridge moves at high speed, every gram of weight, every vibration point, and every machining error can show up on the glass. Some problems are easy to see, like broken edges. Others are more annoying because they appear later during edging, washing, or tempering.
That is why the bridge material matters. If you cut architectural glass, furniture glass, door glass, mirror glass, or other flat glass in regular batches, the bridge affects more than speed. It affects yield, labor, wheel life, and the amount of rework hidden in daily production.
Why Does The Cutting Bridge Matter So Much in CNC Glass Cutting
A CNC glass cutting machine has many key parts. The frame supports the machine. The guide rail and rack drive movement. The cutting head controls scoring pressure. The bridge carries the cutting head across the glass sheet. If the bridge is not stable, the cutter does not move in a calm and repeatable way.
It Carries Speed, Pressure, and Accuracy Together
A good bridge must be light enough for fast movement, but strong enough to resist shaking. That balance is not easy. When a bridge is too heavy, the drive system works harder during acceleration and braking. When it is too weak, the bridge may flex during long-distance cutting. Both situations can hurt cutting accuracy.
This is why aerospace Al-Mg alloy is useful. It gives the bridge a better strength-to-weight balance than many ordinary welded structures. On a high-speed CNC glass cutting machine, that helps the cutting head move faster without turning every start and stop into a small shock.

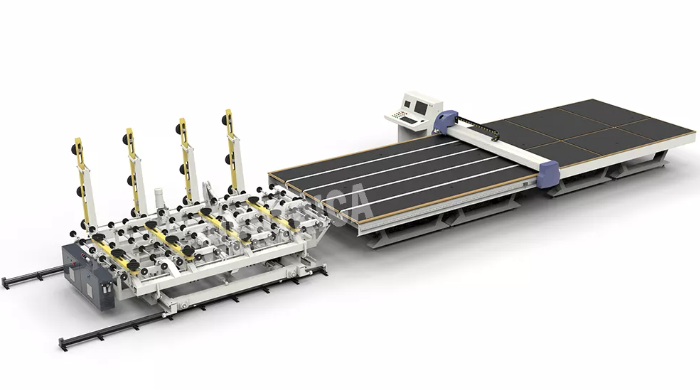

The WE-4228 CNC Full Automatic High Speed Glass Cutting Machine uses an aerospace Al-Mg alloy integrated casting cutting bridge. After high-precision CNC machining, the bridge is designed to stay sturdy and light. The product page also notes that it helps avoid precision errors caused by vibration or weld cracking during long-term continuous production.
What Makes Aerospace Al-Mg Alloy Better Than a Common Welded Bridge
A welded bridge can work in many low-speed or smaller cutting jobs. The problem starts when production gets faster and the machine runs for long hours. Welding points, heat effects, and uneven stress may create small changes over time. In glass cutting, small changes are not always small in cost.
It Reduces Vibration During Fast Cutting
The WE-4228 is listed with a cutting speed up to 200 m/min and acceleration of 10 m/s². At that speed, bridge stability becomes a real production issue. A bridge that shakes can cause uneven scoring. Uneven scoring can lead to poor breaking. Poor breaking then pushes more work to the edging station.
That sounds basic, but many factories still check only top speed when comparing machines. Speed is useful only when the score line can still be broken cleanly. Otherwise, the line just moves faster from one problem to another.
Aerospace Al-Mg alloy helps because it keeps the moving bridge lighter while still holding good rigidity. The cutter head can follow the programmed path with less extra movement. This matters when you cut long straight lines, repeated rectangles, and mixed-size sheets from the same raw glass.
It Avoids Weld Cracking Risks
The product page says the bridge uses integrated casting molding. That matters because a bridge with fewer welded stress points is less likely to develop accuracy drift from weld fatigue or cracking. For factories that run one or two shifts per day, this can be more valuable than a nice control screen.
Small bridge deformation may not stop production immediately. It usually appears as repeated trimming waste, diagonal deviation, bad breaking, or more grinding wheel wear. These are boring problems. They are also expensive.
How Does Bridge Stability Lower Edging Cost
Cutting and edging are linked. A clean cut gives the edging machine less correction work. A bad score line makes the next process pay the price. Many buyers separate these two machines during purchasing, but the glass does not care which budget line paid for the problem.
Better Breaking Means Less Wheel Wear
The WE-4228 product information highlights high cutting accuracy and good breaking effect. It also states that this can improve grinding wheel service life and reduce production cost in the edging process. This is a practical point for buyers. Grinding wheels are consumables. Replacing them too often is not just a material cost. It also means downtime, setup checks, and operator attention.
When a stable bridge helps the cutter head move smoothly, the score line becomes more even. The breaking process is cleaner. The edging machine then removes less rough material. In daily terms, that means fewer chipped edges and less arguing between the cutting operator and the edging operator. It happens in real workshops more often than people admit.
It Keeps Cutting Pressure More Consistent
Cutting pressure is not only a setting on the screen. It must be delivered through the moving structure. If the bridge vibrates, the cutting pressure may not feel even on the glass surface. Too much pressure can create deep cracks and jagged edges. Too little pressure can make the cutting line hard to break.
The knowledge base also notes that cutting wheel angle and cutting pressure affect whether the line can be broken properly. For thinner glass, a smaller angle is often used. For thicker glass, a larger angle may be needed. Cutting pressure should match the glass, not fight the machine structure.
Why Should The Bridge Work With The Frame and Guide Rail System
A good cutting bridge cannot work alone. It must match the frame, guide rail, rack, and drive system. When one part is strong and another part is weak, the weaker part decides the final accuracy.
A 12 mm Steel Frame Gives The Bridge a Stable Base
The WE-4228 uses a high-strength quenched steel frame. The product page states that the steel is placed outdoors for six months to reduce stress, then treated with an annealing process to remove residual stress. The steel thickness reaches 12 mm. This type of frame design is meant to limit deformation in different environments and temperatures.
This matters because the bridge travels on the machine base. If the frame changes shape, even a good bridge cannot fully save the cut. A stable base helps the aerospace Al-Mg alloy bridge do its job.
For more background on the supplier and production scope, the company profile is useful when you are checking whether the machine source has glass machinery experience, certification details, and in-house CNC machining capability.
Guide Rail and Gear Rack Control Repeat Movement
The product page also mentions grinding guide rail and gear rack technology. These parts help keep the material expansion coefficient more synchronized and support high rigidity, high stability, and high precision during operation.
This is also why maintenance still matters. The knowledge base says the upper and lower guide rails and gears should be wiped and oiled each shift. High-end parts still need care. Dust, oil shortage, and loose belts can turn a good machine into a difficult machine. There is nothing glamorous about cleaning rails, but it protects accuracy.
When Is This Bridge Design Worth The Investment
Not every factory needs the same cutting machine. If you only cut small pieces, irregular shapes, or low-volume samples, a simpler machine may be enough. If you need long-term batch production, automatic cutting starts to make more sense.
It Fits Large-Batch Glass Processing Better
Fully automatic glass cutting machines are built for higher output. They use computer software to set cutting shapes, so square, round, and special-shaped glass can be processed without making a mold first. The production line model can also connect loading, cutting, breaking, and unloading, which suits long-term and large-scale production.
The WE-4228 adds another layer by supporting connection with a glass storage system and ERP system. That is useful when you want cutting plans, stock control, and production orders to talk to each other instead of relying on paper notes. Paper notes still exist in many plants, and they get lost at the worst time.
For buyers who need to match cutting with storage, handling, edging, or washing equipment, the factory page can help check whether the supplier’s equipment range fits a broader plant plan.
It Helps When Raw Glass Use Matters
Before cutting, layout work decides how many usable pieces can be arranged on one original sheet. Better layout means better raw material use. The knowledge base points out that mechanical interactive layout is common on-site because operators can work from a job order and arrange cutting in a practical way.
A rigid, lightweight bridge supports this by making repeated cuts more accurate. When glass prices rise, saving a few percent of sheet waste is not a small thing. It may decide whether the machine pays back faster.
How Should You Judge a CNC Glass Cutting Machine Before Buying
A buyer should not judge only one feature. The bridge material matters, but it should be checked with the frame, cutting head, software, inspection system, and after-sales support.
Check The Full Cutting Chain
Start with these points:
Bridge material and forming method Frame thickness and stress treatment Guide rail and rack quality Cutting head pressure control Cutting speed and acceleration Breaking quality after cutting ERP or storage system connection Real-time cutting inspection Daily maintenance access Supplier support and spare parts response
The WE-4228 covers several of these concerns. It has patented cutting head control technology, high cutting accuracy, good breaking effect, real-time inspection through the cutting process, and connection with glass storage and ERP systems. These details make the machine more than a fast cutter. It is closer to a production-control tool.
For a final project discussion or plant layout question, the contact page is the better step, especially when glass size, plant space, and production target need to be checked before model selection.
FAQ
Q1: Why Is Aerospace Al-Mg Alloy Used for CNC Glass Cutting Bridges? A: It gives the bridge a strong but light structure. That helps the cutting head move at high speed with less vibration, which supports cleaner scoring and better breaking.
Q2: Is Cutting Speed More Important Than Bridge Stability? A: No. Speed only helps when accuracy and breaking quality stay stable. If the bridge shakes at high speed, the factory may lose time later through rework and edging problems.
Q3: How Does a Stable Cutting Bridge Reduce Edging Cost? A: A stable bridge helps create a cleaner score line. Cleaner breaking leaves less rough edge material, so the edging machine works less and grinding wheels may last longer.
Q4: Why Does The WE-4228 Use a 12 mm Steel Frame With an Alloy Bridge? A: The 12 mm quenched steel frame gives the machine a stable base, while the aerospace Al-Mg alloy bridge keeps the moving part light and rigid. The two parts work together for long-term cutting accuracy.
Q5: Should You Choose a Full Automatic CNC Glass Cutting Machine for Small-Batch Work? A: It depends on your product mix. For small, occasional jobs, simpler equipment may be enough. For regular batch production, ERP connection, storage system connection, automatic layout, and high-speed cutting can save more labor and material over time.
