Why Is Component Quality More Important Than Price for A CNC Glass Cutting Machine

When you buy a CNC glass cutting machine, the cheaper quote is not always the cheaper machine. In glass processing, a small error can turn a whole sheet into waste. A weak motor, loose transmission part, poor suction system, or unstable control unit may look fine on paper, but it can cost you later through broken glass, slow output, extra labor, and production stoppage.

Wentrica was founded in September 2014 and focuses on glass deep processing equipment and window and door machinery. The company provides design, production, export, equipment selection, and customized factory planning support through its company profile, factory capability, and contact support pages. For buyers who care about stable production, this matters. A CNC glass cutting machine is not a small bench tool. It is a core production asset. Price should be checked, of course, but component quality decides whether that asset can keep working day after day.

Why Does Component Quality Decide Cutting Accuracy?

A CNC glass cutting machine depends on repeated movement. The glass may be large, heavy, and expensive. The machine must load it, position it, cut it, and move it without dragging, shaking, or scoring at the wrong pressure. That is why accuracy is not only about software. It comes from the full system working together.

Stable Servo Control and Smooth Movement

Servo control is one of the first areas you should check. If the servo system is weak, the cutting bridge may move with small vibration. That vibration may not look serious during a quick test, but it can show up as diagonal error, rough breaking, or shape mismatch during batch work.

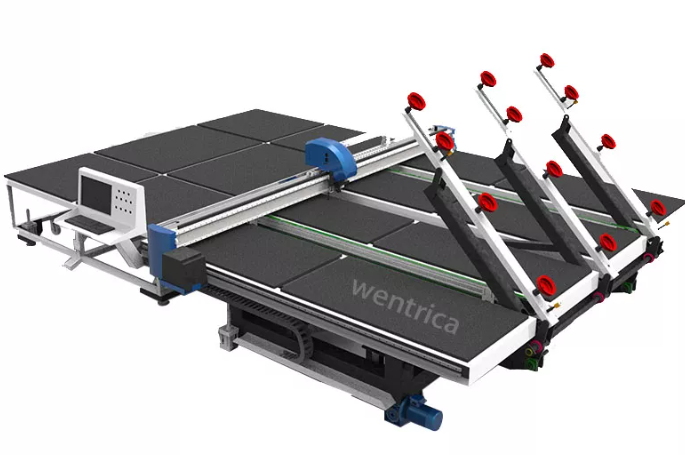

The Automatic Glass Loading And Cutting Integrated Machine with High Precision Servo Control for Efficient Flat Glass Processing is built for automatic loading and cutting, with CNC technology, laser positioning, PLC control, variable frequency control, drawing import, parameter storage, automatic monitoring, automatic layout, and one-click cutting. Its listed cutting accuracy error is less than 0.01 mm. That number sounds small, but in real production it affects repeat orders, edge grinding workload, and assembly fit.

Cheap parts often fail here. A low-grade transmission part may still move, but it may not move the same way after months of dust, heat, and long shifts. That is the boring part buyers sometimes skip. Later it becomes the expensive part.

How Do Better Components Reduce Waste and Rework?

Glass waste hurts twice. You lose the material, then you lose time. If the order is urgent, you may also lose customer trust. Component quality helps control this risk before it reaches the cutting table.

Accurate Positioning Before Cutting

A fully automatic glass cutting machine uses a more complex structure than a manual or semi-automatic cutter. It includes the frame, crossbeam, processing table, cutter head, conveyor system, mechanical positioning, and electrical control system. The cutting work is controlled by software, so square, round, and special-shaped glass can be produced without making molds first.

This saves labor, but only if positioning is stable. The automatic loading and cutting machine uses smart suction. After startup, the suction cup arm rises, moves, rotates, finds the glass angle, monitors suction, lifts the sheet, places it on the cutting table, then scans and cuts. That whole chain depends on component quality.

If the suction cup system is weak, glass placement becomes risky. If the laser positioning is not steady, the machine may cut based on a wrong edge. If the cutter pressure is not well controlled, the line may be too light to break or too heavy and cause edge chipping. In a busy workshop, these are not theory problems. They are the sort of problems that make operators stop and say, “This machine is eating time again.”

Why Is the Cutting Head More Than a Small Part?

The cutter head is easy to overlook because buyers often focus on machine size, speed, and price first. But for glass cutting, the cutter head is one of the parts closest to the final result. Poor cutter head movement can turn good glass into bad output.

360-Degree Rotation for Mixed Orders

The product uses a 360-degree rotating cutting head. That is useful when you process straight lines and irregular shapes on the same machine. The machine is also built for linear and shaped cutting. For factories handling architectural glass, furniture glass, door glass, or mixed flat glass orders, this gives more room for practical production planning.

The value is not just “can cut shapes.” The real value is fewer tool changes, fewer manual steps, and better batch flow. A cheap machine may promise similar functions, but if the cutter head rotation is not stable, the result may be poor scoring, uneven breakage, or more grinding work after cutting.

A good cutter wheel also needs proper oiling. In machine maintenance notes, the cutting wheel must be refueled during cutting, usually with kerosene, and the lower oil tank needs regular checking. If oil supply is poor, cutting lines can chip. If cutting pressure is wrong, the glass may not break cleanly. So the cutter system is not a single part. It is cutter wheel, pressure control, oil supply, motion control, and operator routine all tied together.

How Does an Air-Floating Platform Protect Glass?

Large flat glass is not friendly to rough handling. Pulling it across a table can scratch it, strain workers, and create small hidden damage. An air-floating table looks simple, but it is one of the parts that makes daily work smoother.

More Than One Hundred Air Holes for Easier Movement

The Automatic Glass Loading And Cutting Integrated Machine uses an air-floating platform with more than one hundred air holes evenly distributed on the table. The airflow supports easier pushing and pulling, while reducing damage risk to the glass surface.

This is where price-only buying becomes risky. If the fan is weak, the air path blocks easily, or the table is not built flat enough, the glass movement becomes heavier. Operators may push harder. Edges may knock. The workflow slows down.

The maintenance knowledge also points in the same direction. A glass cutting machine should use clean compressed air to avoid early damage to air path parts. Guide rails and gears need wiping and oiling every shift. Abnormal sound from moving parts should be checked at once. None of this is fancy, but these small habits protect expensive parts. A well-built machine makes these routines easier, not harder.

What Should You Check Besides the Initial Quote?

The purchase price is only one line on your cost sheet. The real cost includes scrap rate, labor, service time, part replacement, operator training, and how well the machine fits your production plan.

Thickness, Speed, Size, and Loading Time

For the listed product, the cutting thickness range is 3–19 mm with air pressure control. Cutting speed is 0–180 m/min. Loading speed is 15–40 seconds. The YJT-2420 model supports a maximum processing size of 2440 × 2000 mm, while the YJT3628 model supports 3660 × 2800 mm. Installed power is 11.8 kW, and the machine weight is about 3000 kg or 3100 kg depending on the model.

These figures help you judge whether the machine fits your normal orders. Do not only ask, “How much is it?” Ask these instead: Can it handle your common glass thickness? Does the table size match your sheet size? Can your operators run the control system easily? Can the supplier explain service steps clearly? Can the factory support customized needs when your production changes?

Wentrica’s company profile also points to one-stop customized solutions, from factory construction and equipment planning to model selection. That is useful for buyers who are not only buying one machine, but setting up a more complete glass processing line.

Why Does Supplier Experience Matter After Delivery?

A CNC glass cutting machine may work well during trial cutting. The real test starts after delivery, installation, and daily production. That is when supplier experience becomes part of the machine’s value.

Fault Diagnosis and Practical Support

Common glass cutting machine problems include cutting speed drop, diagonal change, unclear cutting lines, edge chipping, size error, loss of floating function, failure to return to mechanical origin, limit switch faults, board contact issues, servo alarms, encoder communication issues, and servo motor vibration. Some are small issues. Some stop the line.

Good component quality reduces the chance of these problems, but good support helps you solve them faster when they happen. The machine’s automatic fault diagnosis and alarm function also helps operators catch problems sooner. This is the kind of detail that rarely wins attention in a price comparison table, yet it matters a lot on a Monday morning when production is already booked.

For long-term use, choose a machine that feels serviceable. Rails should be accessible. Oil checks should be simple. Control settings should not confuse operators. Spare parts should not be a guessing game. A machine can be advanced and still be practical. That balance is worth paying for.

How Should You Choose a CNC Glass Cutting Machine Without Overpaying?

Buying better components does not mean buying the most expensive machine. It means paying for parts that match your workload. A small workshop and a high-output factory may need different solutions. The wrong expensive machine is still wrong. The right machine is the one that keeps your production steady.

A Practical Buying Checklist

Check the control system, servo movement, cutter head structure, suction safety, air-floating table, glass thickness range, cutting speed, loading speed, software functions, maintenance access, and supplier service record. Ask for real cutting samples if possible. Ask how the machine handles irregular shapes. Ask about layout functions, drawing import, and parameter storage. Ask how operators should clean rails, check oil, and deal with air path problems.

The automatic glass loading and cutting machine is worth reviewing if you need automatic loading, CNC cutting, smart typography, air floating, suction monitoring, and high-precision flat glass processing in one machine. It is not just about getting glass cut. It is about making the cutting process safer, cleaner, faster, and easier to repeat.

Price matters. No buyer wants to waste budget. But in glass cutting, a very low price can hide weak parts, unstable accuracy, poor service, and more scrap. Component quality is what turns a machine from a purchase into a useful production asset. That is the difference customers usually remember after six months, not on the quotation day.

FAQ

Q1: Why Is Component Quality More Important Than Price for a CNC Glass Cutting Machine?
A: Component quality affects cutting accuracy, glass breakage rate, machine stability, maintenance cost, and daily output. A cheaper machine may save money at first, but weak parts can lead to waste, downtime, and extra labor.

Q2: What Components Should You Check Before Buying a CNC Glass Cutting Machine?
A: Check the servo system, control system, cutter head, suction cups, air-floating table, guide rails, rack and pinion transmission, oil supply system, sensors, and safety devices. These parts decide how well the machine performs after months of use.

Q3: Is Automatic Loading Worth Paying For?
A: Yes, if you process large glass sheets or run regular batch orders. Automatic loading reduces manual handling, improves safety, saves labor, and helps the cutting table receive glass in a more stable position.

Q4: What Cutting Thickness Can This Machine Handle?
A: The listed automatic loading and cutting machine supports 3–19 mm glass thickness with air pressure control. This range suits many flat glass processing jobs, including common architectural and industrial glass orders.

Q5: How Can You Reduce Problems After Installation?
A: Train operators, keep guide rails and gears clean, check cutting oil, use clean compressed air, watch for abnormal sounds, and follow the supplier’s maintenance guidance. Good parts help, but good daily habits keep the machine reliable.
