Why Do Inverse Corners And Variable Glass Shapes Challenge Ordinary Warm Edge Lines

Inverse corners and variable glass shapes challenge ordinary warm edge lines because the spacer applicator must follow a changing edge while keeping the TPE bead continuous, even, and correctly positioned. A rectangle gives the machine four predictable straight paths and four outward turns. An inward corner, curved section, trapezoid, or stepped edge changes that simple motion.

The problem is not just whether the application head can reach the corner. The entire process must stay stable, from washing and transport to spacer application, glass matching, pressing, and gas filling. When one step cannot adapt to the shape, you may get broken spacer paths, thick corner buildup, weak adhesion, poor alignment, or time-consuming manual repairs.

Why Does an Inverse Corner Disrupt Normal TPE Application?

An inverse corner is an inward or concave turn in the glass perimeter. It requires different head movement from the usual outward corner found on rectangular units. Ordinary warm edge lines often work well while the path remains straight and predictable. Trouble starts when the head must enter a narrow inner section, change direction, and leave without damaging the fresh material.

The Application Head Must Change Direction Quickly

At a standard outer corner, the application head follows a relatively open turning path. An inverse corner gives it less room. The head must slow down, turn inward, control material flow, and accelerate again.

If the material feed does not match the head speed, two common defects appear:

l Too little TPE leaves a thin section or an open gap.

l Too much TPE creates a lump that interferes with glass pressing.

A small difference at the corner may not look serious before assembly. After pressing, though, that difference can affect the spacer shape and the space left for secondary sealant.

Material Flow Cannot Stop Too Early

The applicator must maintain a continuous spacer path around the full perimeter. At an inverse corner, a simple stop-and-start motion may leave a seam. That seam becomes a possible weak point for moisture entry or gas loss.

Trying to repair the area by hand also creates variation. One operator may add too much material. Another may press it flat. Neither method gives the repeatability expected from an automatic line.

The Head Needs Space without Touching the Glass

A concave section raises the risk of head-to-glass contact. The clearance becomes smaller as the corner angle tightens. The machine must control its path precisely while protecting both the glass edge and the newly applied spacer.

That sounds like a minor motion-control issue. It is not. One contact can mark coated glass, change the bead profile, or stop a production batch.

Why Do Variable Glass Shapes Create More Than a Programming Problem?

Modern architectural units are no longer limited to plain rectangles. Processing plants may receive orders for triangles, trapezoids, stepped units, angled façades, and other irregular forms. Automatic cutting equipment can already produce many of these shapes, so the later insulating glass stages must keep up. The uploaded glass-processing material also notes that manual special-shape production is labor-intensive, while computer-controlled cutting allows different shapes without preparing a separate mold for each design.

Every Shape Changes the Edge Path

A machine program for a rectangle cannot simply be stretched to fit a trapezoid or stepped pane. Each job may change:

l Side length

l Corner angle

l Direction of travel

l Start and finish position

l Required slowdown near corners

l Spacer material volume

Curves add another issue. The head cannot treat a curve as a series of harsh, short turns. It needs smooth motion, or the bead may show waves, thin spots, and uneven height.

Glass Support Changes with the Center of Gravity

Irregular glass does not always sit on the conveyor as steadily as a rectangular pane. A narrow top, sloped side, or off-center section can change the load distribution. When the pane moves through washing, inspection, application, and matching, poor support may cause vibration or position drift.

Large units make this harder. The specified insulating glass line can process glass from 180 × 360 mm up to 2700 × 3500 mm, with a maximum single-sheet load of 350 kg. A wide operating range is useful, but it also means the transport system must manage very different sizes without letting small panes tip or large panes shift.

Short Custom Runs Increase Changeover Pressure

Variable shapes often arrive in mixed batches rather than long runs of one size. You may process a rectangle, two trapezoids, and a stepped unit in the same shift. Constant manual setup slows the line and creates more chances for data-entry mistakes.

For this reason, flexibility should be judged by actual changeover work. A machine that processes a special shape only after lengthy adjustment is technically capable, but not always commercially useful.

Where Do Ordinary Warm Edge Lines Usually Lose Quality?

A basic line may move irregular glass through the factory, yet movement alone does not prove that it can produce a saleable IGU. The defects usually appear at the points where shape, surface condition, and alignment meet.

Incomplete Washing Can Reduce Adhesion

Dust, oil, and residual water near the glass edge can weaken spacer adhesion. Coated Low-E glass adds another concern because its surface is more sensitive to scratching.

The product configuration uses sand and carbon filtration, soft brushes for Low-E glass, and air knives for drying. The related technical proposal specifies three sets of customized brushes with filament diameters of about 0.08 to 0.12 mm, along with water treatment, backwashing, and water heating. These details matter because a complex spacer path still fails if it is applied to a dirty or damp edge.

Shape Errors Become Matching Errors

Two panes may share the same nominal drawing but still have small cutting, edging, or positioning differences. At an angled or stepped edge, even a modest offset is easy to see.

The problem becomes more serious after pressing. If one pane moves, the finished unit may show uneven edge cover, restricted sealant space, or mismatched corners. Rectangular units are more forgiving because their edges are easy to reference. Irregular units are not.

Manual Corner Repair Breaks Production Rhythm

When an ordinary applicator cannot complete an inverse corner, the operator may stop the line and repair the spacer. This adds labor and makes the cycle time unpredictable.

It also hides the real cost of the machine. Output may look acceptable on standard rectangles, while custom jobs quietly consume extra operator time, material, and inspection work. Those five-minute corrections add up rather quickly.

How Does the Wentrica Line Handle Complex Geometry?

Wentrica designs equipment for glass deep processing and window and door production. Its company profile states that the business was founded in 2014 and has in-house CNC machining capabilities, certification systems, and experience with customized production planning.

For factories processing mixed IGU orders, the relevant point is not the company introduction itself. It is whether the line combines shape handling with the other stages needed to produce stable units.

The Applicator Supports Inverse Corners and Variable Shapes

The TPE Warm Edge Insulating Glass Line (WE-ZC-53/54-7) uses a high-speed precision application head designed to process inverse corners and variable glass shapes. This directly addresses the point where ordinary rectangular-path applicators tend to struggle.

The benefit is not just a more flexible head. Automatic application reduces the need to pause the line for hand finishing. It also helps keep the bead profile more consistent as the path changes.

Servo Positioning Supports Accurate Pressing

After spacer application and glass matching, the pressing stage must bring the panes to the required overall thickness without moving the middle layers.

The technical proposal lists servo positioning, an IGU thickness range of 12 to 75 mm, and four-corner error controlled to ±0.5 mm under the stated test condition. It also describes production of shaped glass and three-side stepped glass. Double-belt transport and vacuum positioning help keep panes stable, especially during triple and quadruple glazing work.

Pressure Relief Helps Protect TPE Units

During pressing, trapped air inside the cavity can create a pressure difference between the inside and outside of the unit. The proposal describes a corner pressure-release function that allows cavity gas to discharge during pressing. This is particularly useful for thermoplastic warm edge production, where unwanted internal pressure can disturb the spacer or glass position.

Optional gas filling is also available. The product page gives an initial filling level of 90%, while the technical proposal states a rate above 90% and a filling time of about seven to eight seconds for a 1 m² unit under its test setup. Actual results still depend on unit size, cavity structure, gas supply, and operating settings.

What Should You Check Before Choosing a Warm Edge Line?

A product brochure may say that a line processes shaped glass, but buyers need a more detailed test. The real question is which shapes it can run automatically and how much operator correction remains.

Test Your Most Difficult Glass Samples

Send actual drawings before ordering. Better still, request a production trial using the shapes you regularly sell.

Include samples with:

l Tight inverse corners

l Short angled sides

l Three-side steps

l Large asymmetric panes

l Mixed straight and curved edges

l Different glass and IGU thicknesses

Do not test only an easy trapezoid. Use the job that currently causes the most rework.

Review the Whole Line Rather Than One Machine

Check the applicator, but also review washing, transport, inspection, matching, pressing, and gas filling. Ask how the line handles a small pane after a large pane. Ask whether conveyor speed changes automatically and how the unit is supported during pressing.

The WE-ZC-53/54-7 proposal lists washing speeds of 0 to 10 m/min, transition speeds of 0 to 50 m/min, and adjustable conveyor angles from 6° to 9°. These figures help with line planning, but a factory test shows how the sections work together.

Check Manufacturing and Service Support

Complex equipment needs proper commissioning. Review the supplier’s factory information, ask who will install the line, and confirm operator training, spare parts, remote support, and response times.

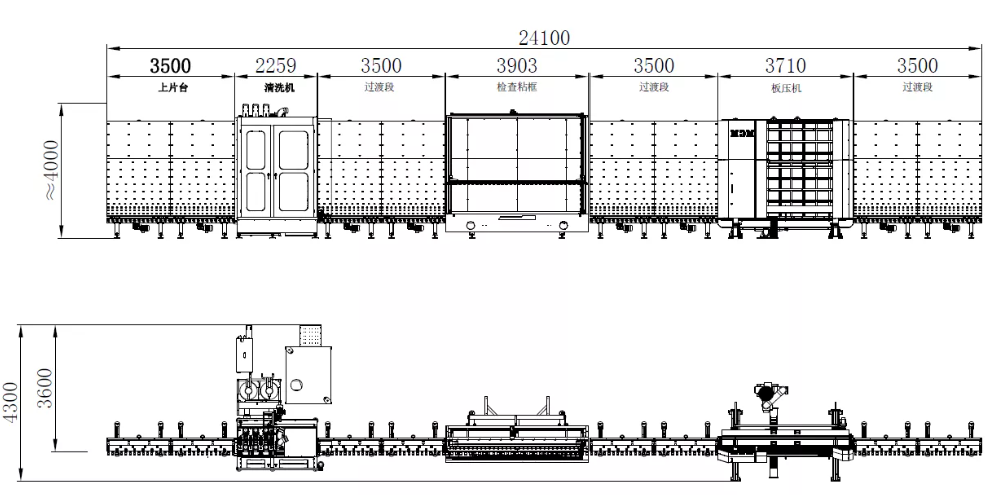

Your discussion should cover the glass mix, working direction, floor space, electrical supply, production target, and preferred gas-filling setup. The line layout is listed at approximately 24.1 × 4.3 × 4.0 m with total power near 65 kW, so site planning should begin before shipment, not after the equipment arrives.

Can Better Shape Control Reduce the Real Cost of Custom IGUs?

Yes. Better shape control cuts more than direct labor. It can reduce interrupted cycles, hand repairs, rejected panes, wasted TPE material, and inconsistent corner quality.

Ordinary warm edge lines remain suitable for factories producing mostly standard rectangles. Once custom architectural orders become a regular part of your schedule, inverse corners and changing shapes expose their limits. A purpose-built application path, stable glass transport, accurate matching, and controlled pressing make those jobs far more manageable.

Before making a final choice, send your common dimensions, special-shape drawings, daily output, glass thickness range, and plant layout through the Wentrica contact page. A useful quotation should reflect your actual production mix, not just the largest glass size printed in a specification table.

FAQ

Q1: What Is an Inverse Corner in Insulating Glass Production?
A: An inverse corner is an inward or concave turn in the glass perimeter. It requires the TPE application head to enter a restricted area, change direction, and maintain a continuous spacer bead.

Q2: Can an Ordinary Warm Edge Line Process Irregular Glass?
A: Some ordinary lines can transport or manually process simple irregular panes. However, automatic spacer application may become slow or unreliable when the glass includes tight angles, inverse corners, curves, or stepped edges.

Q3: What Shapes Can the Wentrica TPE Line Process?
A: Wentrica states that the application head supports inverse corners and variable shapes. Its technical proposal also lists shaped glass and three-side stepped glass production. Buyers should still test their own drawings before ordering.

Q4: Why Is Pressing Accuracy Important for Shaped IGUs?
A: Accurate pressing keeps the panes aligned, maintains the required unit thickness, and leaves suitable edge space for sealing. Shape errors are more visible on angled and stepped glass than on standard rectangles.

Q5: What Information Should You Send before Requesting a Quotation?
A: Send your minimum and maximum glass sizes, special-shape drawings, glass thickness, IGU thickness, daily output, gas-filling needs, working direction, available floor space, and electrical supply.
