How Should You Drill Mounting Holes in Glass Shower Doors Without Breakage

Mounting holes for hinges, handles, support bars, and connectors must be accurate before a shower door reaches tempering. A misplaced hole may make the hardware impossible to install. A chipped hole edge is worse. It creates a weak point that may cause the sheet to break during drilling, tempering, transport, or final installation.

Most drilling failures are not random. They usually come from poor support, incorrect drill speed, worn bits, weak water cooling, inaccurate positioning, or too much pressure near breakthrough. The safest method is to inspect the glass first, drill from both surfaces, control the feed, and keep the cutting area cool.

Why Do Shower Door Holes Break During Drilling?

Glass is hard, but it is also brittle. It does not bend around a drill like metal or plastic. Small defects can grow quickly once the drill produces local pressure, vibration, and heat.

A clean hole therefore depends on more than the drill diameter. The condition of the sheet, the distance from the edge, the stability of the worktable, and the final few millimeters of drilling all matter.

Existing Edge Damage and Surface Defects

Before drilling, inspect the whole sheet under good lighting. Pay close attention to the edges and the planned hole area. Reject or rework glass that shows:

l Deep scratches

l Edge chips

l Shell-shaped fractures

l Visible bubbles or stones

l Cracks around a previous cutout

l Poorly ground corners

These defects create stress concentration. Even when the sheet survives drilling, a damaged area may fail during tempering or later hardware installation. The supplied industry material also notes that poor cutting, edging, and drilling quality can contribute to breakage in the tempering section.

Heat and Poor Water Cooling

A diamond drill generates heat where it contacts the glass. Without a steady water supply, the cutting edge becomes hot, the bit wears faster, and the temperature difference around the hole rises.

Water performs three jobs. It cools the tool, removes glass powder, and reduces friction. Check the water path before every shift. A partly blocked hose can still release water, but not enough at the cutting point. This is one of those small workshop problems that can ruin several expensive panels before anyone notices.

Excessive Pressure at Breakthrough

The highest chipping risk often appears when a single drill bit is about to pass through the opposite surface. The remaining glass becomes very thin and receives all the drilling force. A circular chip may break away before the bit finishes the cut.

Drilling from both sides reduces this risk. The upper bit starts one side, while the lower bit completes the other. The two cuts meet inside the sheet, so neither bit must force its way through an unsupported surface.

What Should You Check Before Drilling Begins?

Good drilling starts at the drawing table. Once a hole has been made, correcting its position is rarely practical. A few minutes spent checking the hardware plan can save a complete shower-door panel.

The production team should work from a confirmed drawing rather than handwritten dimensions added near the machine. This becomes more important when one door has several hinge holes, a handle pair, and a support-bar opening.

Complete All Machining Before Tempering

Shower-door holes must be drilled before the glass is tempered. Tempered glass contains a controlled stress pattern. Trying to drill or cut it afterward normally releases that stress and causes the entire panel to fragment.

The normal sequence is:

· Cut the annealed glass to size.

· Grind and polish the edges.

· Drill all mounting holes and machine every cutout.

· Wash and inspect the panel.

· Temper the finished shape.

· Complete the final quality check.

Tempered glass is widely used for doors because of its strength, impact resistance, thermal stability, and safer fragmentation behavior. Yet the quality of all pre-tempering work still affects the finished panel.

Confirm Hole Diameter and Edge Distance

Match the hole to the actual hardware drawing. Do not rely only on the nominal bolt size. Hinges and handles may require space for sleeves, gaskets, bushings, and installation tolerance.

Also check the distance between the hole and the nearest glass edge. A hole placed too close to an edge leaves a narrow section that can crack under drilling pressure or hardware load. Requirements vary with glass thickness, hole diameter, and fitting design, so the approved hardware specification should control the layout.

Support the Sheet Evenly

The glass must lie flat without rocking. Clean the worktable first. A small glass fragment under the sheet may create a pressure point.

Support large shower-door panels across a broad area rather than only near the hole. At the same time, keep enough working space around the drill. Uneven support can let the glass vibrate as the bit enters, which often produces a rough or chipped opening.

Which Drilling Method Produces Cleaner Mounting Holes?

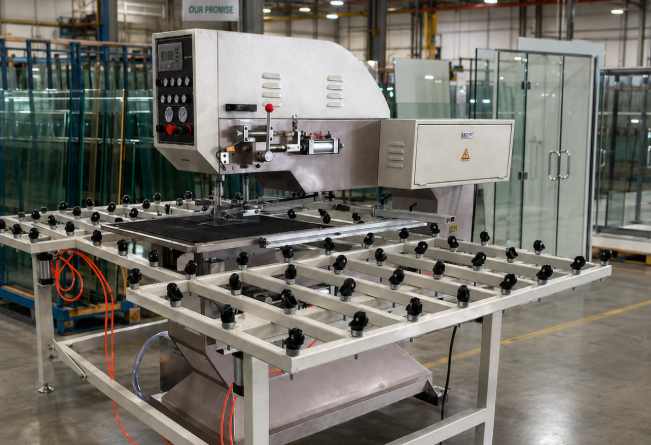

For repeated shower-door production, automatic horizontal drilling offers better control than hand-held drilling. It gives the operator a fixed table, repeatable positioning, controlled motion, and a two-sided drilling arrangement.

Wentrica supplies one-stop glass deep-processing equipment for cutting, edging, washing, drilling, tempering, handling, and related door and window production tasks. The drilling stage fits between edge finishing and washing or tempering, so it should match the rest of your production flow.

Upper and Lower Drill Bits

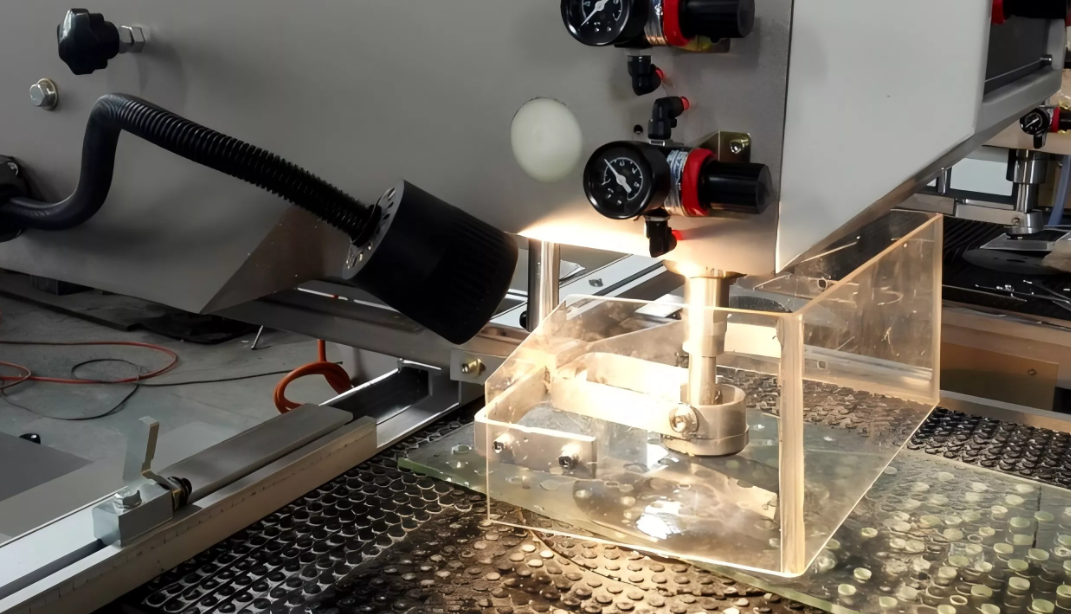

The ZJ125 Automatic Glass Horizontal Drilling Machine uses upper and lower drill bits. This setup supports two-sided cold processing and helps reduce the large breakout chip often produced by one-sided drilling.

The general drilling cycle is simple:

l Position the hole center.

l Start the first drill from one surface.

l Stop before full breakthrough.

l Bring the opposite drill into the matching center.

l Complete the hole from the second surface.

The meeting point should stay near the middle of the glass. If one bit drills too deeply, the benefit of two-sided processing is reduced.

Laser Positioning and Physical Measurement

The machine includes laser positioning, an auxiliary lamp, and a measuring ruler. The laser helps the operator align the drill center with the marked point. The ruler provides a physical reference, which is useful during repeat jobs.

Still, a laser is not a substitute for a first-piece check. Drill one sample or lower-value panel, measure every center distance, then approve the batch. A 2 mm error may not look serious on a large sheet, but hardware has a way of finding it immediately.

Cold Processing and Water Control

The ZJ125 is designed as a cold-processing machine and includes a waterproof cover around the working area. Water should reach both cutting interfaces throughout drilling.

Keep the cover clean enough to see the process. Glass powder can dry on transparent guards and make it difficult to spot weak water flow, bit vibration, or poor alignment. Daily cleaning is boring work, yes, but replacing a shower door is more boring.

How Should You Set the ZJ125 for Shower Door Production?

The correct setup depends on glass thickness, hole diameter, hardware layout, and batch size. Avoid using one feed setting for every job. A small handle hole in 6 mm glass does not behave like a large hinge opening in 12 mm glass.

The ZJ125 processes glass from 3 to 20 mm thick. Its standard drilling range is 5 to 80 mm. Larger diameters from 110 to 220 mm can be supplied as a customized option. The maximum listed glass size is 2200 × 2500 mm, while the distance from the drilling center to the rear column is 1250 mm.

Match the Bit to the Hole

Use the exact bit diameter required by the drawing. Check the diamond cutting edge before installation. Replace or dress a bit when drilling becomes slow, noisy, or rough.

A worn bit invites the operator to add more pressure. That usually increases heat and edge damage rather than fixing the problem.

Use a Controlled Feed

Begin gently so the bit forms a stable circular track. Increase feed only after the cutting edge is seated. Reduce pressure again as each bit approaches its planned depth.

The machine’s automatic control supports repeatable operation and reduces dependence on hand pressure. Its product page lists simple operation, high working efficiency, and a low glass damage rate among its main features.

Inspect the First Hole Closely

Check both faces and the inner wall of the hole. A good hole should have:

l A consistent diameter

l Little or no shell chipping

l No radial cracks

l No visible meeting step between both drill paths

l Correct center position

l Smooth hardware clearance

Do not hide a questionable hole with a washer and send it forward. Tempering may turn that shortcut into a full-sheet loss.

How Can You Keep Breakage Low During Daily Production?

A stable drilling process comes from small checks repeated every day. Record the settings for each common shower-door design, including bit size, glass thickness, drilling depth from each side, water condition, and cycle time.

Operators should also clean the table and guard, check the positioning light, inspect both drill spindles, confirm water flow, and listen for unusual bearing or motor noise before production starts.

Wentrica was founded in 2014 and focuses on equipment for glass deep processing and door and window manufacturing. Its company profile states that the factory is ISO 9001 certified, holds invention patents and CE certificates, and operates a dedicated CNC machining workshop. The company reports cooperation across more than 60 countries.

Buyers can also review the Wentrica factory when checking production capacity and discuss glass size, hole range, voltage, tooling, spare parts, and line layout with the contact team. A clear sample drawing helps the supplier confirm whether the standard machine or a customized setup fits the job.

FAQ

Q1: Can You Drill Holes in a Tempered Glass Shower Door?
A: No. Drilling normally releases the internal stress and breaks the panel. All holes and cutouts should be completed before tempering.

Q2: What Glass Thickness Can the ZJ125 Process?
A: Wentrica lists a processing range from 3 to 20 mm, covering many common shower-door, furniture, and architectural glass applications.

Q3: Why Are Two Drill Bits Better Than One?
A: Upper and lower bits drill from opposite surfaces. This reduces breakout pressure and helps produce cleaner hole edges.

Q4: What Hole Diameters Can the Machine Drill?
A: The standard range is 5 to 80 mm. Wentrica also lists customized options from 110 to 220 mm for larger openings.

Q5: What Should You Send Before Requesting a Machine Quote?
A: Send your glass thickness, maximum panel size, hole diameters, hole locations, daily output, voltage, required tooling, and several product drawings.
