High-precision cutting: Utilizing CNC technology and laser automatic positioning technology, the automatic glass loading and cutting machine has an accuracy error of less than 0.01 millimeters.
Intelligent control: Using PLC and variable frequency control systems, the automatic glass loading and cutting machine is fully automated and equipped with functions such as importing drawings, storing parameters, automatic monitoring, automatic layout, one-click cutting, intelligent feeding system automatic positioning, adsorbing and placing the glass.
Outstanding performance: Using imported German knife wheels, the automatic glass loading and cutting machine has high hardness, long service life, 360-degree rotation, flexible rotation, high-performance motor and rack and pinion gears to ensure smooth operation.
High safety: Equipped with knife head collision protection device and one-click start/stop function.
Using an air-floating platform, it causes no damage to the glass.
This automatic glass loading and cutting machine is an advanced fully automatic solution specifically designed for handling large glass plates. The machine is equipped with a programmable PLC control system and a user-friendly CNC interface, integrating the processes of glass mounting, mechanical flipping, and glass cutting into a seamless, fully automated process throughout.
This system is highly suitable for large-scale glass processing factories, enhancing operational safety, cutting accuracy, and overall production efficiency. Additionally, the automatic glass loading and cutting machine integrates linear and shape (irregular) cutting functions, supporting complex cutting processes.
2.Structure
Smart suction

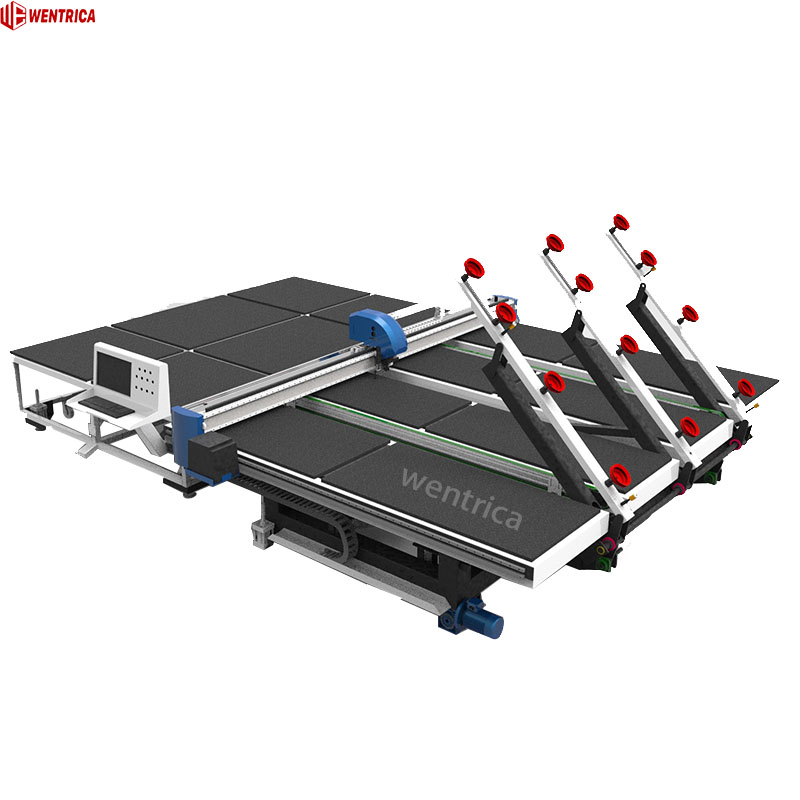

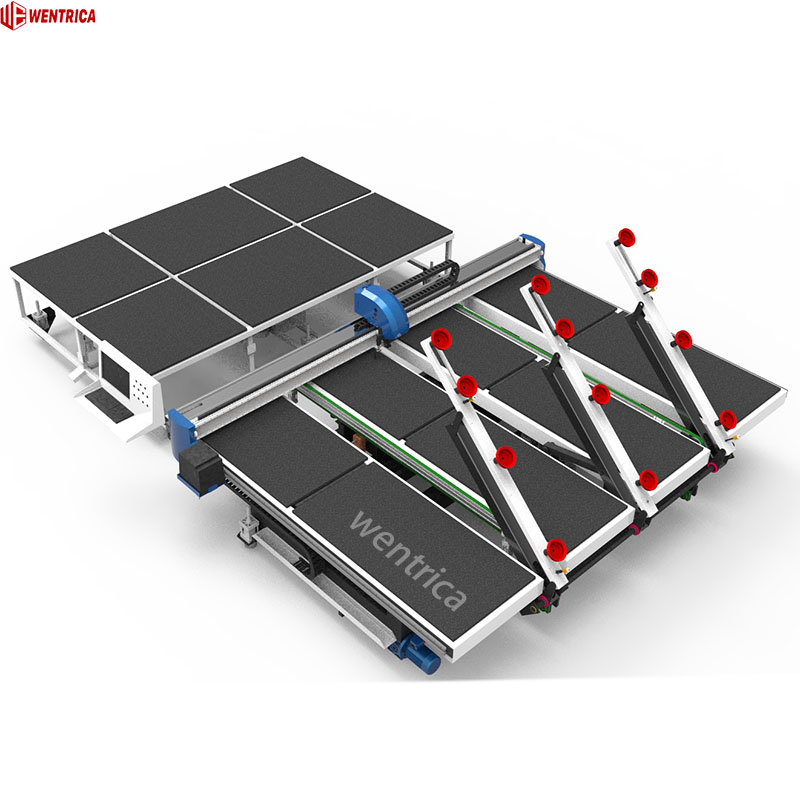

After the automatic glass loading and cutting machine is started, the device will automatically raise the suction cup arm, move and rotate to find the position and angle of the glass, and is equipped with a suction cup monitoring system. After the glass is lifted, it will automatically be raised to the cutting table, and automatically scan and cut the glass sheet.
Smart typography
In the control panel, input the size of the glass, the size of the glass to be cut, and the cutting shape. The automatic glass loading and cutting machine will automatically complete the cutting process, greatly improving work efficiency and saving time.
Air floating platform
This automatic glass loading and cutting machine is also equipped with an air-floating system. There are more than one hundred air holes evenly distributed on the cutting table to ensure the stability of the airflow. Pushing and pulling the glass is very easy.
3.Specification
Technical Parameters
YJT-2420
YJT3628
Dimensions
3630*4700*1400mm
3930*700*1400mm
Height of the Working Table
850mm
850mm
Glass Max Processing Size
2440*2000
3660*2800
Cutting Thickness
3-19mm (air pressure control)
3-19mm (air pressure control)
Cutting Speed
0-180m/min
0-180m/min
Voltage & air pressure
380V/50HZ, 0.6MPA
380V/50HZ, 0.6MPA
Loading Speed
15-40 seconds
15-40 seconds
Installed Power
11.8 KW
11.8 KW
Net Weight
3000KG
3100KG
Dimensions of the glass break off table
2500*2000mm
3800*2900mm
4.Picture display
Cutting effect demonstration
PLC fully automatic control cutting

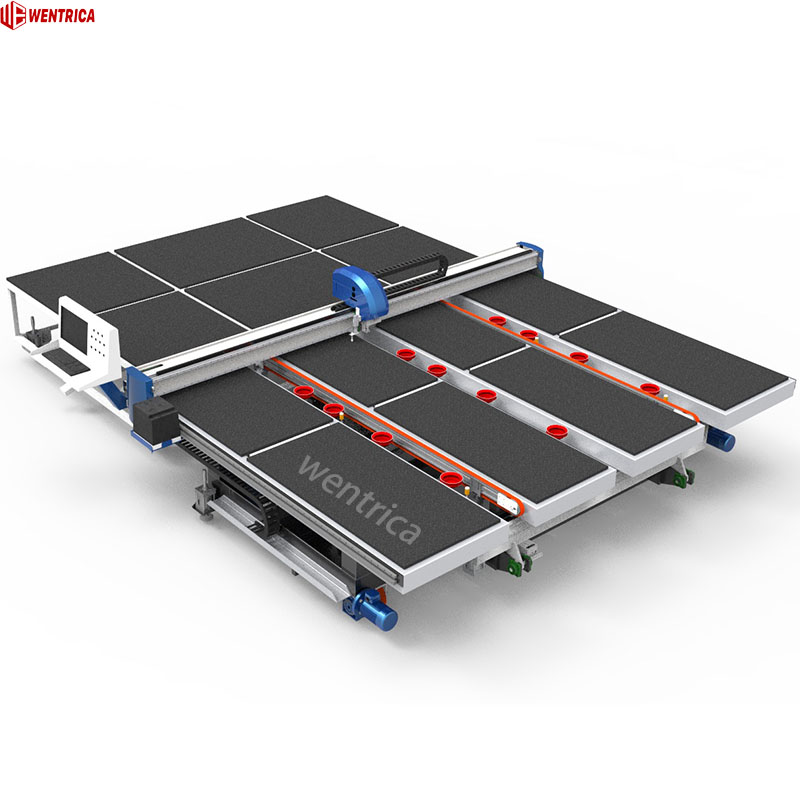

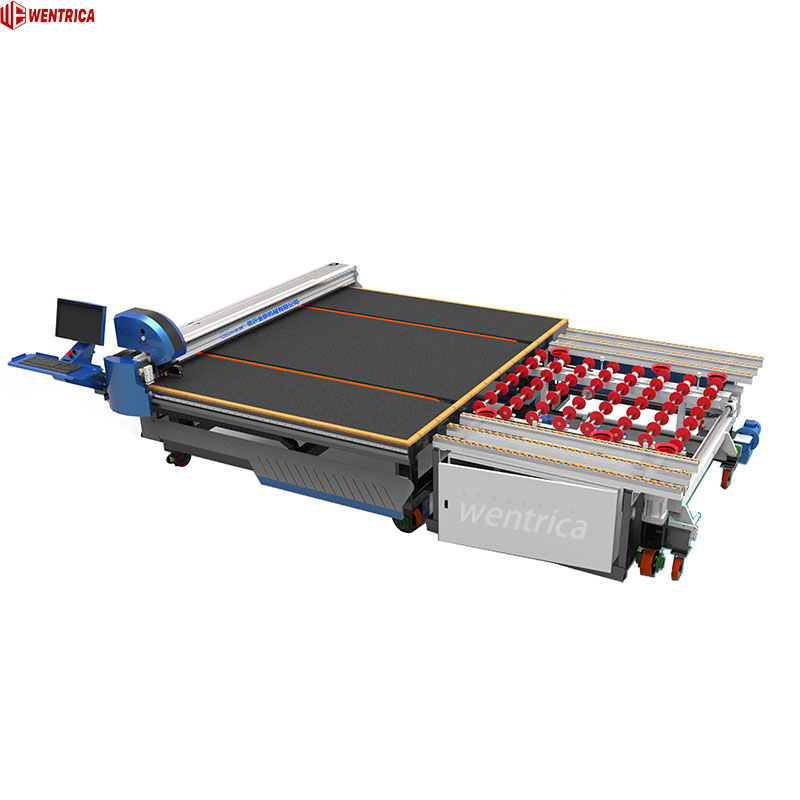

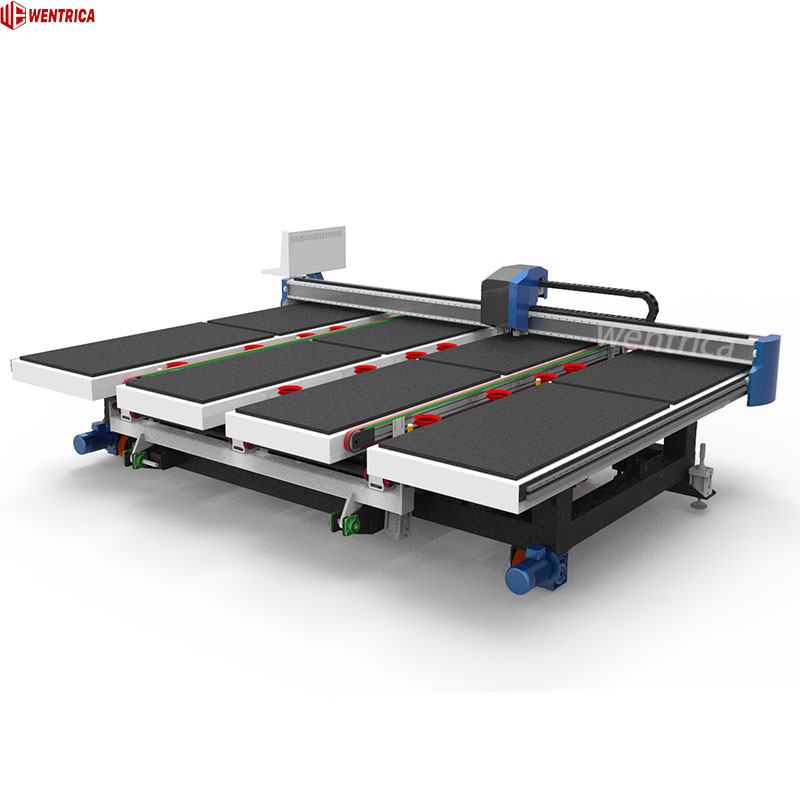

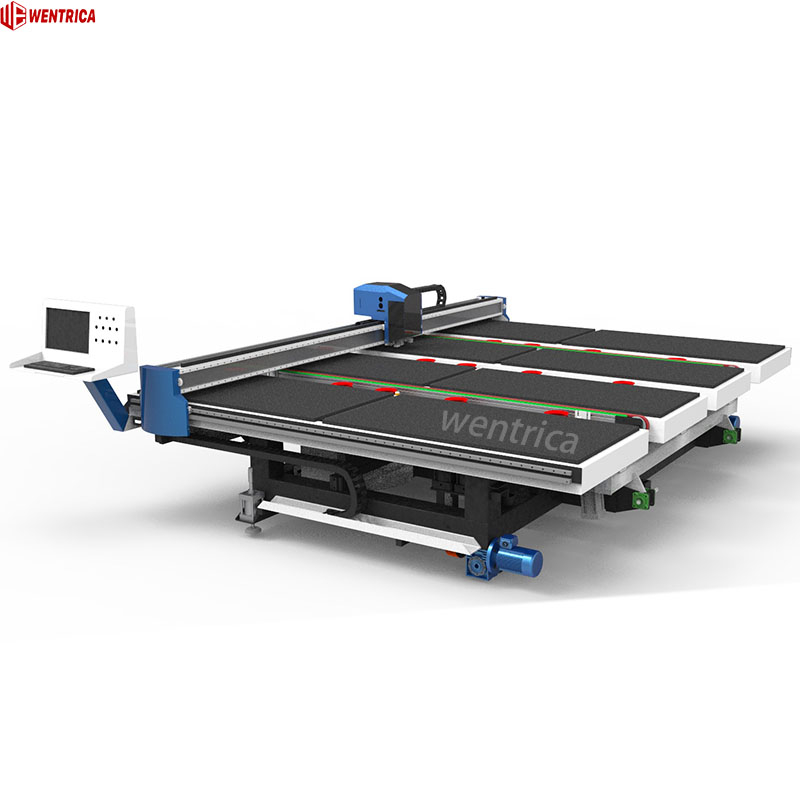

Overall machine display diagram
5.FAQ
1. What about control systems and software?
The glass loading and cutting machine include PLC-based or touch-screen control, with support for optimization algorithms and CAD import to maximize material usage and ease of operation.
2. Are these machines mobile?
Yes—The glass loading and cutting machine feature walking wheels and remote controls, allowing one machine unit to operate across multiple areas in a workshop.
