Why Does Bottom Charging And Top Exhaust Improve Argon Filling in IGU Production

Argon filling looks like a small step in IGU production, but it can decide whether the finished insulating glass performs as promised. Poor filling wastes gas, slows the line, leaves unstable concentration inside the cavity, and may affect thermal insulation, condensation control, sound reduction, and long-term sealing quality. In real factory work, the question is not only whether the machine can fill argon. The better question is how the gas enters, how air leaves, how fast the cavity reaches the target concentration, and how much gas is wasted before the unit is sealed.

Why Does Argon Filling Matter in IGU Production?

Argon is widely used in insulating glass because it is dry, inert, relatively easy to obtain, and more practical than many other inert gases for daily production. In an IGU cavity, argon helps slow heat convection and reduce thermal transfer. It can also reduce condensation risk, improve pressure balance, support sound insulation, and help protect Low-E or coated glass surfaces from faster oxidation.

Better Thermal Insulation

Compared with normal air, inert gas has higher density and lower thermal conductivity. That means heat moves through the cavity more slowly. For buyers making windows, curtain walls, sunrooms, or architectural glass, this is not just a technical note. It affects whether the final IGU can meet energy-saving expectations.

Lower Condensation Risk

Dry argon can replace humid air inside the glass cavity. A drier cavity helps the molecular sieve work longer and reduces the chance of fogging or condensation. This matters a lot in cold regions, coastal projects, and buildings with big temperature swings.

More Stable Glass Performance

When large glass panels are used, uneven pressure inside the hollow layer may cause stress problems. Argon filling helps reduce the pressure difference between inside and outside the cavity. It also helps reduce resonance, so sound insulation can improve. Small detail, yes, but factories hear complaints when this detail is not controlled well.

How Does Bottom Charging and Top Exhaust Work?

A good filling method follows a simple physical logic. Gas should enter from the lower part of the cavity, while the lighter mixed air should be pushed upward and discharged from the top. This flow path is cleaner than random side filling because the cavity gets a clear inlet and outlet route.

Bottom Charging Builds a Cleaner Gas Layer

Bottom charging sends argon into the lower part of the IGU cavity. As argon fills upward, it pushes the original air toward the exhaust point. The process is steadier, and the gas does not fight against trapped air in the same way as less controlled filling methods.

In Wentrica’s product page, the inflation section adopts a bottom charging and top exhaust mode, and non-working gas nozzles close automatically to improve gas utilization. The same page states that the design can raise inflation efficiency by 40%, reach over 90% inert gas concentration, and save 30% energy for argon filling.

Top Exhaust Gives Air a Direct Exit

Top exhaust is important because air must leave the cavity before argon concentration can rise. If air remains trapped, the machine may keep filling, but the final gas concentration still falls short. That means longer filling time, more gas cost, and more rework risk.

Automatic Nozzle Closing Reduces Waste

Gas waste is a hidden cost. It does not always appear in the machine quotation, but it appears every month in production. When nozzles in non-working areas close automatically, the machine avoids filling empty or unused sections. This is especially useful when your factory handles different IGU sizes in one shift.

What Factory Problems Does This Filling Method Solve?

Buyers usually care about three things: stable quality, faster production, and lower operating cost. Bottom charging with top exhaust speaks to all three. It is not a decoration on the brochure. It is a process design that affects daily output.

Low Argon Concentration

If the cavity cannot reach enough argon concentration, the finished IGU may not deliver the expected thermal result. The product page states that the line supports inert gases such as argon and nitrogen with gas purity of at least 99%, while the gas concentration can reach over 90% during filling.

Long Filling Time

Slow filling makes the press section a bottleneck. Wentrica’s IG line proposal states that its pressing machine adopts bottom gas filling, opens corresponding filling holes according to glass size, and can achieve more than 90% gas filling rate. For 1㎡ glass, the filling time is listed as 7 to 8 seconds.

Pressure and Seal Issues

During pressing and gas filling, pressure balance matters. If pressure changes too sharply, the glass cavity may suffer stress. The IG line proposal also notes that the pressing section can discharge gas inside the cavity instantly to reduce pressure difference between inside and outside the insulating glass, which gives more advantage when producing TPE and TPSS glass.

Which Equipment Features Support Better Argon Filling?

Argon filling does not work alone. Washing, drying, assembly, pressing, sealing, air control, and conveyor stability all affect the final result. A line with good gas filling but poor cleaning or weak pressing accuracy still creates problems.

Vertical CNC Design and PLC Control

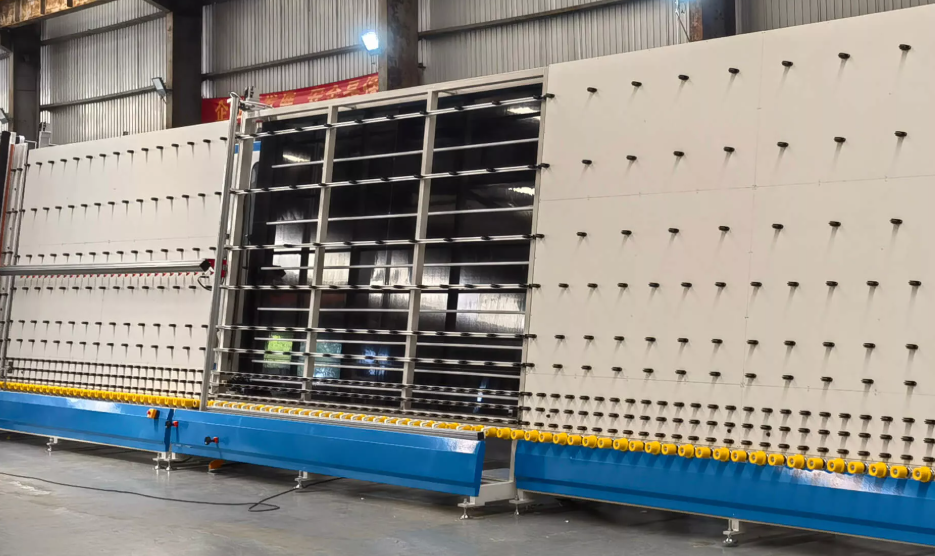

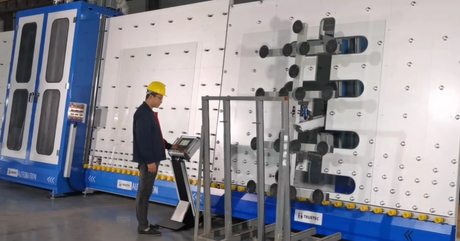

The Automatic Vertical Cnc Insulating Glass Production Line with Gas Filling Function for Efficient IGU Manufacturing uses a vertical CNC design and PLC control system for automatic IGU production. Its product page describes the process from glass feeding, inspection, cleaning, drying, aluminum frame assembly, lamination, pressing, and gas filling. It is designed for insulating glass, Low-E glass, gas-filled IGU, and curtain wall window structures.

For a buyer, this means the gas filling function is not an isolated add-on. It is part of a complete vertical line. Less manual handling. More repeatable operation. Also, the vertical layout saves space, which matters when your workshop is already crowded with cutting, edging, washing, and sealing equipment.

Soft Brush Cleaning for Low-E Glass

Low-E glass is sensitive. If the coating is scratched before assembly, the finished IGU may look fine at first but fail inspection under proper light. The product page mentions coating monitoring in the feeding section and a soft brush system in the cleaning section for zero-damage processing. It also says the cleaning machine uses three sets of soft brushes and pure water spray.

The IG proposal gives more detail: the washing machine uses three customized brush sets with soft brush diameter around 0.08 to 0.12 mm, designed to protect Low-E glass during washing. It also lists a water treatment system with backwash and water heating functions.

Pressing Accuracy and Stable Glass Transport

The IG proposal lists a matching accuracy of ±0.5 mm with 1m x 1m double glass testing, single glass thickness of 3 to 15 mm, IG unit thickness of 12 to 75 mm, and max IG unit size of 2700 x 3500 mm. The line also uses frequency conversion speed regulation and manual forward or backward transfer on transition conveyors.

This matters because argon filling needs a stable cavity. If glass position shifts, spacer alignment and pressing quality may suffer. If pressing is uneven, the seal can become a weak point. The production line’s double belt transport and telescopic structure also help keep middle glass from slipping during triple and quadruple IG unit production.

Why Should Buyers Look Beyond the Gas Filling Function?

When choosing an IGU line, do not judge only by one number. A high gas concentration looks good, but the whole process must support it. Your line also needs clean washing, stable transport, accurate pressing, safe operation, and practical after-sales support.

Check Output and Size Range

The product FAQ states that production capacity is around 60 to 90 pieces per hour, depending on process and size. It also states that the CNC insulating glass production line can produce glass from 200 mm to 3000 mm and thicknesses from 3 mm to 19 mm, with customized size ranges available.

If your orders include small residential IGUs, large curtain wall panels, and Low-E glass, this size flexibility is useful. But the final setup should match your daily order mix, not just the largest size on paper.

Check Supplier Support and Custom Planning

Wentrica focuses on glass deep processing equipment and one-stop solutions for glass processing and window and door industries. Its website lists product categories such as insulating glass equipment, glass washing and drying machines, glass cutting machines, glass edging machines, glass tempering furnaces, glass handling systems, and storage systems.

According to the company profile, Qingdao Wentrica was founded in September 2014 and works in the design, production, and export of equipment for glass deep processing and window and door industries. The company profile also mentions ISO9001 certification, invention patents, CE certifications, and an in-house CNC machining workshop.

Check Factory Fit Before Ordering

The IG proposal lists line dimension as 24.1 m x 4.3 m x 4.0 m, power as AC380V 50Hz around 65 kW, transmission height of 500 to 550 mm, washing speed of 0 to 10 m/min, and transmission speed of 0 to 50 m/min.

Those numbers should be checked against your workshop floor, power supply, air source, water treatment plan, storage area, and upstream and downstream equipment. A line can be excellent, but if the layout is wrong, operators will still lose time walking around glass racks. It happens more often than people admit.

For project discussion, Wentrica also provides factory information and a contact page, which is useful when you need layout review, model selection, or a customized configuration before placing an order.

FAQ

Q1: Why is bottom charging better for argon filling in IGU production?
A: Bottom charging lets argon enter from the lower part of the cavity and push air upward. When top exhaust is used together, air has a direct exit path, so gas concentration rises faster and waste is reduced.

Q2: What argon concentration should an IGU production line reach?
A: For many factory applications, over 90% inert gas concentration is a practical target. The Wentrica product page states that its bottom seal and top exhaust design can reach over 90% inert gas concentration.

Q3: Does argon filling improve insulation only?
A: No. Argon can help thermal insulation, reduce condensation risk, improve pressure balance, reduce resonance, support sound insulation, and protect Low-E coating from faster oxidation.

Q4: Is this line suitable for Low-E glass?
A: Yes. The line includes coating monitoring and soft brush cleaning. The IG proposal also notes soft brushes around 0.08 to 0.12 mm, which are designed to protect Low-E glass during washing.

Q5: What should buyers confirm before ordering an IGU line with gas filling?
A: Check glass size range, IG unit thickness, gas concentration, filling time, output per hour, workshop layout, power supply, air source, water treatment, installation support, and whether the supplier can adjust the configuration for your actual production mix.
