For large glass processing factories, reliability is not only about cutting fast. It is about stable size control, fewer broken sheets, less rework, safer loading, and a workflow that does not depend too much on one skilled worker. Manual cutting can still handle small special-shaped jobs, but when shapes, sizes, and batch orders keep changing, manual work often needs molds, repeated checks, and extra handling. That takes time, and honestly, it also wears people out. Semi-automatic machines improve labor efficiency, yet CNC glass cutting goes further because the cutting path, layout, feeding, and positioning can be handled through software and controlled motion.
Why Does Reliability Matter More Than Speed Alone?
A glass factory can buy a fast machine and still lose money if the cuts are unstable. A small diagonal error may cause trouble in edging, tempering, insulating glass assembly, or window and door production. Large factories care about output, but they care even more about repeatable output.
Stable Cutting Comes From Controlled Motion
CNC glass cutting uses computer control, mechanical positioning, and a cutter head system to reduce guesswork. In fully automatic cutting, the operator can set the required square, round, or special-shaped glass through software, so there is no need to make a mold before each special shape job. This is a big change for factories that handle mixed orders every day.
This is where Wentrica fits into the purchasing discussion. The company focuses on glass deep processing and window and door machinery, offering glass cutting, edging, washing, insulating glass, handling, and storage solutions for production lines. Its official site also presents all-in-one glass processing solutions for different application needs.
How Does CNC Glass Cutting Reduce Human Error?
The biggest hidden cost in glass cutting is not always the machine price. It is the sheet lost from wrong positioning, poor layout, missed oiling, unstable pressure, or careless handling. Some of these mistakes look small at first. After one month, the waste pile tells the truth.
Automatic Layout Helps Save Raw Glass
Before cutting, fully automatic glass cutting needs layout work. Good layout puts more required pieces onto the original sheet, improving raw material use while keeping the operation simple enough for workers on-site. Mechanical interactive layout is often used because the operator can match the work order and cutting plan directly.
Large sheets are not always placed perfectly. A worker may set the glass slightly skewed, especially when the sheet is heavy or the shift is busy. Automatic edge finding helps detect the actual position and deflection angle of the glass. That means the cutting path can match the real sheet position, not only the planned table position. For large factories, this matters a lot during repeated 2440 mm, 3050 mm, 3300 mm, or 3660 mm glass work.
Where Does the Integrated Loading System Help Most?
A separate loading table, cutting table, and breaking table can work. Many factories use that setup. But every transfer adds risk. Glass can shift, scratch, crack, or require more people to move it. Integrated loading and cutting makes the process shorter.
Less Handling Means Fewer Breakage Points

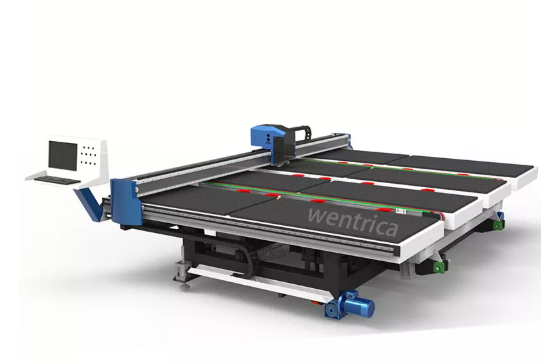

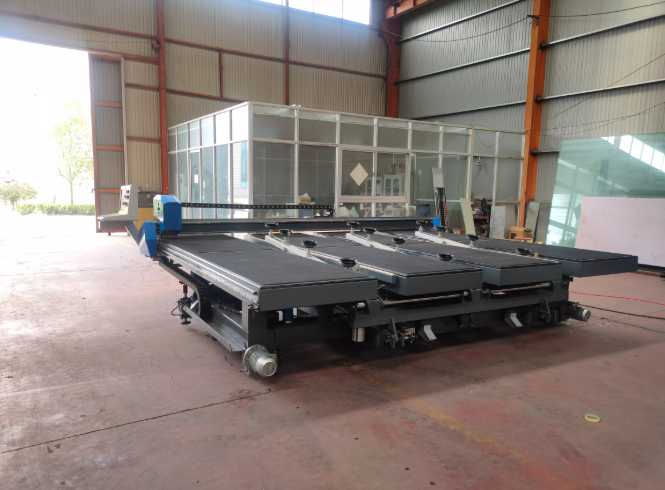

The machine data from the knowledge base shows a practical direction: loading, cutting, and breaking can be arranged on the same table to save floor area. It also mentions automatic loading through a telescopic boom structure, three loading arms, suction cups, air flotation holes, and remote-control movement in the workshop. These details are not fancy words. They solve daily problems: heavy glass, limited space, and tired operators.
The product page also notes that the integrated machine uses an air-floating platform, which helps move glass without damaging the sheet surface. For flat glass processing, this is useful because small scratches may become serious defects after coating, tempering, laminating, or insulating glass assembly.
What Specifications Should Buyers Check Before Ordering?
When you compare CNC glass cutting machines, do not only ask for automatic or high speed. Those words are too broad. Ask for numbers. Ask how the machine behaves after one month of daily cutting, not just during a short factory test.
Key Parameters Worth Checking
For a large glass processing factory, these points deserve close review:
lCutting accuracy and diagonal accuracy
lMaximum glass size
lGlass thickness range
lCutting speed range
lCutter head rotation
lAutomatic oil filling
lAir-floating table stability
lLoading arm and suction cup layout
lFault alarm and monitoring functions
lAfter-sales support and spare parts response
In the uploaded product data, one CNC cutting machine example lists 3 to 19 mm glass thickness, 0 to 180 m/min cutting speed, pneumatic automatic oil filling, 360-degree cutter head rotation, automatic fault diagnosis, automatic edge finding, and cutting pressure controlled by a precision pressure valve. It also lists straight line parallelism not more than +/-0.25 mm/m and diagonal accuracy not more than +/-0.30 mm/m.
Wentrica's company profile states that the company was founded in September 2014 and works in the design, production, and export of glass deep processing and window and door equipment. It also states that the factory is ISO9001 certified, holds multiple invention patents and CE certifications, and has a dedicated CNC machining workshop.
How Does Maintenance Keep CNC Cutting Quality Stable?
A reliable machine still needs correct daily use. This is the part some factories ignore until the cutting line becomes unclear or the diagonal size changes. Maintenance is boring, yes, but it is cheaper than broken glass and stopped orders.
Daily Checks Are Not Optional
The knowledge base gives several useful maintenance points. The glass cutting machine should be operated by trained full-time personnel. Guide rails and gears should be cleaned and oiled each shift. After shutdown, data should be saved before turning off the computer and power. Moving parts should be checked for abnormal sound. Clean compressed air should be used to protect air path components, and the power supply should be grounded.
There is also a small installation detail worth noting. When forming a line with a loader and a flipper, the cutting machine should be 2 to 5 mm lower than the loader and 2 to 5 mm higher than the breaking machine. It sounds minor, but small height errors can affect glass transfer and make the line less smooth.
For factories planning a full line, the Wentrica factory information and equipment categories can help buyers check whether cutting, handling, storage, edging, and insulating glass equipment can be matched under one supply plan. That is often easier than mixing too many unrelated machines from different sources.
When Is This Machine a Better Fit for Your Factory?
Not every workshop needs a high-automation CNC cutting line. A small shop that cuts simple pieces occasionally may not need this level of equipment. But if you process flat glass every day, handle many sizes, and want less dependence on manual loading, then an integrated CNC system becomes more sensible.
Best Fit Applications
This kind of machine is usually more suitable for:
lArchitectural glass processing
lDoor and window glass production
lFurniture glass cutting
lInsulating glass pre-processing
lLarge flat glass batch cutting
lMixed-size orders with frequent layout changes
lFactories trying to reduce manual lifting
The real value is not one single feature. It is the combination of CNC cutting, servo control, automatic loading, suction placement, air floating, automatic layout, one-click cutting, and safety protection. The product page states that the machine uses imported German knife wheels, 360-degree flexible rotation, high-performance motor and rack-and-pinion gears, knife head collision protection, and one-click start/stop.
If you need to check configuration, layout, or line matching, you can contact Wentrica with glass size, thickness range, daily output target, factory space, and current process flow. These details help the supplier judge whether an integrated loading and cutting machine is enough, or whether you also need storage, breaking, edging, or washing equipment in the same plan.
FAQ
Q1: Why Is CNC Glass Cutting More Reliable Than Manual Cutting?
A: CNC glass cutting uses software control, mechanical positioning, automatic layout, and controlled cutter movement. It reduces the need for molds, lowers manual judgment errors, and keeps size results more stable during batch production.
Q2: What Accuracy Can the Wentrica Integrated Machine Reach?
A: The product page states that the automatic glass loading and cutting machine uses CNC and laser automatic positioning technology, with a cutting accuracy error of less than 0.01 mm.
Q3: Is an Air-Floating Platform Really Useful?
A: Yes. Air flotation helps move glass across the table with less surface friction. This reduces the chance of scratches and makes large sheets easier to position before cutting.
Q4: What Glass Thickness Can This Type of CNC Cutting Machine Handle?
A: The uploaded technical data lists a CNC cutting machine thickness range of 3 to 19 mm, which covers many common flat glass processing needs.
Q5: How Should You Choose a CNC Glass Cutting Machine Supplier?
A: Check product parameters, factory capability, certifications, CNC machining support, spare parts response, and whether the supplier can match the machine with loading, breaking, edging, washing, or storage equipment. Wentrica states that it provides one-stop solutions for glass deep processing and window and door equipment.
