How Can Heat-Treated Beams Prevent Glass Edging Errors and Costly Rework?

A polished bevel may look simple, but its quality depends on the machine holding one stable reference line from entry to exit. When the front beam, rear beam, column, or base shifts under load, the grinding heads no longer meet the glass at a consistent position. The result may be an uneven bevel, changing residual edge thickness, poor polish, or a bottom edge that drifts along the sheet. Operators often try to correct these defects by adjusting wheels and pressure. That may hide the problem for a while, but it does not fix an unstable machine structure.

The beam is therefore more than a large steel part. It carries the clamping, guiding, and grinding relationship that controls the finished edge. A heat-treated and accurately machined beam holds this relationship more reliably during long production runs.

Wentrica supplies equipment for glass deep processing and window and door production. Founded in 2014, the company has an ISO 9001-certified factory, CE-certified equipment, invention patents, and an in-house CNC machining workshop. Its company profile also describes support for factory planning, machine selection, equipment design, and customized production solutions.

Why Does the Machine Beam Affect Glass Edging Quality?

A straight-line beveling machine moves glass past several grinding and polishing wheels. The glass, conveyor, pressure pads, guide surfaces, and spindle positions must stay aligned throughout this path. If one structural reference changes, every later wheel receives a slightly different edge.

The Beam Defines the Grinding Reference

The front and rear beams support the pressure system that clamps and transports the glass. They also influence the relative position between the glass edge and each grinding wheel.

A small change in beam straightness can cause:

l An inconsistent bevel width

l Uneven residual edge thickness

l A bevel angle that changes from one end to the other

l Local overgrinding

l Poor contact between the glass and polishing wheels

These errors become easier to see on wide decorative bevels. A narrow arris may hide a small deviation. A 40 mm bevel will not. Light reflects across the full surface and makes changes in width or polish quite obvious.

Small Deflection Becomes a Larger Finishing Error

Rough grinding removes material quickly, while resin wheels refine the bevel and felt wheels create the final brightness. If the beam allows movement, the roughing wheels may remove too much glass in one area. The later wheels cannot always correct it.

This creates a familiar production issue: the edge feels smooth, yet the reflected line looks wavy. The glass may then need a second pass. Sometimes it must be scrapped.

Rework Is More Than Extra Grinding Time

Rework uses additional labor, water, polishing material, electricity, and wheel life. It may also delay tempering, laminating, assembly, or delivery.

There is another less obvious cost. Repeated processing can change the target size of the glass. If the edge has already lost too much material, polishing it again will not restore the original dimensions. That sheet is done, basically.

How Does Heat Treatment Stabilize a Glass Beveling Machine?

Machine frames contain stress from welding, casting, cutting, and cooling. This stress may not create an immediate visible defect. It can appear later as slight bending, twisting, or position drift after the machine has been installed and used.

Heat treatment is applied before final precision machining so the structure becomes more stable. It should be part of a larger manufacturing process, not treated as a single marketing term.

Heat Treatment Reduces Internal Structural Stress

Welded structural parts heat and cool at different rates during manufacturing. This leaves residual stress inside the material. Heavy grinding loads, motor vibration, transportation, and workshop temperature changes may gradually release part of that stress.

When the frame moves after assembly, spindle alignment and guide clearance can change with it.

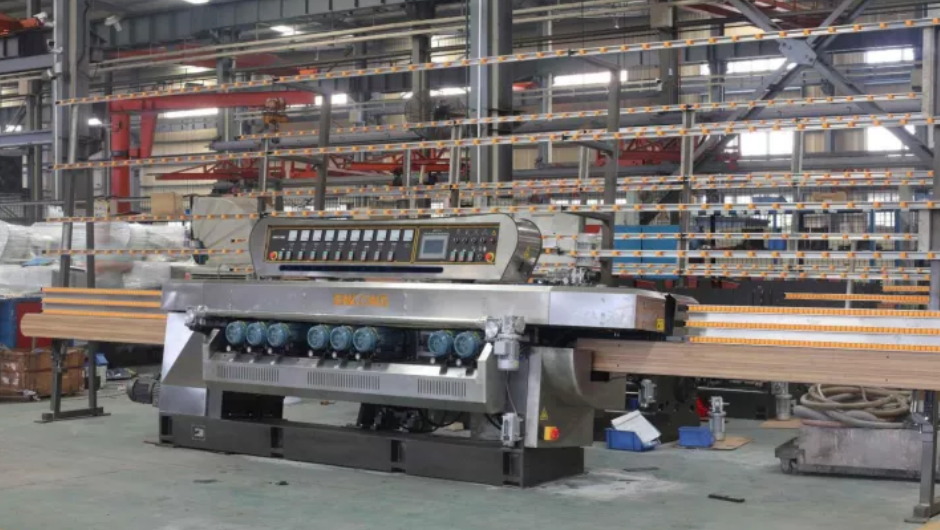

The Glass Straight-line Beveling Machines use reinforced front and rear casting beams, columns, and bases that undergo secondary heat treatment. The product documentation states that this treatment strengthens the structural parts and improves machine durability.

A Stable Frame Holds Alignment Longer

Heat treatment does not make a machine perfectly rigid. Nothing does. It does, however, reduce the chance that stored stress will slowly change the geometry after final assembly.

A more stable frame helps the machine maintain:

l Parallel front and rear conveying references

l Consistent pressure-pad clearance

l Correct spindle-to-glass positioning

l Stable bevel angle adjustment

l Repeatable wheel contact

This matters when you process the same glass thickness for several hours. The first sheet and the last sheet should not require different settings just because the machine has warmed up.

Final CNC Machining Controls Cumulative Tolerance

Heat treatment alone is not enough. The beam, base, and connecting surfaces still need accurate machining after structural stabilization.

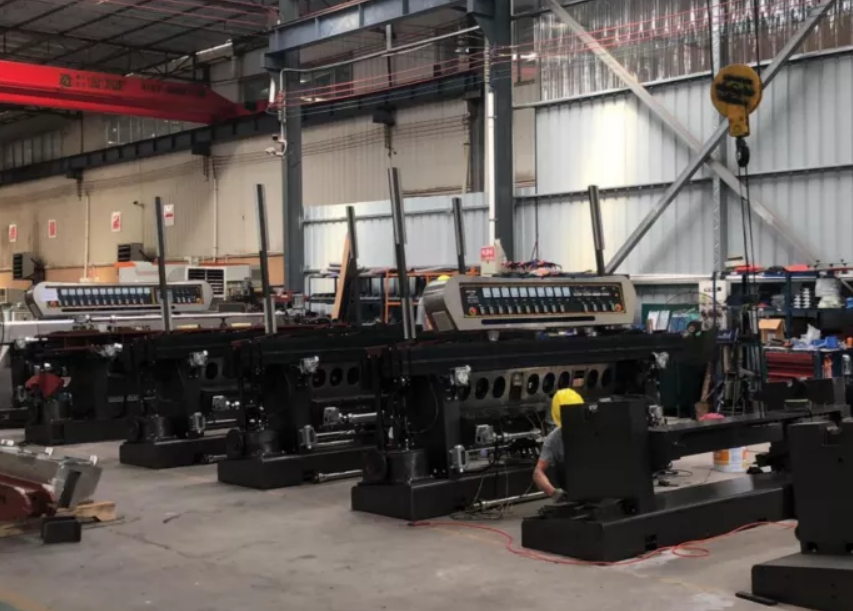

Wentrica uses a CNC gantry machining center to process large machine parts. According to the product page, precise tool paths and cutting parameters reduce cumulative assembly tolerance and improve edging accuracy. Reinforced beams also receive grinding, milling, drilling, painting, and an anti-rust coating before assembly.

The sequence matters:

l Build the structural part.

l Apply heat treatment.

l Allow the structure to stabilize.

l Machine the reference surfaces.

l Assemble and align the conveying and grinding systems.

Machining a stressed frame first and treating it later could change the finished reference surfaces.

Which Machine Parts Must Work with the Heat-Treated Beam?

A stable beam provides the foundation, but it cannot compensate for loose screws, uneven belts, blocked cooling pipes, or incorrect clamping pressure. Good edge quality comes from several systems working together.

Dual-Screw Bevel Adjustment Limits Vibration

The XM351, XM351A, and XM371 use a dual-screw mechanism to adjust and swing the bevel angle. Two screws support smoother movement and better load distribution than a loose single-point arrangement.

This design reduces frame vibration during angle changes and helps the grinding heads maintain a consistent position. It is especially useful when production moves between different glass thicknesses or bevel specifications.

Reinforced Beams Support the Clamping Path

The beveling machine beams use a reinforcement design to resist deformation. Triple metal strips add support to the beam clamping structure, while brush devices help remove debris from the rear pads.

That brush may look like a minor detail. It is not. Glass powder trapped near a pressure pad can alter clearance, disturb feeding, or mark the surface. Keeping the pad area clean supports stable grinding and extends component life.

Timing Belts Keep Glass Movement Consistent

The input and output conveyors use timing belts rather than relying on less controlled chain movement. The belts provide steady feeding and reduce relative sliding between the glass and conveying surface.

Knowledge-base guidance on horizontal beveling machines also notes that timing-belt conveying improves edging precision. Proper belt friction helps maintain the grinding line, while a matching belt on the support platform lowers the risk of surface scratches.
A suspended rail structure supports the bottom grinding wheel. This arrangement helps reduce tension and vibration around the bottom-wheel base, which is important when beveling and pencil-edge grinding happen in one pass.

How Do the XM351, XM351A, and XM371 Reduce Rework?

These three models are designed to complete rough beveling, fine grinding, polishing, and bottom-edge grinding in one continuous operation. Keeping these stages in one controlled pass reduces repeated handling and makes the edge easier to reproduce.

Each Model Serves a Different Production Need

The model choice should follow your glass size, required angle, finish standard, and expected output.

l XM351: Nine spindles, 120 × 120 mm minimum glass size, 3° to 30° bevel range, and up to 40 mm bevel width.

l XM351A: Nine spindles, a lifting rear beam, 30 × 30 mm minimum glass size, and a 3° to 45° bevel range. It suits mosaic glass, inlay glass, craft glass, and small mirror pieces.

l XM371: Eleven spindles, 120 × 120 mm minimum glass size, a 3° to 45° bevel range, and more grinding stages for a refined finish.

All three models process glass from 3 to 19 mm thick. Their listed speed range reaches up to 6 m/min in the main parameter table, though the detailed spindle table lists a lower maximum. Buyers should confirm the configured operating range before ordering. This small check prevents a rather large argument after installation.

More Grinding Stages Can Improve Surface Consistency

The XM351 and XM351A use nine wheels. Their arrangement includes diamond wheels for rough beveling, a bottom-edge wheel, resin wheels for fine grinding, and three wool felt wheels for polishing.

The XM371 adds more diamond and resin stages, giving it eleven spindles in total. Its finer resin-wheel sequence prepares the bevel before the final polishing stage. This makes the model suitable when finish consistency matters more than choosing the lowest installed power.

Three wool felt wheels work with cerium oxide to produce a bright bevel surface. The machine uses separate water tanks, with clear water serving the grinding stages and a second circuit supplying the polishing wheels. Separating these circuits helps keep abrasive residue away from the final polishing stage.

How Can You Protect Machine Accuracy After Installation?

A good beam can still lose accuracy if the machine receives poor daily care. Maintenance should protect the guide surfaces, clamping system, cooling circuit, and grinding-wheel position.

Lubricate the Moving Parts on Schedule

The mechanical feeding parts include a lubrication system. Guide and pressure surfaces need regular lubrication because premature wear can change the movement of the front and rear pressure plates.

The knowledge base recommends checking lubrication lines even when a machine has automatic lubrication. A blocked line may look harmless until wear begins to affect conveying and grinding quality.

Keep Clamping Force Firm but Not Excessive

Loose clamping allows the glass to shift during grinding. Excessive force increases the machine load, creates vibration, and may break thin glass.

A practical stopped-machine test uses a larger sheet clamped near the middle. The force is suitable when the glass cannot be moved by hand, but the pressure should not be pushed far beyond that point.

Check Cooling and Polishing Water

Blocked cooling pipes reduce water flow to the wheels. Heat then builds at the contact point, affecting wheel life and edge finish. Cooling pipes on linear edging equipment should be checked often because brush fibers and grinding residue can create hidden blockage.

The polishing circuit also needs attention. Wool and used cerium oxide gradually contaminate the coolant. Replacing it on a planned schedule helps maintain bevel brightness.

Is a Heat-Treated Beam Worth the Investment?

Yes, especially when you produce wide bevels, small decorative pieces, repeated batches, or glass that will move into tempering and assembly. A heat-treated beam lowers the risk of structural movement, but the full value comes from accurate CNC machining, reinforced construction, controlled conveying, stable angle adjustment, and proper maintenance.

You should ask the supplier how the beam is made, when heat treatment occurs, how reference surfaces are machined, and how the assembled machine is tested. A low purchase price loses its appeal quickly when operators spend each shift correcting angle drift or polishing rejected glass.

You can review Wentrica’s production scope through its factory information or contact Wentrica to confirm model configuration, glass samples, electrical requirements, wheel layout, training, and installation support. The factory provides one-stop solutions for the design, production, and export of glass deep-processing equipment.

FAQ

Q1: What Is the Main Purpose of Heat-Treating a Machine Beam?
A: Heat treatment reduces residual structural stress and helps the beam maintain its geometry after machining, transport, installation, and repeated production.

Q2: Can a Heat-Treated Beam Completely Prevent Glass Edging Errors?
A: No. It provides a stable base, but wheel condition, clamping force, belt alignment, cooling, lubrication, and operator settings still affect the finished bevel.

Q3: Which Model Is Better for Small Mosaic Glass?
A: The Wentrica XM351A is designed for glass as small as 30 × 30 mm. Its adjustable rear beam also supports small-piece processing and easier maintenance access.

Q4: Why Are Three Wool Felt Wheels Used for Bevel Polishing?
A: Multiple felt wheels apply polishing in stages. When used with cerium oxide, they help produce a brighter and more even bevel surface.

Q5: What Should You Confirm Before Ordering a Glass Beveling Machine?
A: Confirm the minimum glass size, thickness range, bevel angle, bevel width, spindle arrangement, actual processing speed, voltage, installed power, water system, training, and after-sales support. Wentrica can also review your sample glass and production needs before model selection.
