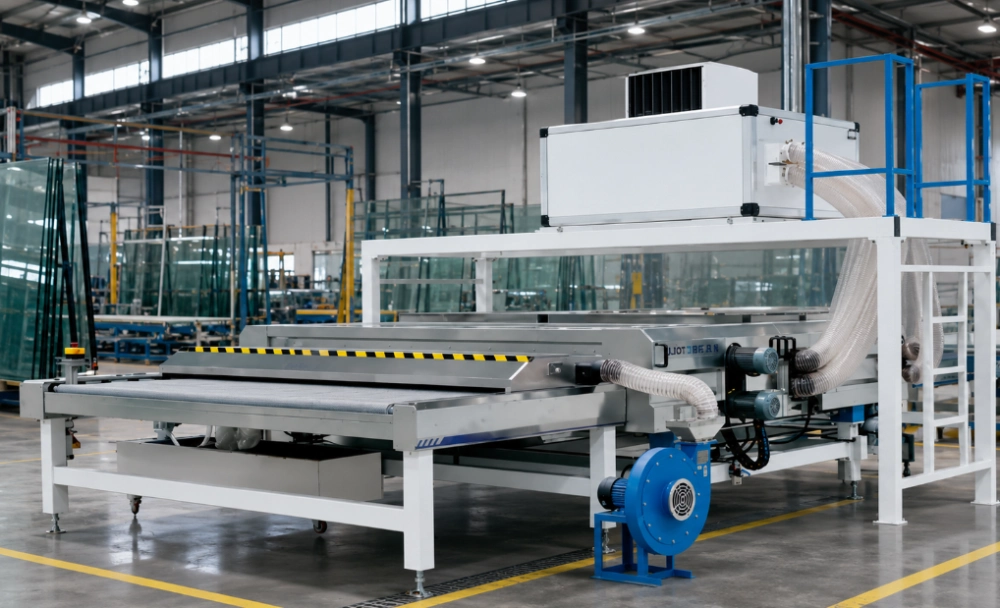

Rinse-water contamination leaves mineral or organic residue, while an uneven air knife redistributes the remaining film into streaks, edge water, and drying marks. A glass washing line can leave a sheet visually bright and still create problems for coating, insulating-glass assembly, printing, or storage. Water quality, brush contact, conveyor support, drying air, and handling all influence the result. Streaks may come from mineral residue, while edge water can remain after the center looks dry.
Large glass sheets make the problem more visible because a small setup difference repeats across a wide surface. The washing machine should therefore be commissioned with the actual glass families, coatings, sizes, speed, rinse water, and downstream process rather than with one easy clear sheet.
Start With the Water That Touches the Glass
Water hardness, conductivity, particles, temperature, detergent, and rinse quality affect drying marks. A final rinse with high dissolved solids can leave a film when the water evaporates. Test water at the machine inlet and final rinse point. Record filter condition, circulation, replacement interval, and any treatment used by the plant. Trend conductivity or total dissolved solids at the final rinse, not only at the incoming supply.
Separate Cleaning From Rinsing
The cleaning stage removes oil, dust, fingerprints, and processing residue. The rinse stage removes cleaning chemistry and loose material. If the rinse is weak, the dryer may spread or set the residue rather than remove it. If the cleaning brush pressure is too high, it can create scratches or damage a coating that the rinse cannot correct.
Water temperature changes viscosity, drying, and the behavior of oils. It also changes the risk of thermal shock for certain glass conditions. Use the approved temperature and chemical concentration, then monitor the real values during a shift. A digital setting is not proof of the water temperature at the brush or nozzle.
Set Brush Contact for the Glass Family
Brush type, pressure, speed, rotation, and water flow should match thickness, coating, surface contamination, and edge condition. A brush that cleans one family well may mark another. Check brush wear and contamination because particles trapped in the brush can turn the cleaning stage into a repeated scratch source.
Support rollers and belts must keep the sheet stable without trapping grit. Inspect the leading and trailing edges, where water and contaminants can behave differently. A glass washing machine should be tested with large and small sheets, thin and thick glass, and the coated orientation used in production.
Use the Air Knife to Remove Water Without Spreading It
An air knife works through air velocity, angle, gap, nozzle condition, and sheet speed. Too little air leaves a wet edge or droplets behind. Too much or poorly aimed air can move water from one area to another, create mist, or make a thin sheet unstable. Measure the effective drying result across the width rather than judging the center only. Record knife gap, angle, standoff, pressure or flow, nozzle cleanliness, glass speed, and overlap across the full width.
Edge Water Needs Its Own Check
Glass edges, corners, holes, and notches can retain water after the main face is dry. Downstream sealant or spacer material can reject a wet edge and cause assembly defects. Inspect the first sheet after start-up, the sheet after a speed change, and the last sheet before a planned stop. Record air-knife pressure, angle, and the condition of nozzles.
Review the Horizontal Washing Machine as a Line

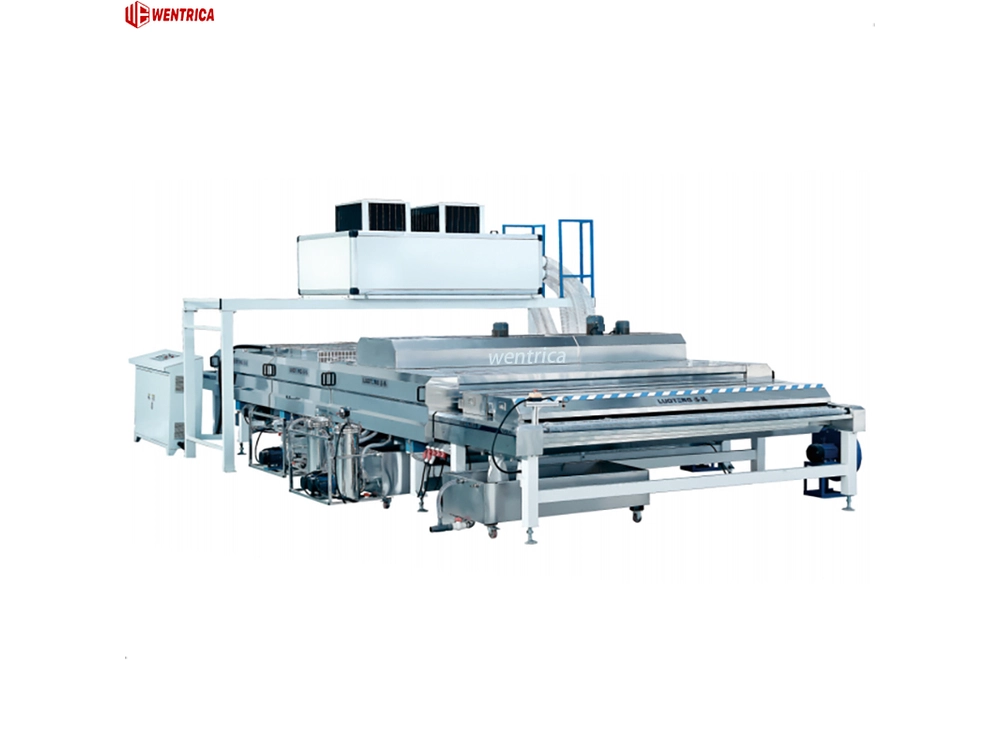

The High-Efficiency Horizontal Glass Washing Machine for Large Glass Sheets and Fast Drying can be assessed for large-sheet cleaning where brush stages, rinse water, horizontal support, drying, and handling must remain synchronized. Confirm working size, thickness range, speed, brush material, water system, air knife, inspection access, and downstream interface.
Wentrica's glass washing and drying machine range can support equipment comparisons. A useful factory test uses production glass, actual water, representative contamination, target speed, and the next process. Record visible marks, contact angle where relevant, edge moisture, scratches, cycle time, and rewash rate.
Commission With a Defect Classification
Do not record every failure as dirty glass. Separate mineral spots, detergent film, oil, brush scratches, edge droplets, fingerprints after handling, coating damage, breakage, and conveyor marks. Each category points to a different adjustment. Keep the glass lot, machine settings, water condition, brush age, and operator shift with the record.
The maintenance plan should include water filter and tank cleaning, brush inspection, nozzle inspection, air supply, rollers, belts, sensors, and drying chamber cleanliness. A stable result depends on these details after the installation team leaves. Store an approved clean sheet or photographic reference for comparison.
Use a Release Test After Washing
A clean sheet can still fail downstream when sealant, coating, printing ink, or spacer material does not wet the surface consistently. After washing and drying, inspect contact angle or the chosen surface-energy indicator, then test the next process on the same glass. This connects washing results with actual assembly performance instead of relying on visual brightness. Inspect under standardized side lighting and, for coated or process-critical glass, add a water-break, contact-angle, particle, or surface-residue test appropriate to the next operation.
Line speed should be tested at startup, normal operation, and the highest planned rate. Brush contact and air-knife residence time change with speed. Record rewash percentage and the position of defects across the sheet. A defect concentrated at one side often points to nozzle, brush, support, or water-distribution alignment rather than a material problem.
Keep the Dryer Clean Enough to Work
The drying chamber can redeposit dust or droplets if fans, filters, air knives, and internal surfaces are dirty. Include chamber cleaning and filter replacement in the acceptance and maintenance record. Otherwise the machine may pass when new and gradually add marks that operators wrongly attribute to the water or glass.
A final production audit should sample glass from the beginning, middle, and end of a shift and from several positions across the machine width. Inspect after the glass reaches the downstream station, not directly under wet lighting. This catches gradual contamination, nozzle drift, and handling marks that a short commissioning run may miss.
Check Water From Shift Start to Shift End
Tank water changes as glass carries in oil, particles, and dust. Measure conductivity or the plant's chosen indicator at startup, during stable production, and near the replacement point. Inspect filters and tank sediment. A machine can pass the first acceptance sheet and produce marks later when recirculated water reaches a different condition.
Air supply should be clean, stable, and dry enough for the process. Oil or water from compressed air can redeposit contamination after the rinse. Check pressure at the operating flow, not only at the compressor. Inspect hoses, filters, and nozzles, and record the pressure drop when other factory equipment uses the same air network.
Handling after the dryer is part of the result. Gloves, suction cups, rollers, and racks can add fingerprints or particles to clean glass. Include transfer to the next station in the acceptance test and identify where the first new mark appears.
Wentrica's factory information and contact page can support a washing-line review using production glass, water analysis, brush setup, air-knife settings, speed, defect categories, and downstream release tests.
FAQ
Q1: Why can clean glass show water marks after washing? A: Dissolved solids, detergent residue, poor final rinse, edge water, drying air, or handling can leave marks after evaporation.
Q2: Does more brush pressure always improve cleaning? A: No. It may damage coatings, increase scratches, or embed particles in the brush while failing to correct water quality.
Q3: What does an air knife control? A: Air velocity, angle, gap, nozzle condition, and sheet speed determine how water leaves the face and edges.
Q4: Why should the final rinse be tested separately? A: Cleaning chemistry can be removed in the main stage while dissolved solids or residual detergent remain in the final water.
Q5: What belongs in a glass washer acceptance test? A: Use production glass, water, contamination, coating, sizes, speed, brush and air settings, edge inspection, defect categories, cycle time, and rewash records.
