This glass storage system adopts a vertical design, with a compact structure and efficient space utilization. It is suitable for small warehouses as well, provided that the height exceeds 4 meters.
The wheels at the bottom of each drawer are equipped with mechanical locking devices, which can fix the position and prevent sliding, avoiding accidents and ensuring safety and reliability.
The drawers can be pulled horizontally for quick access to the glass.
Each glass storage system can accommodate up to 40 drawers, with a maximum load capacity of 40 tons.
The surface is equipped with rubber with built-in steel plates, which has a natural affinity for glass.
The high-quality steel welding structure is not prone to deformation and has a long service life.
Electrostatic spraying is used to achieve a lasting surface effect.
The modular design makes installation, disassembly, and repair convenient.
The motor-driven system enables the glass storage equipment to move at a speed of up to 1m/min, which is fast, stable, and efficient.

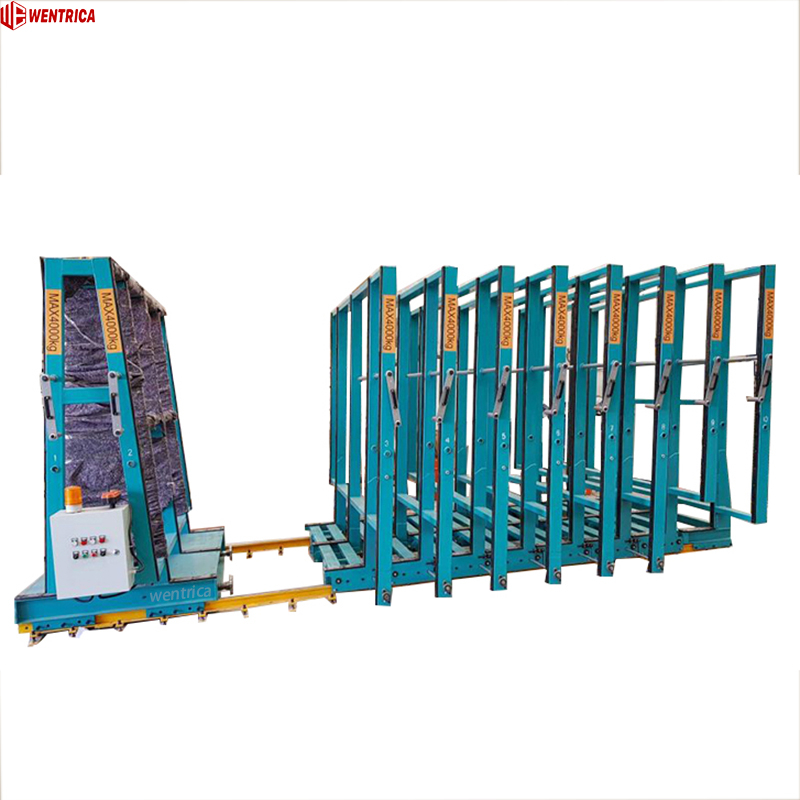

The electric glass storage system is a device specifically designed for the batch storage and handling of glass.

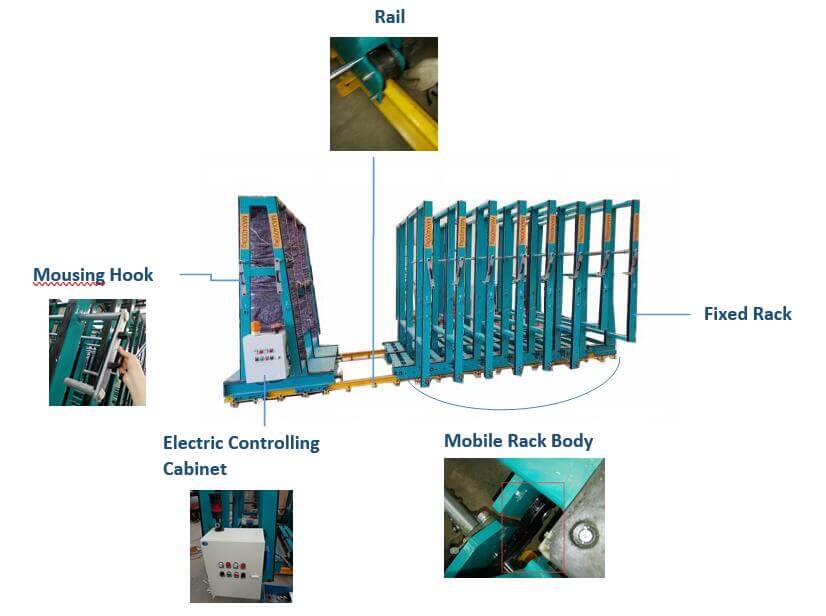

This equipment is equipped with components such as programmable motor drivers, tracks, fixed frames, sliding hooks, and mobile frame bodies.
This glass storage system can be controlled remotely. By simply pressing a button, the device can be moved. No large number of people or excessive space is required to complete the transportation and storage tasks.
2.Structure
Motorized Rack Switching
The electrically-driven glass storage racks system move smoothly and rapidly, enabling batch handling and storage of glass.

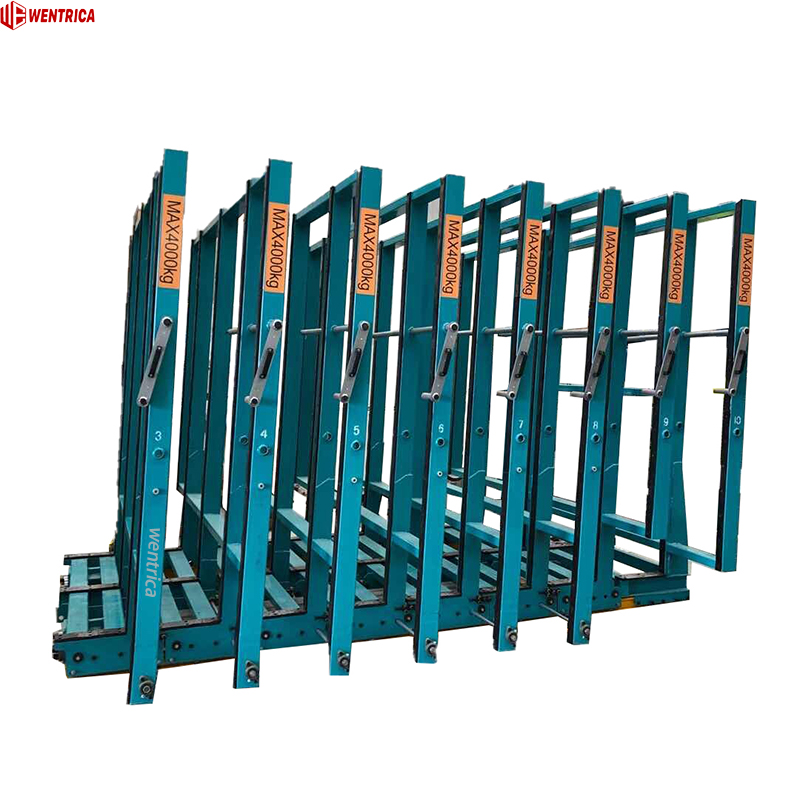

Multi-Rack Configuration
Each glass storage system can be equipped with up to 40 shelves (which can be customized), and each frame can operate independently. Different shelves can store glass of different sizes.
Heavy Load Capacity
Each shelf can bear a maximum of 3 tons of glass.
Space-Efficient Design
With a vertical structure design, the structure is compact and saves space.
Anti-Scratch Contact Surface
The surface of the glass storage system is equipped with rubber, which has a natural affinity for glass. During storage and handling, it will not damage the glass.
Safety protection system
Emergency stop device, which can stop the equipment operation with just one click.
3.Specification
Electrical glass storage rack system
Specification (mm)
Length*Height*Width
Storing Thickness for one Rack (mm)
Qty for 1*40HQ (racks)
Weight Load for one rack (kgs)
2440*1830
250
20
4000
2440*3660
250
20
4000
Note:Customized size and design are available.

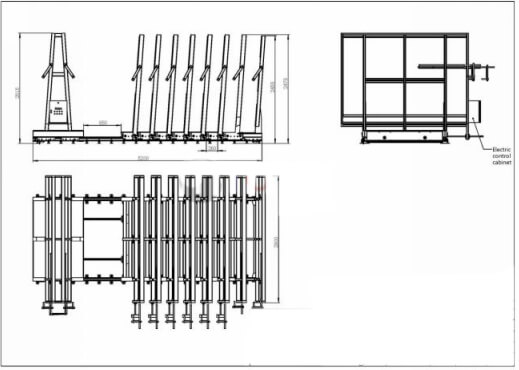

4.Appearance Diagram
5.FAQ
2. What is the carrying capacity of this glass storage system?
The carrying capacity varies depending on the model. Generally, each rack can carry between 500 kilograms and several tons. For heavy industrial applications, customizable options are also available.
3. Is this glass shelving system safe to use?
Yes. It is equipped with an emergency stop device and anti-slip design to ensure the safe operation of workers and equipment.
