The a frame glass rack integrates the storage and transportation of glass, and is applicable to numerous fields such as building curtain walls and furniture manufacturing.
Made of square steel tubes and has a stable structure with strong load-bearing capacity.
Rubber strips and steel plates are embedded on the surface of the a frame glass storage rack, which have a natural affinity with the glass and can ensure that the glass will not be scratched during storage.
The surface is treated with electrostatic spraying to prevent rust and corrosion, and has a long service life.
Can be used in conjunction with forklifts and cranes.
The unique anti-toppling design has a weight increase treatment at the bottom, so the a frame glass transport rack will not topple even on a 15-degree slope.
Can be disassembled for easy transportation.
Length, height, base width and load capacity can all be customized.

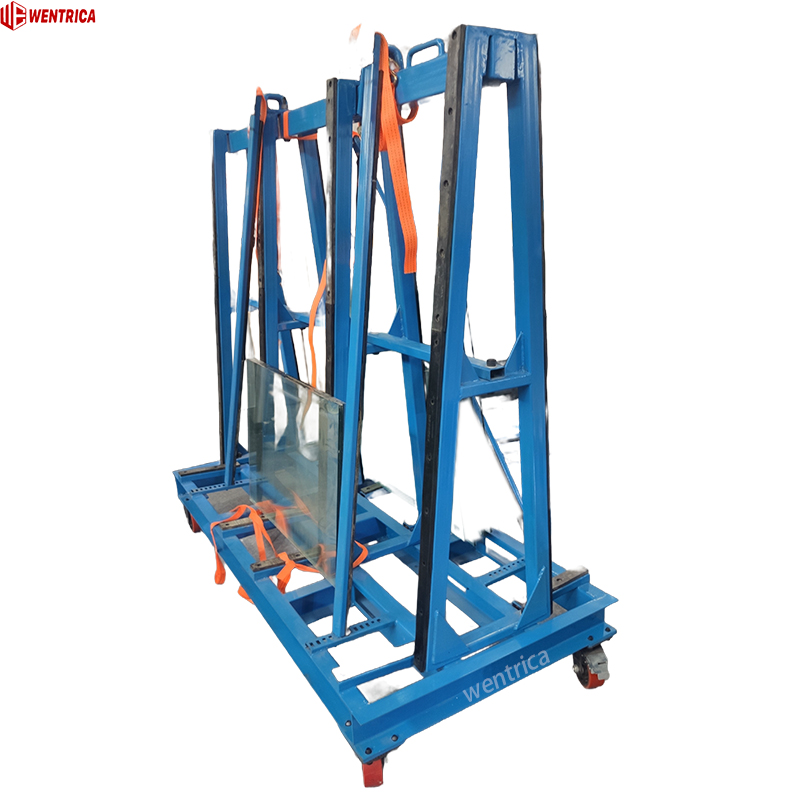

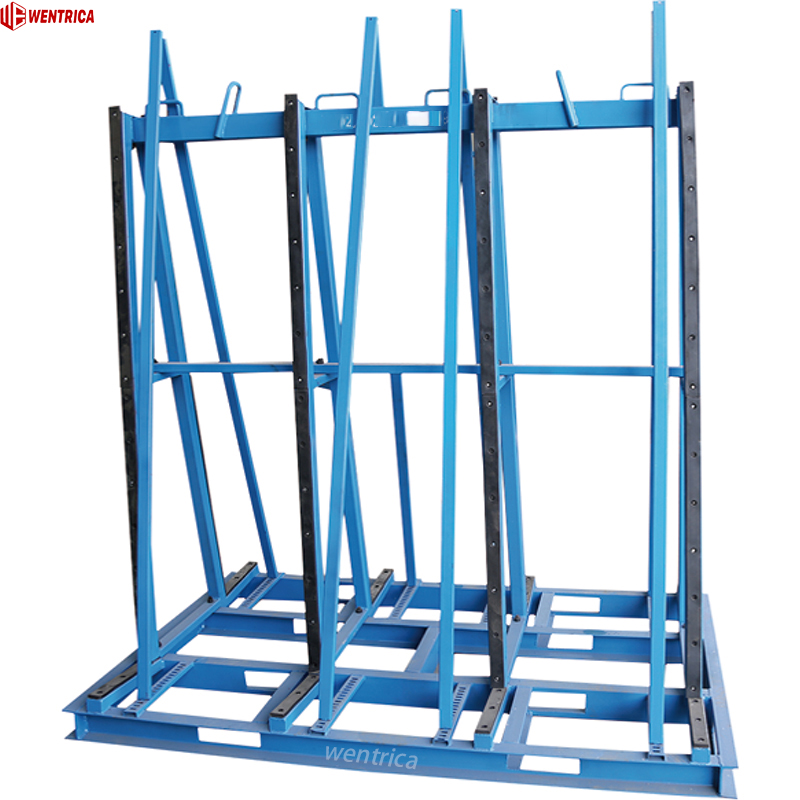

This detachable a frame glass storage rack is an efficient and space-saving storage solution, specially designed for safely storing, transporting glass panels, slabs, and other flat materials.
The glass storage racks features a sturdy steel frame, a stable A-shaped design structure, with lifting holes and forklift holes, which can be used in conjunction with cranes and forklifts. The surface of the rack is covered with rubber pads, which will not scratch the glass. It is detachable and combines both safety and flexibility. It significantly saves storage space and improves transportation efficiency.
2.Structure
Steel profile frame
This a frame glass storage rack is made of 60×60×3 mm square steel tubes and is treated with electrostatic powder coating, featuring excellent durability and corrosion resistance.

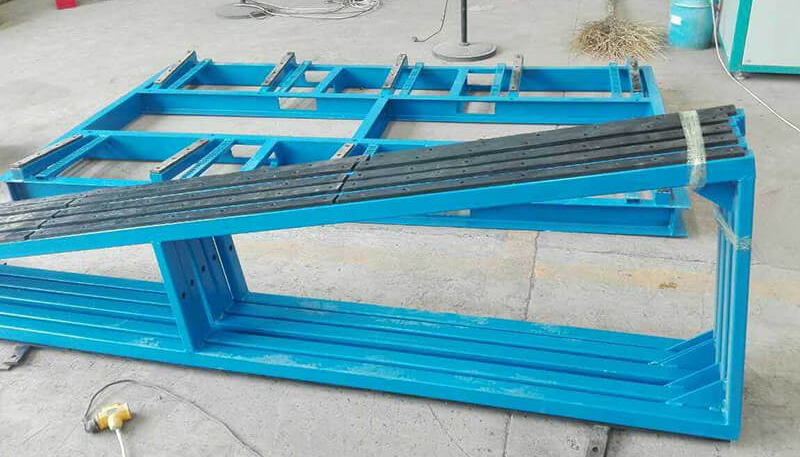

Removable device

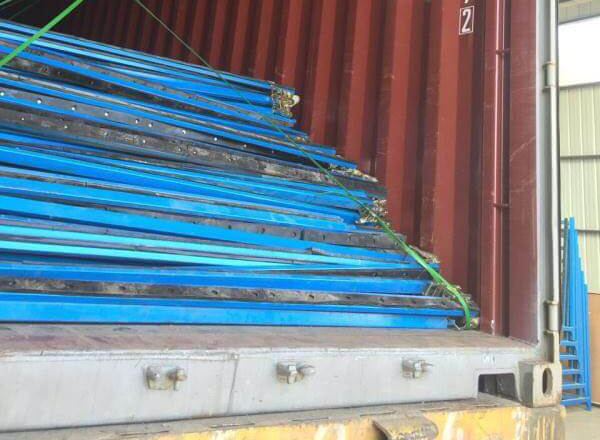

The base, support arms and side columns of the a frame glass storage rackcan be disassembled, significantly saving space during transportation and when idle.

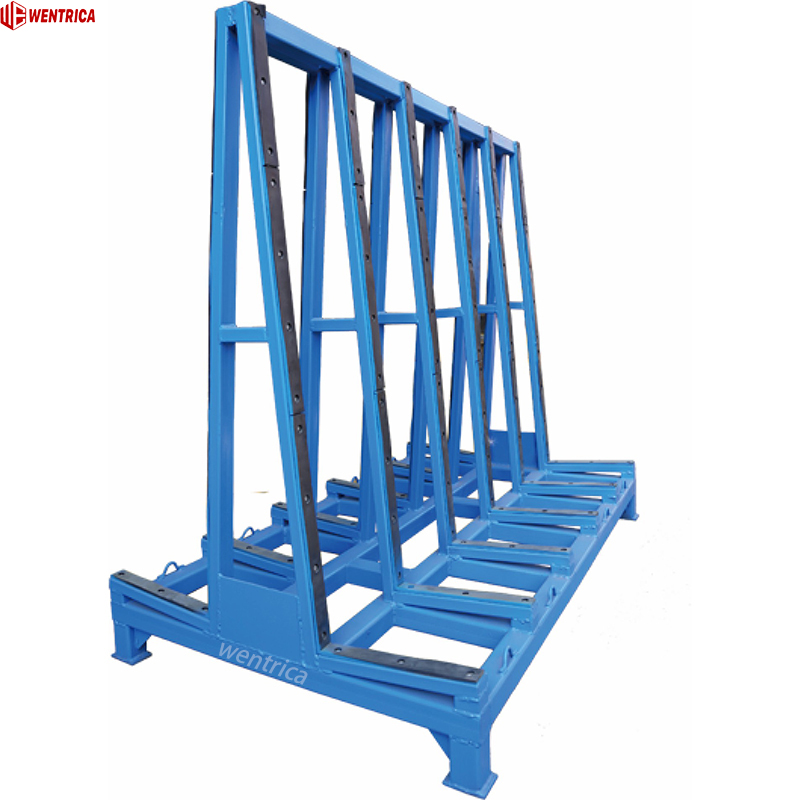

“A”-type structure
Double-sided loading ensures that the glass remains balanced and stable during storage.

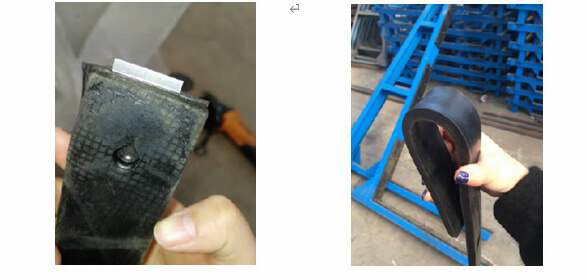

Rubber pads
The rubber pads covering the surface of the a frame glass storage rack can protect the glass from scratches or vibration-induced cracki

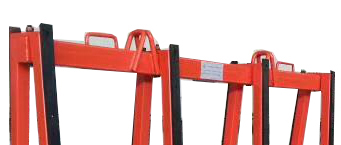

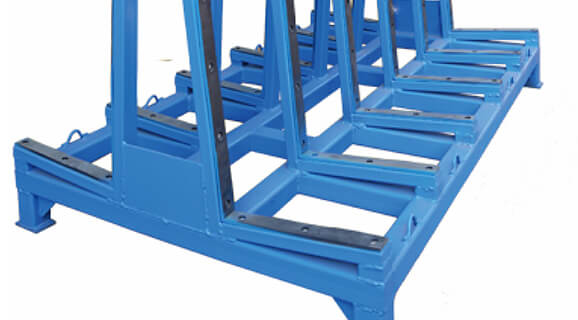

Forklift holes and lifting holes
The lifting holes at the top and the forklift holes at the bottom enable the a frame glass storage rack to be used with cranes or forklifts for glass transportation.

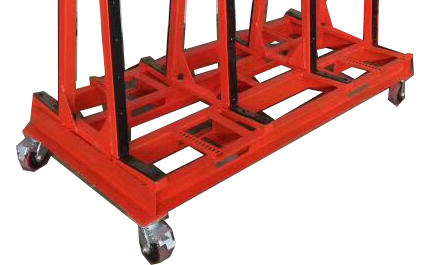

Lockable heavy-duty casters
Four detachable casters are equipped at the bottom, facilitating the movement of the a frame glass storage rack.
3.Specification
A frame glass trolley
Specification (mm)
Length*Height*Width
Storing Thickness (mm)
Working Loading
Self-weight (kgs)
1800*1600*900
220 each side
2T
240
1800*1600*900
220 each side
5T
240
Note:Customized size and design are available.
4.Picture

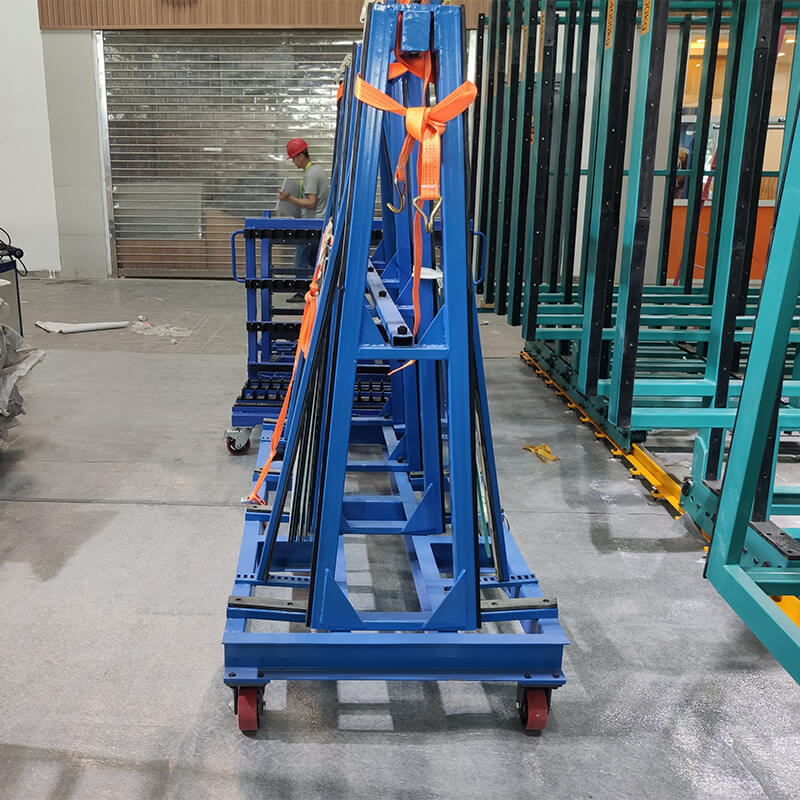

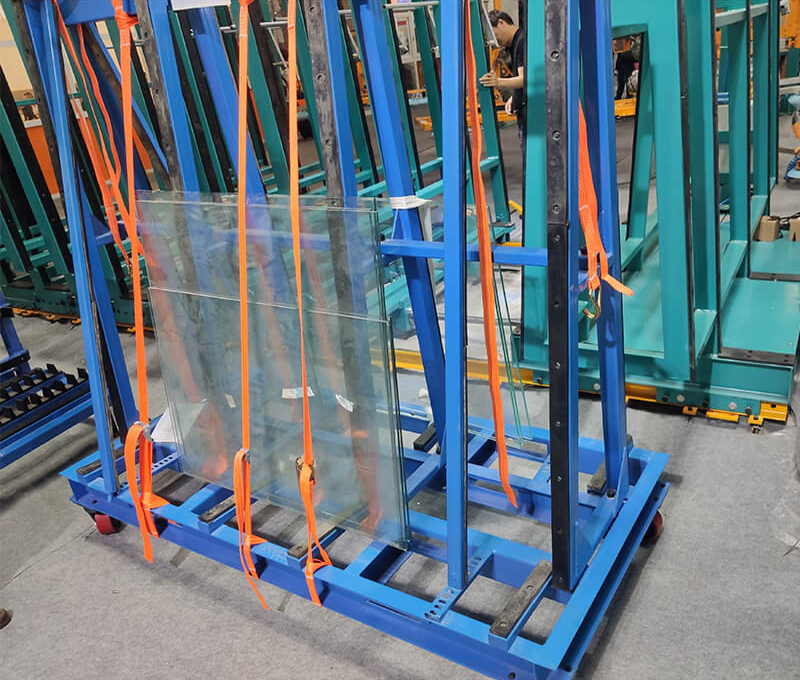

Application

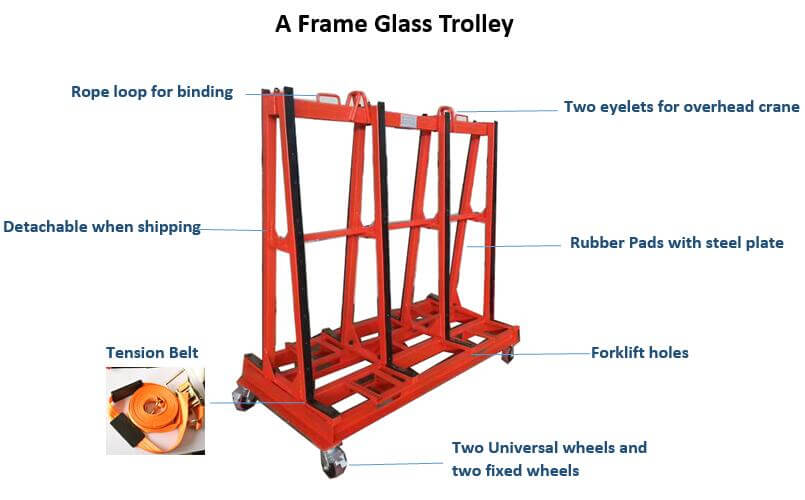

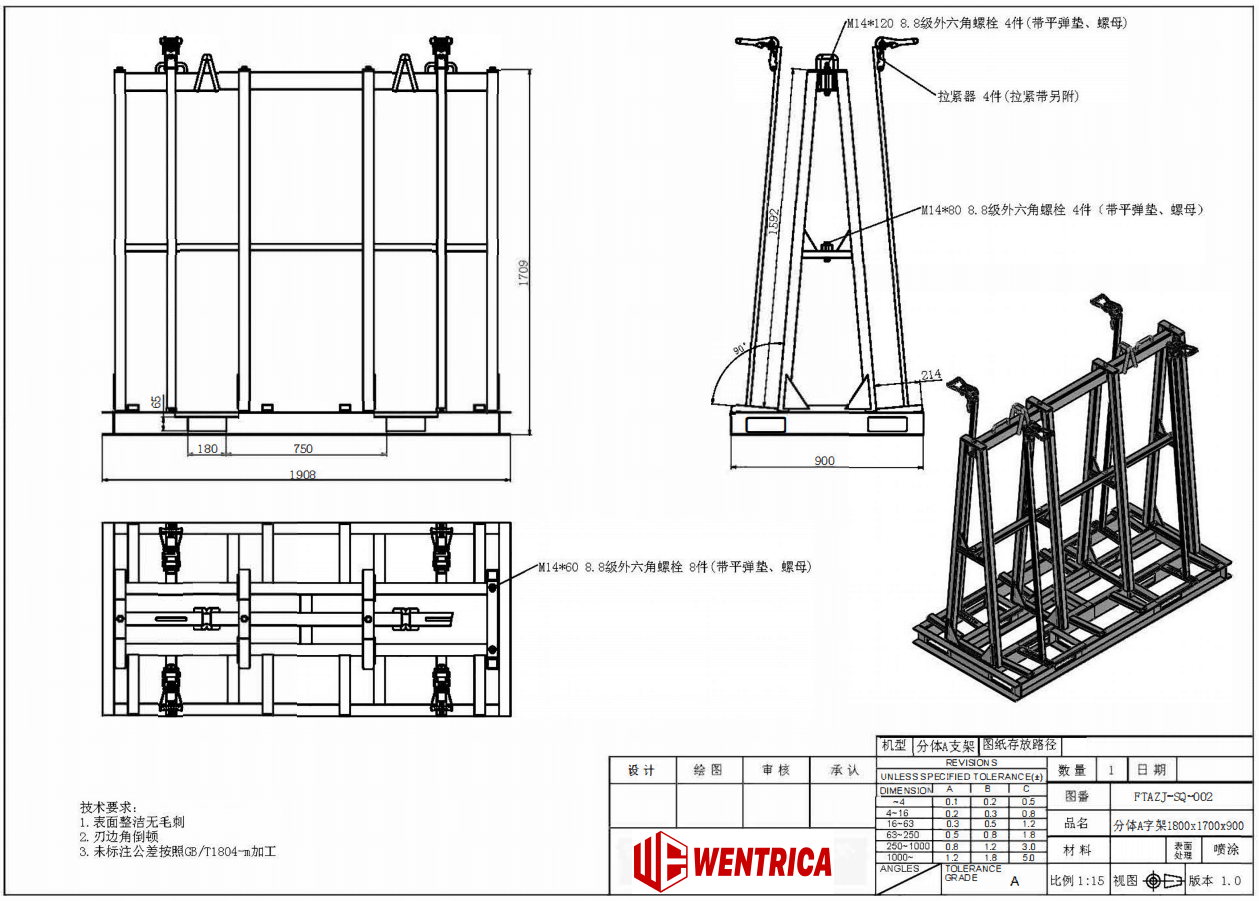

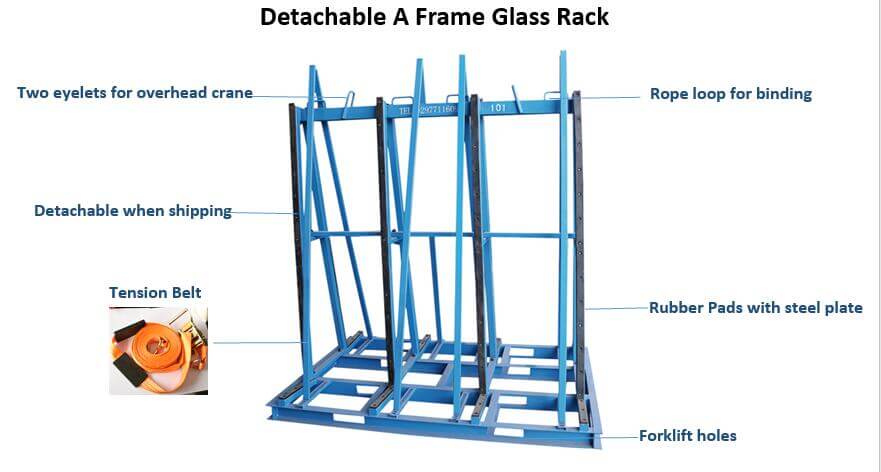

Structural diagram
5.FAQ
1. How is the glass fixed to the a frame glass rack?
The glass panels are placed on special rubber profiles and fixed by ropes, which ensures their stability and protection during transportation.
2. What is the typical load-bearing capacity of these a frame glass racks?
The load-bearing capacity varies depending on the design and the materials used. The specific load-bearing capacity can be customized according to your needs.
