Customizable Harp Rack-Tailored Vertical Storage Solutions for Monolithic & IG Glass Units


Availability:

Quantity:



Inquire Add to Basket

The harp rack is available with 40,50, 84 or 100 slots and comes with plastic - covered rods.
There are two types of bottoms. One is equipped with pulleys, which allow the glass to slide in and out of the rack easily and safely.
The other is made of low - friction, high - density polyethylene material, which provides greater stability when the glass is placed on it and offers a non - stick surface for insulated glass.
The surface is powder - coated, and custom colors are supported. It is equipped with 4 swivel casters, each with a load - bearing capacity of 1 ton.

Brand:
WENTRICA

harp rack glass cart glass trolley glass rack glass storage rack rack for IG glass

Product Description

The harp rack is available with 40,50,84 or 100 slots and comes with plastic - covered rods.

Harp rack-7

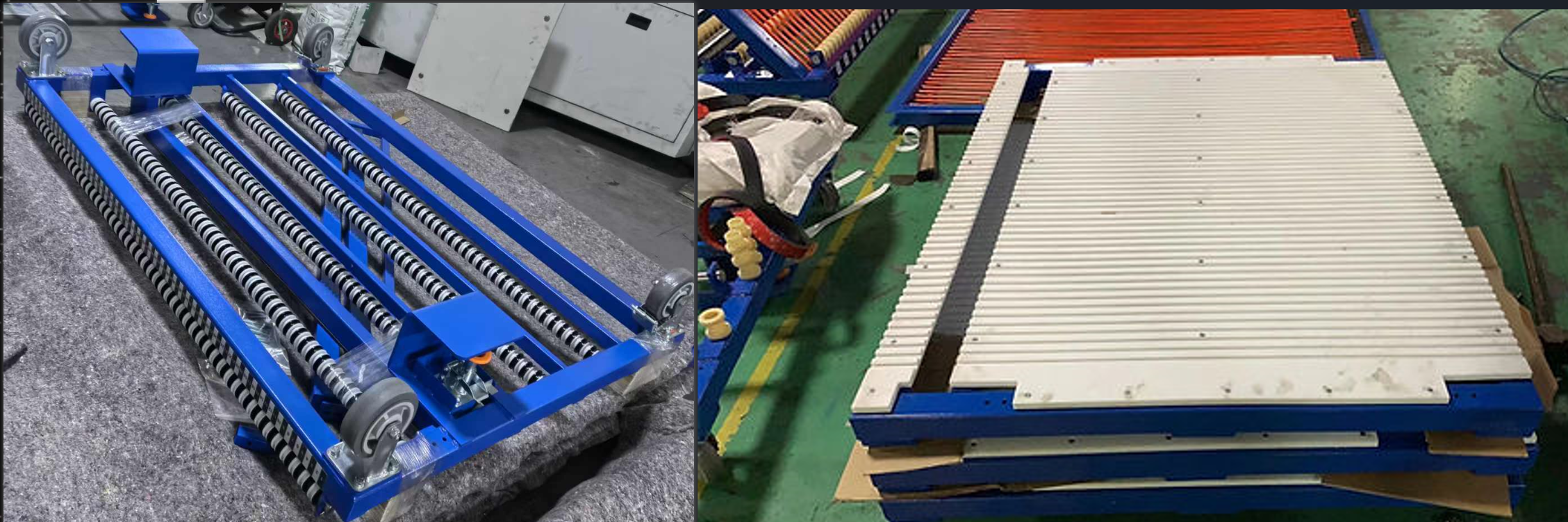

There are two types of bottoms. One is equipped with pulleys, which allow the glass to slide in and out of the rack easily and safely. The other is made of low - friction, high - density polyethylene material, which provides greater stability when the glass is placed on it and offers a non - stick surface for insulated glass.

harp rack details

The surface is powder - coated, and custom colors are supported. It is equipped with 4 swivel casters, each with a load - bearing capacity of 1 ton. There are locking devices on the side to ensure the stability of the rack. To save freight costs, the product is shipped in a knocked - down state.

Harp glass rack
Specification (mm) *LengthHeightWidth*	Storing Thickness (mm)	Spaces for one rack (pcs)	Self-weight (kgs)	Working Load (kgs)
150018001200	Less than 8mm	84	150	1500
150018001000	Less than 12mm	40	125	1500
Note: Customized size and design are available.
