This glass harp rack can store various types of glass, such as float glass, tempered glass, LOE-E glass, etc.
It is an excellent tool for pairing insulating glass. The unique design ensures that the error between the two pieces of glass during pairing is less than 0.5 millimeters.
Mark numbers at the bottom of the glass harp rack. The unique pedal design enables quick positioning and retrieval of the glass corresponding to the marked numbers.
The small nylon wheels at the bottom are used to place the glass. The specially made PVB steel tube is used to isolate the glass, ensuring zero damage to the glass on the glass harp rack.
The main body is made of aluminum profiles, with a stable structure and a long service life.
The surface is coated with epoxy resin powder, giving the glass harp rack corrosion resistance.

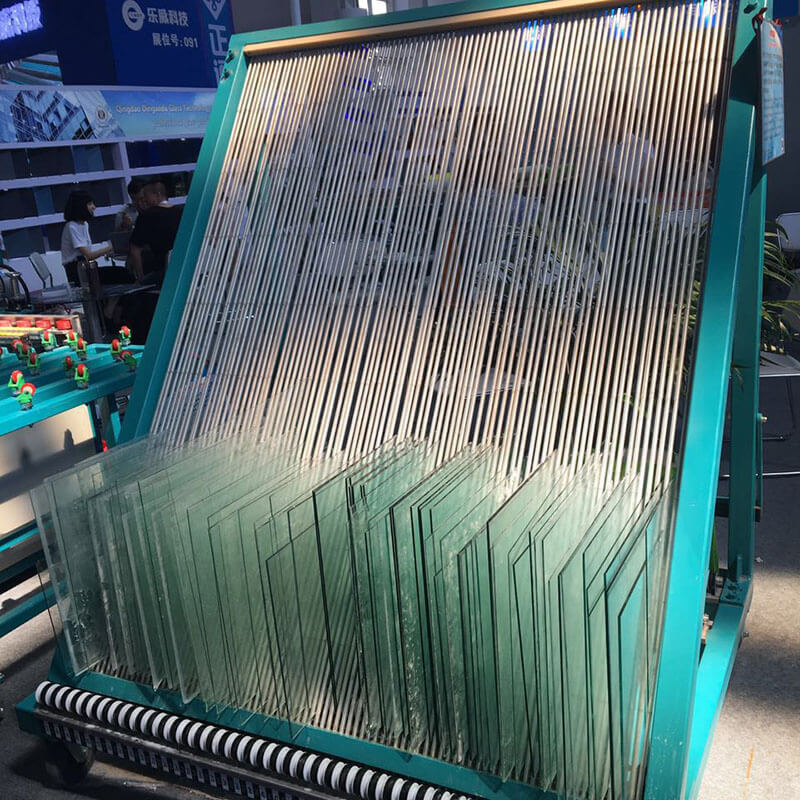

This glass vertical harp rack is a highly durable vertical storage system, specifically designed for glass sheets, stone slabs, and other flat panels. It is also suitable for use with insulating glass pairs.
This glass storage harp rack is composed of PVB tubes, small nylon wheels, foot pedals, etc. It can be used in various scenarios such as warehouses and workshops. Its unique design significantly improves the utilization rate of storage space

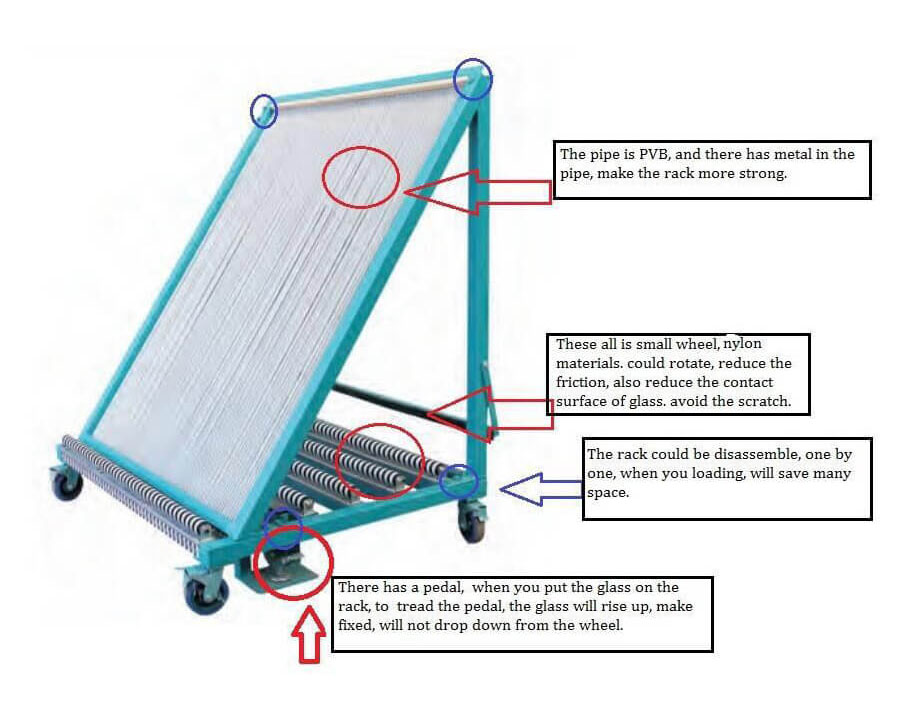

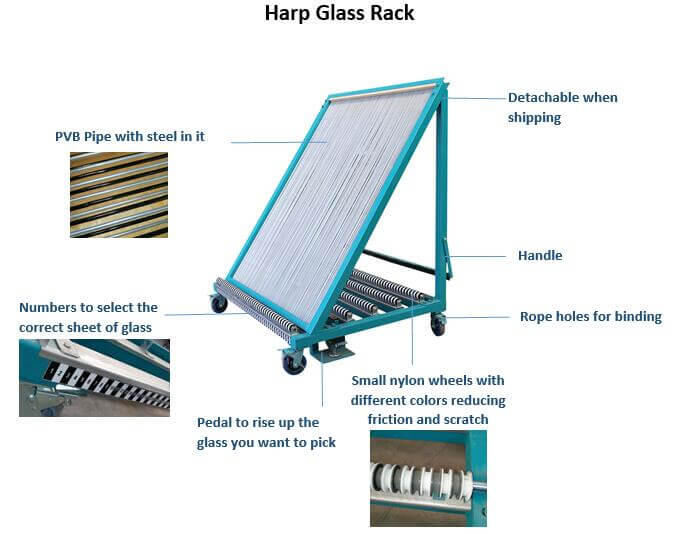

2.Structure

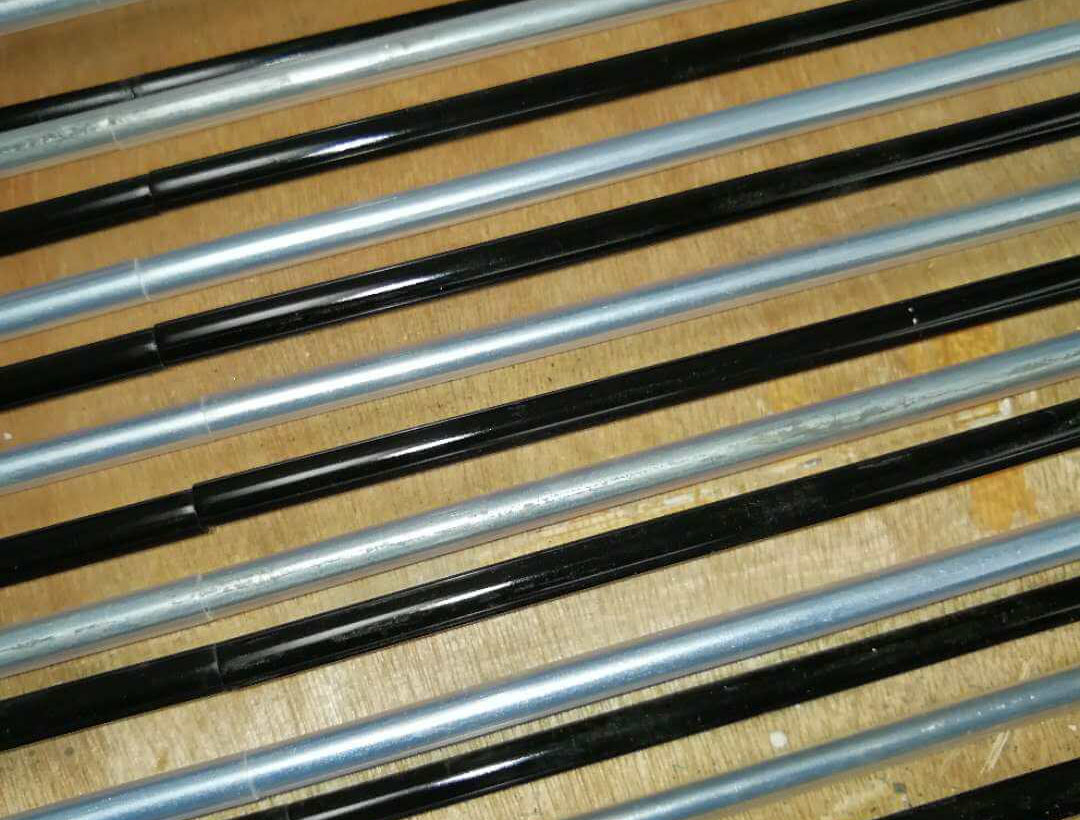

PVB pipe
The PVB pipe is used to support the separate storage of glass, and its unique material has a natural affinity for glass.

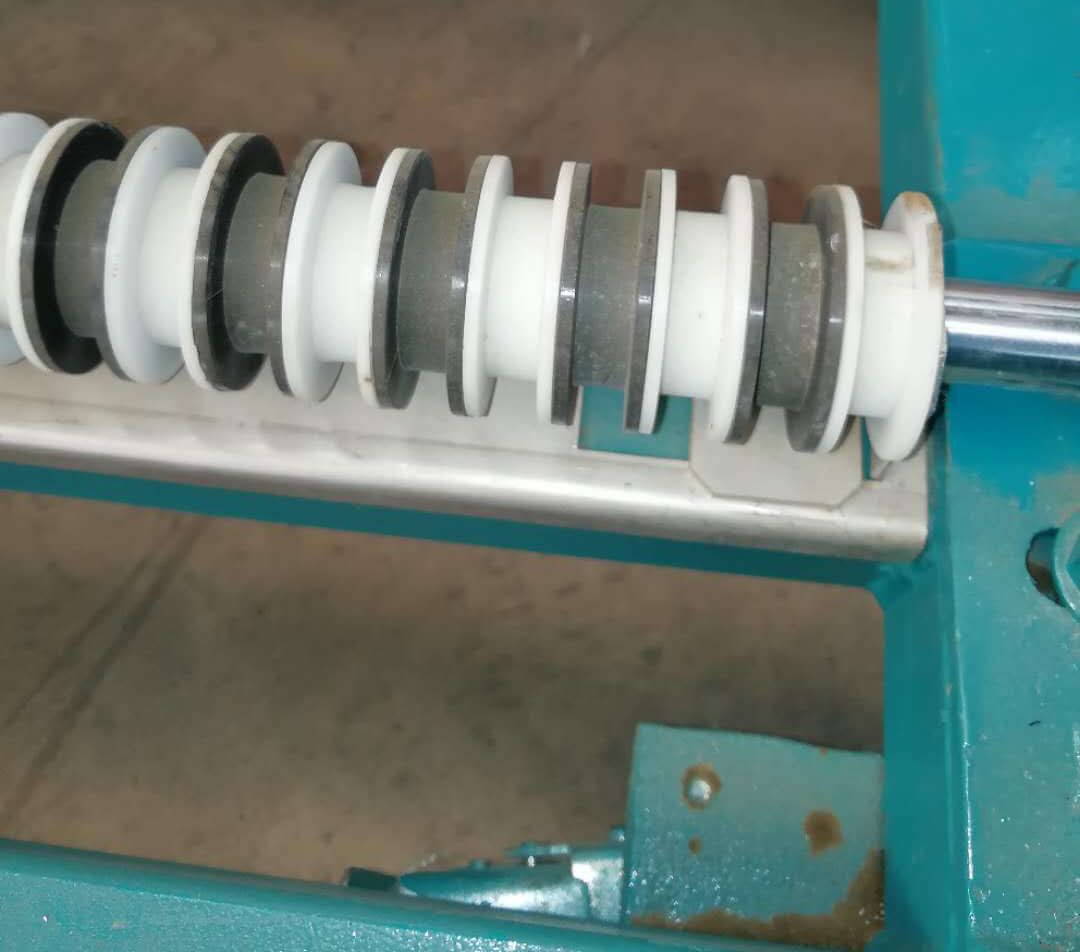

Small nylon wheels
The bottom of this glass storage harp rack is equipped with small nylon wheels. They come into contact with the glass without causing scratches.
Disassembly device

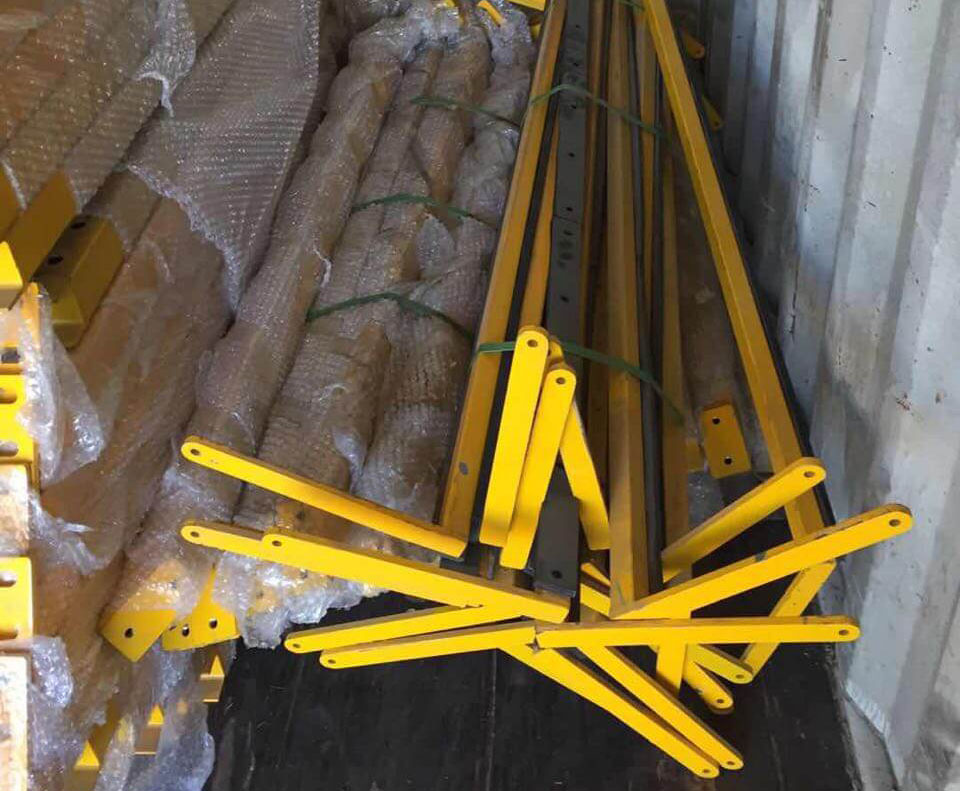

This glass harp rack equipment is designed for disassembly, making it convenient for transportation.

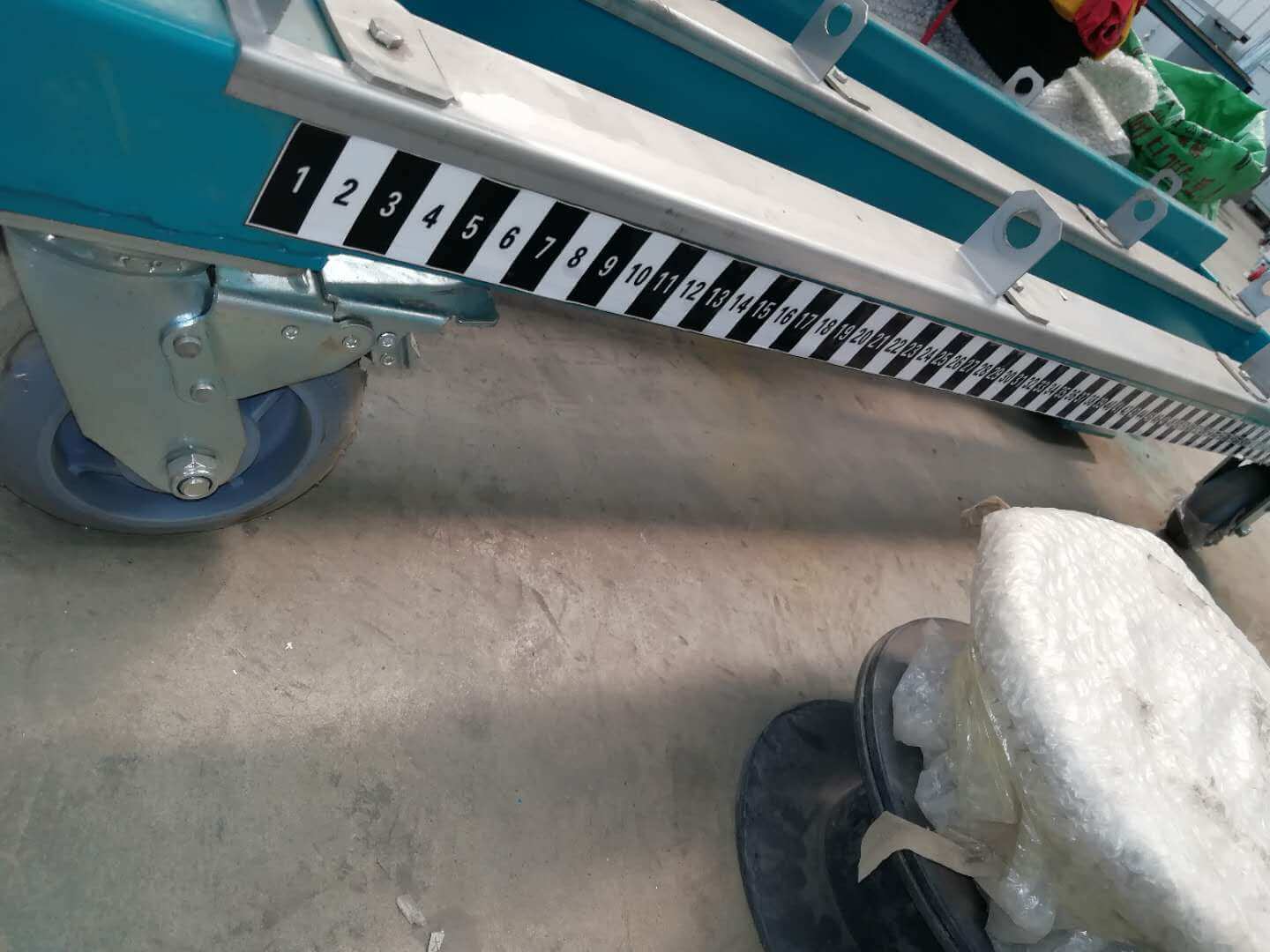

Clear digital markings
There is a digital marking area on the glass storage rack. Through these numbers, the lifting platform can precisely raise the target glass at the corresponding number.
Platform locking device
After positioning the glass, the pedal can quickly rise and lock the corresponding glass area, facilitating quick access to the glass.
Casters
Casters are configured at the bottom of the glass harp rack, allowing the equipment to move freely and facilitate the quick transportation of the glass.
3.Specification
Harp glass rack
Specification (mm)
Length*Height*Width
Storing Thickness (mm)
Spaces for one rack (pcs)
Self-weight (kgs)
Working Load (kgs)
1500*1800*1200
Less than 8mm
84
150
1500
1500*1800*1000
Less than 12mm
40
125
1500
Note:Customized size and design are available.
4.Picture

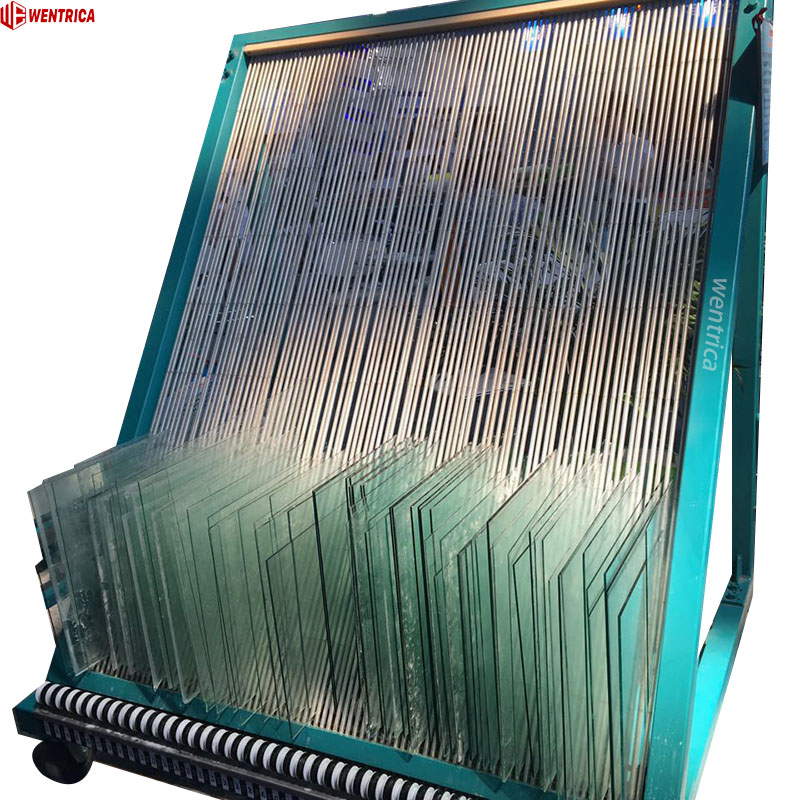

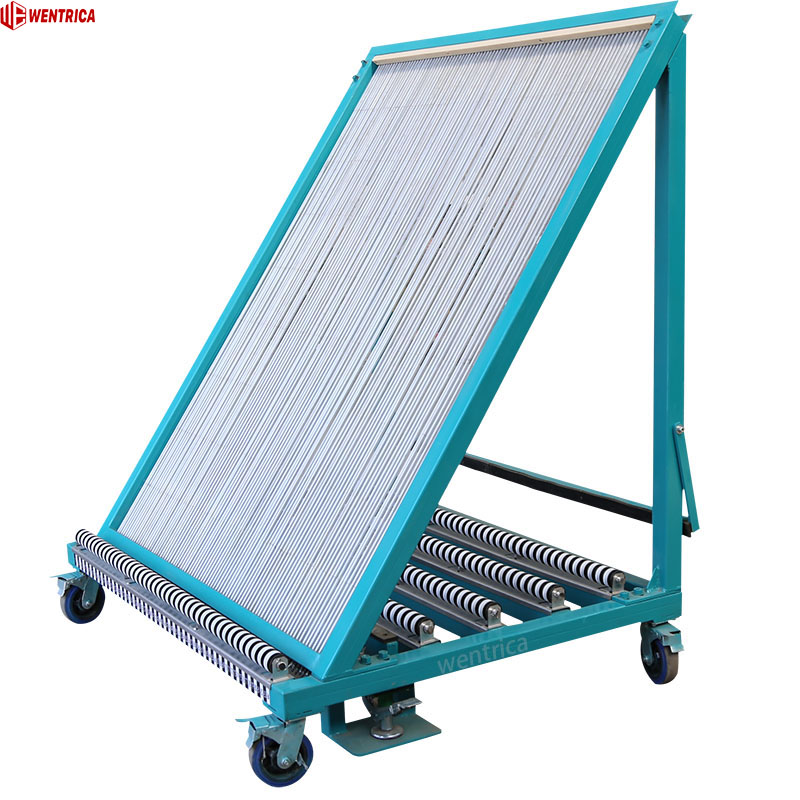

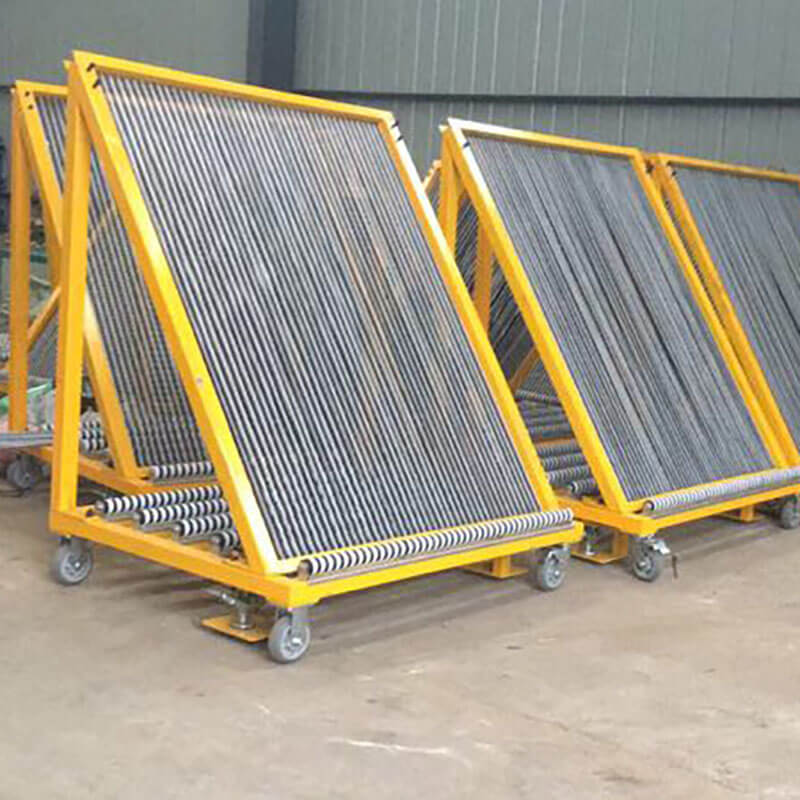

Physical picture

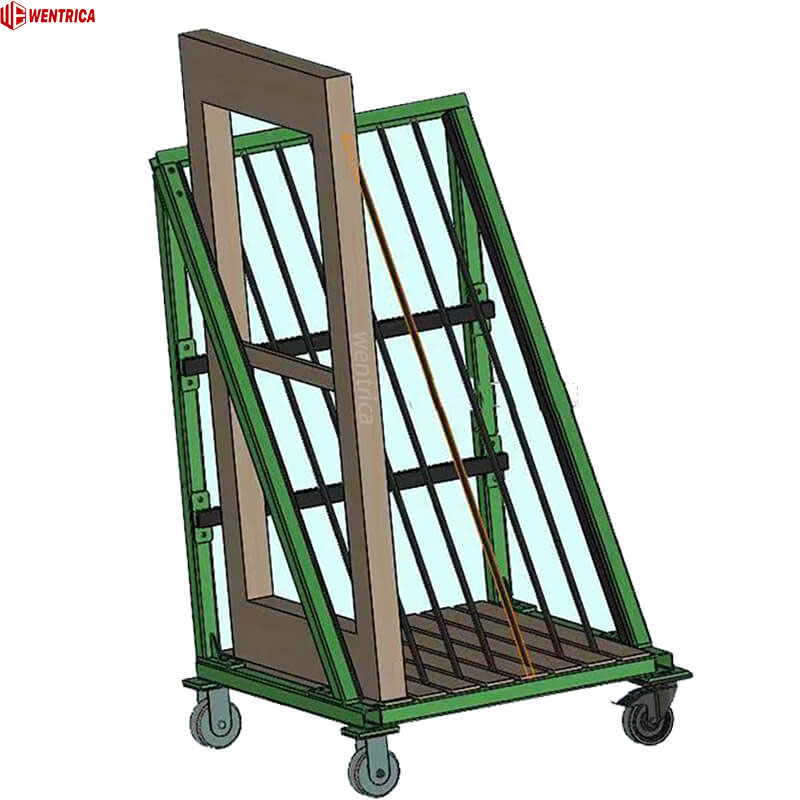

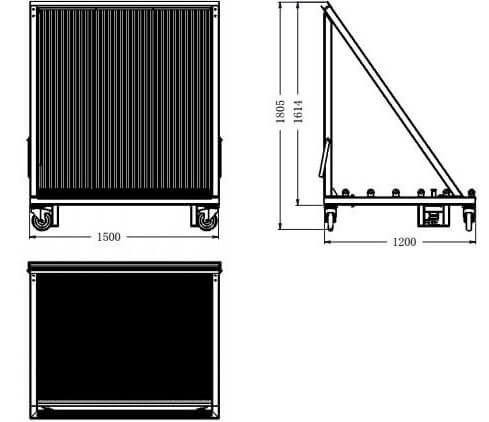

Appearance Diagram
5.FAQ
1. What types of glass can this glass storage rack support?
The glass harp rack is suitable for various types of glass, including tempered glass, laminated glass, insulating glass, and standard flat glass panels.
2. What is the maximum load capacity of this glass harp rack?
The load capacity varies by model, ranging from 500 kilograms to several tons. There are also heavy-duty shelves available, suitable for large-sized glass panels.
3. Is this glass harp rack movable or fixed?
The movable glass storage rack is equipped with casters or forklift slots. The fixed glass storage rack is specifically designed for fixed storage.
