With a 90° vertical structure and anti-slip design, the risk of the glass sliding off the l buck glass rack is reduced.
A scratch-resistant design is adopted. A layer of rubber sheet is covered on the surface of the flat glass l storage racks. This rubber sheet has a natural affinity with the glass and will not scratch the glass.

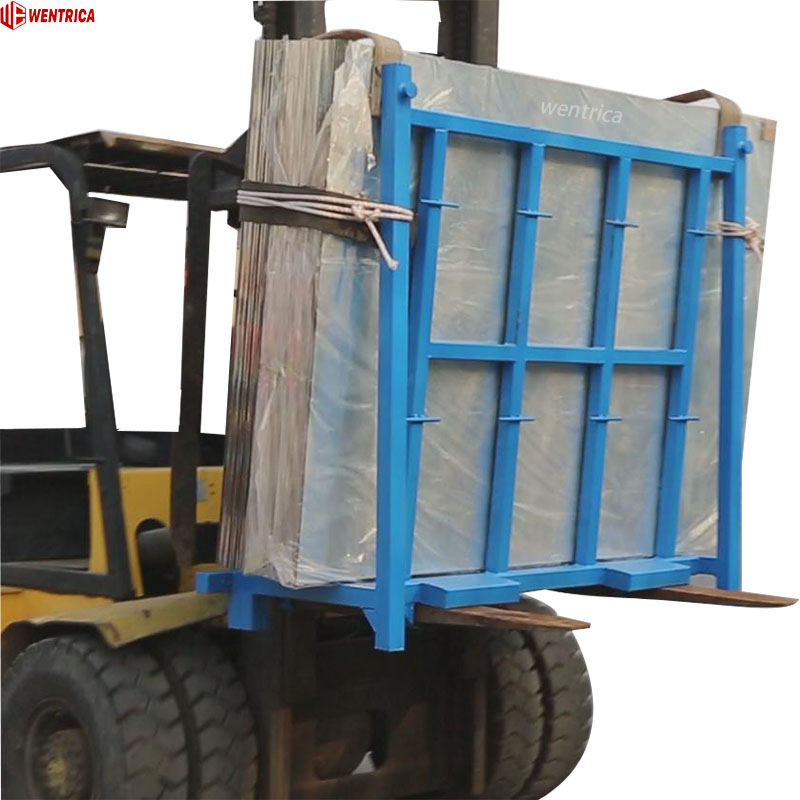

The bottom for forklift holes and the top lifting holes are compatible with forklifts and cranes, and can be used in conjunction with the l frame glass storage rack to transport the glass.
The main body is made of thickened square steel pipes, with a stable structure and a long service life.

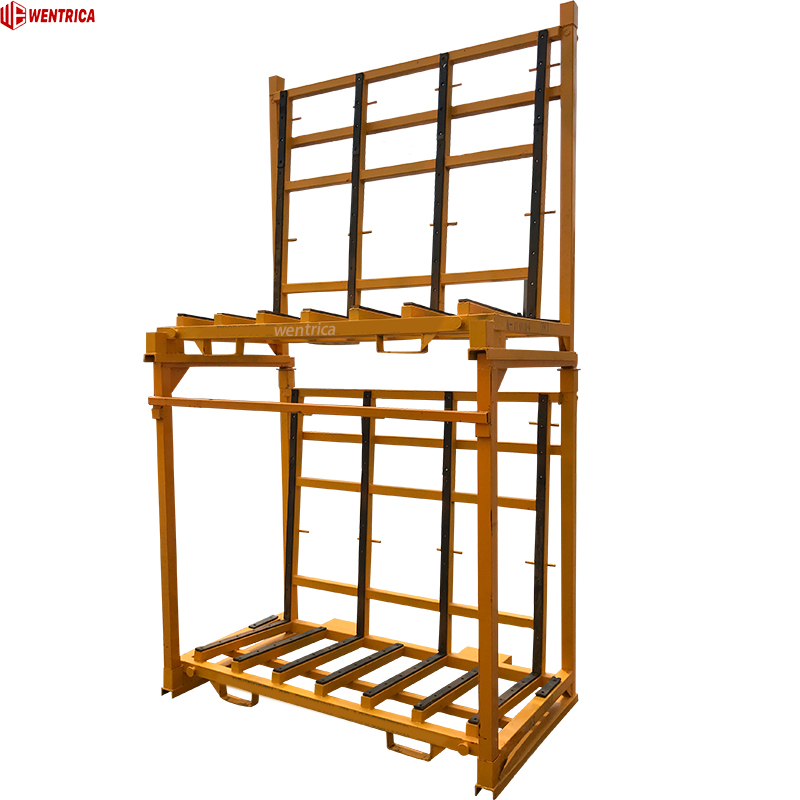

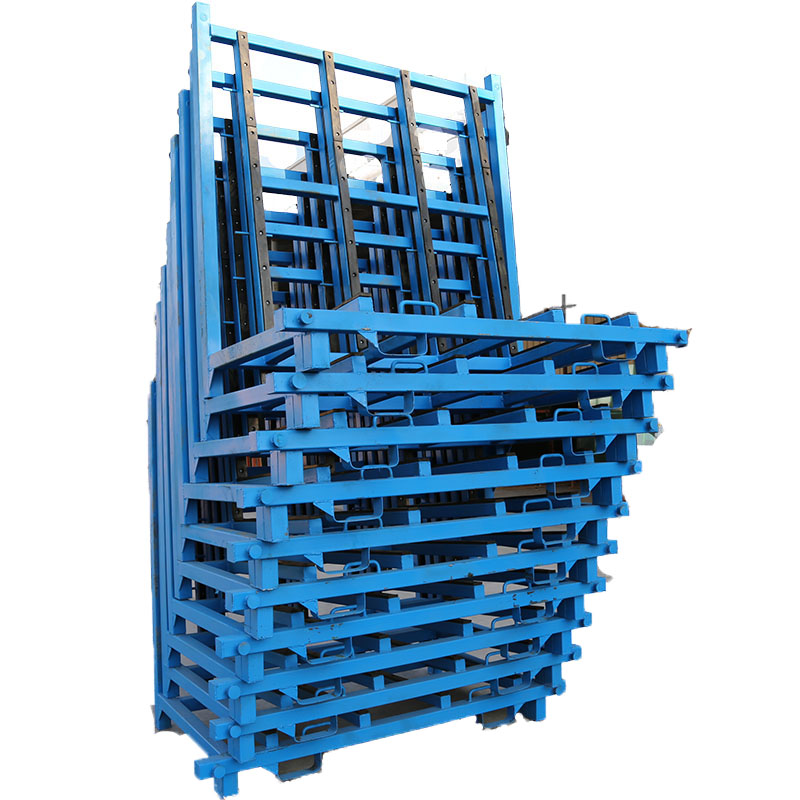

The multi-layer stacking design allows for the vertical stacking of the l-frame glass racks for 3 to 5 layers, saving space.
The surface is coated with an epoxy resin layer to prevent corrosion.
The anti-toppling design, with a heavier bottom, ensures that the glass frame will not tip over even on a 15° slope.

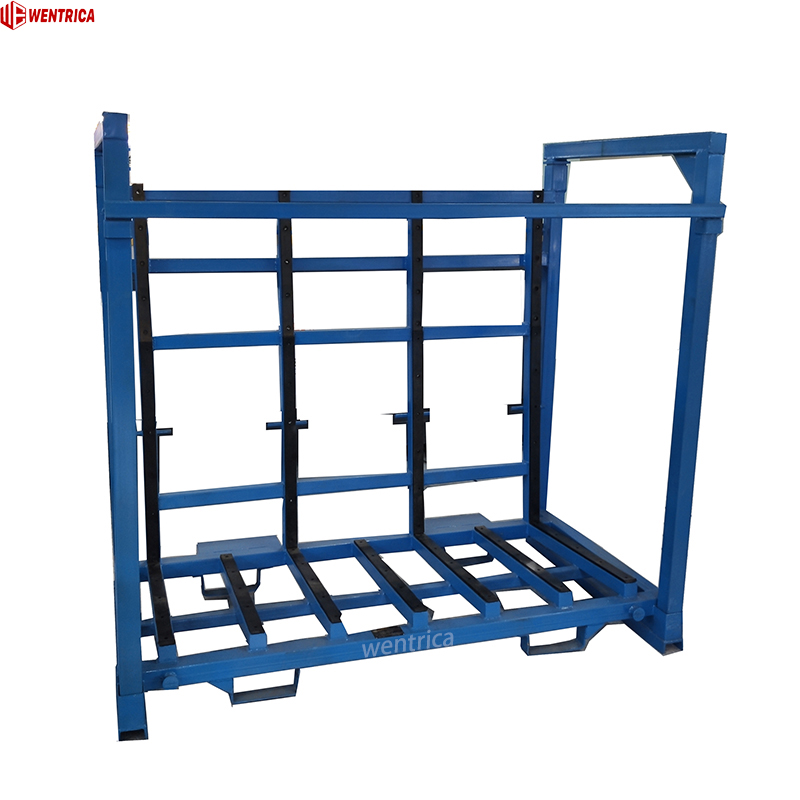

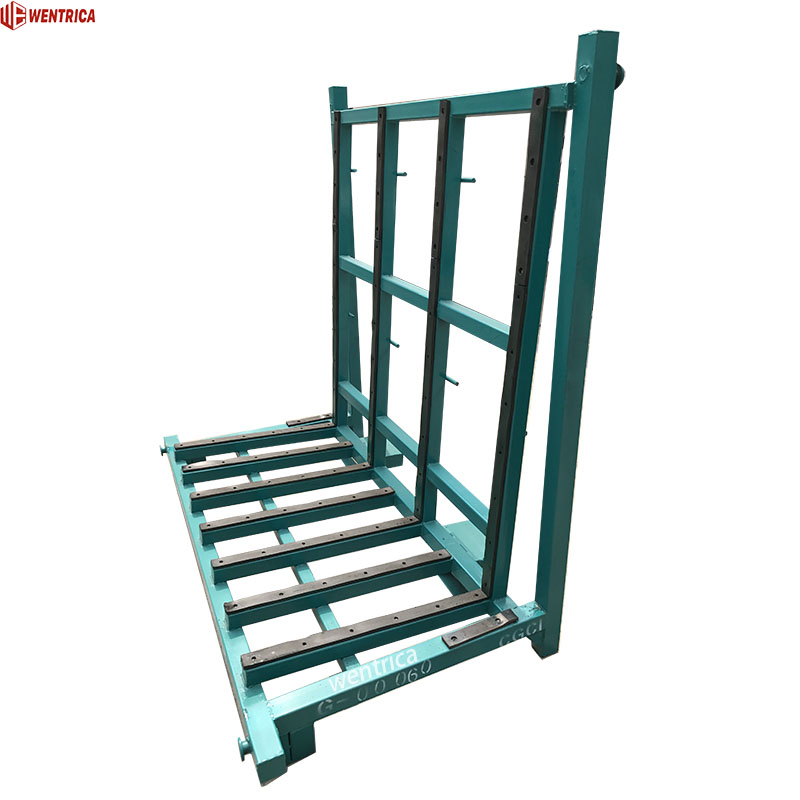

The industrial glass storage racks is a specialized tool designed for the storage and transportation of glass. With its L-shaped frame structure, it can be stacked vertically in multiple layers, allowing the glass to be conveniently placed single-sidedly and vertically on the glass rack, significantly saving space. It is widely used in glass factories, warehouses and other spaces.

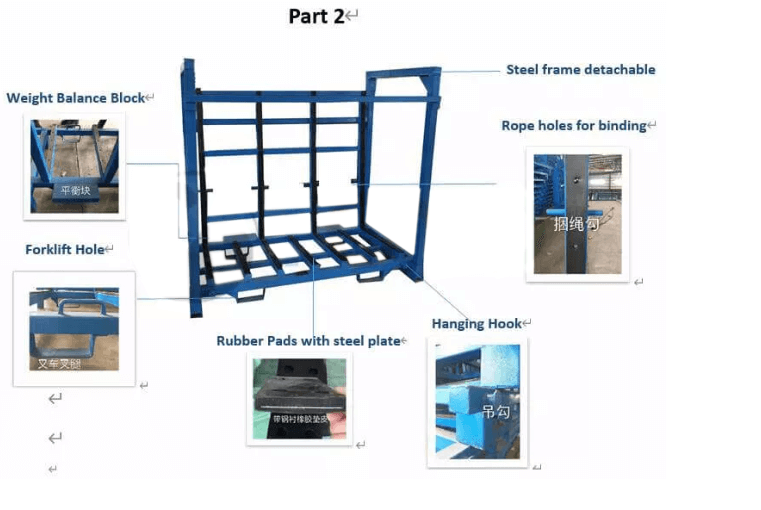

2.Structure

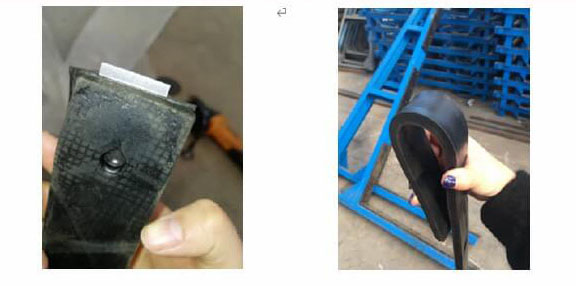

Rubber pad
Covering the surface of the l buck glass rack and having a natural affinity with glass, it can protect the glass from scratches and damage.

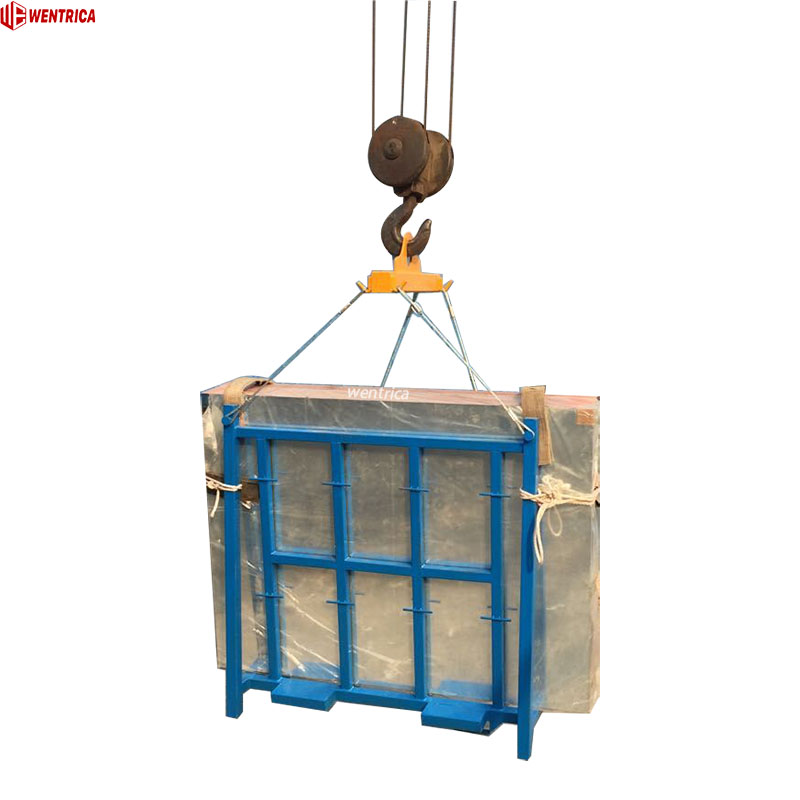

Forklift holes, lifting holes

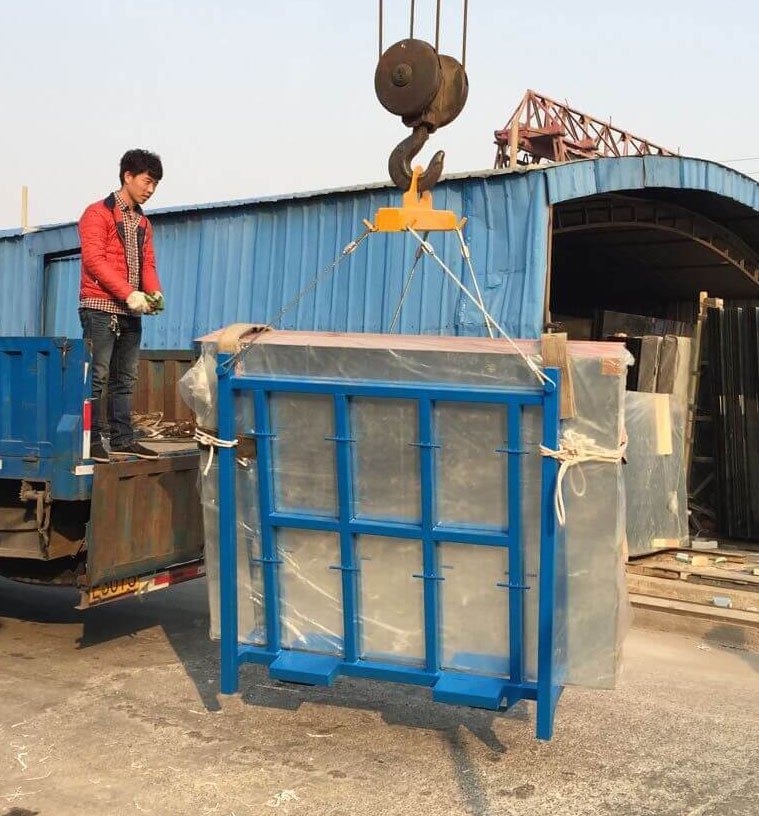

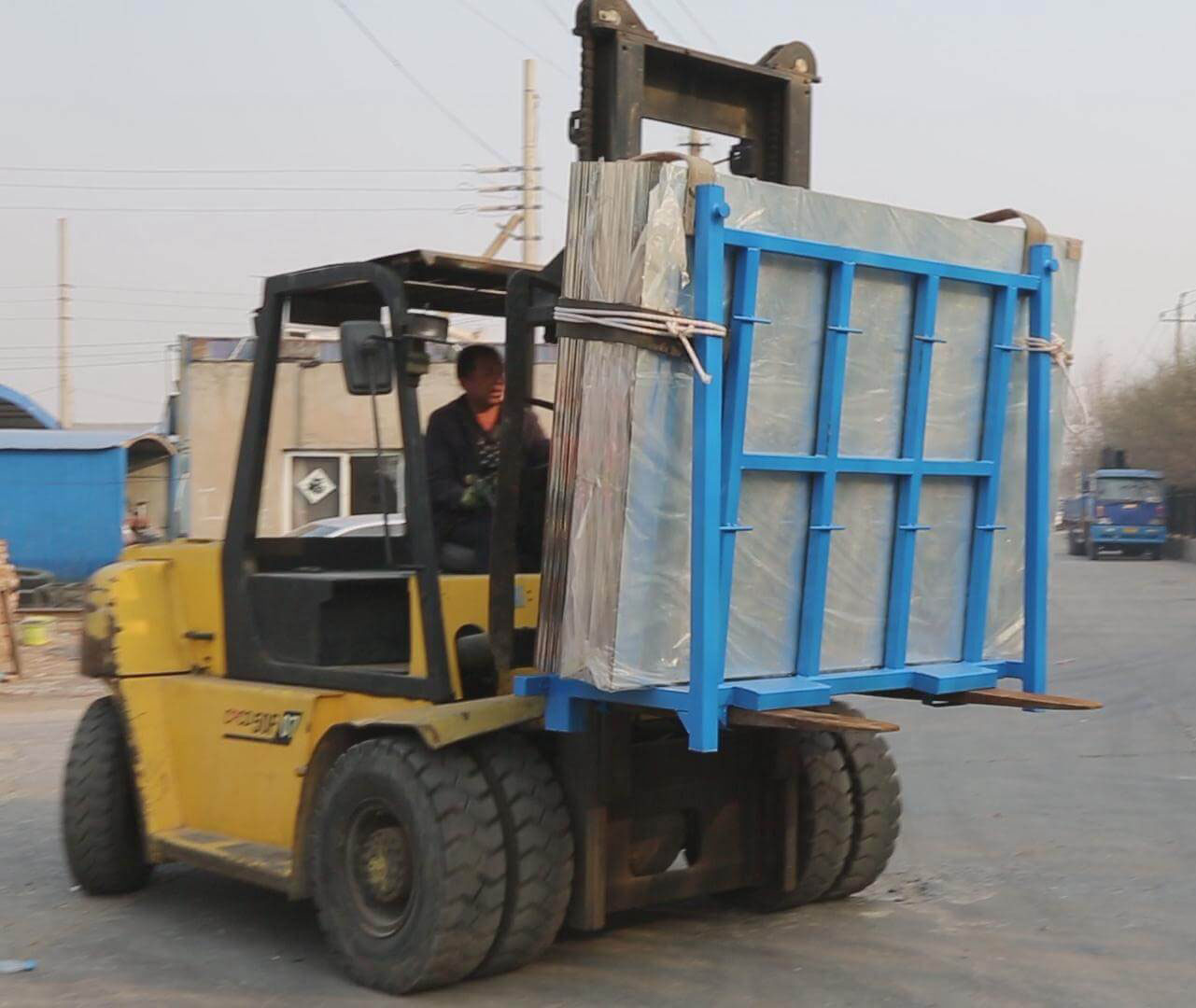

The forklift holes at the bottom and the holes at the top are compatible with forklifts and cranes, facilitating the transportation of glass using l frame glass rack
Strengthened design
The triangular iron plates and weighted balance fasteners can effectively stabilize the glass panel storage rack, have strong load-bearing capacity, and do not pose the risk of tilting
L-shaped frame structure
The L-shaped frame design is very suitable for placement against the wall or for use in areas with limited space.
Multi-layer vertical structure
Multi-layer vertical welding. The glass is vertically placed on the multi-layer l frame glass rack, effectively saving space.
Heavy-duty steel frame
Crafted from high-strength welded steel, with a powder-coated surface, featuring durability and corrosion resistance properties
Optional casters or locking wheels
The casters can be selected according to the actual requirements of glass storage and transportation
3.Specification
L frame glass rack
Specification (mm)
Length*Height*Width
Storing Thickness (mm)
Qty for 1*40HQ (pcs)
Self-weight (kgs)
1800*1600*750
540
86
95
1800*1600*950
690
75
100
1800*1600*1150
890
68
115
Note:Customized size and design are available.

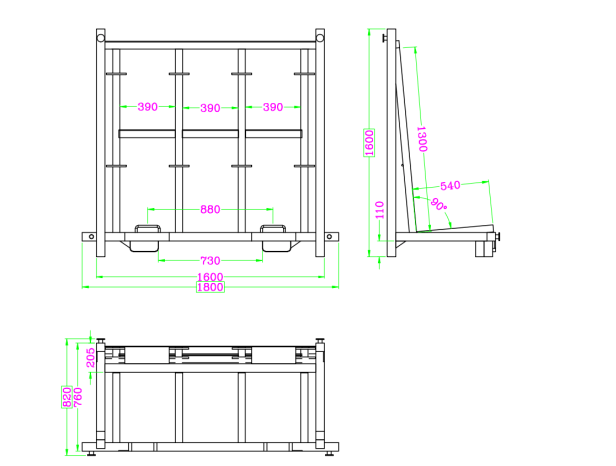

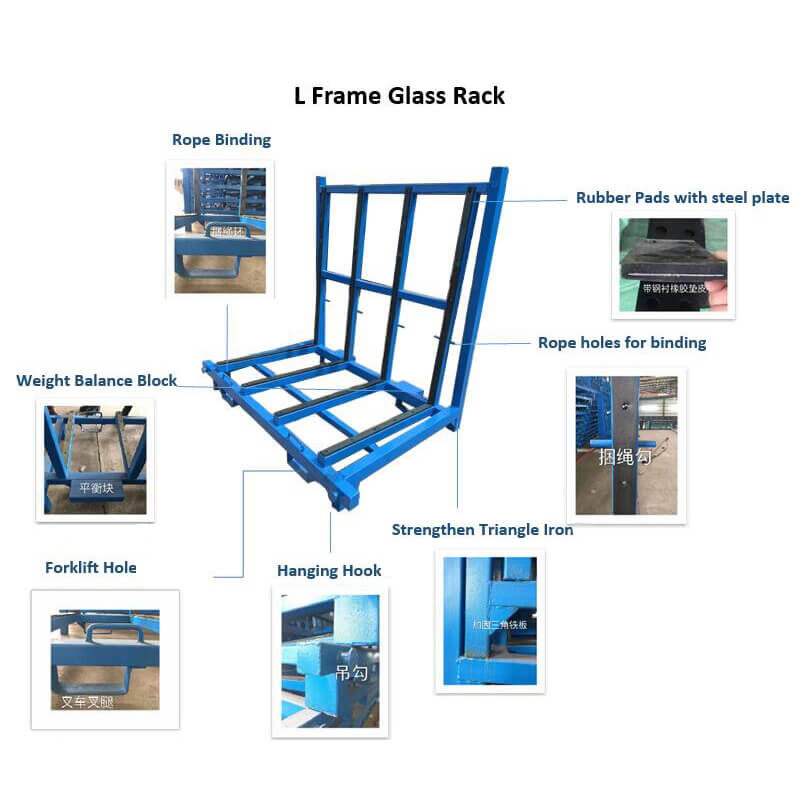

4.Appearance Diagram
5.FAQ
1. How does the glass l frame rack improve the efficiency of the work process?
It provides casters for easy movement; it can be compatible with forklifts and cranes, and can be used together to transport glass; this significantly increases the transportation speed.
2. How much load can the industrial glass storage racks?
Our l buck glass rack can be customized according to your specific needs. It usually adopts a fully welded steel structure and can bear thousands of pounds of glass weight.
