How to Reduce Glass Edge Chipping and Rework in Architectural Glass Processing

Edge chipping is not a small workshop issue. For architectural glass, one poor edge can turn into broken panels, failed tempering, delayed delivery, or extra polishing before shipment. Large building glass usually goes through cutting, grinding, washing, tempering, insulating, laminating, or coating-related work. If the edge is weak at the early stage, every later process carries more risk. That is why many buyers now check not only cutting accuracy, but also four-side edge quality, cooling, clamping, grinding wheel setup, and machine stability. A good glass processing line should help you reduce waste, keep output steady, and protect the value of each sheet.

For buyers planning a new line or replacing an old edging setup, glass deep processing equipment should be selected around real production problems, not only catalog speed.

Why Does Edge Chipping Create So Much Rework?

In architectural glass processing, a chipped edge often means more than an ugly finish. It can become a stress point. It can also affect sealing, polishing brightness, tempering yield, and final installation quality. Many factories only notice the cost after a batch fails, but the root problem usually starts earlier.

Cutting Stress Left on the Edge

A poor cutting line can create small cracks that are hard to see. If the cutting wheel angle is wrong, cutting pressure is too high, or oil supply is missing, the edge may break during snapping or later grinding. It looks like a cutting issue, but the cost shows up later.

Basic checks help a lot:

· Keep the cutting wheel suitable for glass thickness.

· Control knife pressure, not too high.

· Keep oil supply steady during cutting.

· Check diagonal accuracy before batch processing.

Small habits, yes. But they save sheets.

Poor Grinding before Tempering

Tempered glass should be cut, drilled, opened, and edge-ground before tempering. After tempering, extra cutting or edge work is risky because surface stress has already formed. Even light grinding after tempering may increase the chance of breakage during installation.

For this reason, edge grinding before tempering should not be treated as a rough step. It is a safety step. If the edge or chamfer is not good, the glass may crack in the tempering section, especially when thick glass is exposed to strong cooling pressure.

Unstable Handling between Processes

Chipping can also happen when large glass sheets move between cutting, edging, washing, and storage. Architectural glass is often heavy, and the panel size can be large. One corner touch on a metal frame may cause a chip that later becomes a complaint.

Use soft contact materials where possible. Keep racks clean. Do not let glass dust harden on surfaces. This is ordinary factory work, but ordinary work is often where rework starts.

How Should You Control Grinding Quality before Tempering?

Grinding quality depends on several small control points working together. The machine matters, but the operator’s daily setup also matters. If the grinding head, cooling, clamping, and speed are not right, even a good machine cannot give stable results for long.

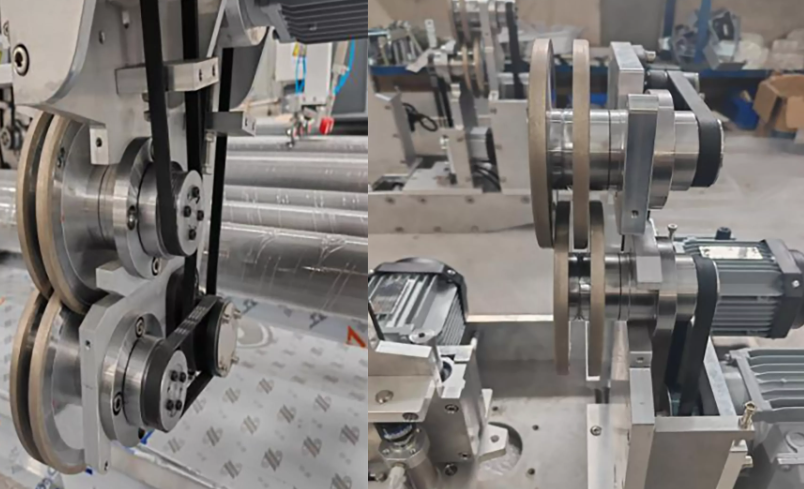

Correct Grinding Head Position

The grinding head has a direct effect on edge quality. Its position and clearance are normally adjusted before machine delivery. During daily work, operators should avoid moving parts that do not need adjustment. Moving the head too far backward may damage the waterproof cover, cause water leakage, or even burn the motor.

A simple rule works well: adjust only what the process needs, and keep a written record when a setting is changed. Many factories skip this. Then the night shift blames the day shift. Not very technical, but very common.

Enough Cooling and Clean Water

Cooling is a key factor in grinding quality. If the cooling pipe is blocked, the edge may heat up, the grinding effect becomes unstable, and tiny cracks may appear. Linear edging machines are especially easy to suffer from hidden pipe blockage because brush hair and glass powder can collect inside.

Daily checks should include:

· Water flow from each nozzle

· Clean water tank and filter

· Nozzle blockage

· Foam level in the tank

· Grinding chamber cleaning after work

Dirty water does not only look bad. It affects polishing, scratches glass, and shortens the life of parts.

Proper Clamping Force

If glass is clamped too loosely, it may shake during grinding. If it is clamped too tightly, the machine load rises, vibration may appear, and thin glass can break. A practical test is to clamp a slightly larger sheet at the machine center, stop the machine, and check whether the glass can be moved by hand. The force should be firm, not brutal.

For architectural glass, this balance is important because edge chips often come from vibration, not only from grinding wheels.

What Machine Features Help Reduce Chipping on Four Edges?

A four-side edging machine is useful when your orders involve rectangular building glass, large panel sizes, and repeat batch work. The goal is not just to grind faster. The bigger value is stable edge treatment on all four sides, less manual turning, and fewer quality gaps between operators.

Four-Side Processing in One Flow

The Automatic Cnc Horizontal Type Glass Four Edges Grinding Machine for Industrial Building is designed for industrial building glass edge processing. Its product parameter table lists a maximum glass size of 2440 × 3660 mm, minimum glass size of 160 × 360 mm, 4–12 mm thickness, transportation speed of 1.0–30 m/min, 20 kW total power, and 380V/50Hz power supply.

For factories handling building glass, this size range is practical. Large panels can move through a horizontal working structure, and four-side grinding helps reduce repeated manual handling. Less handling usually means fewer corner chips. No machine can remove all risk, but a smoother process gives you a better start.

Synchronous Belt Transmission

The machine uses synchronous belt transmission. This helps reduce relative sliding during glass movement. Stable conveying matters because glass edge quality is easily affected by vibration, uneven feed, or sudden position changes.

For batch production, the benefit is clear:

· More stable glass movement

· Lower friction loss

· Better edge line consistency

· Less risk from repeated manual repositioning

This is especially useful when one order includes many sheets of the same size. A small error repeated 200 times becomes a big problem.

PLC Control and Servo Movement

The machine combines a 4-axis motor linkage system, water circulation, conveyor belt drive, PLC control, and CNC numerical control. Its PLC system supports automatic positioning, automatic monitoring, angle adjustment, overload power-off, and one-button start-stop.

For buyers, these functions reduce dependence on operator memory. Parameters can be set more clearly. Operation status is visible on the screen. In daily production, this is often more valuable than a high speed number printed in a brochure.

How Can Daily Operation Cut Rework without Slowing Production?

Reducing chipping does not always mean slowing the line. It means matching speed, wheel condition, water flow, and glass thickness. A steady line with fewer rejects often ships faster than a fast line with constant sorting and regrinding.

Speed Matched to Glass Thickness

The same speed should not be used for every glass thickness. Thin glass may need gentler clamping. Thick glass may need more stable grinding and cooling. If the transportation speed is pushed too hard, the edge may look acceptable at first, but polishing and tempering problems may follow.

Use a small test batch before full production:

· Check edge smoothness by hand and light.

· Check corner quality.

· Check whether washing exposes any hidden chips.

· Keep the same parameter set for the order.

This is not slow. It is cheaper than reworking half a rack.

Wheel Wear Record

Grinding wheels become dull after long use. When this happens, processing time becomes longer, heat increases, and edge finish may drop. Operators should dress or replace wheels before the finish becomes poor.

A useful record can be very simple:

· Date of wheel change

· Glass type

· Approximate meters processed

· Edge quality note

· Operator name

It does not need to be fancy. It just needs to exist.

Cleaning after Each Shift

Glass powder hardens when left on covers, chambers, clamps, and water areas. If it is not cleaned, it can scratch glass and block cooling. The waterproof cover, grinding chamber, housing, and water nozzle should be cleaned after work.

This is the part nobody wants to do at the end of a shift. Still, it decides tomorrow morning’s output.

How Does Wentrica Support Architectural Glass Buyers?

When selecting glass edging equipment, you are also selecting the supplier’s engineering support, production ability, and after-sales response. The machine must fit your glass size, building glass type, floor space, power supply, and production rhythm.

One-Stop Equipment Planning

According to its company profile, Wentrica was founded in September 2014 and focuses on equipment for glass deep processing and window and door industries. The company states that its factory has ISO9001 certification, CE certifications, invention patents, and a dedicated CNC machining workshop.

For buyers, this background matters because edging equipment is often part of a longer line. Cutting, grinding, washing, tempering, insulating, laminating, and storage need to work together. One machine cannot solve every issue if the line layout is poor.

Factory and Custom Support

The factory capability side is useful when you need machine configuration discussion, not just a fixed catalog model. The product page also notes that customized services are available. This is important for buyers with different panel sizes, plant layouts, or special building glass needs.

Before order confirmation, check these points:

· Maximum and minimum glass size

· Actual thickness range needed

· Edge type and 45° angle needs

· Water circulation and drainage layout

· Space for loading and unloading

· Operator training plan

Clear Delivery and Acceptance Terms

For this C Series machine, the product page lists a 70–80 day delivery period after contract signing and deposit payment. It also notes site debugging and acceptance, with acceptance criteria based on the technical standards confirmed in the contract. The whole machine warranty period is one year.

If you need technical discussion, line matching, or a quotation, use the contact page and prepare your glass size range, thickness, daily output target, power standard, and plant layout. Clear data makes the reply faster.

FAQ

Q1: What Is the Main Cause of Glass Edge Chipping in Architectural Glass Processing?
A: Common causes include poor cutting quality, wrong grinding pressure, insufficient cooling, worn grinding wheels, loose or excessive clamping, and unstable conveying. In many cases, more than one factor is involved.

Q2: Should Glass Be Edge-Ground before or after Tempering?
A: Glass should be cut, drilled, opened, and edge-ground before tempering. Finished tempered glass should not be cut or deeply processed again because its surface stress has already formed.

Q3: How Does Cooling Affect Glass Edge Quality?
A: Cooling removes heat during grinding. If water pipes or nozzles are blocked, the edge can overheat, polishing quality may drop, and micro cracks may appear. Clean circulating water is important for stable grinding.

Q4: Why Choose a Four-Edge Grinding Machine for Building Glass?
A: A four-edge grinding machine helps process rectangular architectural glass in a more continuous way. It can reduce manual turning, improve edge consistency, and lower the chance of handling-related chipping.

Q5: What Information Should Be Sent before Asking for a Machine Quote?
A: Send your maximum and minimum glass size, thickness range, glass type, required edge finish, daily output target, power supply, plant layout, and whether customized service is needed.
