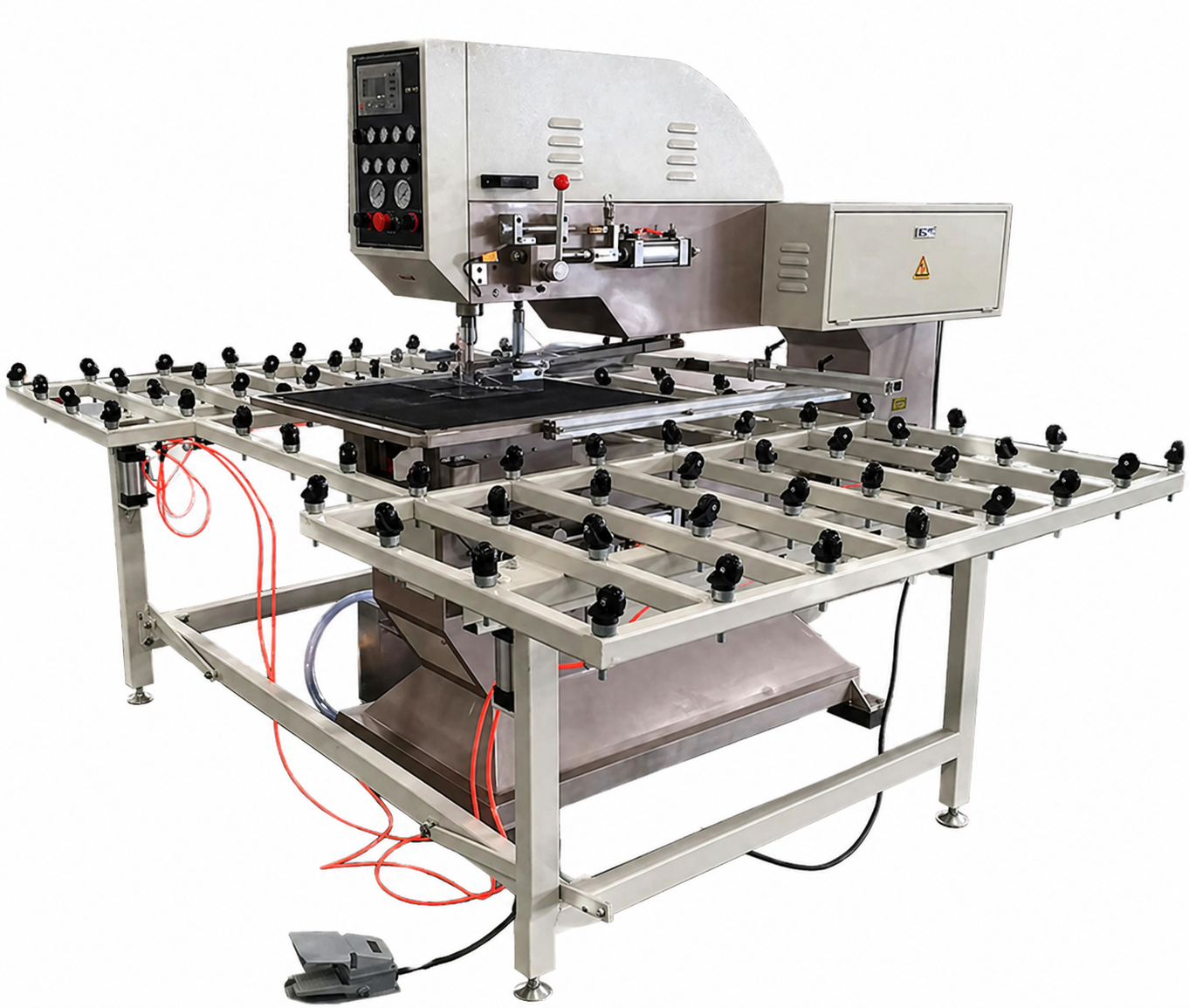

ZJ125 Automatic Glass horizontal drilling machine


Availability:

Quantity:



Inquire Add to Basket

The ZJ125 glass drilling machine is a professional cold processing equipment, equipped with upper and lower drill bits for quick and precise hole drilling on glass sheets. Boasting a rational overall design, it comes with laser positioning, auxiliary lamps, measuring ruler and waterproof cover for enhanced practicality. It can drill holes in various sizes by adopting drill bits with different diameters. Supported by automatic control, this machine features high working efficiency, simple operation and low glass damage rate, ensuring stable and high-quality glass processing.

Model:
ZJ125
Brand:
wentrica

glass drilling machine automatic glass drilling machine cold processing glass drilling machine glass hole drilling machine double-bit glass drilling machine laser positioning glass drilling machine waterproof glass drilling machine variable-size glass hole drilling machine low-damage glass drilling machine high-efficiency glass drilling machine

Product Description

1.General description:

1.ZJ125 Glass drilling machine is a cold processing machine which is easy to drill holes on sheets of glass and is equipped with upper and lower drilling bit.

2.This machine with reasonable design, with laser, lamp, ruler and waterproof cover.

3.Holes of different sizes can be achieved with bits of different diameters.

4.This machine works efficiently; it has low glass damage and is easy to operate.

5.Automatic control

2. Technical parameter:

1. Hole Diameter: φ5～φ80mm(D110-D220 customized made, extra cost)

2. Glass thickness range: 3 ~20mm

3. Max. Size of processing glass: 2200*2500mm

4. Height of Working Table: 940mm

5. Distance between drilling center and back column: 1250 mm

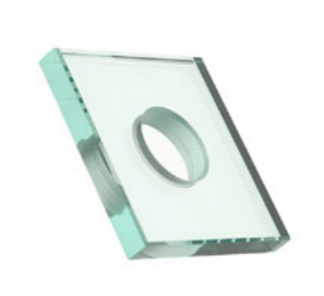

3. Samples:
